The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.

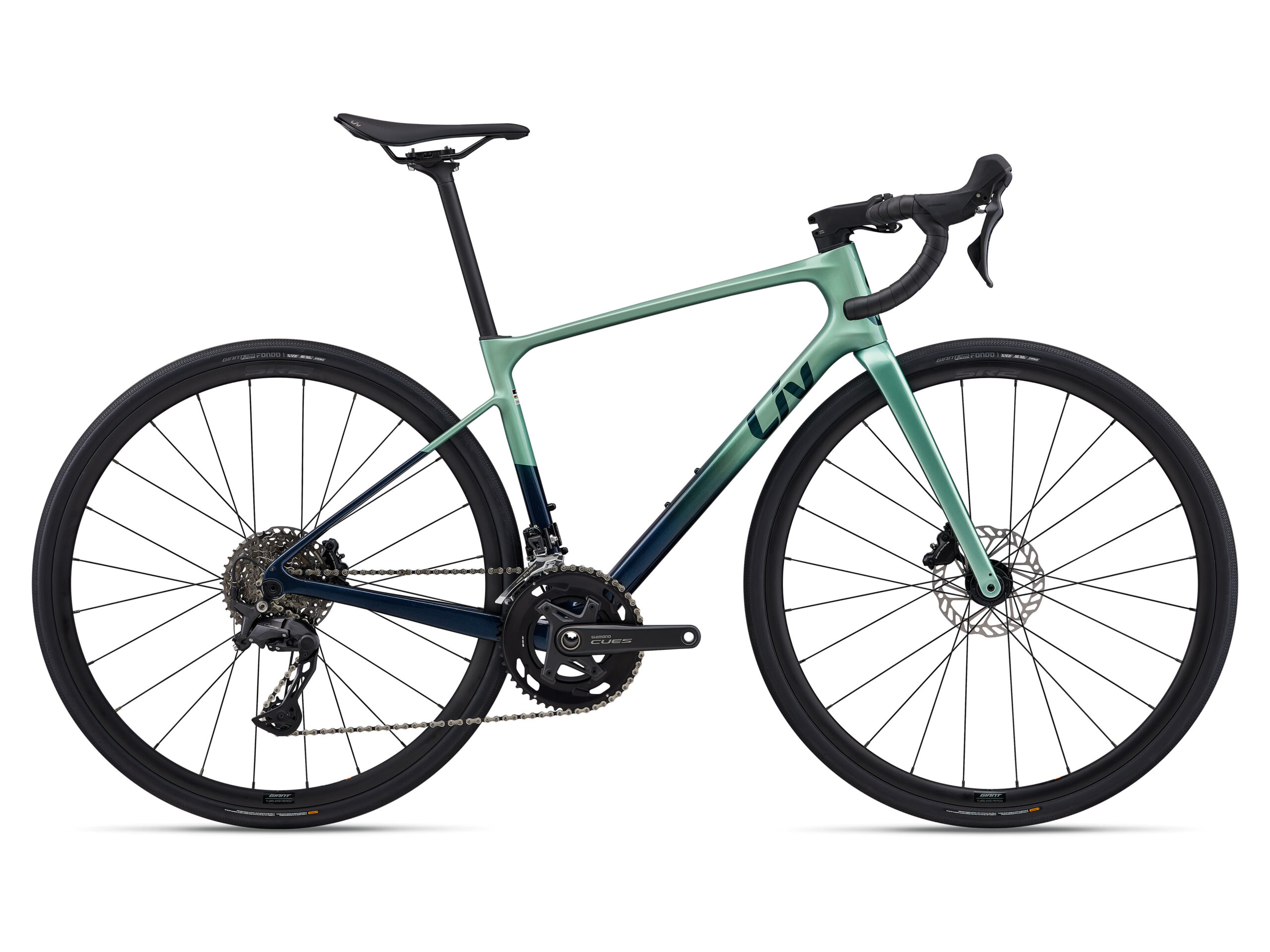

Avail Advanced 3
€1,170.15
The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Specifications
The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Key Performance Factors
Lightweight Advantage

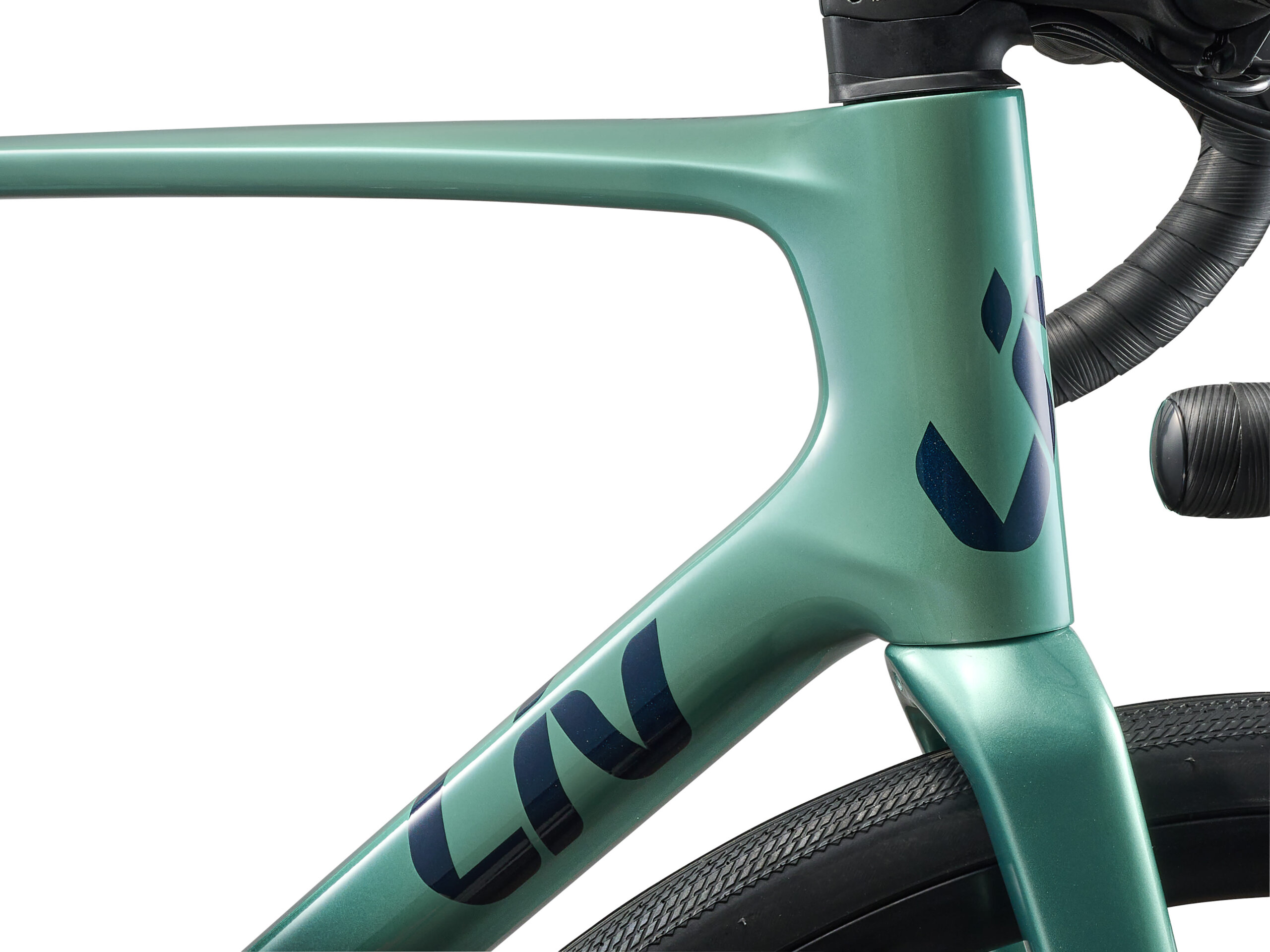

The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control

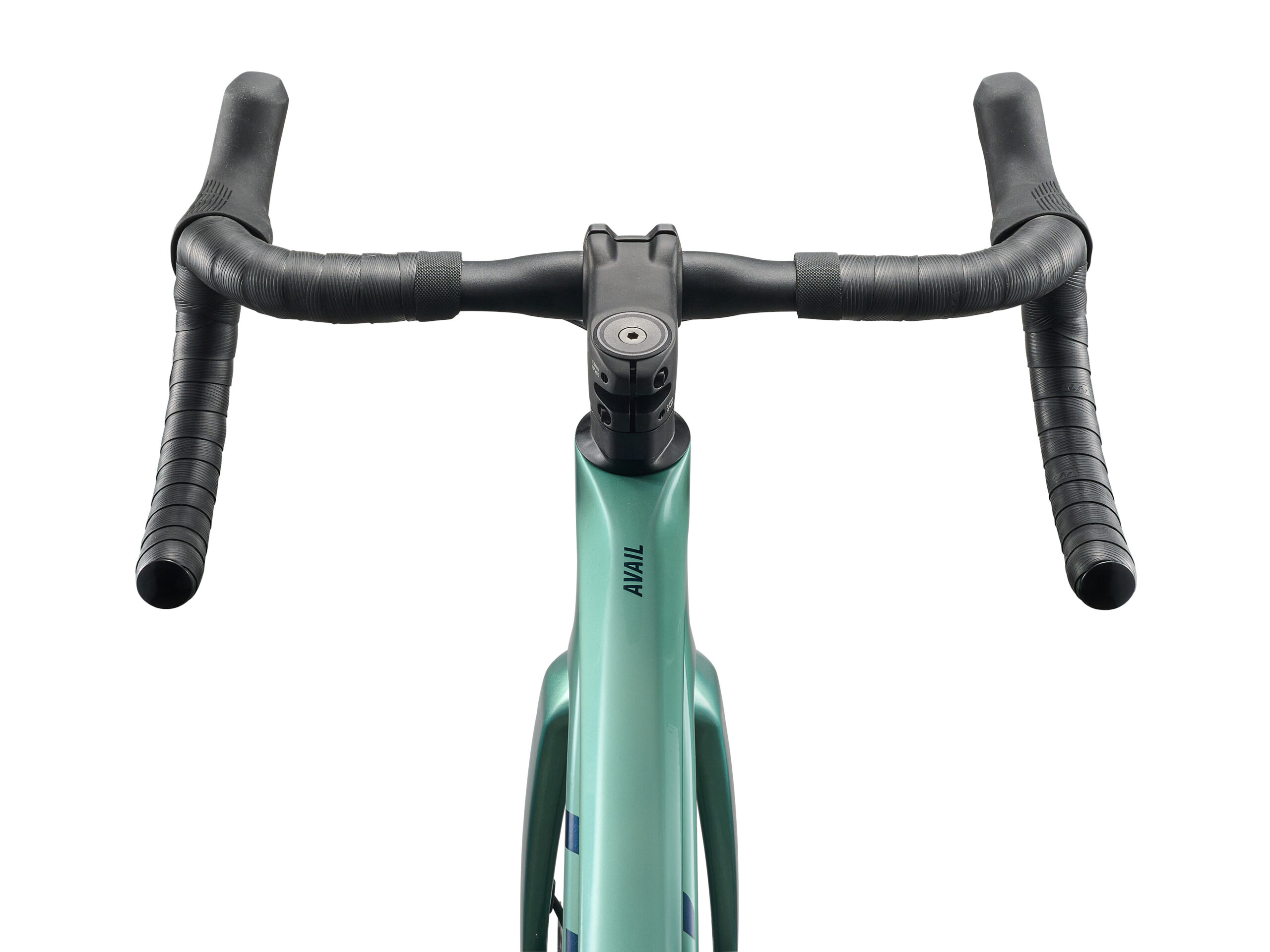

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
| Sizes | XXS, XS, S, M, L |
|---|---|
| Colours | Seafoam/Cosmos Navy |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |

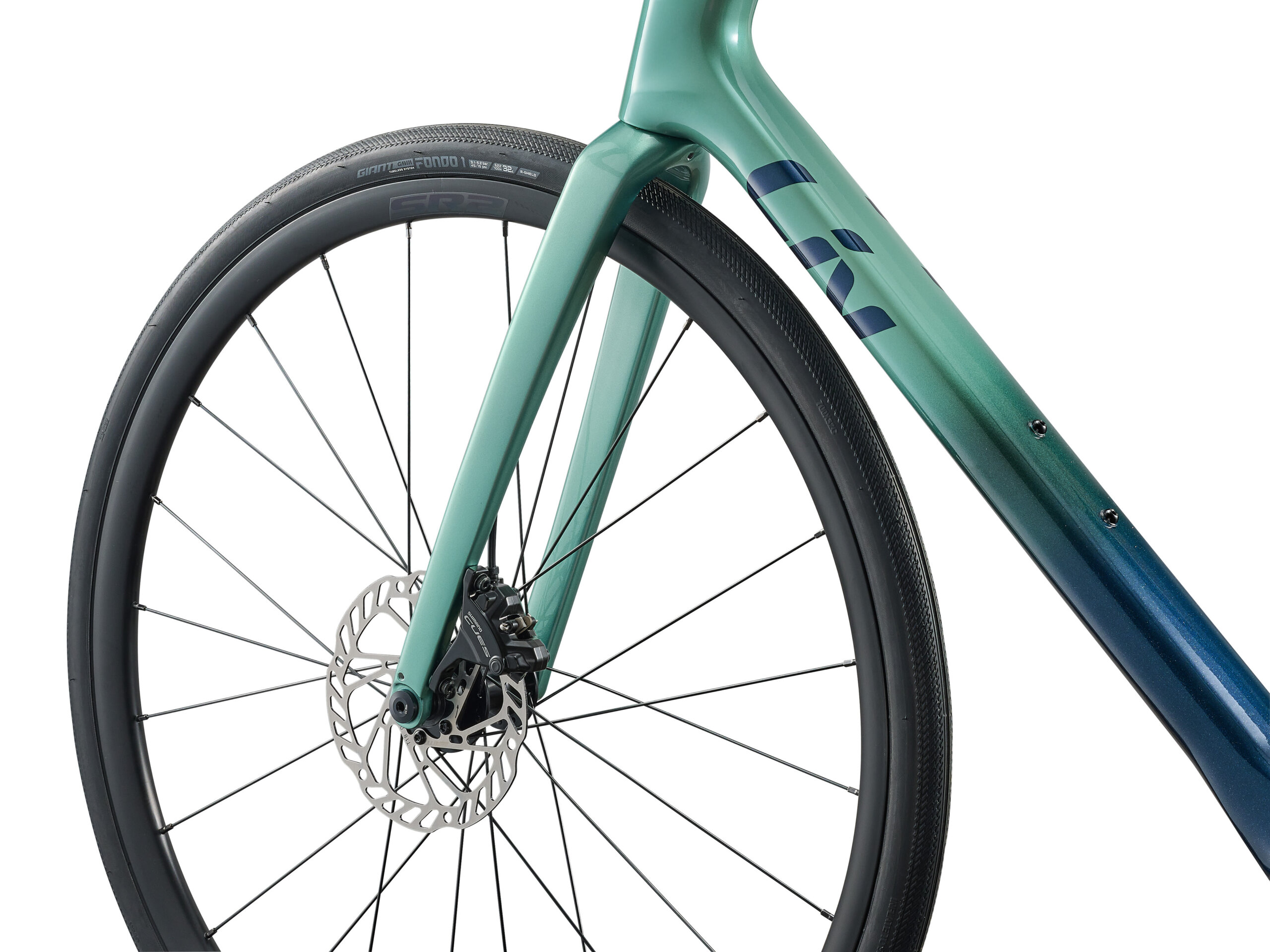

| Fork | Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Liv Contact SL D-Fuse, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm |
| Grips | Liv Stratus Elite 2.0 |
| Stem | Giant Contact AeroLight, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm |
| Seatpost | Giant D-Fuse, composite, 14mm offset, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm |
| Saddle | Liv Approach |

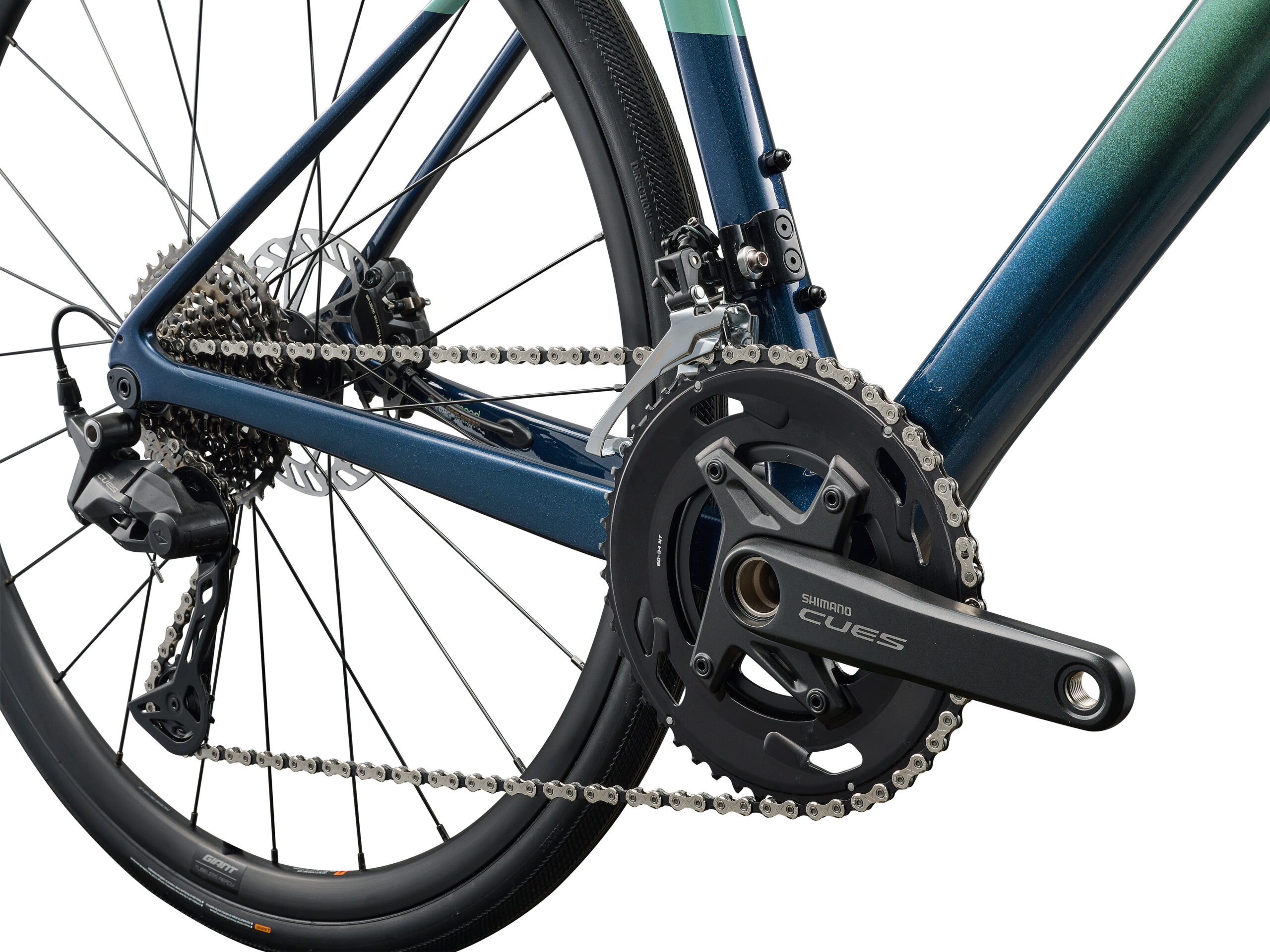

| Shifters | Shimano CUES U6030 |
| Front Derailleur | Shimano CUES U6030F |
| Rear Derailleur | Shimano CUES U6020-10 |
| Brakes | Shimano BR-U6030 hydraulic, Giant MPH rotors, [F] 160mm, [R] 140mm |
| Brake Levers | Shimano CUES U6030 |
| Cassette | Shimano CS-LG400, 10-speed, 11×39 |
| Chain | KMC X11 |
| Crankset | Shimano FC-U6030-2, 34/50 XXS: 160mm, XS: 165mm, S: 165mm, M: 165mm, L: 172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant S-R2 Disc |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tyres | Giant Gavia Fondo 1, tubeless, 700x32c, folding |
| Extras | two bottle cage, fender mount, tubeless prepared, 40mm max tire size |
| Max Tire Clearance | 40mm |
Highlights
Barcode : 4711291219328
Geometry
| XXS | XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 405 | 435 | 465 | ||||
| B | SEAT TUBE ANGLE | 74.5 | 74.5 | 74 | ||||
| C | TOP TUBE LENGTH | 520 | 525 | 535 | ||||
| D | HEAD TUBE LENGTH | 125 | 145 | 165 | ||||
| E | HEAD TUBE ANGLE | 71 | 71 | 71 | ||||
| F | FORK RAKE | 50 | 50 | 50 | ||||
| G | TRAIL | 68.3 | 68.3 | 68.3 | ||||
| H | WHEEL BASE | 995 | 1,002 | 1,007 | ||||
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | ||||
| J | BOTTOM BRACKET DROP | 75 | 75 | 75 | ||||
| K | STACK | 528 | 547 | 566 | ||||
| L | REACH | 373 | 373 | 373 | ||||
| M | STAND OVER HEIGHT | 712 | 737 | 762 | ||||
| N | HANDLEBAR WIDTH | 380 | 400 | 400 | ||||
| O | STEM LENGTH | 70 | 80 | 90 | ||||
| P | CRANK LENGTH DEC | 165 | 165 | 170 | ||||
| Q | WHEEL SIZE ALT |
Technology and Features
