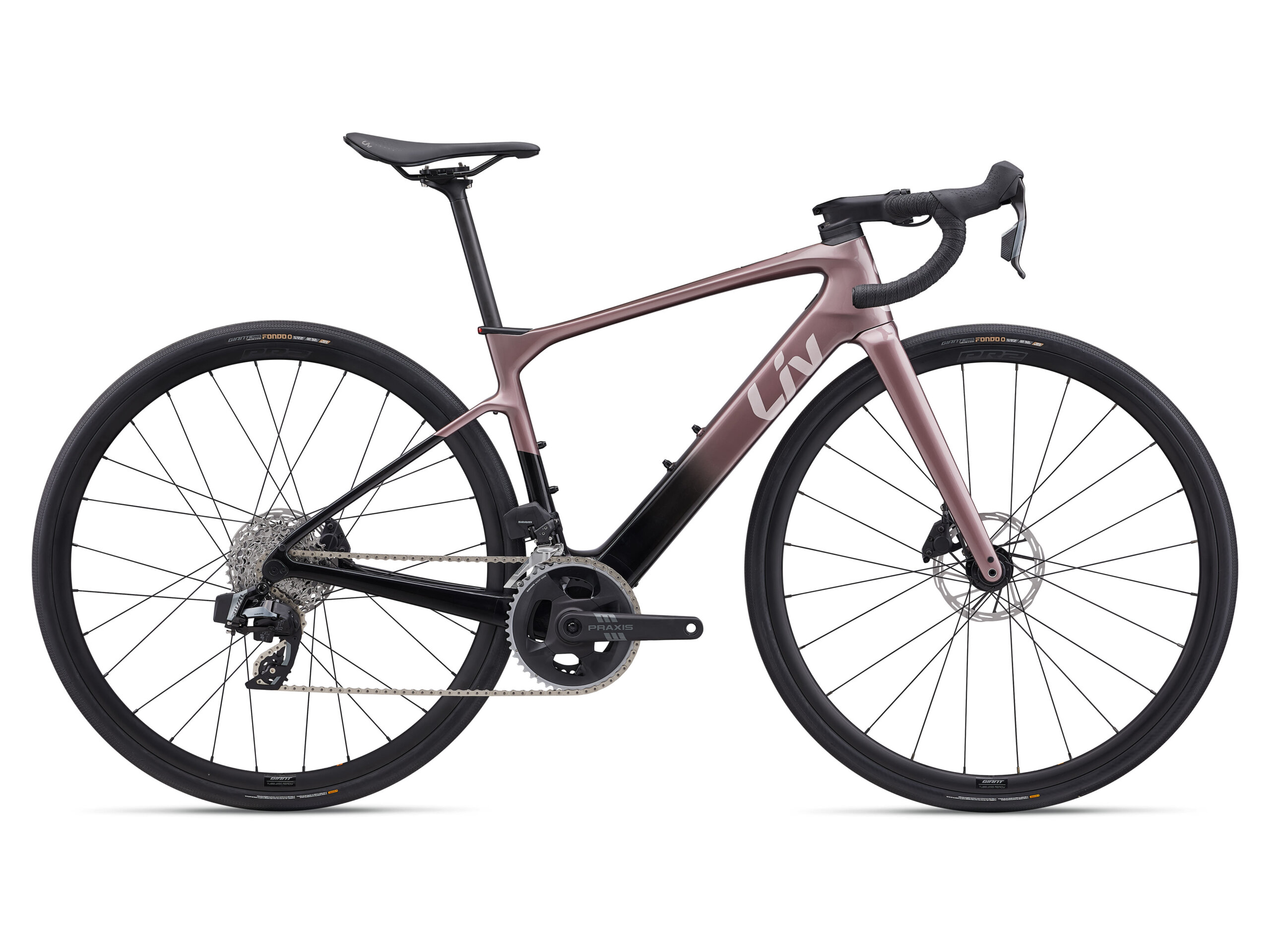

Avail Advanced E+ Elite 2

€7,199.00

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.

Category: Bikes, E Bikes, E Road Tag: 3247, Apply Now, Giant, Liv Women

View

Size L, M, S, XS

Color Iron Rouge / Carbon Smoke

Specifications

Key Performance Factors

A NATURAL RIDE
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

MAXIMUM MILES. MINIMUM FATIGUE.
The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.

DELIVERING POWER & SPEED
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).

Motor	SyncDrive Move Plus, Hub drive 75Nm max
Controller	Mode support switch from SRAM Blips
Display	Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
Battery	Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger	Giant EnergyPak smart charger 4A
Connectivity	Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes	XS, S, M, L
Colours	Iron Rouge/ Carbon Smoke
Frame	Advanced-grade composite,12×145 thru-axle
Fork	Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Shock	–
Handlebar	Liv Contact SL D-Fuse 31.8 alloy
Stem	Contact SL Aerolight 31.8 alloy
Seatpost	Giant D-Fuse, Composite, 14mm offset
Saddle	Liv Approach
Shifters	Sram Rival AXS
Front Derailleur	Sram Rival AXS
Rear Derailleur	Sram Rival AXS
Brakes	Sram Rival AXS HRD, Paceline 160mm 6-bols [F/R]
Brake Levers	Sram Rival AXS HRD
Cassette	Sram Rival XG-1250 10x36T 12-speed
Chain	Sram Rival 12-speed
Crankset	Sram Force X-SYNC 33/46T BCD107 chain ring Praxis E crank Alloy ISIS”
Bottom Bracket	Giant E+ System BBSS
Rims	Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimized
Tyres	Giant Gavia Fondo 0, tubeless, 700×32, folding
Extras	Fender adapter
Lighting	Seatpost clamp integrated tail light

Highlights

Barcode : 4711291244498

Geometry

		XS	S	M	L
A	SEAT TUBE LENGTH	400	435	470	505
B	SEAT TUBE ANGLE	74.5	74.5	74	73.5
C	TOP TUBE LENGTH	515	525	540	555
D	HEAD TUBE LENGTH	120	135	155	175
E	HEAD TUBE ANGLE	70.5	71	72	72
F	FORK RAKE	50	50	50	50
G	TRAIL
H	WHEEL BASE	993	999	1,003	1,013
I	CHAIN STAY LENGTH	420	420	420	420
J	BOTTOM BRACKET DROP	80	80	80	75
K	STACK	529	545	563	582
L	REACH	368	374	378	382
M	STAND OVER HEIGHT	677	708	743	782
N	HANDLEBAR WIDTH	380	400	400	420
O	STEM LENGTH	80	90	100	110
P	CRANK LENGTH DEC
Q	WHEEL SIZE ALT	700C	700C	700C	700C
