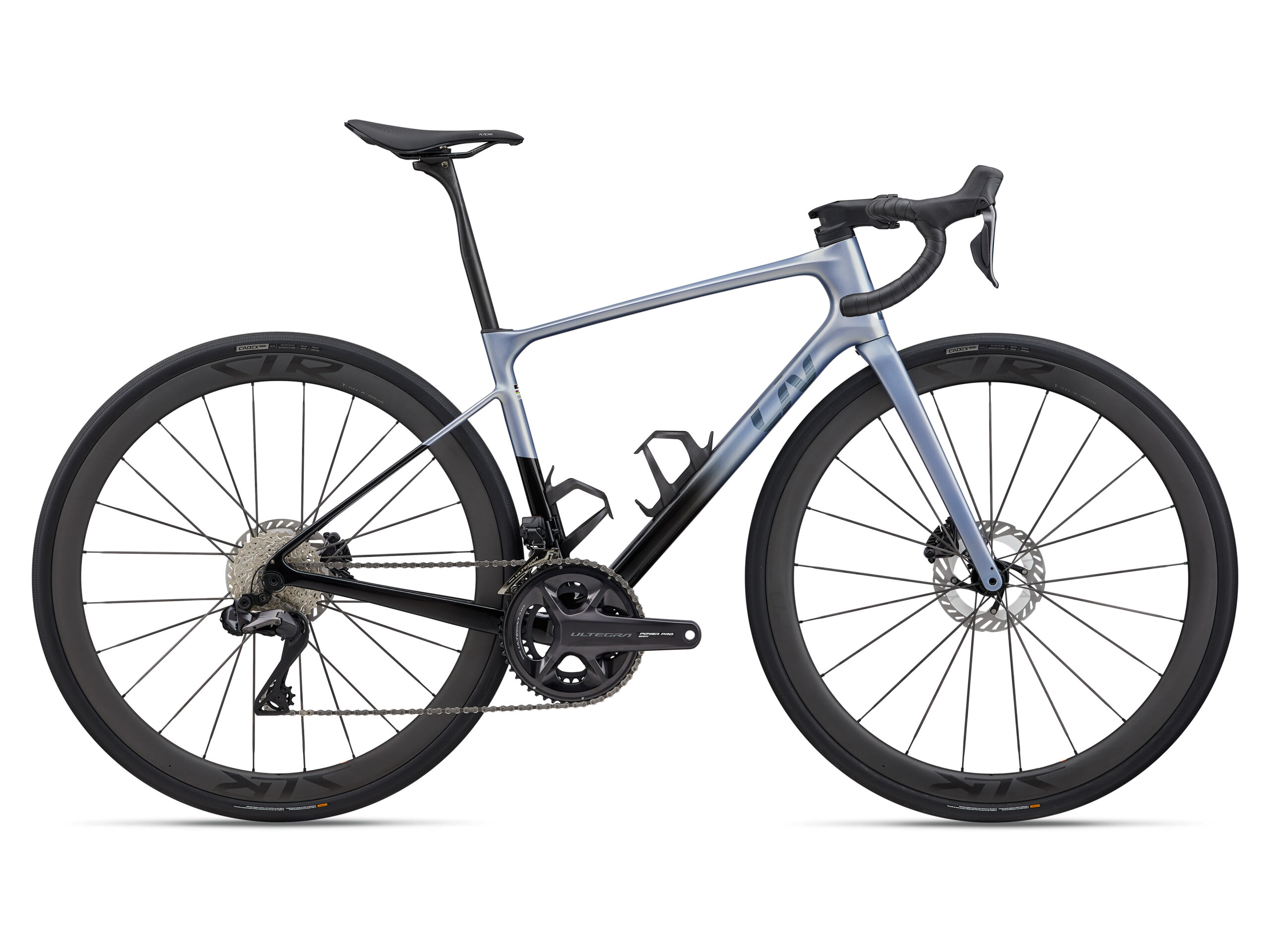

The Avail Advanced Pro is that riding partner who’s up for any challenge on the road—from long winding ascents to short gravel sections, and from solo endurance training rides to the “friendly” competition of a Gran Fondo. Designed for performance and built without compromise, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Avail Advanced Pro 0
The Avail Advanced Pro is that riding partner who’s up for any challenge on the road—from long winding ascents to short gravel sections, and from solo endurance training rides to the “friendly” competition of a Gran Fondo. Designed for performance and built without compromise, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Specifications
The Avail Advanced Pro is that riding partner who’s up for any challenge on the road—from long winding ascents to short gravel sections, and from solo endurance training rides to the “friendly” competition of a Gran Fondo. Designed for performance and built without compromise, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Key Performance Factors
Lightweight Advantage
The Avail Advanced Pro is the ultimate in lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced SL-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
The Avail Advanced Pro is the ultimate in lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced SL-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, hookless carbon rims are designed for high-volume tubeless tires (up to 38mm) and a 36mm rim depth, providing predictable handling and stability from asphalt to pavé.
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, hookless carbon rims are designed for high-volume tubeless tires (up to 38mm) and a 36mm rim depth, providing predictable handling and stability from asphalt to pavé.
| Sizes | XXS, XS, S, M, L |
|---|---|
| Colours | Dreamy Blue/Carbon/Chrome |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Liv Contact SLR D-Fuse, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm |
| Grips | Liv Stratus Elite 2.0 |
| Stem | Giant Contact SL AeroLight, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm |
| Seatpost | Giant D-Fuse SLR, composite, -5/+15mm offset, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm |
| Saddle | Liv Alacra SL |
| Shifters | Shimano Ultegra Di2 ST-R8170 |
| Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
| Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
| Brakes | Shimano Ultegra hydraulic, Shimano RT-CL800 rotors, [F]160mm, [R]160mm |
| Brake Levers | Shimano Ultegra hydraulic |
| Cassette | Shimano Ultegra, 12-speed, 11×34 |
| Chain | Shimano CN-M8100 |
| Crankset | Shimano Ultegra, 34/50 with Giant power meter, XXS:160mm, XS:165mm, S:165mm, M:170mm, L:172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 0 40 WheelSystem, [F] 36mm, [R] 36mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX Classic 32, tubeless, 700x32c, folding |
| Extras | two bottle cage, fender mount, computer mount, tubeless prepared, 40mm max tire size |
| Max Tire Clearance | 40mm |
Highlights
Barcode : 4711291219434
Geometry
| XXS | XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 385 | 405 | 435 | 465 | 495 | ||
| B | SEAT TUBE ANGLE | 75 | 74.5 | 74.5 | 74 | 74 | ||
| C | TOP TUBE LENGTH | 500 | 520 | 525 | 535 | 550 | ||
| D | HEAD TUBE LENGTH | 110 | 125 | 145 | 165 | 185 | ||
| E | HEAD TUBE ANGLE | 69.8 | 71 | 71 | 71 | 72 | ||
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 | ||
| G | TRAIL | 76.2 | 68.3 | 68.3 | 68.3 | 61.8 | ||
| H | WHEEL BASE | 989 | 995 | 1,002 | 1,007 | 1,013 | ||
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | 420 | 420 | ||
| J | BOTTOM BRACKET DROP | 75 | 75 | 75 | 75 | 75 | ||
| K | STACK | 510 | 528 | 547 | 566 | 589 | ||
| L | REACH | 363 | 373 | 373 | 373 | 381 | ||
| M | STAND OVER HEIGHT | 683 | 712 | 737 | 762 | 789 | ||
| N | HANDLEBAR WIDTH | 380 | 380 | 400 | 400 | 420 | ||
| O | STEM LENGTH | 70 | 70 | 80 | 90 | 90 | ||
| P | CRANK LENGTH DEC | 160 | 165 | 165 | 170 | 172.5 | ||
| Q | WHEEL SIZE ALT |
