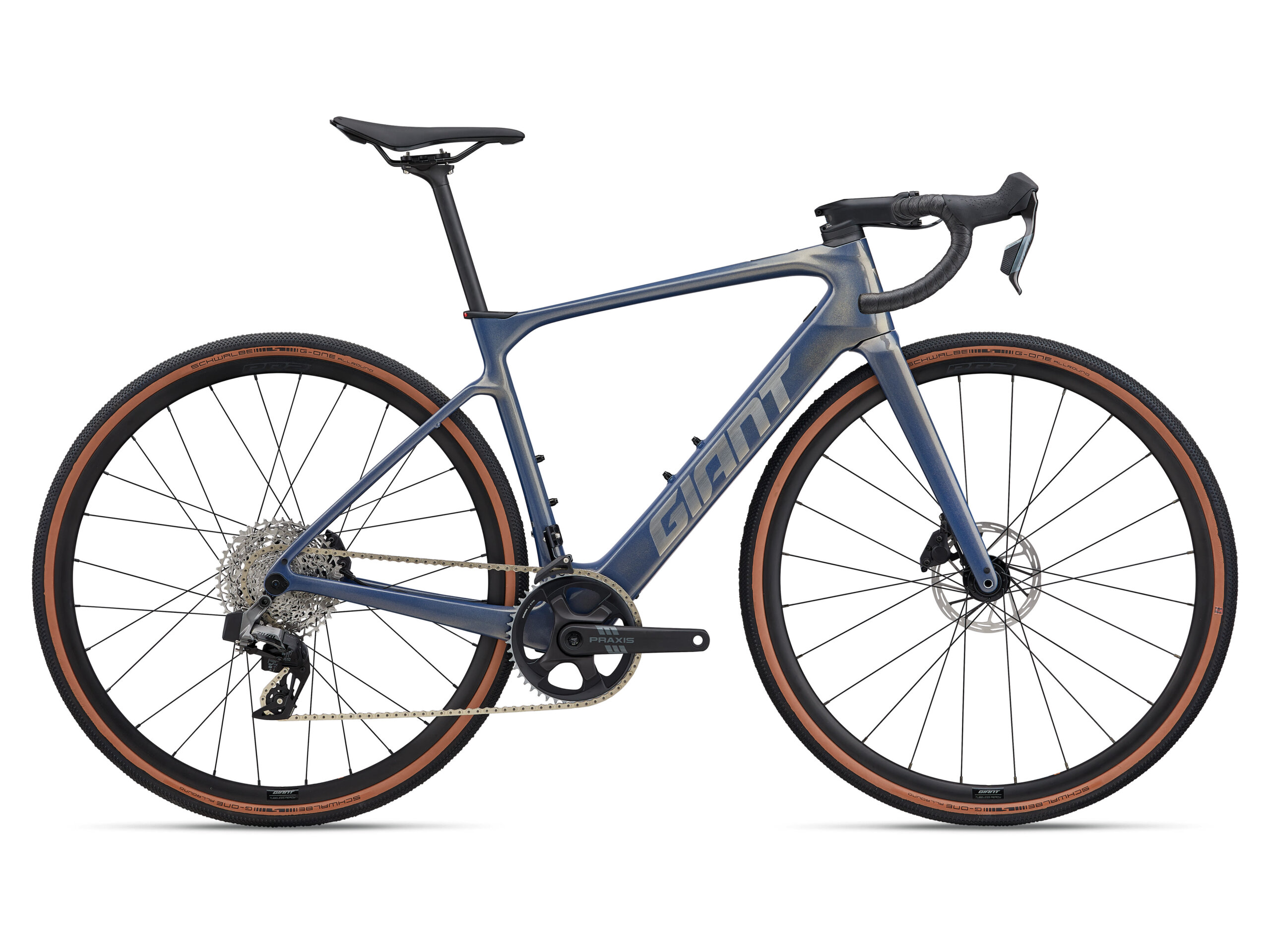

Defy Advanced E+ Elite AR

€6,599.00

With its smooth-riding composite frame, lightweight battery, new SyncDrive Move Plus integrated rear hub motor and all-road ready 38mm tires, the Defy Advanced E+ AR is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

Category: Bikes, E Bikes, E Road Tag: 3247, Apply Now, Giant

View

Size L, M, ML, S, XL

Color Midnight Moon

Specifications

Key Performance Factors

SEAMLESS POWER
The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedaling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION
The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE
A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with all-road ready 35mm tubeless tires, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Motor	SyncDriveMove Plus Hub drive 75Nm max
Controller	Mode support switch from SRAM Blips
Display	Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
Battery	Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger	Giant EnergyPak smart charger 4A
Connectivity	Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes	S, M, ML, L, XL
Colours	Mercury
Frame	Advanced-grade composite,12×145 thru-axle
Fork	Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Shock	–
Handlebar	Giant Contact SL D-Fuse 31.8 alloy
Stem	Contact SL Aerolight 31.8 alloy
Seatpost	Giant D-Fuse, Composite, 14mm offset
Saddle	Giant Approach
Shifters	Sram Rival AXS
Front Derailleur	n/a
Rear Derailleur	Sram Rival XPLR AXS
Brakes	Sram Rival AXS HRD, Paceline 160mm 6-bols [F/R]
Brake Levers	Sram Rival AXS HRD
Cassette	Sram XPLR XG-1251 10x44T 12-speed
Chain	Sram Rival 12-speed
Crankset	Sram X-SYNC 46T BCD107 chain ring, Praxis E crank Alloy ISIS
Bottom Bracket	Giant E+ System BBSS
Rims	Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle
Spokes	Sapim spoke E-Light [R] Race [F], e-bike optimized
Tyres	Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700×35
Extras	Fender adapter
Lighting	Seatpost clamp integrated tail light

Highlights

Barcode : 4711291244337

Geometry

		S	M	ML	L
A	SEAT TUBE LENGTH	445	480	515	535
B	SEAT TUBE ANGLE	74	73.5	73	73
C	TOP TUBE LENGTH	530	545	560	575
D	HEAD TUBE LENGTH	130	145	167	187
E	HEAD TUBE ANGLE	71.5	72.5	72.5	72.5
F	FORK RAKE	50	50	50	50
G	TRAIL	56.1	58.6	58.6	58.6
H	WHEEL BASE	994	995	1,008	1,023
I	CHAIN STAY LENGTH	420	420	420	420
J	BOTTOM BRACKET DROP	80	80	75	75
K	STACK	542	560	576	595
L	REACH	374	379	384	393
M	STAND OVER HEIGHT	716	746	779	799
N	HANDLEBAR WIDTH	400	420	420	440
O	STEM LENGTH	90	100	110	110
P	CRANK LENGTH DEC
Q	WHEEL SIZE ALT	700C	700C	700C	700C
