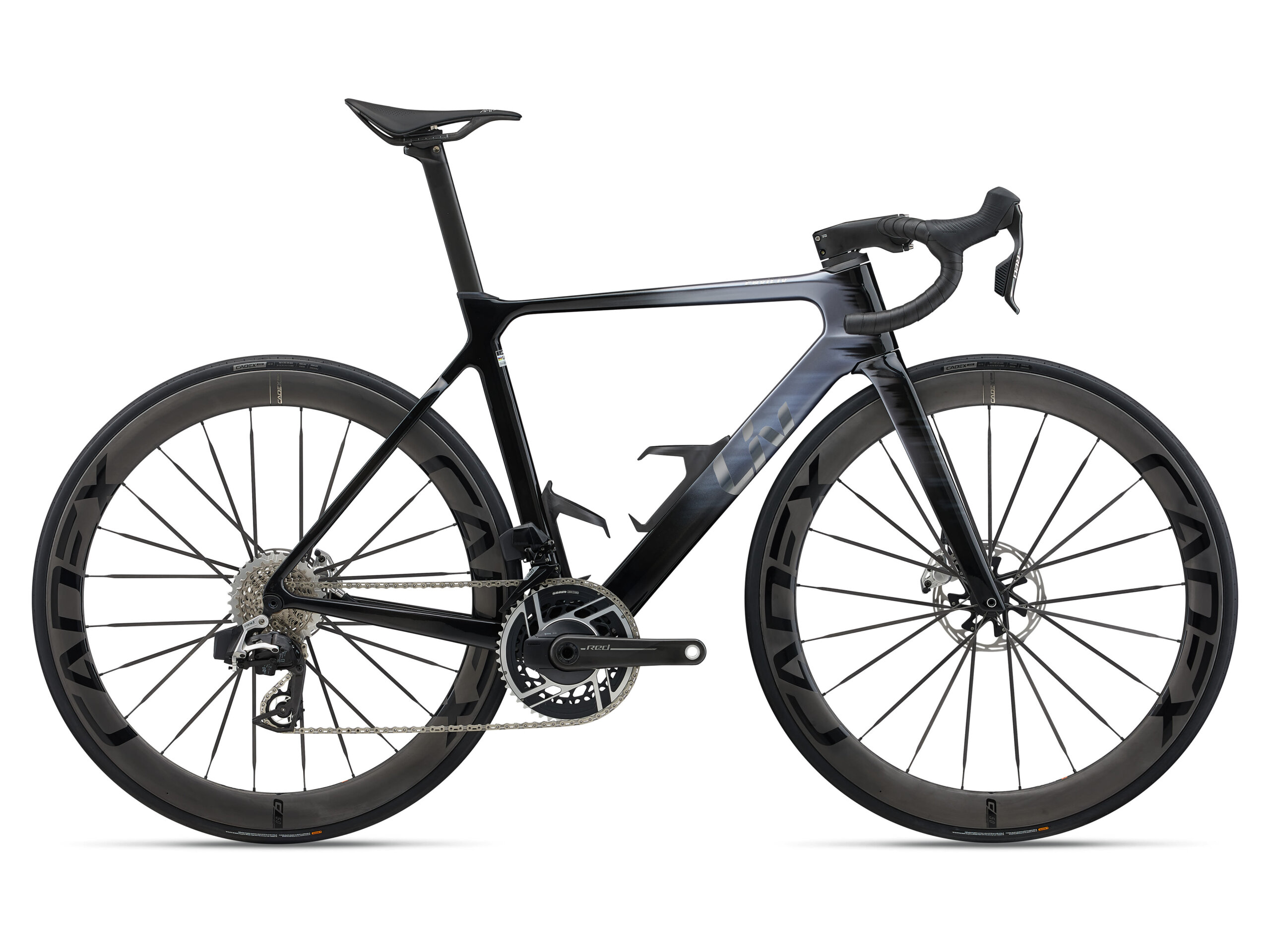

EnviLiv Advanced SL

€13,799.00

The EnviLiv Advanced SL is designed and optimized for aerodynamic performance, making it the official aero road bike of Liv AlUla Jayco WorldTeam. From stage race breakaways to the final criterium lap, the EnviLiv is made to be out front.

Additional information

Size	M, S, XS
Color	Mercury

Specifications

Key Performance Factors

Optimized Aerodynamics
In our pursuit of maximum power and efficiency, we analyze how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The EnviLiv features truncated ellipse airfoil tube shapes and the Liv Contact SLR Aero handlebar, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency
Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the new EnviLiv has found the sweetest spot, with an Advanced SL-grade composite frameset. We use Continuous Fiber Technology to add strength without adding weight, Carbon Nanotube Technology resin to improve impact resistance, and Fusion Process for lighter, stronger frame junctions. So you can accelerate faster away from the pack.

Seamless Integration
When every second matters, so does every detail. So we developed a way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Sizes	XS, S, M
Colours	Gloss Mercury/Carbon Smoke/Chrome
Frame	Advanced SL-grade composite, 12x142mm thru-axle, disc
Fork	Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	Liv Contact SLR Aero, 31.8mm
Grips	Liv Stratus Elite 2.0
Stem	Giant Contact SLR Aero
Seatpost	Giant Vector SLR, full-composite
Saddle	CADEX Amp
Pedals	PEDALS NOT SUPPLIED
Shifters	SRAM RED eTap AXS 2×12
Front Derailleur	SRAM RED eTap AXS
Rear Derailleur	SRAM RED eTap AXS
Brakes	SRAM RED eTap hydraulic, SRAM PaceLine X rotors [F] 160mm, [R] 140mm
Brake Levers	SRAM RED eTap AXS hydraulic
Cassette	SRAM RED, 12-speed, 10×33
Chain	SRAM RED
Crankset	SRAM RED PM E1 DUB, 35/48 with power meter
Bottom Bracket	SRAM, press fit
Rims	CADEX 50 Ultra WheelSystem, [F] 50mm, [R] 50mm
Hubs	[F] CADEX R3-C Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C40 Aero Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes	CADEX Aero Carbon Spoke
Tyres	CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras	Out front computer mount, two bottle cages, factory tubeless set up
Max Tire Clearance	32mm

Geometry

		XS	S	M
A	SEAT TUBE LENGTH	470	500	530
B	SEAT TUBE ANGLE	75	74.5	74
C	TOP TUBE LENGTH	508	524	540
D	HEAD TUBE LENGTH	120	135	155
E	HEAD TUBE ANGLE	71	72	72.5
F	FORK RAKE	49	49	49
G	TRAIL	66.3	59.9	56.8
H	WHEEL BASE	973	977	984
I	CHAIN STAY LENGTH	405	405	405
J	BOTTOM BRACKET DROP	72	70	70
K	STACK	517	532	553
L	REACH	370	377	382
M	STAND OVER HEIGHT	731.8	761.1	787.4
N	HANDLEBAR WIDTH	360	380	400
O	STEM LENGTH	80	90	100
P	CRANK LENGTH DEC	165	170	170
Q	WHEEL SIZE ALT	700C	700C	700C
