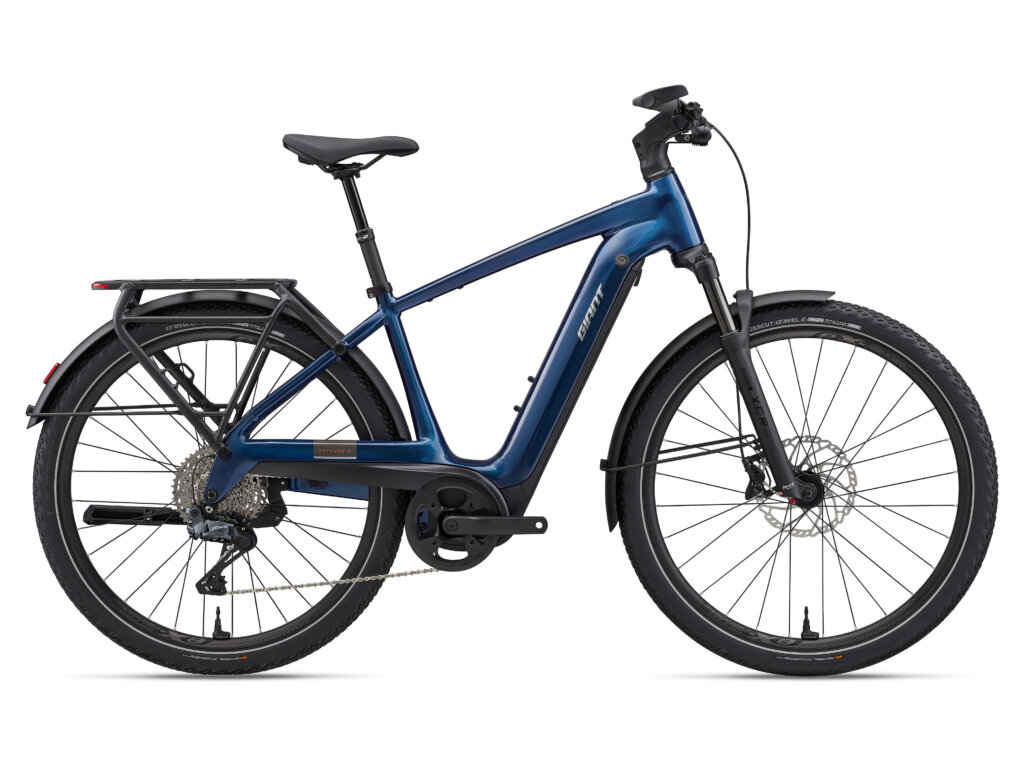

Explore E+ 1

€4,999.00

Built for adventure, the Explore E+ turns commutes and escapes into open horizons. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.

Additional information

Size	L, M, XL
Color	Metallic Navy

Specifications

Key Performance Factors

CONFIDENCE & COMFORT
Built for adventure, the Explore E+ is a highly capable and adaptable machine to discover new routes and new experiences on roads, gravel or dirt. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.

POWER THAT LASTS
Endurance comes from the EnergyPak battery, running cooler and more efficient with up to 2300 charge cycles. Paired with the SyncDrive Pro 2 motor delivering 85Nm of torque (SyncDrive Sport2,75Nm for Explore E+ 2, 3 & 4), it makes climbs manageable and distance effortless. Smart Assist adapts support automatically, while E-Shift with belt drive* provides quiet, low-maintenance shifting for dependable power on every ride.

PROTECTION YOU TRUST
Safety and security are built into the Explore E+. Aegis safety technology includes E-Lock with alarm, Apple Find My for tracking, the Aegis Tire Checker for real-time pressures, and the Aegis Radar* to detect approaching vehicles. Integrated lighting syncs with Radar to increase visibility. Combined with racks, mounts, and a one-piece carrier, it’s a complete solution for connected, protected riding. *Belt drive and Aegis Radar are available on select models only

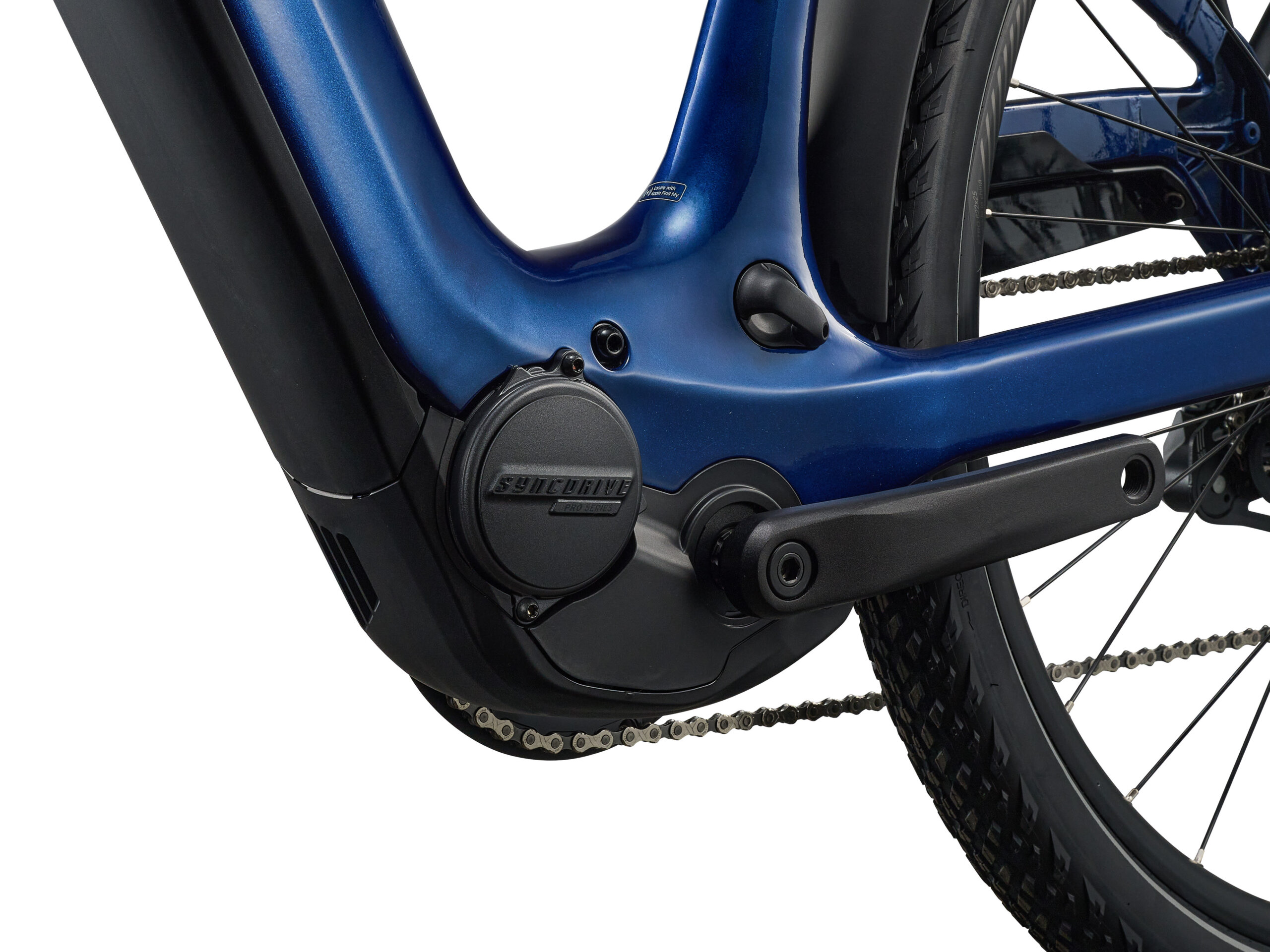

Motor	Giant SyncDrive Pro2, 85Nm PedalPlus 6-Sensor technology
Controller	Giant RideControl Go 2 Giant RideControl Ergo4 Dual Remotes
Display	Giant RideDash EVO 2.0, high-angle visibility, 3″ full color LCD display, on-board navigation
Battery	Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604)
Range	CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger	Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h
Connectivity	Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes	M, L, XL, XXL
Colours	Metallic Navy
Frame	Gen 4 ALUXX aluminum, Overdrive 1.8″ – 1.5″ head tube, integrated battery, integrated KSA40 kickstand mount
Fork	SR Suntour XCR34 2CR air boost 100mm travel 15x110mm AH axle
Shock	n/a
Handlebar	Giant Contour Comfort Riser 31.8x720mm
Grips	RideControl Ergo4 Integrated Trekking (w/Bar-end)
Stem	Giant Contour EVO integrated 16⁰ NEW (S/M:80mm L/XL/XXL 100mm)
Seatpost	Giant Contact Switch Dropper Seatpost (100mm Travel)
Saddle	Selle Royal Vivo Ergo Moderate Unisex
Pedals	VPE-537 PP Platform Pedal
Shifters	Shimano Cues Di2 E-Shift
Rear Derailleur	Shimano Cues Di2, 11-Speed
Brakes	Shimano Deore, BR-MT420, hydraulic disc, 4-piston, 203mm [F] 180mm [R]
Brake Levers	Shimano BL-M401
Cassette	Shimano, 11-45T, 11-speed
Chain	Shimano Linkglide CN-LG500
Crankset	Forged alloy spider w/chainguard BCD 104, steel narrow/wide chainring 42T
Rims	Giant eX25, Tubeless Ready, 622×25 Aluminium
Hubs	Giant eTracker Boost 6-bolt disc 15x110mm [F] 12x148mm [R]
Spokes	Stainless steel, e-bike optimized
Tyres	Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip
Extras	HMI 2.0 including E locking and Apple Find My. Aegis tyre Checker. On-board Tyre Pressure Management System (TPMS)
Lighting	Supernova Mini 3 [F] Rear Rack Integrated tail light [R]
Lock	ABUS Xplus battery lock
Carrier	MIK rack. System bag & basket compatible Tail light integrated Aegis Radar compatible
Fender/Chainguard	Alluminum
Combined Maximum Load Limit	Type 3 150kg

Geometry

		M	L	XL
A	SEAT TUBE LENGTH	435	485	535
B	SEAT TUBE ANGLE	73	73	73
C	TOP TUBE LENGTH	600	610	630
D	HEAD TUBE LENGTH	140	155	170
E	HEAD TUBE ANGLE	69.5	69.5	69.5
F	FORK RAKE	51	51	51
G	TRAIL
H	WHEEL BASE	1,144	1,155	1,176
I	CHAIN STAY LENGTH	470	470	470
J	BOTTOM BRACKET DROP	60	60	60
K	STACK	668	682	696
L	REACH	396	401	417
M	STAND OVER HEIGHT
N	HANDLEBAR WIDTH	690	690	690
O	STEM LENGTH	80	100	100
P	CRANK LENGTH DEC
Q	WHEEL SIZE ALT	29"	29"	29"
