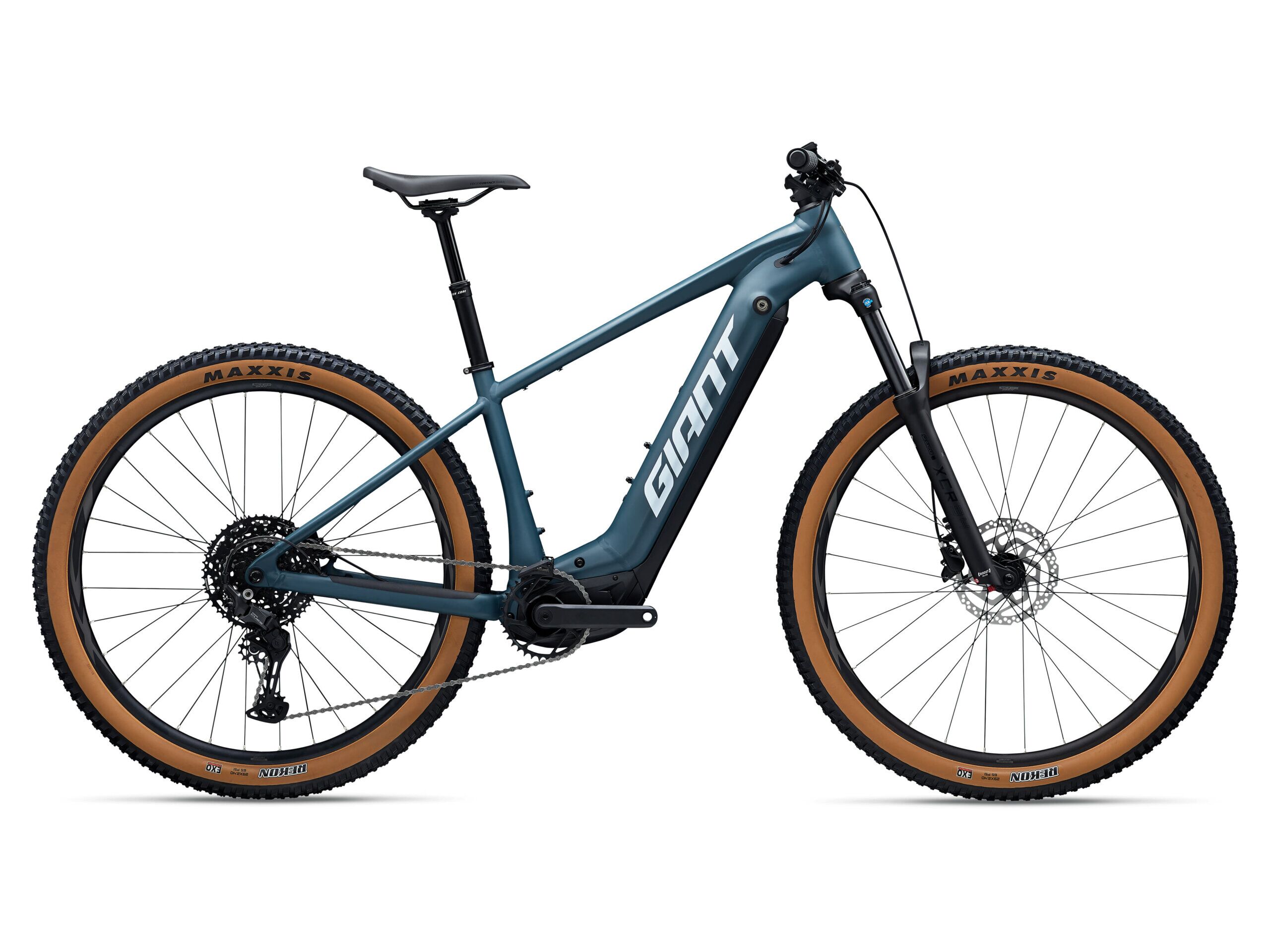

Fathom E+

€3,599.00

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Additional information

Size	L, M, S, XL
Color	Deep Lake

Specifications

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Key Performance Factors

Smooth power delivery
The new SyncDrive Pro 2 motor delivers smooth, instantaneous power with 85Nm of torque to help riders climb steep hills and extend their trail riding capabilities.

Balanced, confident handling
Lightweight aluminum frame with trail-friendly geometry, 130mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control even in the toughest off-road terrain.

Long-lasting battery
Integrated EnergyPak Smart with 750Wh of capacity is easy to charge up to 80 percent in 2.5 hours with our 4A Fast Charger.

Motor	Giant SyncDrive Pro 2 85Nm PedalPlus 6-Sensor technology
Controller	Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

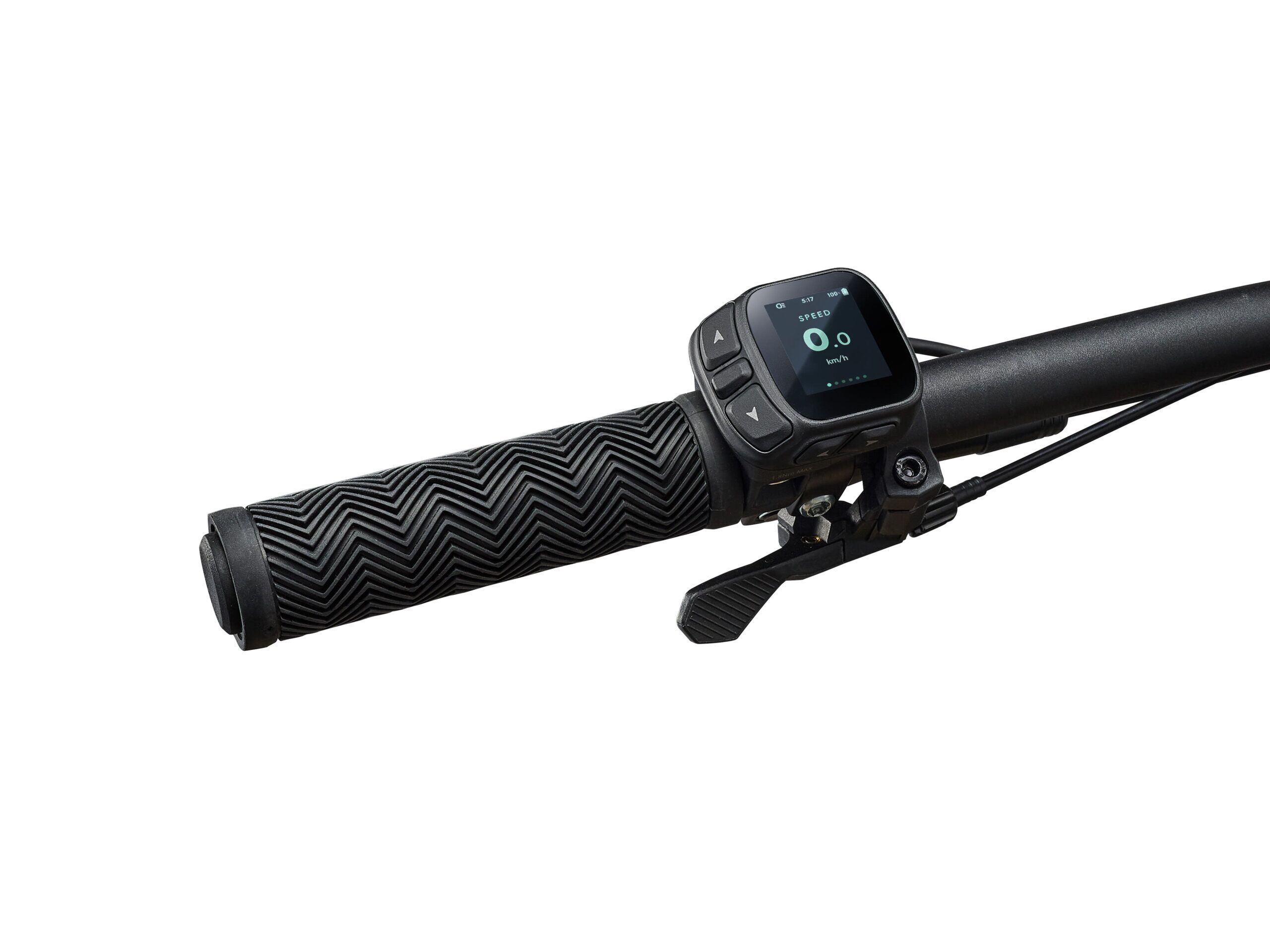

Display	Giant RideControl Dash 2, high-angle visibility, full color LCD display
Battery	Giant EnergyPak Smart 750Wh
Charger	Giant EnergyPak smart charger 4A
Connectivity	Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes	S, M, L, XL, XXL
Colours	Deep Lake
Frame	ALUXX aluminum, Overdrive 1.125″ – 1.8″ head tube, 148x12mm Thru-axle, integrated KSA40 kickstand mount
Fork	SR Suntour XCR34 2CR coil boost 130mm travel 15x110mm AH axle
Shock	–
Handlebar	Giant Connect TR Riser 31.8x750mm [S], 780mm [M-XXL]
Grips	Giant Sole-O
Stem	Giant Contact
Seatpost	Giant Contact Switch Core dropper seatpost, 100mm travel
Saddle	Giant Ergo Contact Trail, ESG
Pedals	Anti-slip Platform
Shifters	Shimano Cues
Rear Derailleur	Shimano Cues 10-speed
Brakes	Shimano MT200, hydraulic disc,180mm [F/R]
Brake Levers	Shimano BL-MT200
Cassette	Shimano Cues11-48T 10-speed
Chain	Shimano Linkglide CN-LG500
Crankset	Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms
Rims	Giant XCT 29 Tubeless Ready 25mm e-bike optimized
Hubs	eTracker boost alloy 6-bolt disc 15x110mm[F] 12x148mm[R]
Spokes	Stainless steel
Tyres	Maxxis Rekon 29×2.4″, EXO, 60TPI
Extras	HMI 2.0 including E locking and Apple Find My
Lighting	–
Lock	ABUS Xplus battery lock
Carrier	–

Geometry

		S	M	L	XL
A	SEAT TUBE LENGTH	380	420	460	495
B	SEAT TUBE ANGLE	75	75	75	75
C	TOP TUBE LENGTH	590	610	630	650
D	HEAD TUBE LENGTH	110	120	130	140
E	HEAD TUBE ANGLE	66	66	66	66
F	FORK RAKE	51	51	51	51
G	TRAIL
H	WHEEL BASE	1,197	1,219	1,241	1,262
I	CHAIN STAY LENGTH	470	470	470	470
J	BOTTOM BRACKET DROP	65	65	65	65
K	STACK	647	656	665	674
L	REACH	416	434	451	469
M	STAND OVER HEIGHT
N	HANDLEBAR WIDTH	750	780	780	780
O	STEM LENGTH	40	40	50	50
P	CRANK LENGTH DEC
Q	WHEEL SIZE ALT	29"	29"	29"	29"
