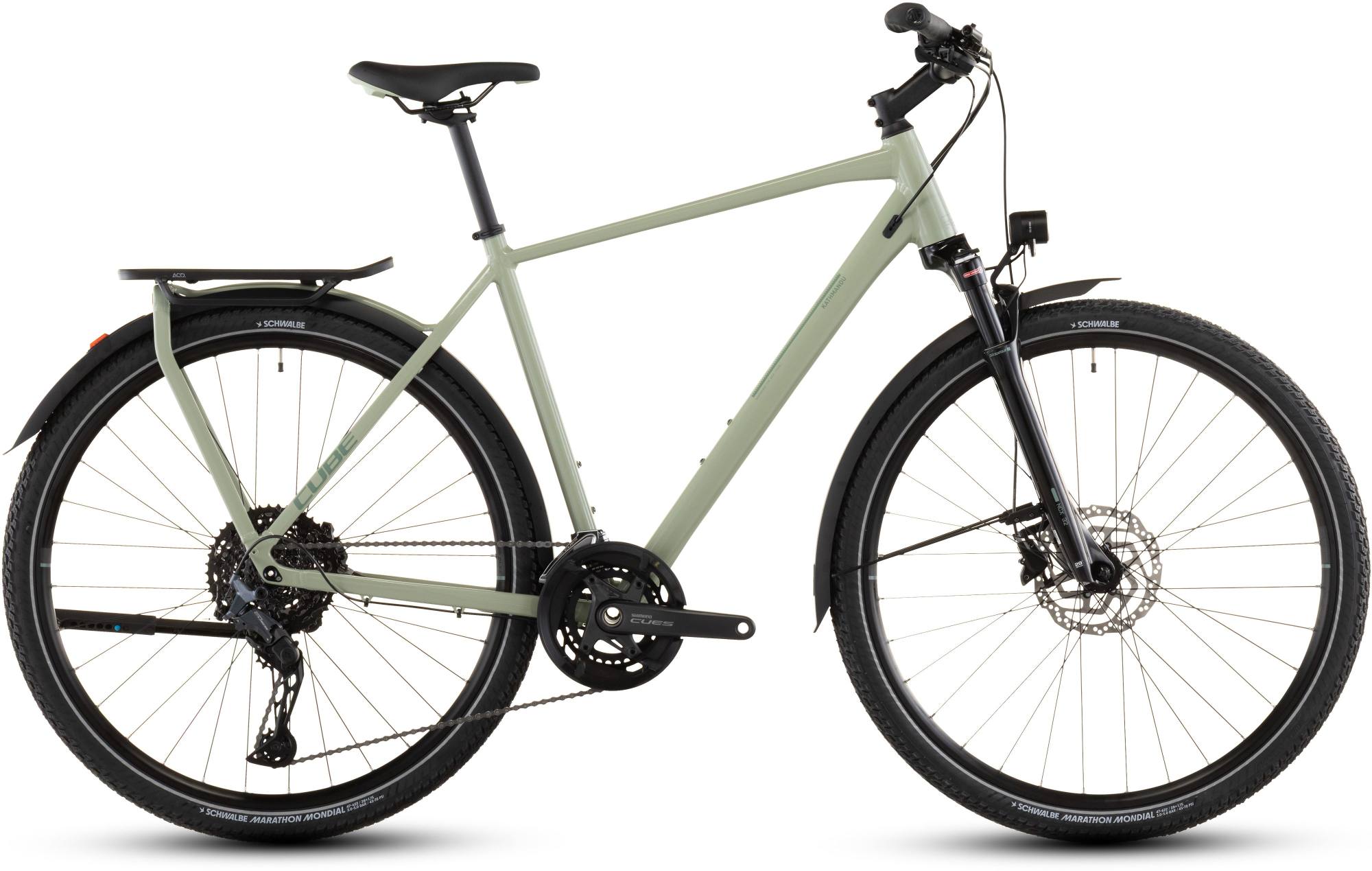

CUBE KATHMANDU ECX PEA/GREY 46 CM
From zipping across town to tackling mountain passes you’ve never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. We chose Shimano’s Cues 2×11 gears for their ease of use and reliability. Then we added powerful Shimano hydraulic disc brakes and Schwalbe’s 47mm Marathon Mondial tyres, so you know you’re in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you’ve everything you need. Just jump on and go.
Frame description
Attention to detail is a CUBE obsession. That’s why, with the Kathmandu’s Integrated Carrier 3.0, we designed it to work seamlessly with our ACID mudguard. We’ve fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it’s not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame’s clean looks, we reckon we’ve thought of everything. Just don’t forget your toothbrush.
KATHMANDU
From zipping across town to tackling mountain passes you’ve never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. We chose Shimano’s Cues 2×11 gears for their ease of use and reliability. Then we added powerful Shimano hydraulic disc brakes and Schwalbe’s 47mm Marathon Mondial tyres, so you know you’re in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you’ve everything you need. Just jump on and go.
Frame description

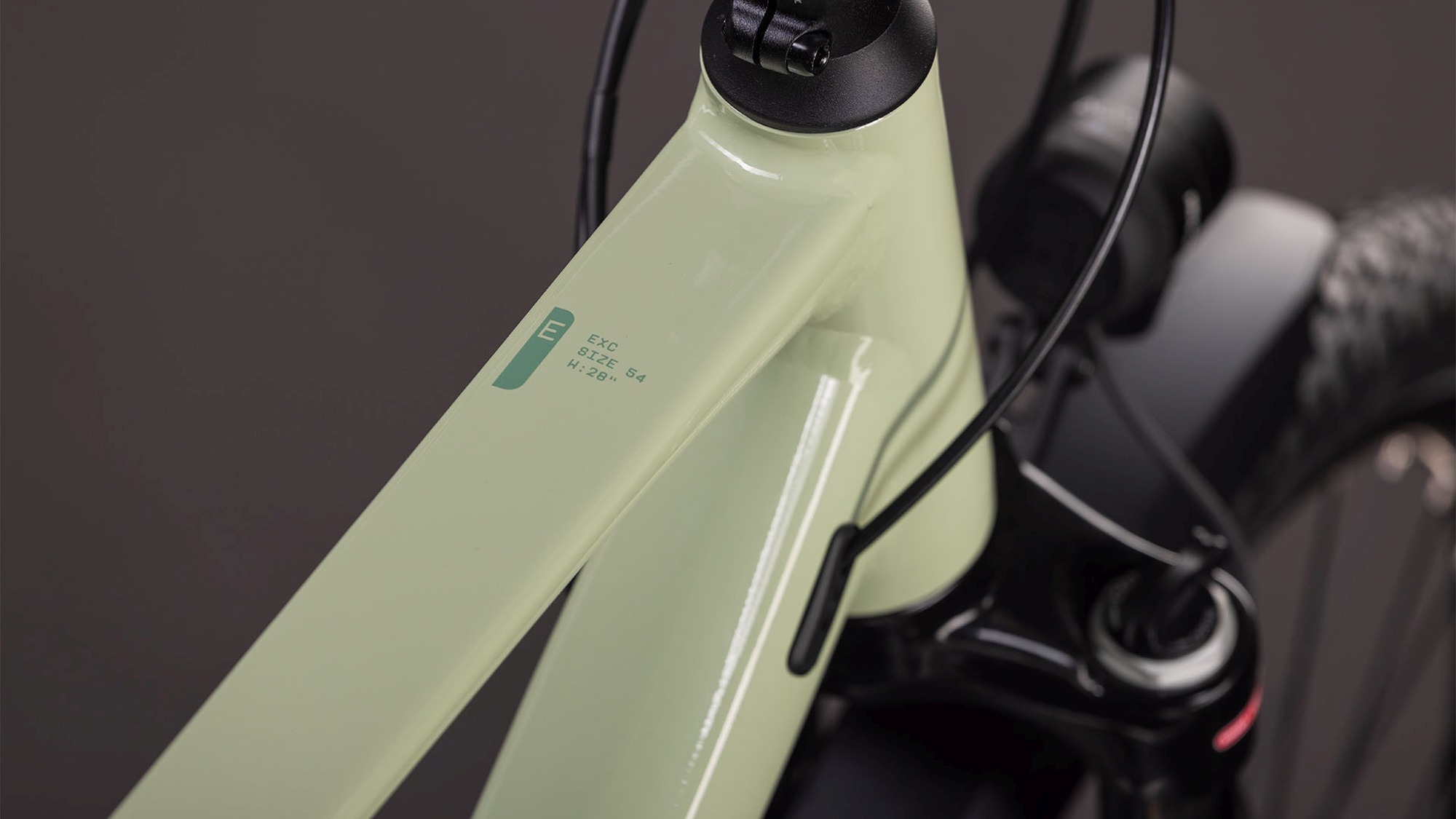

Attention to detail is a CUBE obsession. That’s why, with the Kathmandu’s Integrated Carrier 3.0, we designed it to work seamlessly with our ACID mudguard. We’ve fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it’s not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame’s clean looks, we reckon we’ve thought of everything. Just don’t forget your toothbrush.
| Bell | |
|---|---|
| Bell Brand | REICH |
| Bell Model | Ringsound |
| Bell Brand Description | Reich |

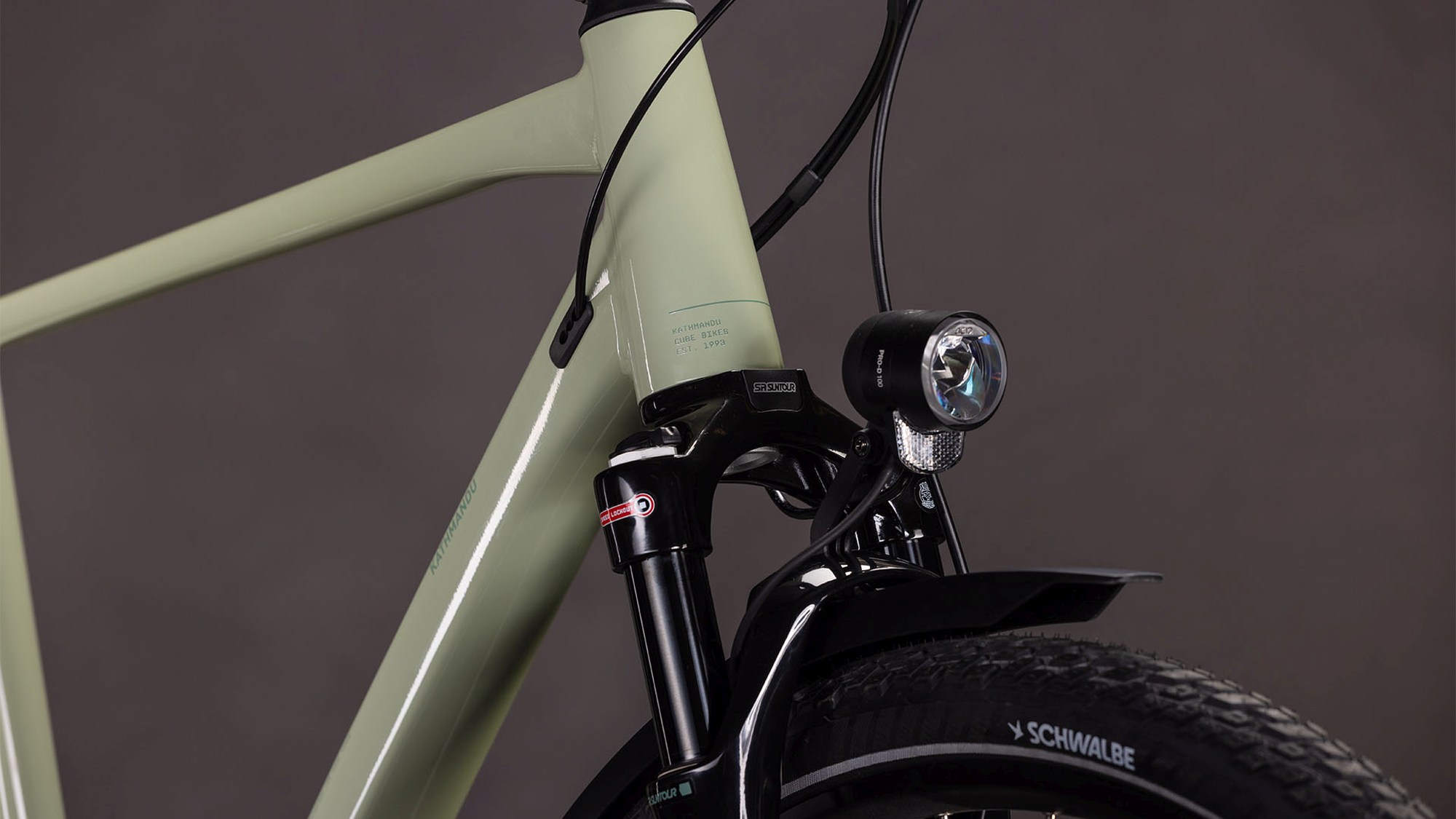

| Fork | |
| Fork Brand | SUNTOUR |
| Fork Model | NCX32 E LO Air, 63mm |
| Fork Suspension | 1 |
| Fork Brand Description | Suntour |
| Stem | |
| Stem Brand | CUBE |
| Stem Model | Performance Stem SLX, 31.8mm |
| Stem Brand Description | Cube |
| Chain | |
| Chain Brand | KMC |
| Chain Model | xGlide |
| Chain Brand Description | KMC |
| Frame | |
| Frametype | MEN |
| Framematerial | ALUMINIUM |
| Framesize Supplier | 46 |
| Frametype Description | Men |
| Framematerial Description | Aluminium |
| Gears | |
| Gear Type | DERAILLEUR |
| Gear Brand | SHIMANO |
| Number Of Gears | 22 |
| Gear Brand Description | Shimano |
| Gear Type Description | Derailleur |
| Pedals | |
| Pedals Brand | ACID |
| Pedals Model | PP Trekking |
| Pedals Brand Description | Acid |
| Saddle | |
| Saddle Brand | ACID |
| Saddle Model | Sequence Pro |
| Saddle Brand Description | Acid |

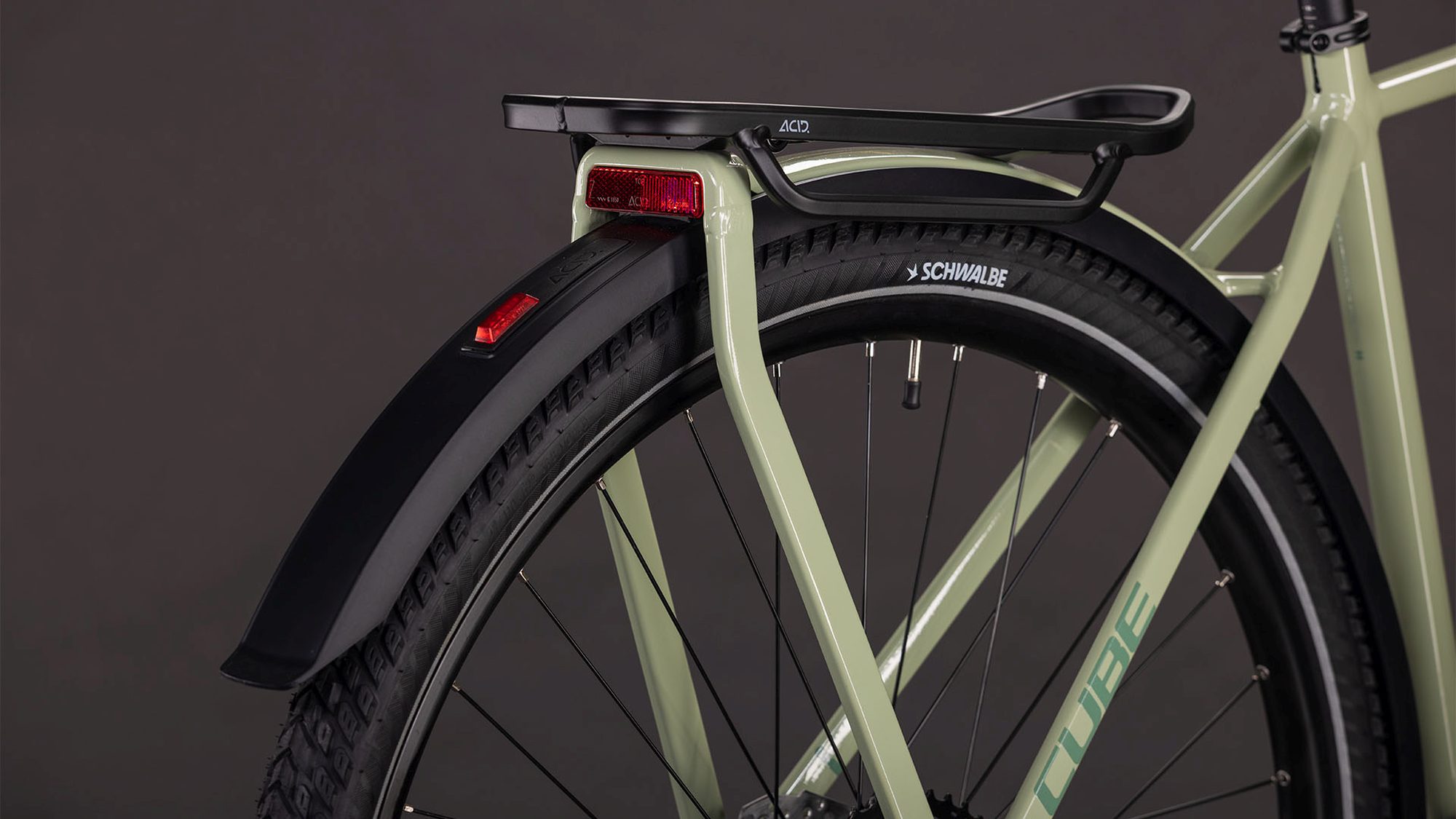

| Carrier | |
| Carrier Brand | ACID |
| Carrier Model | Integrated Carrier 3.0, CUBE Adapter Compatible |
| Carrier Brand Description | Acid |
| Headset | |
| Headset Brand | VP |
| Headset Model | Integrated, Top 1 1/8", Bottom 1 1/2" |
| Headset Brand Description | VP |
| Cassette | |
| Cassette Brand | SHIMANO |
| Cassette Model | Cues CS-LG700, 11-45T |
| Cassette Brand Description | Shimano |
| Crankset | |
| Crankset Brand | SHIMANO |

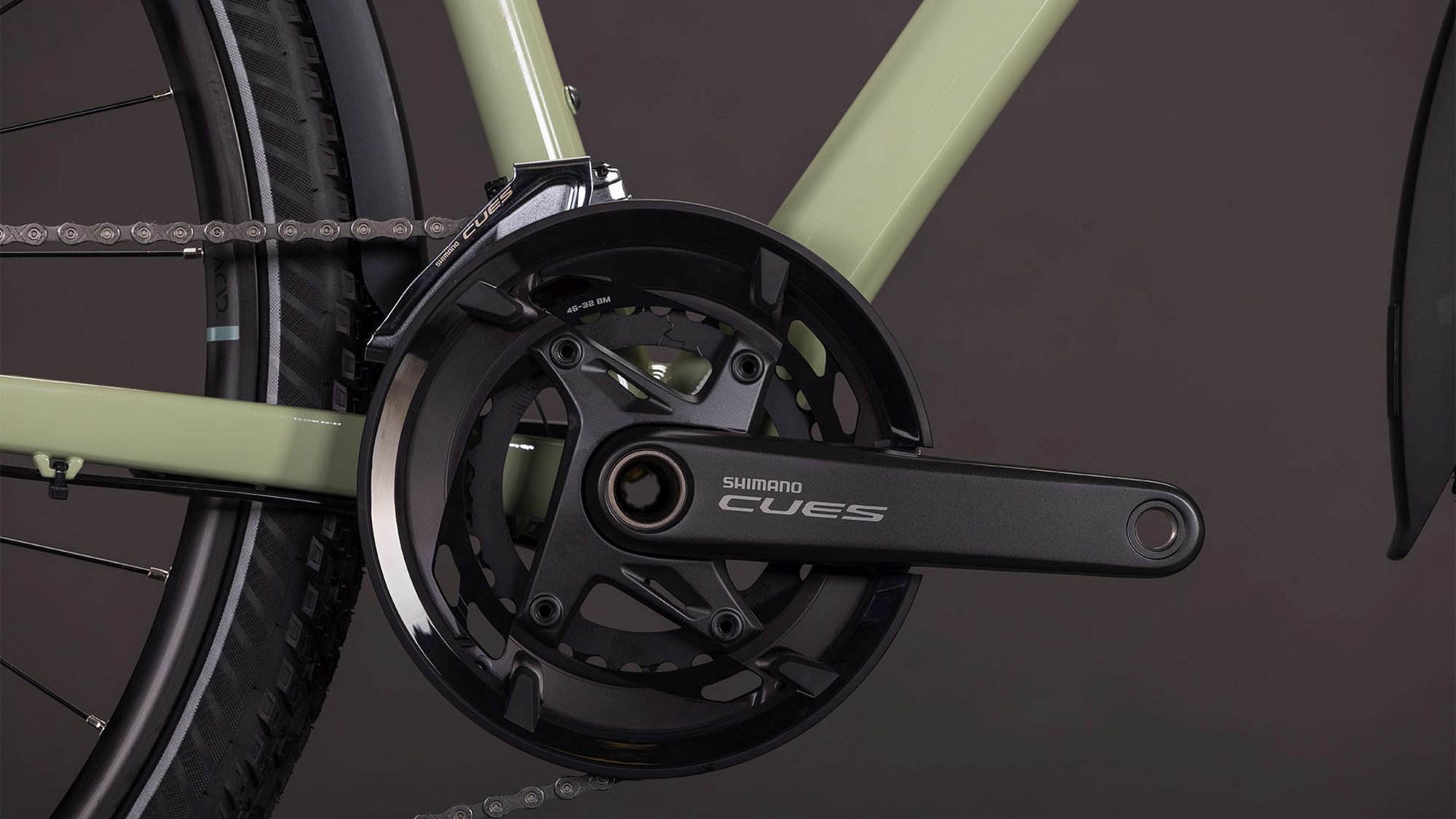

| Crankset Model | Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard |
| Crankset Brand Description | Shimano |
| Seatpost | |
| Seatpost Brand | CUBE |
| Seatpost Model | Performance Post, 27.2mm |
| Seatpost Brand Description | Cube |
| Shifters | |
| Shifters Brand | SHIMANO |
| Shifters Model | Cues SL-U6000, Rapidfire-Plus |
| Shifters Brand Description | Shimano |
| Handlebar | |
| Handlebar Brand | CUBE |
| Handlebar Model | Comfort Trail Bar, 680mm |
| Handlebar Brand Description | Cube |
| Kickstand | |
| Kickstand Brand | ACID |
| Kickstand Model | FM Pure Kickstand |
| Kickstand Brand Description | Acid |
| Mudguards | |
| Mudguards Brand | ACID |
| Mudguards Model | 56 Integrated Carrier 3.0 |
| Mudguards Brand Description | Acid |
| Rear Light | |
| Rear Light Brand | ACID |
| Rear Light Model | Mudguard Rear Light PRO-D, 6V, AC |
| Rear Light Brand Description | Acid |
| Front Brake | |
| Front Brake Type | SH |
| Front Brake Brand | SHIMANO |
| Front Brake Model | BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180) |
| Front Brake Brand Description | Shimano |
| Front Brake Type Description | Disc brake with hydraulic actuation |
| Seatpost Clamp | |
| Seatpost Clamp Brand | CUBE |
| Seatpost Clamp Model | Seatpost clamp |
| Seatpost Clamp Brand Description | Cube |
| Bartape Or Grips | |
| Bartape Or Grips Brand | ACID |
| Bartape Or Grips Model | Travel Comfort |
| Bartape Or Grips Brand Description | Acid |
| Derailleur Front | |
| Derailleur Front Brand | SHIMANO |
| Derailleur Front Model | Cues FD-U6010, Top Swing, 31.8mm |
| Derailleur Front Brand Description | Shimano |
| Primary Rear Brake | |
| Primary Rear Brake Type | SH |
| Primary Rear Brake Brand | SHIMANO |
| Primary Rear Brake Model | BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180) |
| Primary Rear Brake Brand Description | Shimano |
| Primary Rear Brake Type Description | Disc brake with hydraulic actuation |
| Physical Specifications | |
| Size | 46 |
| Colour | PEA/GREY |
| Net Weight | 16.1 |
| Gross Weight | 21.14 |
| Weight Capacity | 140 |
| Primary Basecolour | GREEN |
| Secondary Basecolour | GREY |
| Primary Basecolour Description | Green |
| Secondary Basecolour Description | Grey |
