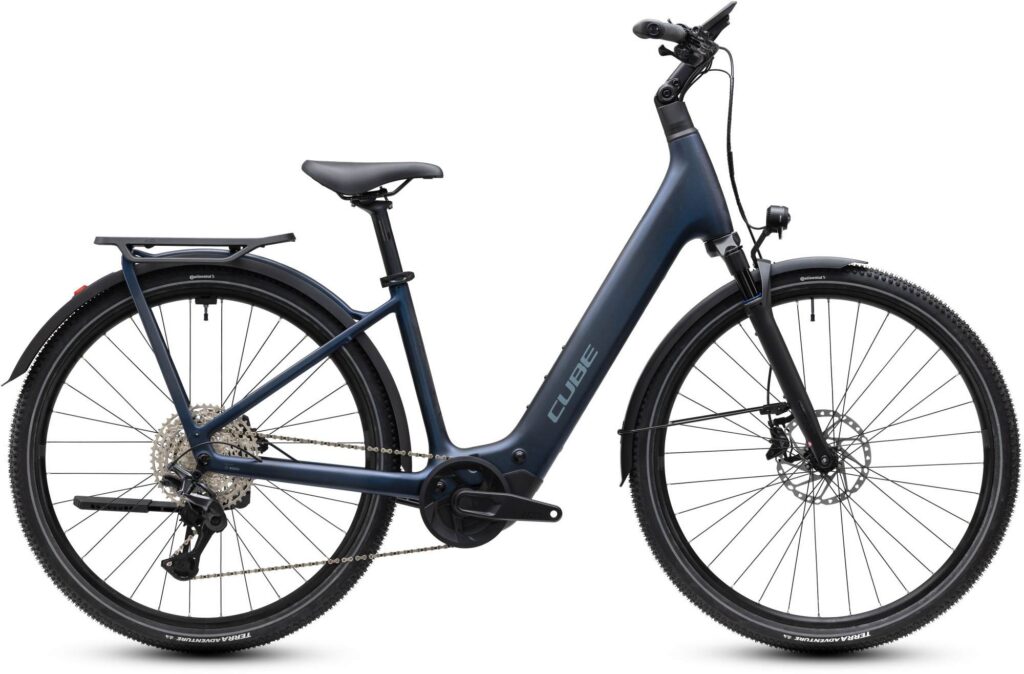

CUBE KATHMANDU HYBRID C:62 PRO 400X STEEL EE 58 CM
The CUBE Kathmandu Hybrid C:62 Pro is as tough and versatile as it is easy and comfortable to ride. We began by fitting a 50mm-travel air-sprung suspension fork, to take the sting out of rough roads. Our strong and sturdy Integrated Carrier 3.0 integrates seamlessly with the included mudguards, and we added a lighting set and kickstand – so you’re all set for any journey. Bosch’s lightweight SX motor and 400Wh battery with Kiox 500 display provides up to 60Nm of pedal assistance without weighing you down, while Shimano’s legendary XT 1×12 gears deliver your power to the road via 50mm Continental Terra Adventure tyres, and there’s a powerful set of Shimano hydraulic disc brakes to ensure you can slow and stop safely, whatever the weather. It’s all you need for adventures, near or far.
Frame description
The CUBE Kathmandu Hybrid C:62’s Easy Entry frame isn’t just straightforward to ride and elegant in its simplicity – it’s also extremely sophisticated and adaptable. Built from our proven C:62® carbon for the best blend of strength and low weight, the 400Wh battery powering the Bosch SX motor is neatly enclosed inside the frame. Advanced Internal Cable Routing complements the frame’s organic appearance and the neat, versatile IC 3.0 rear carrier provides a sturdy, adaptable platform for all your carrying needs. Plus, we used a Boost axle at the rear to ensure stable handling even when fully loaded. We like to think we’ve thought of everything…
KATHMANDU HYBRID C:62
When only the best will do, it’s time to break out Shimano’s XT components. Renowned for their ease of use, precision and dependability, the wide-ranging 1×12 Di2 electronic gears and powerful hydraulic disc brakes are the obvious choice for the Kathmandu Hybrid C:62 SLT. Bosch’s SX motor with 400Wh battery, compact LED remote and Kiox 500 display delivers up to 60Nm of pedal assistance to help you on your way. Combined with the C:62® carbon frame and fork plus carbon Newmen Phase 30 wheels, the result is a notably svelte grand tourer – and that means one that’s easier and more fun to ride. It’s just as practical as ever, though, with our super-sturdy Integrated Carrier 3.0 and a full complement of accessories. Across town or across continents, it’s got your back.
Frame description
A lighter touring bike means you can take more with you, but low weight is no good without strength. That’s why, for the CUBE Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure that combines the load-bearing capacity you need with the comfort and ride handling that you’d expect from CUBE. With a UDH derailleur hanger, Advanced Internal Cable Routing and a Boost rear axle, it’s both elegant and easy to live with. The Integrated Carrier 3.0 blends neatly into the frame structure and offers a sturdy platform for carrying whatever you need to take with you. Add the 400Wh battery, and it’s the complete package for lightweight hybrid touring.
| Bell | |
|---|---|
| Bell Brand | KNOG |
| Bell Model | Oi |
| Bell Brand Description | Knog |
| Fork | |
| Fork Brand | CUBE |
| Fork Model | C:62® Technology, 1 1/2" – 1 1/2" Tapered, Internal Light Cable Option, 15x110mm |
| Fork Brand Description | Cube |
| Stem | |
| Stem Brand | CUBE |
| Stem Model | Performance Stem SLX, 31.8mm |
| Stem Brand Description | Cube |
| Chain | |
| Chain Brand | SHIMANO |
| Chain Model | XT CN-M8100 |
| Chain Brand Description | Shimano |
| Frame | |
| Frametype | UNI |
| Framematerial | CARBON |
| Frame Description | C:62® Advanced Twin Mold, Boost148, Fixed Integrated Battery, Integrated Carrier 3.0, UDH |
| Framesize Supplier | 50 |
| Frametype Description | Unisex |
| Framematerial Description | Carbon |
| Gears | |
| Gear Type | DERAILLEUR |
| Gear Brand | SHIMANO |
| Gear Model | XT Di2 |
| Number Of Gears | 12 |
| Gear Brand Description | Shimano |
| Gear Type Description | Derailleur |
| Tyres | |
| Tyre Brand | SCHWALBE |
| Tyre Model | G-ONE Overland, PerfL, 50-622 |
| Tyre Size Rear | 50-622 |
| Tyre Size Front | 50-622 |
| Tyre Brand Description | Schwalbe |
| Pedals | |
| Pedals Brand | ACID |
| Pedals Model | PP Trekking |
| Pedals Brand Description | Acid |
| Saddle | |
| Saddle Brand | ACID |
| Saddle Model | Sequence 180 Pro Plus Ultra Gel |
| Saddle Brand Description | Acid |
| Wheels | |
| Wheels Brand | NEWMEN |
| Wheels Model | Phase 30 light/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Wheels Brand Description | Newmen |
| Carrier | |
| Carrier Brand | ACID |
| Carrier Model | Integrated Carrier 3.0, RILink HPP |
| Carrier Brand Description | Acid |
| Headset | |
| Headset Brand | ACROS |
| Headset Model | AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Headset Brand Description | Acros |
| Cassette | |
| Cassette Brand | SHIMANO |
| Cassette Model | XT CS-M8200, 10-51T |
| Cassette Brand Description | Shimano |
| Crankset | |
| Crankset Brand | ACID |
| Crankset Model | MTB Hybrid Pro, 38T |
| Crankset Brand Description | Acid |
| Seatpost | |
| Seatpost Brand | NEWMEN |
| Seatpost Model | Advanced, Carbon, 31.6mm |
| Seatpost Brand Description | Newmen |
| Shifters | |
| Shifters Brand | SHIMANO |
| Shifters Model | XT Di2 SW-M8250-IR, Direct Attach |
| Shifters Brand Description | Shimano |
| Handlebar | |
| Handlebar Brand | CUBE |
| Handlebar Model | Comfort Trail Bar HD, 700mm |
| Handlebar Brand Description | Cube |
| Kickstand | |
| Kickstand Brand | ACID |
| Kickstand Model | FM Pure Silent |
| Kickstand Brand Description | Acid |
| Mudguards | |
| Mudguards Brand | ACID |
| Mudguards Model | 60 Integrated Carrier 3.0 |
| Mudguards Brand Description | Acid |
| Rear Light | |
| Rear Light Brand | ACID |
| Rear Light Model | Mudguard Rear Light PRO-E, 12V, DC |
| Rear Light Brand Description | Acid |
| Front Brake | |
| Front Brake Type | SH |
| Front Brake Brand | SHIMANO |
| Front Brake Model | XT BR-M8220, Hydr. Disc Brake (180/180) (180/180) |
| Front Brake Brand Description | Shimano |
| Front Brake Type Description | Disc brake with hydraulic actuation |
| Front Light | |
| Front Light Brand | ACID |
| Front Light Model | Front Light PRO-E 200 X-Connect, 12V, DC |
| Front Light Brand Description | Acid |
| Shiftcables | |
| Shiftcables Brand | SHIMANO |
| Shiftcables Model | XT Di2 |
| Shiftcables Brand Description | Shimano |
| Derailleur Rear | |
| Derailleur Rear Brand | SHIMANO |
| Derailleur Rear Model | XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Derailleur Rear Brand Description | Shimano |
| Bartape Or Grips | |
| Bartape Or Grips Brand | ACID |
| Bartape Or Grips Model | Travel Comfort |
| Bartape Or Grips Brand Description | Acid |
| Primary Rear Brake | |
| Primary Rear Brake Type | SH |
| Primary Rear Brake Brand | SHIMANO |
| Primary Rear Brake Model | XT BR-M8220, Hydr. Disc Brake (180/180) (180/180) |
| Primary Rear Brake Brand Description | Shimano |
| Primary Rear Brake Type Description | Disc brake with hydraulic actuation |
| Physical Specifications | |
| Size | 50 |
| Colour | Ashgrey/Prizm |
| Net Weight | 16.4 |
| Gross Weight | 21.36 |
| Weight Capacity | 135 |
| Primary Basecolour | GREY |
| Secondary Basecolour | MULTICOLOR |
| Primary Basecolour Description | Grey |
| Secondary Basecolour Description | Multicolor |
