The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.

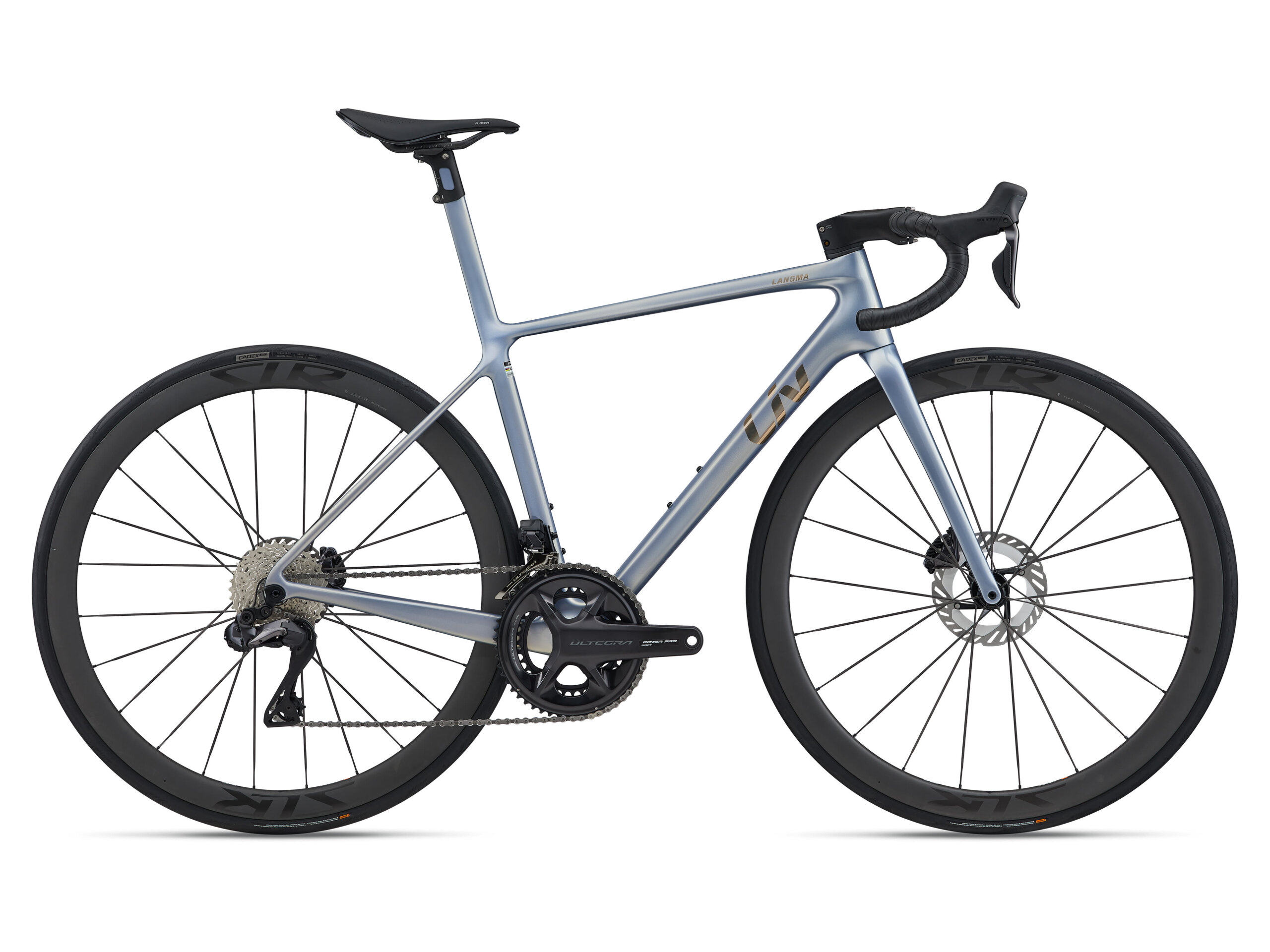

Langma Advanced SL 1
The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.
Specifications
The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.
Key Performance Factors
QOM-LEVEL EFFICIENCY
The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”
The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”
LIMIT-PUSHING CONTROL
The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tires, without sacrificing precise handling.
The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tires, without sacrificing precise handling.
GAP-WIDENING AERO
With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.
With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.
| Sizes | XXS, XS, S, M, L |
|---|---|
| Colours | Dreamy Blue/Chrome |
| Frame | Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc |
| Fork | Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Liv Contact SLR , 31.8mm, 8-degree flare drop, XXS: 34/36cm, XS: 34/36cm, S: 36/38cm, M: 38/40cm, L: 39/42cm |
| Grips | Liv Stratus Elite 2.0 |
| Stem | Giant Contact SLR AeroLight, XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm |
| Seatpost | Liv Integrated Seatpost, -5/+15mm offset |
| Saddle | Liv Alacra SLR |
| Pedals | platform pedal [GCS,GTS], N/A [all other GSC] |
| Shifters | Shimano Ultegra Di2 |
| Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
| Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
| Brakes | Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors, [F]160mm, [R]140mm |
| Brake Levers | Shimano Ultegra Di2 |
| Cassette | Shimano Ultegra, 12-speed, 11×34 |
| Chain | Shimano CN-M8100 |
| Crankset | Shimano Ultegra, 36/52 with Giant Power Pro power meter, XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 0 40 WheelSystem, [F] 40mm, [R] 40mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40T ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Giant Aero Carbon Spoke |
| Tyres | CADEX Road Race GC, tubeless, 700x28c, folding |
| Extras | computer mount, Airway Eco Composite water bottle cage, tubeless prepared, 33mm max tire size |
| Max Tire Clearance | 33mm |
Highlights
Barcode : 4711291220768
Geometry
| XXS | XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 640 | 680 | 720 | ||||
| B | SEAT TUBE ANGLE | 75 | 74.5 | 74 | ||||
| C | TOP TUBE LENGTH | 508 | 524 | 540 | ||||
| D | HEAD TUBE LENGTH | 120 | 135 | 155 | ||||
| E | HEAD TUBE ANGLE | 71 | 72 | 72.5 | ||||
| F | FORK RAKE | 49 | 49 | 49 | ||||
| G | TRAIL | 68 | 61 | 58 | ||||
| H | WHEEL BASE | 973 | 977 | 984 | ||||
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | ||||
| J | BOTTOM BRACKET DROP | 72 | 70 | 70 | ||||
| K | STACK | 517 | 532 | 553 | ||||
| L | REACH | 370 | 377 | 382 | ||||
| M | STAND OVER HEIGHT | 707 | 736 | 763 | ||||
| N | HANDLEBAR WIDTH | 360 | 380 | 400 | ||||
| O | STEM LENGTH | 80 | 90 | 100 | ||||
| P | CRANK LENGTH DEC | 165 | 165 | 170 | ||||
| Q | WHEEL SIZE ALT |
Technology and Features
