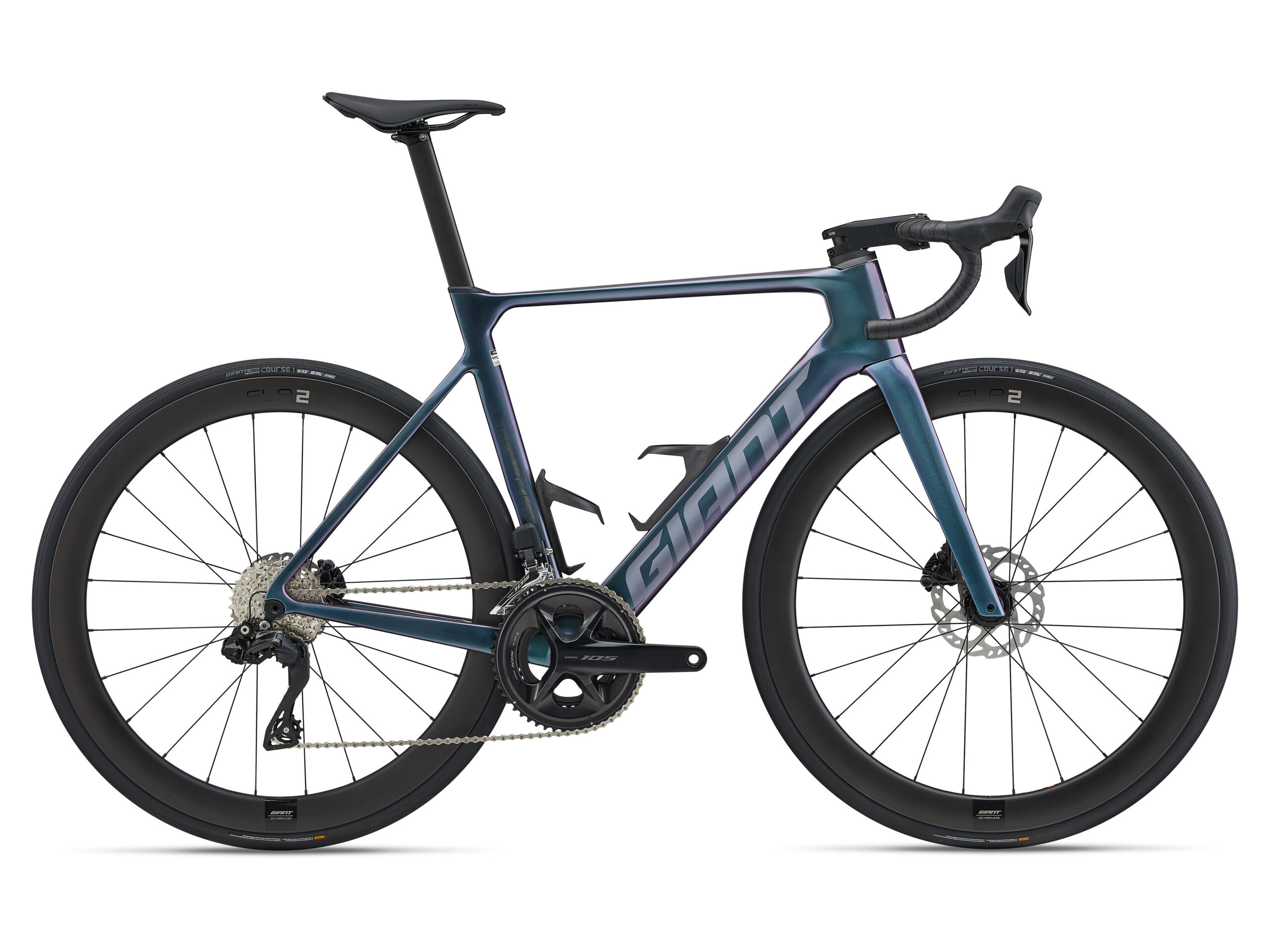

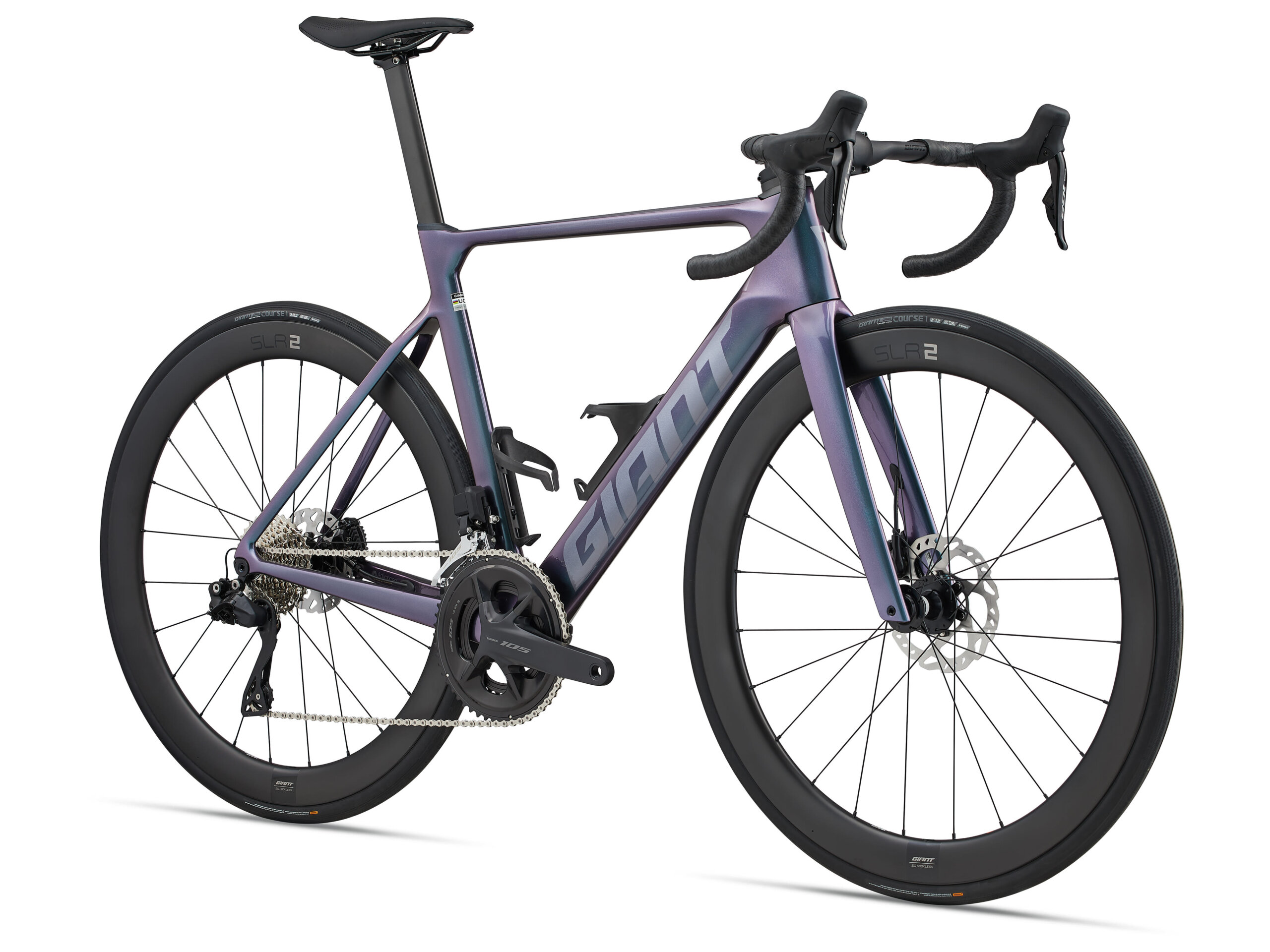

Propel Advanced 1

€4,999.00

Maximize your watts during sprints, breakaways and solo attacks. This aero road machine is built to give you a real advantage against the wind. Because small gains lead to big wins.

Additional information

Size	L, M, ML, S, XL, XS
Color	Blue Dragonfly

Specifications

Maximize your watts during sprints, breakaways and solo attacks. This aero road machine is built to give you a real advantage against the wind. Because small gains lead to big wins.

Key Performance Factors

Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and all-new Contact SL Aero cockpit produce superior aero performance.

Easier adjustability

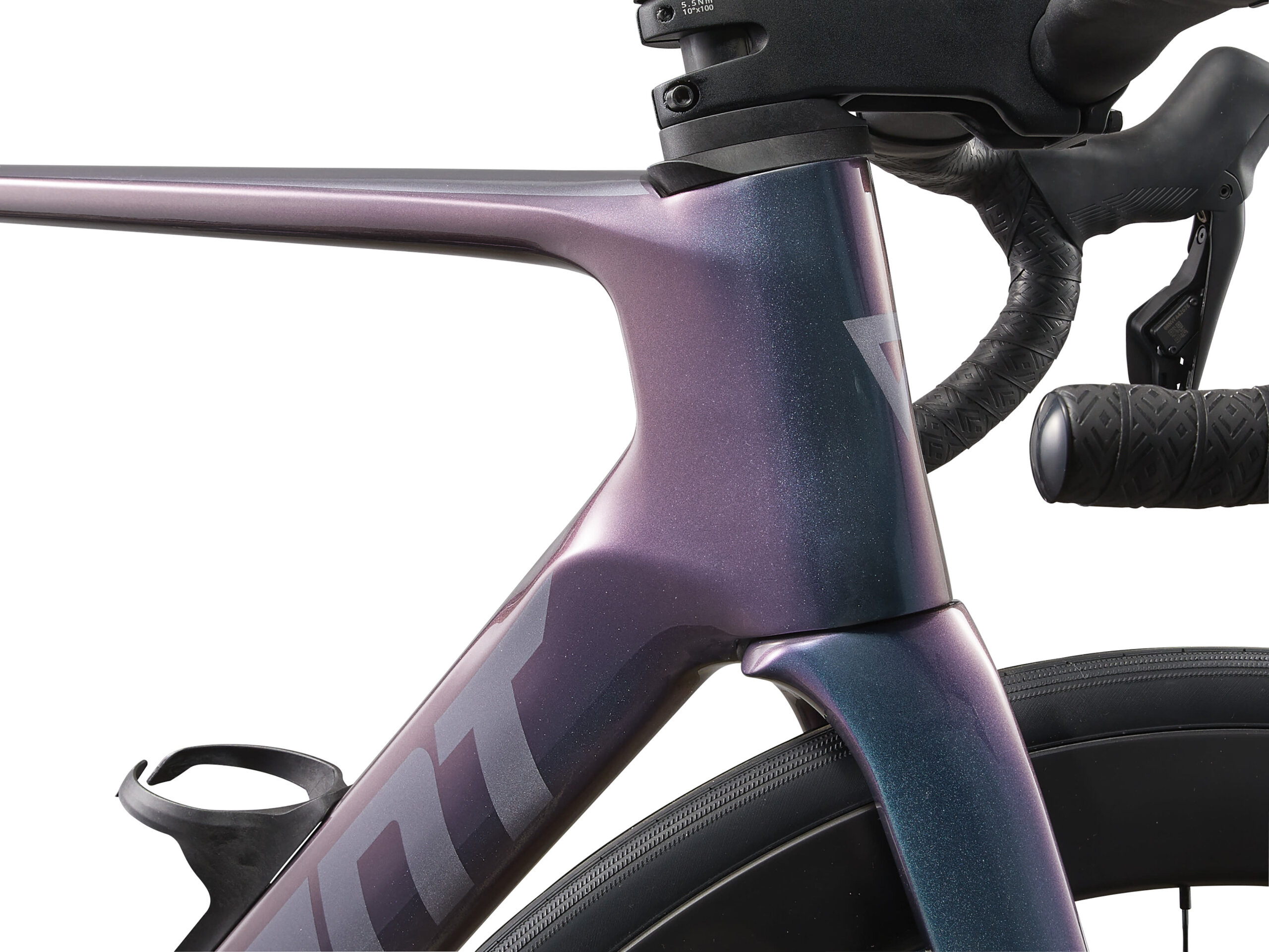

All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency
Advanced-grade composite frame and hybrid alloy/composite fork deliver optimal stiffness and weight savings. The result is an even greater stiffness-to-weight advantage.

Sizes	XS, S, M, M/L, L, XL
Colours	Gloss Blue Dragonfly/Mercury
Frame	Advanced-Grade Composite, 12x142mm thru-axle, disc

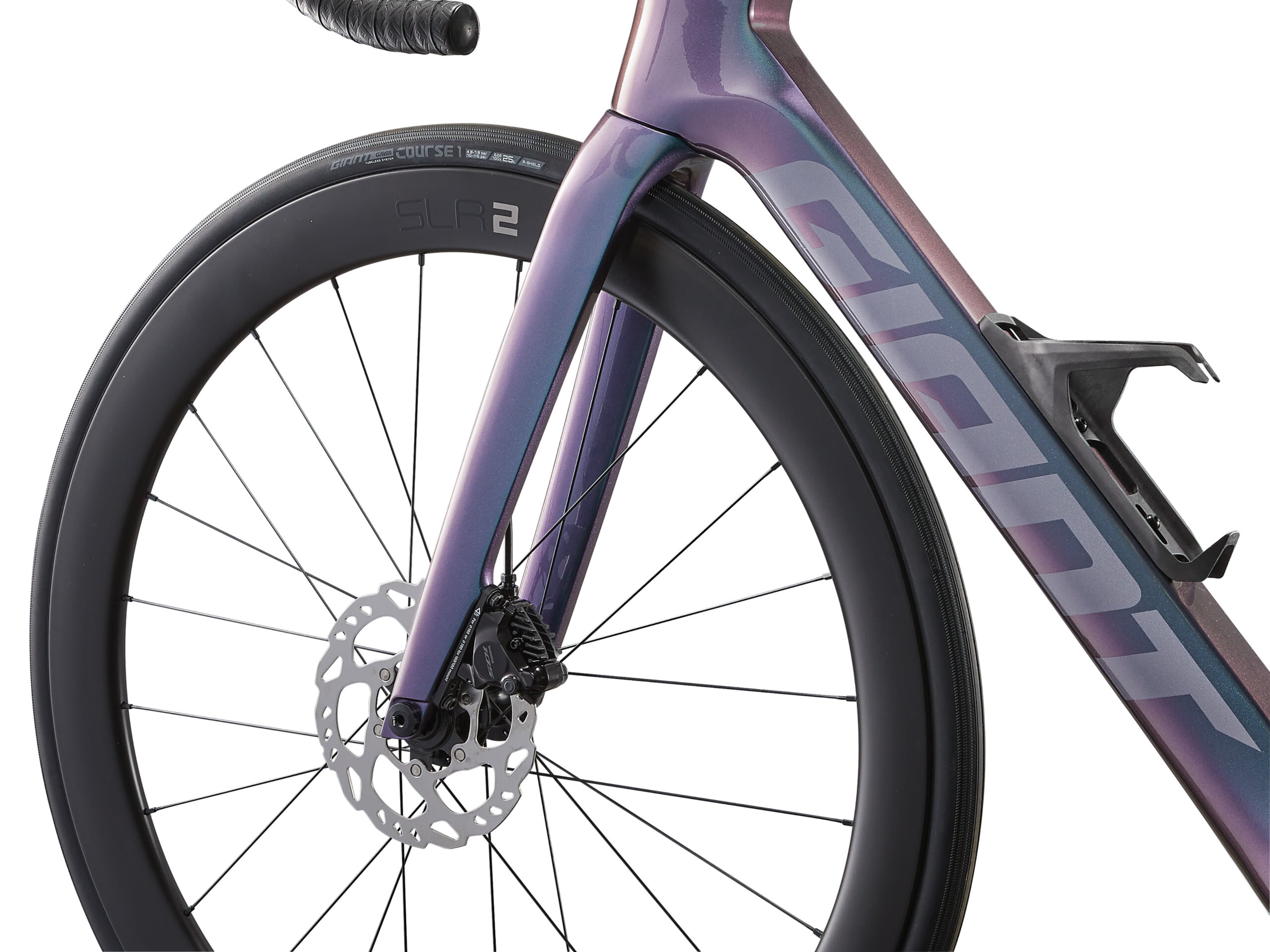

Fork	Advanced-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A

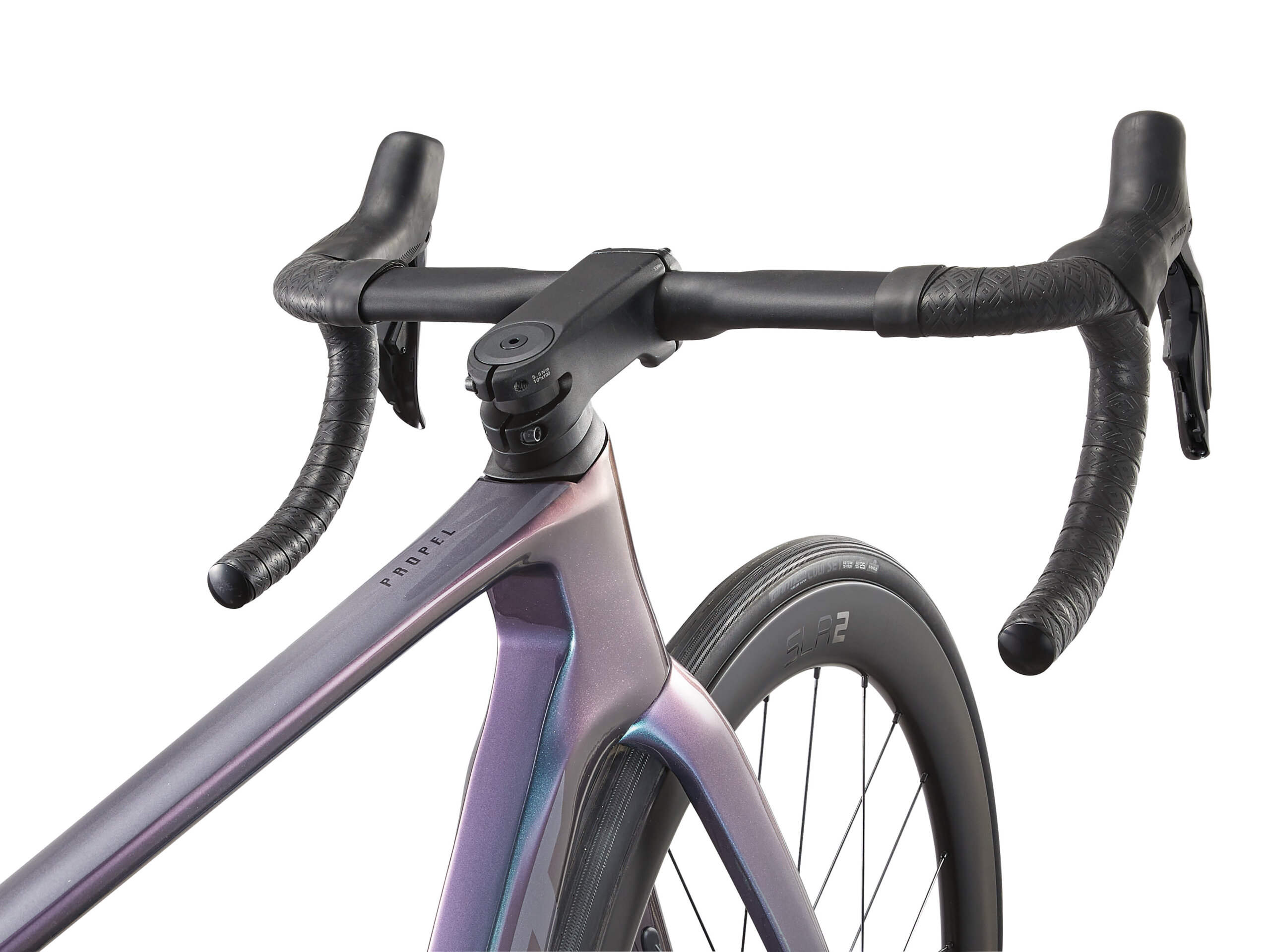

Handlebar	Giant Contact SL Aero
Grips	Stratus Lite 2.0
Stem	Giant Contact SL Aero
Seatpost	Giant Vector, composite, -5/+15mm offset
Saddle	Giant Fleet SL
Pedals	PEDALS NOT SUPPLIED
Shifters	Shimano 105 Di2 2×12
Front Derailleur	Shimano 105 Di2
Rear Derailleur	Shimano 105 Di2
Brakes	Shimano 105 Di2 hydraulic, Shimano RT-70 rotors [F]160mm, [R]140mm
Brake Levers	Shimano 105 Di2 hydraulic
Cassette	Shimano 105, 12-speed, 11×34
Chain	KMC X12L-1

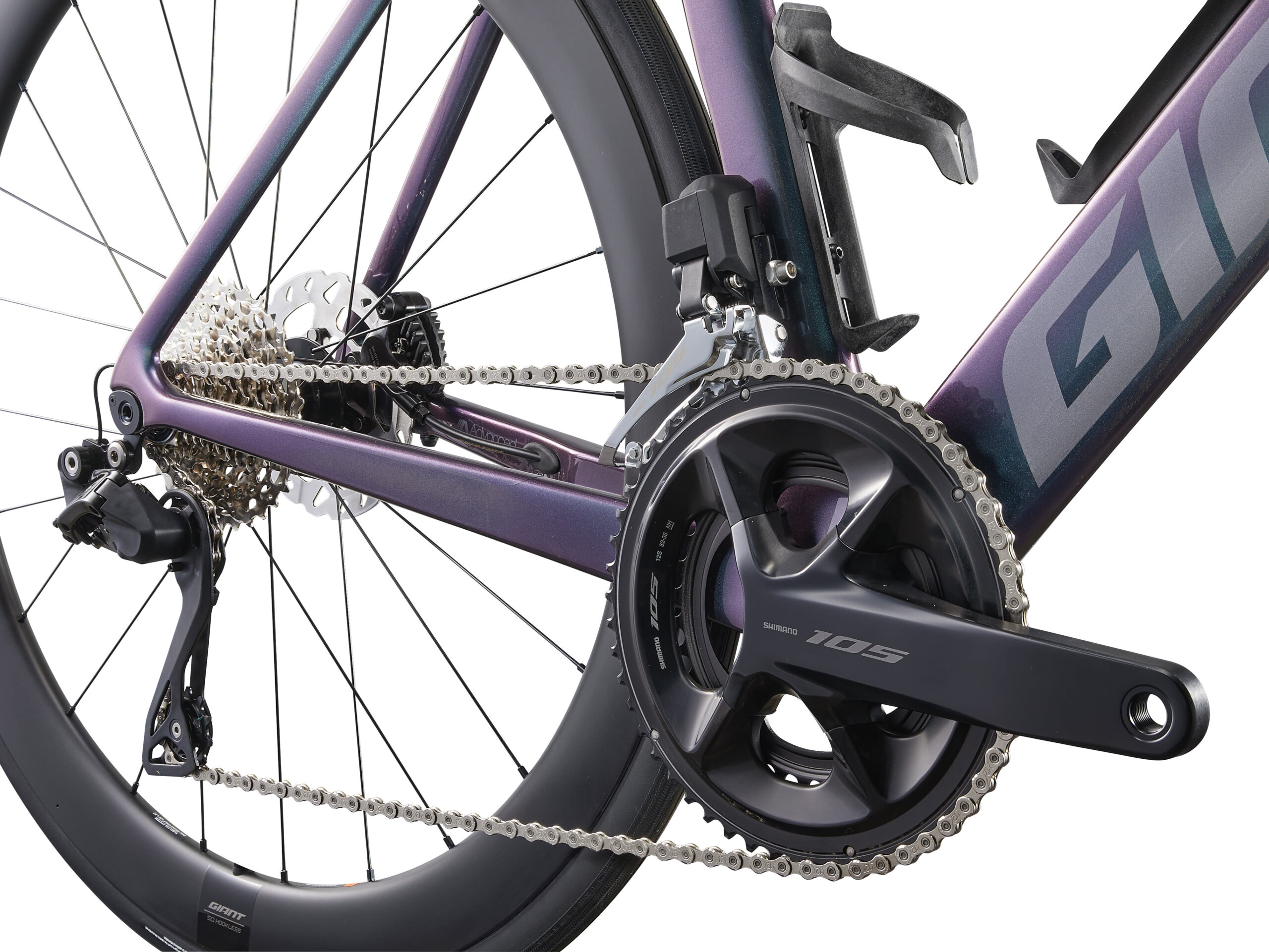

Crankset	Shimano 105, 36/52
Bottom Bracket	Shimano, press fit
Rims	Giant SLR 2 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Hubs	[F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes	Sapim
Tyres	Giant Gavia Course 1, tubeless,700x25c (28mm), folding
Extras	Out front computer mount, water bottle cages, factory tubeless set up
Max Tire Clearance	32mm

Geometry

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH	465	500	520	545	575	595
B	SEAT TUBE ANGLE	74.5	74	73.5	73	73	72.5
C	TOP TUBE LENGTH	520	535	550	565	580	600
D	HEAD TUBE LENGTH	120	130	145	165	185	200
E	HEAD TUBE ANGLE	71	72.3	73	73	73	73
F	FORK RAKE	45	45	45	45	45	45
G	TRAIL	70.5	62.5	57.8	57.8	57.8	57.8
H	WHEEL BASE	976	977	980	991	1,006	1,020
I	CHAIN STAY LENGTH	405	405	405	405	405	405
J	BOTTOM BRACKET DROP	72	70	70	67	67	67
K	STACK	517	528	545	562	581	596
L	REACH	376	383	388	393	402	412
M	STAND OVER HEIGHT	722	753	770	794	821	834
N	HANDLEBAR WIDTH	400	400	420	420	440	440
O	STEM LENGTH	80	90	100	110	110	120
P	CRANK LENGTH DEC	170	170	172.5	172.5	175	175
Q	WHEEL SIZE ALT	700C	700C	700C	700C	700C	700C
