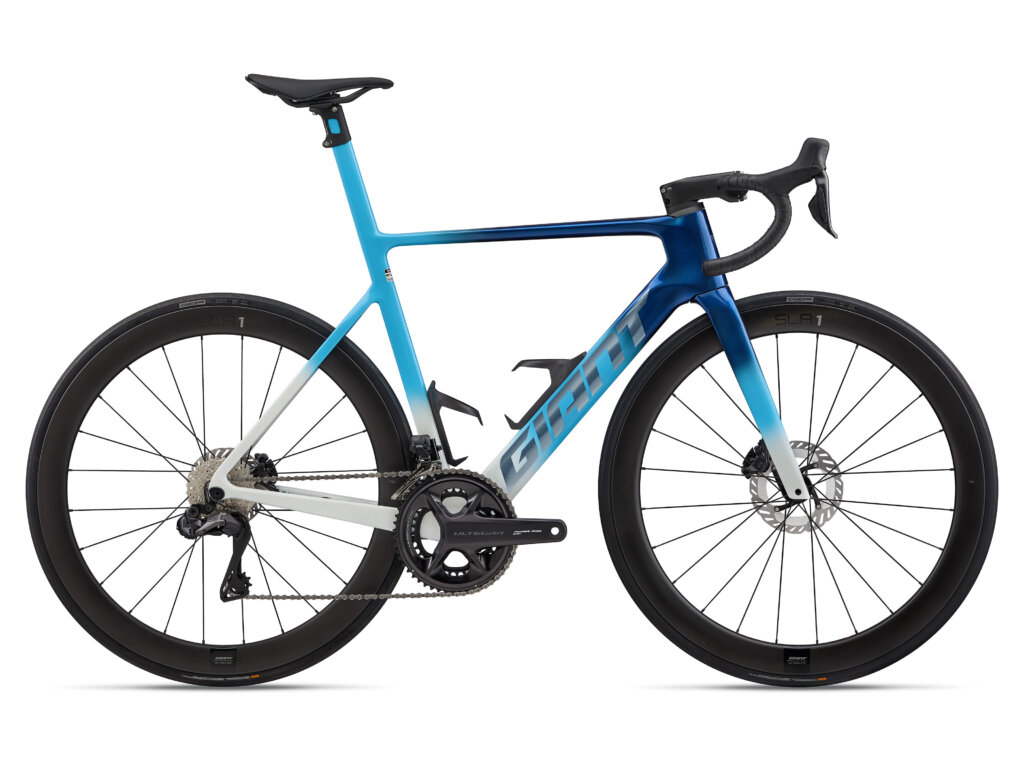

Propel Advanced SL 1

Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This pro-level road machine is made for the moments that count. More aero, more adjustable, more ways to win.

Additional information

Size	L, M, ML, S
Color	Ultra Navy / Azure

Specifications

Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This pro-level road machine is made for the moments that count. More aero, more adjustable, more ways to win.

Key Performance Factors

Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.

Easier adjustability
Cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 150 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

Sizes	XS, S, M, M/L, L, XL
Colours	Ultra Navy/Azure/Chrome
Frame	Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar	Giant Contact SLR Aero XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Grips	Stratus Lite 2.0
Stem	Giant Contact SLR Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost	Advanced SL-grade composite, integrated design, -5/+15mm offset
Saddle	Giant Fleet SLR
Shifters	Shimano Ultegra Di2 ST-R8170
Front Derailleur	Shimano Ultegra Di2 FD-R8150
Rear Derailleur	Shimano Ultegra Di2 RD-R8150
Brakes	Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers	Shimano Ultegra Di2 hydraulic
Cassette	Shimano Ultegra, 12-speed, 11×30
Chain	Shimano Ultegra, CN-M8100
Crankset	Shimano Ultegra, 36/52, with Giant Power Pro power meter, XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	Shimano, press fit
Rims	Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Hubs	[F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
Spokes	Sapim
Tyres	CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras	computer mount, water bottle cages, tubeless prepared, 32mm max tire size
Max Tire Clearance	32mm

Geometry

		S	M	ML	L
A	SEAT TUBE LENGTH	710	740	770	800
B	SEAT TUBE ANGLE	74	73.5	73	73
C	TOP TUBE LENGTH	535	550	565	580
D	HEAD TUBE LENGTH	130	145	165	185
E	HEAD TUBE ANGLE	72.3	73	73	73
F	FORK RAKE	45	45	45	45
G	TRAIL	62.5	57.8	57.8	57.8
H	WHEEL BASE	977	980	991	1,006
I	CHAIN STAY LENGTH	405	405	405	405
J	BOTTOM BRACKET DROP	70	70	67	67
K	STACK	528	545	562	581
L	REACH	383	388	393	402
M	STAND OVER HEIGHT	755	775	794	821
N	HANDLEBAR WIDTH	380	400	400	420
O	STEM LENGTH	90	100	110	110
P	CRANK LENGTH DEC	165	170	170	172.5
Q	WHEEL SIZE ALT
