Reign 2

€2,176.21

Push new limits on challenging terrain. This enduro ripper has 160mm of rear suspension that eats up rocks, drops and whatever comes your way. A three-position flip chip lets you adjust geometry and switch out the rear wheel from 27.5-inch to 29.

Clear
SKU: N/A Categories: , , Tag:

Push new limits on challenging terrain. This enduro ripper has 160mm of rear suspension that eats up rocks, drops and whatever comes your way. A three-position flip chip lets you adjust geometry and switch out the rear wheel from 27.5-inch to 29.

Additional information

Size

, , ,

Color

Specifications

Push new limits on challenging terrain. This enduro ripper has 160mm of rear suspension that eats up rocks, drops and whatever comes your way. A three-position flip chip lets you adjust geometry and switch out the rear wheel from 27.5-inch to 29.

Key Performance Factors

Race-bred suspension

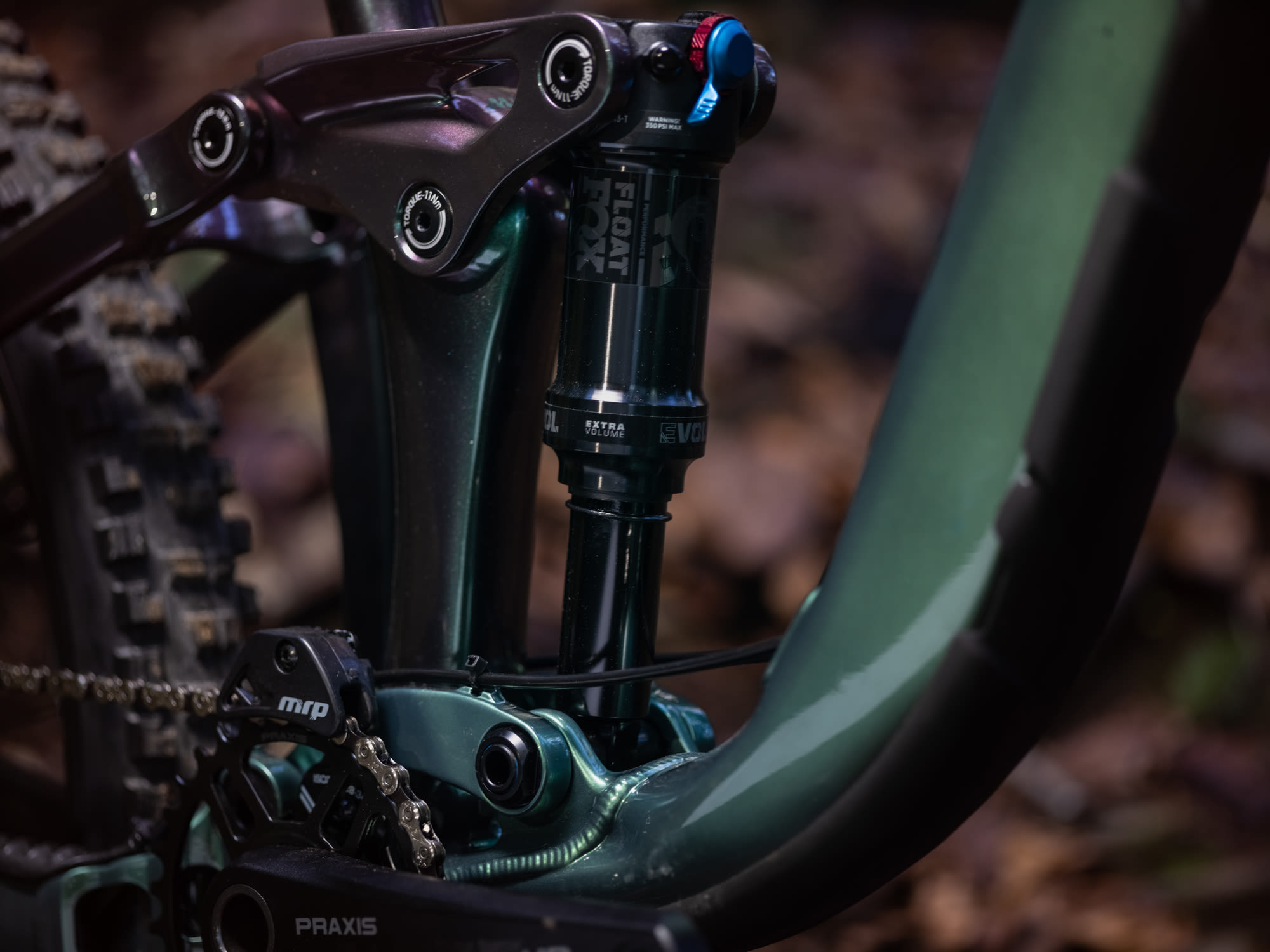

A Maestro rear suspension system with 160mm of travel was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
Adjustable enduro geometry
Flip chip technology lets you switch between three settings depending on the terrain. You can select a 62.47, 63.09 or 63.46-degree head angle and corresponding 77.54, 77.89 or 78.26-degree seat tube
angle, resulting in a 29, 24 or 19mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
Rear wheel options
Riders can choose either the stock 27.5-inch rear wheel or switch to 29. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.
Sizes S, M, L, XL
Colours Mineral Green

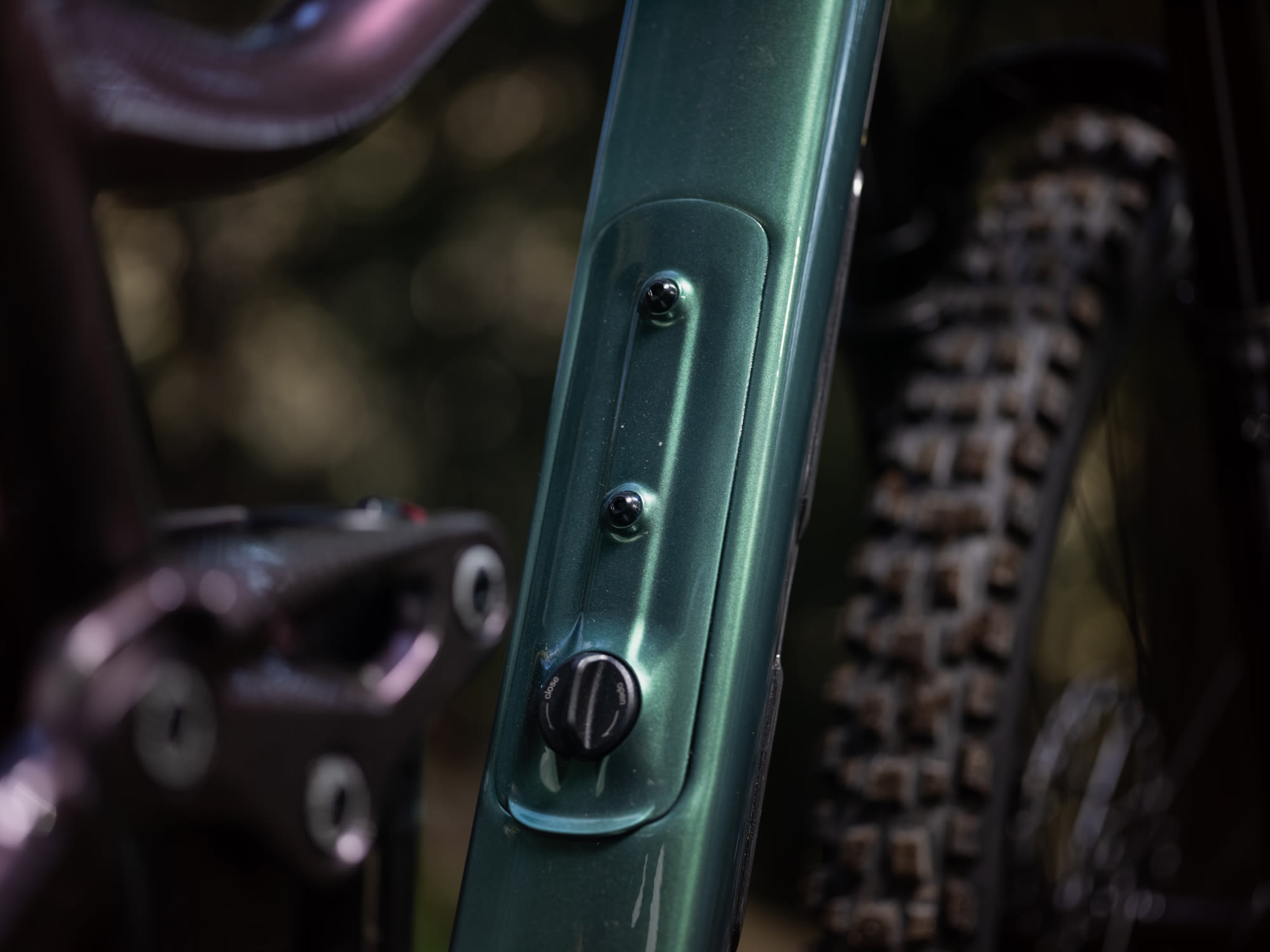

Frame ALUXX SL-grade aluminum front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip – Maestro 3, integrated down tube storage
Fork Fox 38 Rhythm, 170mm, GRIP damper, 15×110 Kabolt X, 44mm offset
Shock Fox Float Performance, 205/62.5, custom tuned for Giant

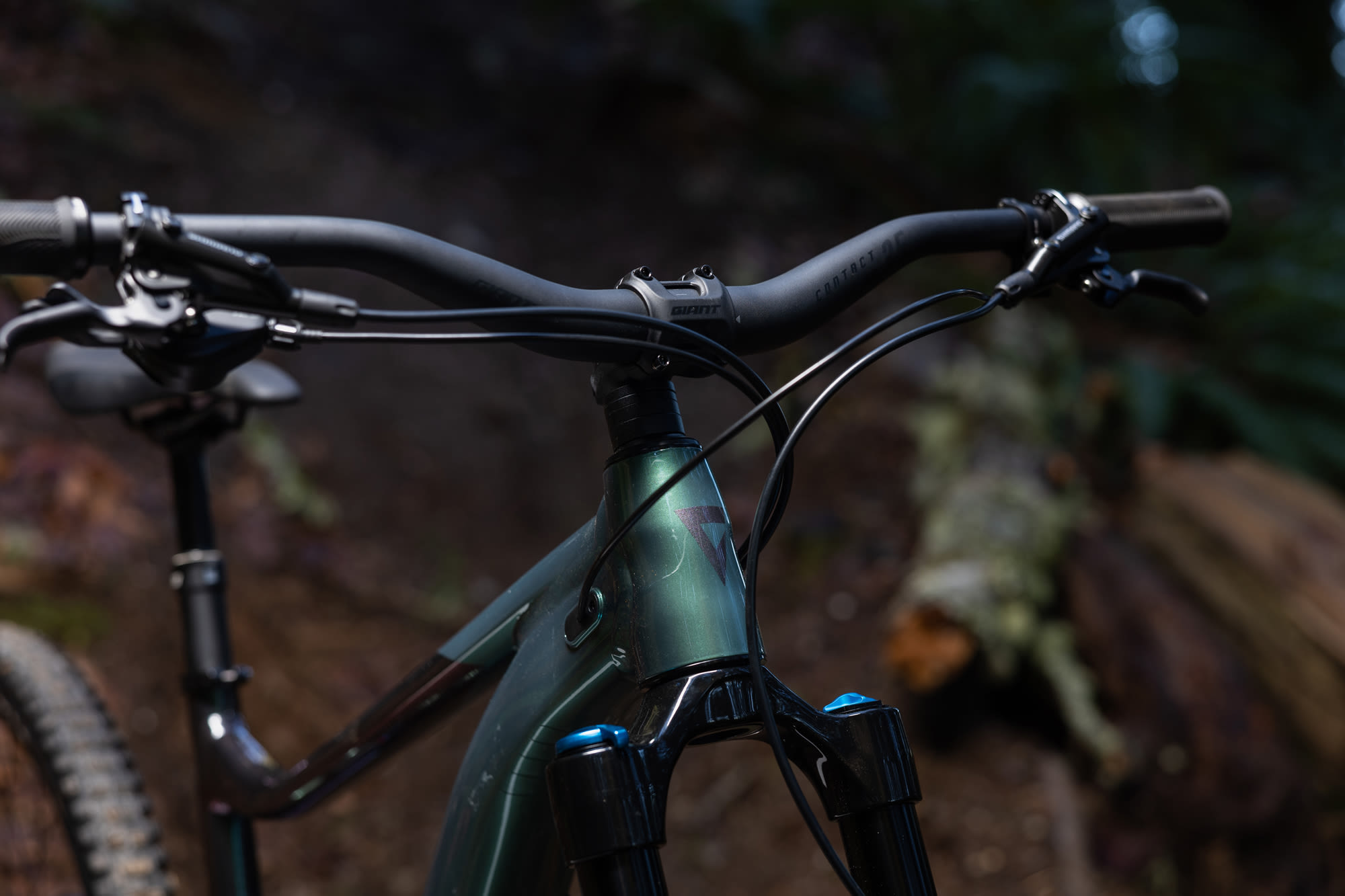

Handlebar Giant Contact TR35, 800x35mm, 35mm rise
Grips Giant Tactal Pro Single
Stem Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm
Saddle Giant Romero
Shifters Shimano Deore SL-M6100, 1×12
Front Derailleur N/A
Rear Derailleur Shimano SLX RD-M7100
Brakes Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
Brake Levers Shimano Deore BL-MT501
Cassette Shimano Deore M6100, 10×51
Chain KMC X-12
Crankset Praxis Cadet HD M24, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket Praxis, press fit
Rims Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs [F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, MicroSpline driver body
Spokes Sapim, 28, J-bend
Tyres [F] Maxxis Assegai 29×2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5×2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras tubeless prepared, 2.5″ max tire size, 36t max chainring size, MRP AMG CS chain guide

Highlights

Barcode : 4711291135901

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 400 425 450 475
B SEAT TUBE ANGLE 77.5 77.5 76.5 76.5
C TOP TUBE LENGTH 558 589 622 654
D HEAD TUBE LENGTH 100 105 115 120
E HEAD TUBE ANGLE 62.7 62.7 62.7 62.7
F FORK RAKE 44 44 44 44
G TRAIL 147 147 147 147
H WHEEL BASE 1,214 1,246 1,271 1,304
I CHAIN STAY LENGTH 445 445 445 445
J BOTTOM BRACKET DROP 29 29 29 29
K STACK 633 638 647 652
L REACH 418 448 468 499
M STAND OVER HEIGHT 714 733 746 762
N HANDLEBAR WIDTH 800 800 800 800
O STEM LENGTH 40 40 40 40
P CRANK LENGTH DEC 165 170 170 170
Q WHEEL SIZE ALT 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R]

Technology and Features

Advanced Forged Composite Technology
ALUXX SL Aluminum Technology
Flip Chip - Maestro 3
Maestro Suspension Technology
OverDrive
Tubeless System
