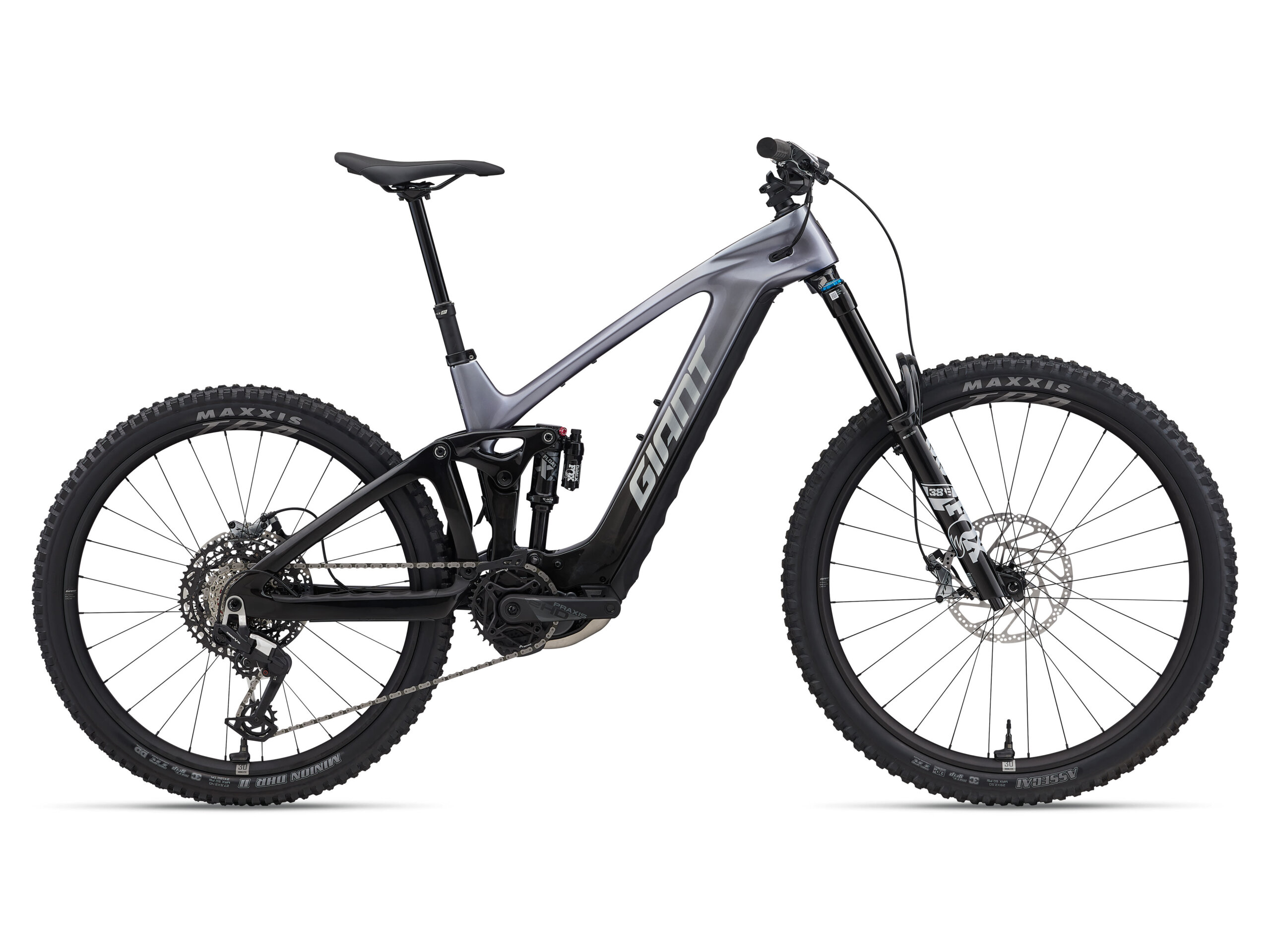

Reign Advanced E+ 1

€8,999.00

Everything about the new Reign Advanced E+ is designed to make it the best descending E-MTB ever. From the bottomless feeling Maestro suspension with 170mm of rear travel (and a 180mm fork) to the punchy new SyncDrive Pro 3 motor and its lightweight, stiff and ultra-adjustable composite frame. We added a titanium skid plate, robust frame protection, and an innovative bash-guard with an elastomer damper—so you can send it with confidence on the most rugged, technical terrain.

Category: Bikes, E Bikes, E MTB Tag: 3247, Apply Now, Giant

View

Size L, M, S, XL

Color Mercury / Carbon Smoke

Specifications

Key Performance Factors

DOMINANT ON DESCENTS

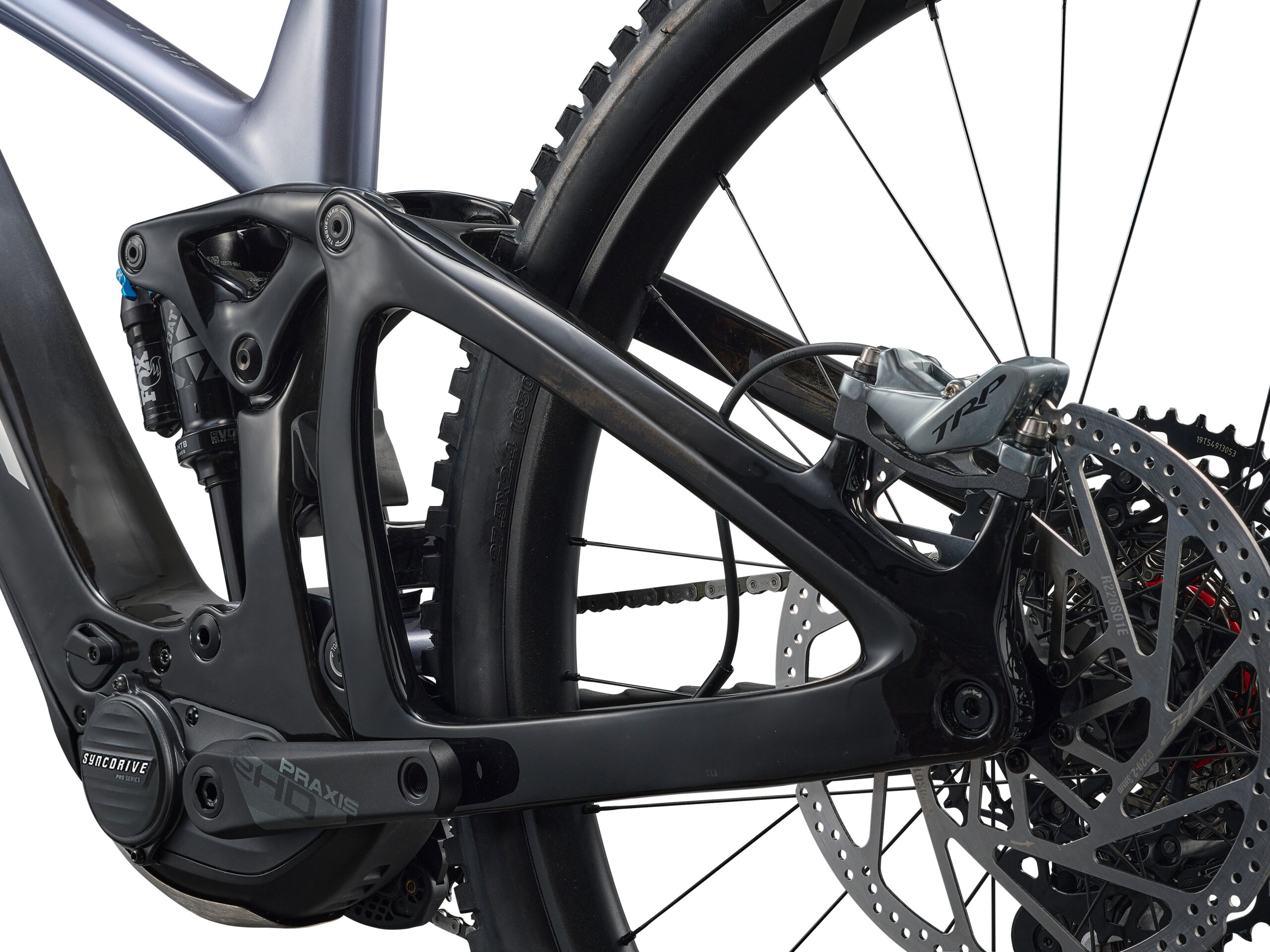

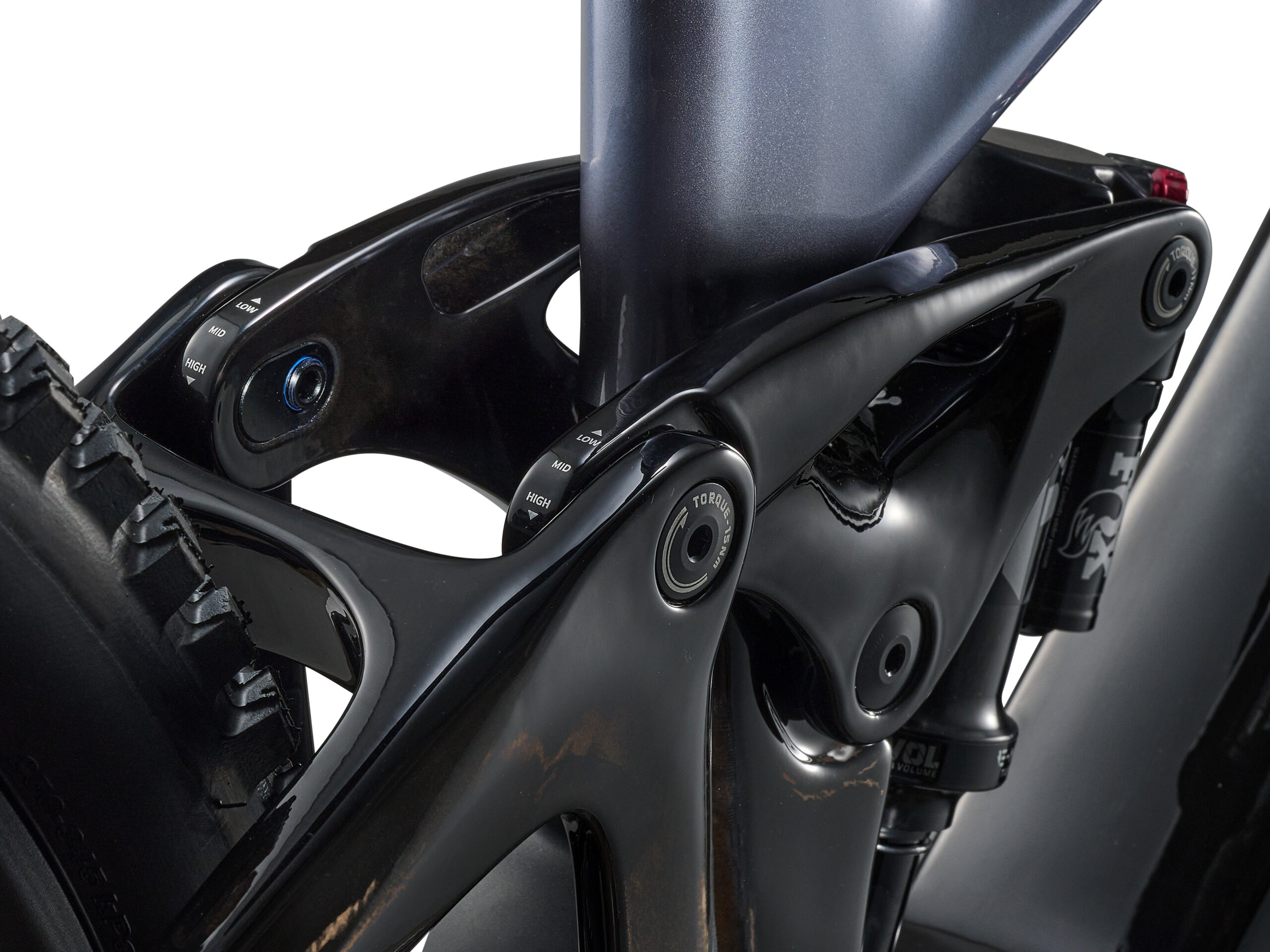

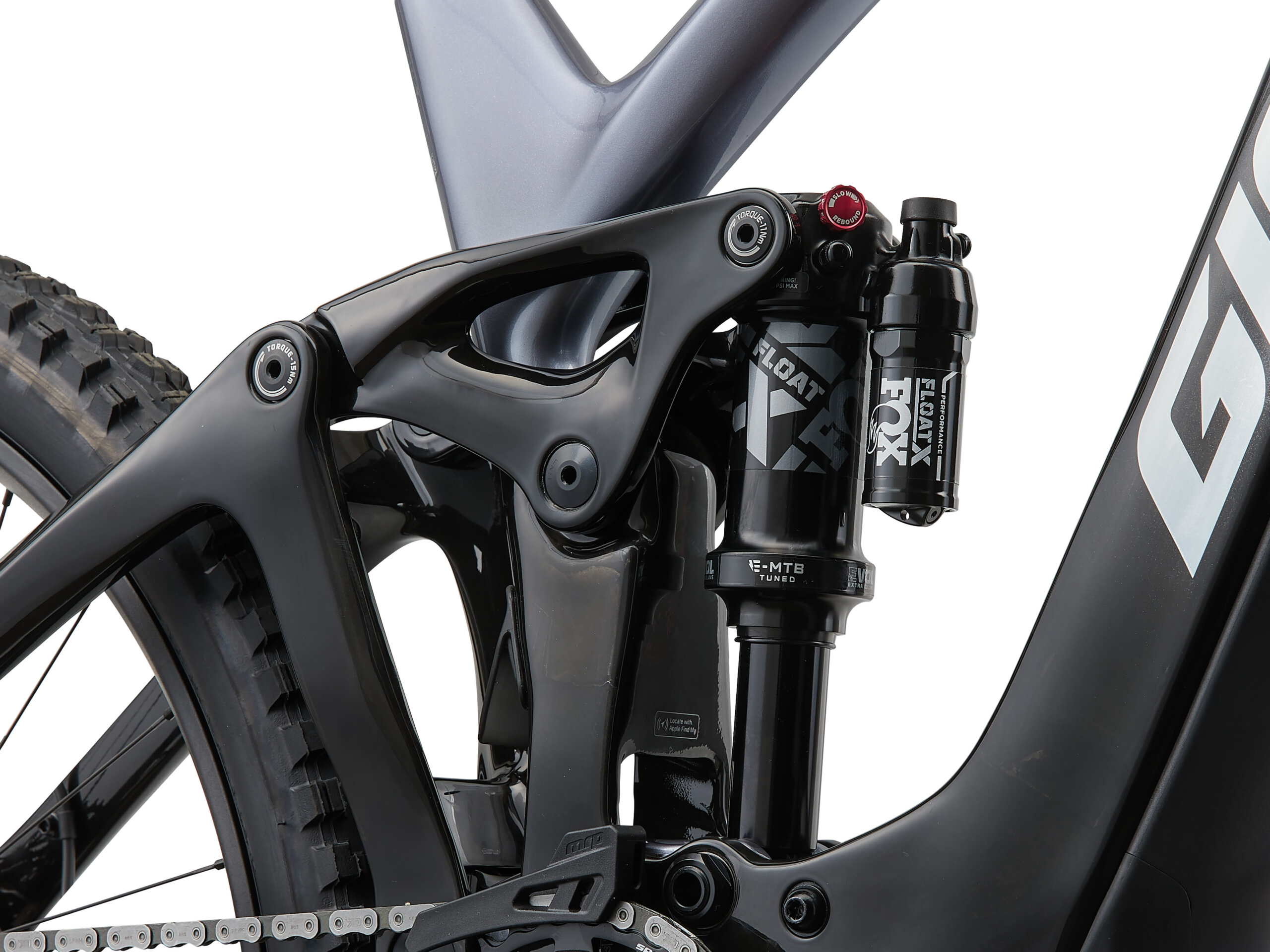

Featuring a modified Maestro suspension system with a new integrated lower link and 170mm of rear travel paired with a 180mm fork, this is best descending E-bike ever from Giant. Maestro’s floating pivot design means it’s always active and efficient under pedaling. Its progressive leverage curve makes the rear shock is easy to compress at the top of the stroke and super-supportive near the end range, producing a plush, bottomless feel that uses every bit of its travel. The result is unmatched confidence and control for big hits, steep drops and technical rock gardens.

LIGHTWEIGHT YET POWERFUL
Upgrading from a 36-volt to 48-volt system results in better performance with reduced heat and energy loss. With 90Nm of torque and 800 watts of peak power, the new SyncDrive Pro 3 motor lets you sustain a high torque level, even at higher pedaling cadences—so you feel powerful, consistent support in any riding situation The added power combined with a lighter composite frame and overall weight of just 22.3kg (size medium) means the Reign E+ Advanced packs a punch when you need it most. And the 48-volt system also produces less stress on the EnergyPak 560 battery, which has a nearly endless lifespan of up to 2300 charge cycles.

PREMIUM PROTECTION
Designed to shred hard and take a beating, the Reign Advanced E+ features a tough, dual-density battery cover that doubles as a full-length protector on the underside of the down tube—perfect for chairlifts, trailers or pickup truck shuttles. A new integrated skid plate protects the motor with corrosion resistant titanium that’s twice as strong as aluminum. And with less friction, the skid plate also helps keep you from getting hung up on rocks, roots, or other obstacles. Finally, a unique MRP active bash-guard, with an elastomer damper and suspended design, gives you unmatched chain and chainring protection.

Motor	Giant SyncDrive Pro 3, 90Nm PedalPlus 6-sensor technology
Controller	Giant RideControl Ergo 4
Display	Giant RideControl GO Lux
Battery	Giant EnergyPak Smart 560W and Giant EnergyPak Plus 280W range extender
Charger	Giant EnergyPak smart charger 4A, 48V
Connectivity	Aegis Tire Checker included in RideControl display
Sizes	S, M, L, XL
Colours	Mercury/Carbon Smoke
Frame	Advanced-grade composite frame, Advanced forged composite upper rocker, 170mm Maestro suspension system
Fork	Fox 38 Performance Elite, 29″, 180mm travel, Grip X2 damper, 44mm offset, KaboltX 110x15mm Boost axle
Shock	Fox Float X Performance, EVOL Large Volume sleeve, 205x65mm Trunnion mount, custom tuned
Handlebar	Giant Contact SL TR35, 35x800mm, 35mm rize, Up: 5⁰ Back: 9⁰
Grips	Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem	Giant Contact SL 35
Seatpost	Giant Contact Switch adjustable dropper, 30,9mm (S:110~140, M:140~170,L/XL: 170~200) MMX remote
Saddle	Giant Romero, Neutral
Shifters	SRAM Eagle 90 Transmission Single Click

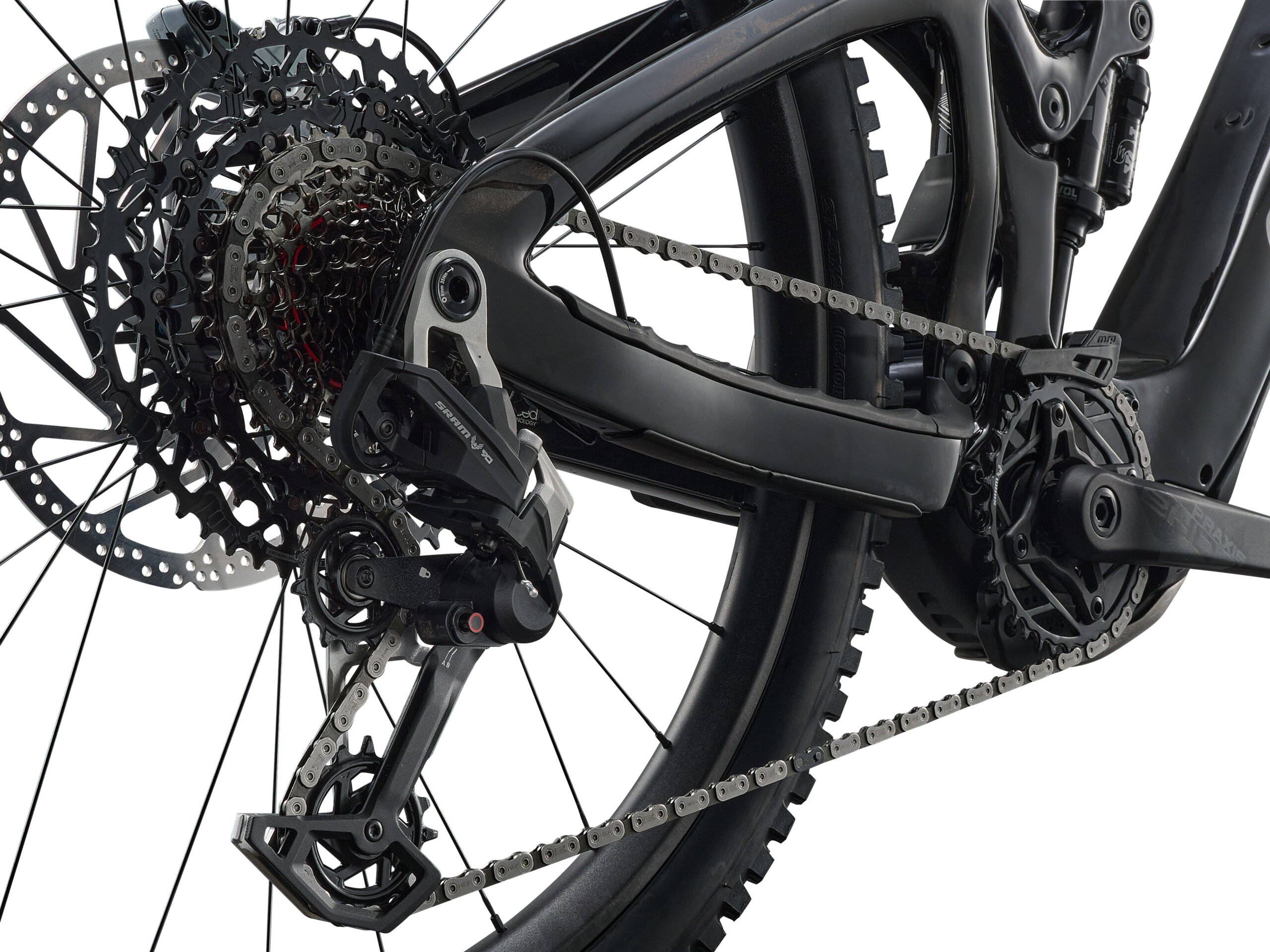

Rear Derailleur	SRAM 90 Eagle Transmission
Brakes	TRP DH-R EVO, hydraulic disc, E2.3 caliper, 4-piston, 220mm [F/R]
Brake Levers	TRP DH-R EVO
Cassette	SRAM Eagle Transmission, 10-52T, 12-speed
Chain	SRAM 70 Eagle Transmission Flattop Powerlink 12-speed
Crankset	SRAM Eagle Transmission 36T chainring Praxis e-HD forged crankarm set (Q-Factor:168mm, Length: 160mm)
Rims	Giant e-TRA, Hookless, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection, 2~4psi lower air pressure recommended
Hubs	Giant e-TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, 15x110mm [F] 12x148mm [R], e-bike optimized
Spokes	Giant TRA, Dynamic Balanced Lacing
Tyres	Maxxis Assagai 29×2.5″ foldable, tubeless, EXO+ 3C MaxxGrip[F] Maxxis MINION DHR II 27.5×2.4″ WT foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R]
Extras	Aegis Tire Checker
Lighting	Optional: – Giant Recon series e-bike lights available and direct connectable

Highlights

Barcode : 4711291151307

Geometry

		S	M	L	XL
A	SEAT TUBE LENGTH	400	425	450	475
B	SEAT TUBE ANGLE	77.1	77.1	77.1	77.1
C	TOP TUBE LENGTH	570	602	625	657
D	HEAD TUBE LENGTH	95	105	120	135
E	HEAD TUBE ANGLE	63.1	63.1	63.1	63.1
F	FORK RAKE	44	44	44	44
G	TRAIL	133.3	133.3	133.3	133.3
H	WHEEL BASE	1,226	1,261	1,287	1,323
I	CHAIN STAY LENGTH	450	450	450	450
J	BOTTOM BRACKET DROP	10	10	10	10
K	STACK	647	656	669	683
L	REACH	426	456	476	505
M	STAND OVER HEIGHT
N	HANDLEBAR WIDTH	800	800	800	800
O	STEM LENGTH	40	40	40	40
P	CRANK LENGTH DEC	160	160	160	160
Q	WHEEL SIZE ALT	R27.5″ / F29″	R27.5″ / F29″	R27.5″ / F29″	R27.5″ / F29″
