You are halfway through a crisp morning commute along the Grand Canal when your Shimano STEPS display suddenly flickers and presents a cryptic “E010” error code. It’s a sinking feeling that can instantly derail your plans, leaving you worried about the cost of repairs or the prospect of a heavy, unassisted cycle home. We understand that your e-bike is more than just a purchase; it’s your ticket to freedom and a more active lifestyle. That’s why mastering Shimano e-bike motor troubleshooting is essential for any Irish rider who wants to keep their wheels turning without unnecessary anxiety.
You likely believe that a flashing warning light signifies a major mechanical failure, but the reality is often far less daunting. This guide will teach you how to identify common issues like sensor misalignments or connectivity glitches whilst using the latest E-TUBE PROJECT Cyclist app, version 5.4.6, to keep your system healthy. We’ll decode specific alerts such as W011 and E012, providing you with a clear path to a working bike and the confidence to know when to trust a professional workshop for a Silver or Gold service. By the end of this article, you’ll possess a logical framework to resolve technical hurdles and get back to exploring the open road.
Key Takeaways
- Understand the distinction between “W” warning alerts and “E” system errors to quickly gauge the severity of your bike’s behaviour.
- Save time and stress by following a methodical Shimano e-bike motor troubleshooting process, starting with soft resets and battery terminal inspections.
- Learn how to resolve common speed sensor faults by properly aligning the wheel magnet, preventing interrupted rides and unnecessary frustration.
- Utilise the E-TUBE Project Cyclist app to perform advanced diagnostics and update firmware directly from your smartphone via Bluetooth.
- Recognise the specific scenarios that require a professional Silver or Gold Workshop Service to ensure your manufacturer warranty remains intact.

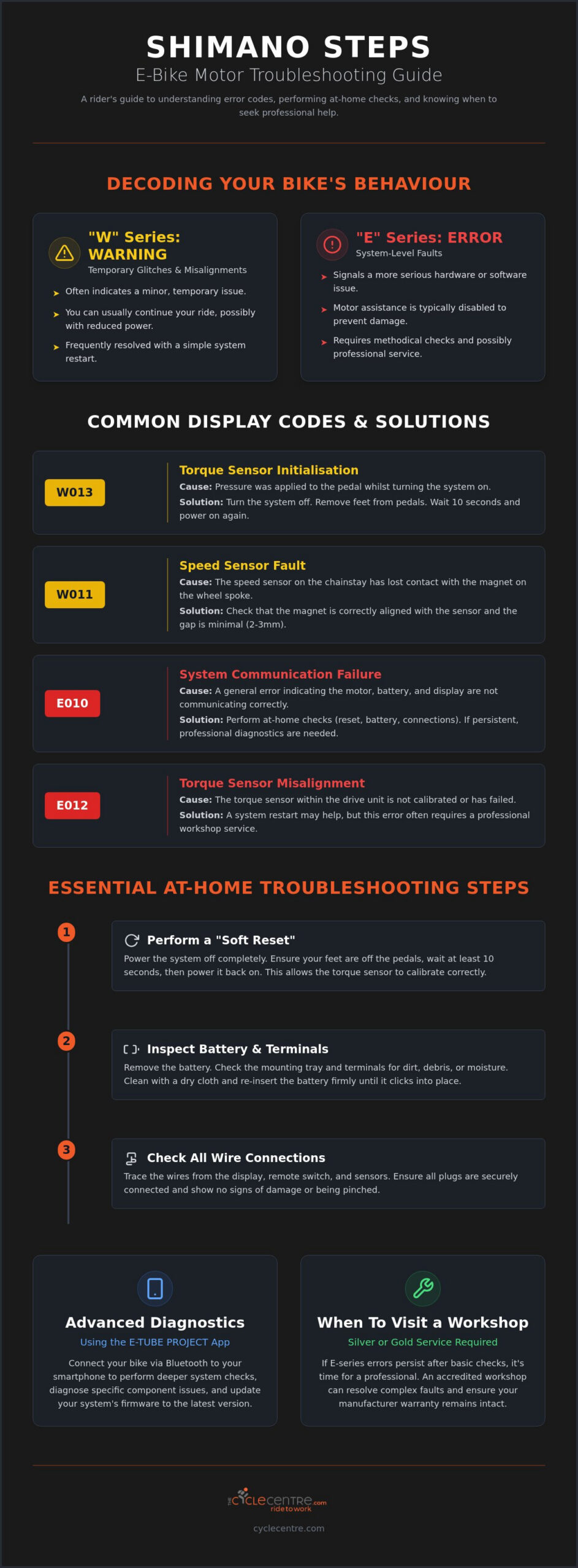

Common Shimano STEPS Error Codes: Decoding Your E-Bike’s Behaviour
The Shimano STEPS display is your bike’s primary way of communicating its internal health. When a component struggles, it uses a specific alphanumeric system to tell you exactly what is bothering the electronics. A Shimano error code acts as a vital system-safeguard against mechanical or electrical stress, designed to prevent permanent damage to your motor or battery. If you have ever wondered what is an electric bicycle in technical terms, it’s essentially a complex harmony of sensors and software; when that harmony is disrupted, a code appears on your screen.
Understanding the difference between a “W” and an “E” prefix is the first step in effective Shimano e-bike motor troubleshooting. A “W” stands for Warning. These often indicate a temporary glitch or a sensor that is slightly out of alignment, meaning you can often continue your journey with reduced assistance. Conversely, an “E” stands for Error. These are more serious system-level failures that usually disable the motor assistance entirely to protect the hardware from damage. Some codes disappear after a quick restart because the sensor simply needed to recalibrate, whilst others persist because the system has detected a genuine hardware fault that requires manual intervention.
The Most Frequent Warning Codes (W Series)
Warning codes like W013 often appear if you have your foot on the pedal whilst turning the bike on. This confuses the torque sensor during its initialisation phase because it cannot find its “zero” point. You’ll likely feel the motor provide inconsistent power or no help at all. W011 is another common sight, usually occurring when the speed sensor on the rear chainstay loses track of the magnet on the spokes. If a warning pops up mid-ride, don’t panic. Safely pull over, ensure your feet are off the pedals, and turn the system off and back on again. Often, this simple power cycle is all that’s needed to reset the sensor’s logic and restore your assistance.
Critical Error Codes (E Series) Explained
When an E-series code appears, the situation is usually more technical and requires a methodical approach. E010 is perhaps the most notorious, representing a general system-wide communication failure. This could stem from firmware bugs, dirty battery terminals, or a loose connection in the wiring loom that prevents the battery from “talking” to the drive unit. E012 is equally frustrating, indicating that the torque sensor is misaligned within the drive unit itself, which often happens if the chainring has been subjected to unusual stress.
These errors typically require a deeper diagnostic approach because they involve the core communication between your battery and motor. Whilst a “W” code might be fixed with a simple adjustment of a magnet, an “E” code often signals that the software has locked the system to prevent a short circuit or mechanical failure. If a restart doesn’t clear an E-series code, it is a clear signal from your bike that it needs a professional diagnostic check to identify the specific break in the electrical chain.
Essential At-Home Checks: Fixing Power and Connectivity Issues
Before you assume your drive unit has failed, it’s vital to follow a methodical order of operations. Most issues encountered by Irish riders are caused by simple connectivity breaks rather than internal mechanical failure. By performing a few logical checks, you can often resolve the problem in your own garage. This proactive approach is the cornerstone of effective Shimano e-bike motor troubleshooting, helping you avoid unnecessary trips to the shop for simple fixes.
Step 1: The “Soft Reset”. This is the most basic yet effective tactic. Turn the system off completely. Ensure your feet are off the pedals to allow the torque sensor to calibrate correctly, then wait ten seconds before powering it back up. If you apply pressure to the pedals during start-up, the system will often trigger a warning code because it cannot find its neutral point.
Step 2: Inspect the battery mounting. If the battery isn’t seated perfectly, the data pins cannot maintain a steady connection. Remove the battery and check for any debris, such as grit or dried mud, in the mounting tray. Reinsert it firmly to ensure the electronic “handshake” between the battery and motor is consistent.
Step 3: Check the display and remote switch. Trace the thin wires from your handlebars down toward the frame. A loose connection at the back of the display unit is a frequent culprit for intermittent power loss, especially after riding on rougher Irish backroads or trails.
Step 4: Verify the drive unit ports. These are located behind the plastic covers on your motor. Ensure every cable is pushed firmly into its socket; a cable that has vibrated loose by even a millimetre can cause the entire system to shut down.
Cleaning and Protecting Battery Contacts
Isopropyl alcohol is the only cleaning agent you should use on Shimano terminals. Avoid WD-40 or heavy greases, as these can attract dirt and lead to poor conductivity. Look for “pitting”, which appears as small black marks or depressions on the metal plates, indicating electrical arcing. Always listen for the distinct “click” when reinserting the battery. If you don’t hear it, the connection isn’t secure. For more technical details on maintaining these components, you can consult Shimano’s official FAQ to see their recommended maintenance intervals.
Cable Management and Connection Security
Shimano uses specific SD300 or SD50 wires that require a dedicated Shimano plug tool for safe removal and insertion. Don’t use your fingers or pliers, as you might damage the delicate O-rings that keep water out of the system. A loose wire in the cockpit can often mimic a total motor failure, so ensure there are no sharp bends or pinch points where the cables enter the frame. If these basic checks don’t restore your power, our Workshop Silver Service provides a deeper diagnostic dive to locate hidden electrical faults.
The Speed Sensor and Magnet: Solving W011 and W013 Errors
The speed sensor is the heartbeat of your drive unit’s logic. It works by detecting a magnet attached to a rear wheel spoke every time it passes the sensor body mounted on the chainstay. Without this constant stream of data, the system cannot calculate your speed or provide the correct level of assistance. This is a critical safety feature; if the motor cannot verify your speed, it defaults to a restricted state to remain compliant with Irish road laws. Effective Shimano e-bike motor troubleshooting often starts here because this component is highly exposed to the elements.
W011 is the most common alert in this category. It signals that the sensor isn’t detecting the magnet at all. On Irish trails or even gravel paths, a stray stick or a build-up of thick mud can easily nudge the magnet out of its precise path. When this happens, the bike enters a “limp mode”. You might find that the assistance feels jerky or cuts out entirely once you reach a certain pace. It’s a frustrating experience, but it’s usually a five-minute fix rather than a terminal motor failure.
W013 is slightly different, often relating to the torque sensor initialisation, but it can be triggered if the speed sensor provides erratic data during start-up. If the magnet is loose and swinging slightly, the system receives conflicting information about whether the bike is moving. This confusion leads the software to shut down assistance to prevent the motor from engaging unexpectedly. Keeping these components clean and tight is the simplest way to ensure your ride remains uninterrupted.
Aligning Your Wheel Magnet Correctly
Precision is everything when it comes to sensor positioning. If you look closely at the plastic body of the speed sensor, you will see a small engraved line or index mark. The magnet must pass directly over this mark to register a signal. The gap between the magnet and the sensor should be between 1mm and 5mm; any wider and the magnetic field won’t trigger the internal switch. For a visual walkthrough on how to check these tolerances, this from EMBN offers excellent practical advice. Ensure the magnet is tightened securely so it doesn’t migrate down the spoke during high-speed descents or over bumpy terrain.
Inspecting the Speed Sensor Cable
If the magnet is perfectly aligned but the W011 code persists, you must inspect the physical cable. Trace the wire from the sensor body along the chainstay toward the motor. Pay close attention to the area near the rear dropout, as this is where the cable is most likely to snag on trail debris or become pinched during a wheel change. Look for any exposed copper or kinks in the outer casing. If the cable is severed or the sensor body is cracked from an impact, a replacement part is the only solution. Regular Shimano e-bike motor troubleshooting during your pre-ride check can catch these issues before they strand you miles from home.
Using the Shimano E-TUBE Project App for Advanced Diagnostics
Modern cycling technology has evolved to a point where your smartphone is just as important as your multi-tool. The Shimano E-TUBE Project Cyclist app, currently at version 5.4.6, is a sophisticated piece of software that transforms your mobile device into a portable diagnostic computer. By establishing a Bluetooth connection with your bike, you can access the internal logic of your drive unit, enabling a level of Shimano e-bike motor troubleshooting that was once only possible in a professional setting. This digital link is particularly useful for identifying “ghost” error codes—those frustrating, intermittent warnings that appear briefly and vanish before you can record the number.
Firmware updates are the primary reason to keep this app on your phone. Much like a smartphone or a laptop, your e-bike’s motor relies on software patches to improve battery management, refine sensor communication, and resolve known bugs. If your assistance feels inconsistent, a simple firmware refresh often clears the system’s logic and restores performance. Once your bike is synced, you can generate a detailed system check report. This document provides a complete health overview that you can share with a technician, allowing them to see exactly what has been happening under the hood before you even wheel the bike into the workshop.
Customising Motor Settings and Profiles
What sometimes feels like a motor “fault” is often just a setting that doesn’t match your riding style. Within the app, you can adjust “Assist Start” and “Max Torque” profiles to change how the power is delivered. If the motor feels like it’s lagging on steep Irish inclines, increasing the start-up assistance can resolve the perceived sluggishness. It is essential to ensure your app and motor firmware versions are compatible; mismatched software can lead to communication errors that mimic hardware failure. If you need help fine-tuning these parameters, our Workshop Gold Service includes a full software optimisation to suit your specific terrain.
Interpreting the Error Log
The app provides a window into the motor’s memory, displaying a chronological history of every fault the system has encountered. It’s vital to distinguish between “Logged” errors, which are past glitches that have already been resolved, and “Active” errors that are currently preventing the bike from functioning. Whilst the app allows for significant customisation, we strongly advise against any attempts at motor tampering or de-restriction. According to the electric bike laws Ireland, modifying your drive unit to provide assistance beyond 25 km/h makes the vehicle illegal for use on public roads without a licence and insurance. Stick to official firmware to keep your warranty and legal standing intact.
Professional Shimano Servicing: When to Visit an Accredited Workshop
Whilst basic Shimano e-bike motor troubleshooting can resolve many connectivity and sensor issues, there comes a point where a professional hand is required. Shimano drive units are sealed, precision-engineered systems that rely on a delicate balance of mechanical parts and electronic sensors. Any attempt to open the motor casing at home, a common but dangerous suggestion found on some online forums, will immediately void your manufacturer warranty. If your problem persists after you have checked the battery, cables, and magnet alignment, it’s a clear indicator that the fault lies within the internal circuitry or mechanical gears that require specialised tools to access safely.
Relying on a Shimano Accredited Workshop ensures that your bike is handled by technicians who have undergone specific training on the STEPS platform. We have access to proprietary parts and official service protocols that aren’t available to the general public. This professional support is the final, essential step in the Shimano e-bike motor troubleshooting journey, moving from home-based fixes to expert-level restoration. Our Workshop Silver and Gold service packages are specifically designed to extend the life of your drive unit by catching minor electrical fluctuations before they become permanent failures.
What Happens During a Shimano Specialist Service?
When you bring your bike to a professional centre, we use the SM-PCE02 professional interface. This hardware link provides a much deeper diagnostic dive than the smartphone app, allowing us to test individual components and perform internal torque sensor calibrations that are locked to standard users. We also conduct a thorough mechanical inspection of the motor mounts to ensure that road vibrations haven’t compromised the mounting bolts or frame interface. For those riding premium machinery, our high end road bike service Ireland provides the meticulous care and technical precision these advanced systems demand.
Ensuring Long-Term E-Bike Reliability
High-performance Electric Mountain Bikes (E-MTBs) and gravel bikes lead a hard life in the damp Irish climate. Regular professional maintenance is the only way to prevent moisture ingress from turning a minor sensor glitch into a terminal motor failure. Our expert team at The Cycle Centre is uniquely equipped to manage complex electrical faults that go beyond the scope of a simple reset. By combining official Shimano diagnostics with decades of mechanical experience, we ensure your e-bike remains a reliable partner for your commutes and weekend adventures. Don’t let a cryptic error code end your season early; Book your Shimano Gold Service at The Cycle Centre today to keep your motor running at its peak performance.
Keep Your Wheels Turning with Confidence
Maintaining your e-bike doesn’t have to be a source of persistent stress. By mastering a few basic skills, you can easily distinguish between a minor sensor misalignment and a genuine system error. We have explored how a simple soft reset or a quick check of your wheel magnet can often save a journey from being cut short. You also have the power of the E-TUBE Project app to keep your firmware current and your motor settings tailored to the unique demands of Irish terrain. This logical approach to Shimano e-bike motor troubleshooting ensures that you spend more time on the road and less time worrying about cryptic display codes.
When software diagnostics point to internal hardware issues or complex electrical faults, it’s time to let the experts step in. As a Shimano Accredited Workshop, we offer specialised Silver and Gold service packages designed to protect your investment and maintain your manufacturer warranty. Our expert technicians are proficient in Bosch, Shimano, and Yamaha systems, providing the high-level care your bike deserves to stay reliable for years to come. Don’t let a technical hurdle interrupt your freedom. Book a Specialist Shimano E-Bike Service with us today and enjoy the peace of mind that comes with professional maintenance. We look forward to seeing you back out on the trails.
Frequently Asked Questions
Why is my Shimano e-bike motor making a clicking noise?
A clicking noise is usually caused by loose mounting bolts or a dry interface between the chainring and the spider. Check that all motor bolts are tightened to the correct torque specification, as even a tiny amount of movement can cause an audible click under load. If the noise persists after tightening, it may indicate internal wear or a bearing issue that requires a professional workshop inspection.
Can I reset a Shimano e-bike error code without a computer?
You can reset many basic warnings by performing a soft reset, which involves turning the system off and on whilst ensuring your feet are off the pedals. For more persistent issues, the Shimano E-TUBE PROJECT Cyclist app allows you to clear some faults via Bluetooth using your smartphone. This is a vital part of Shimano e-bike motor troubleshooting for riders who need a quick fix whilst out on a journey.
How long does a Shimano e-bike motor typically last?
A well-maintained Shimano motor typically lasts between 10,000 and 20,000 kilometres before requiring significant internal attention. Factors such as riding conditions, the frequency of heavy loading, and adherence to service intervals play a major role in this longevity. Regular professional servicing, such as a Gold Service, is the best way to ensure your drive unit reaches the upper end of this expected range.
What should I do if my Shimano e-bike won’t turn on at all?
Start by verifying that the battery is fully seated in its mount and that the charger indicates a healthy state of charge. If the battery is fine, inspect the thin wires connecting the display unit to the remote switch, as a loose connection here will prevent the system from booting. If these basic checks fail, the issue may lie with a blown fuse or the internal power management board within the motor.
Is it safe to wash my Shimano e-bike motor with a power washer?
No, you should never use a high-pressure power washer on your e-bike motor, battery terminals, or bearing seals. High pressure can force water past the internal gaskets, leading to corrosion and short circuits that are often irreparable and void your warranty. Use a low-pressure hose or a bucket of water and a soft brush to clean your bike safely whilst protecting the sensitive electronic components.
Does a firmware update always fix Shimano error codes?
A firmware update resolves software-related bugs and communication glitches, but it cannot fix physical damage or mechanical wear. Whilst it is a crucial step in Shimano e-bike motor troubleshooting, an update won’t repair a severed speed sensor cable or a worn internal drive gear. If an error persists after an update via the E-TUBE app, the fault is almost certainly hardware-based and requires a physical repair.
How do I know if my Shimano battery needs replacing or just a software update?
Use the E-TUBE app to check your battery’s health percentage and the total number of charge cycles it has completed. Most Shimano batteries are rated for approximately 1,000 charge cycles before significant capacity loss occurs. If the health percentage is high but performance is poor, a software update or cleaning the terminals with isopropyl alcohol may be the solution rather than an expensive replacement.
Can I use the Cycle to Work scheme for e-bike motor repairs?
The Cycle to Work scheme in Ireland is specifically designed for the purchase of new bicycles and safety equipment, not for general maintenance or motor repairs. The tax-free limit is €1,500 for standard e-bikes and €3,000 for cargo e-bikes. Whilst you can’t use the scheme for a repair bill, you can utilise it to upgrade to a newer e-bike model once every four years if your current motor is beyond economical repair.
