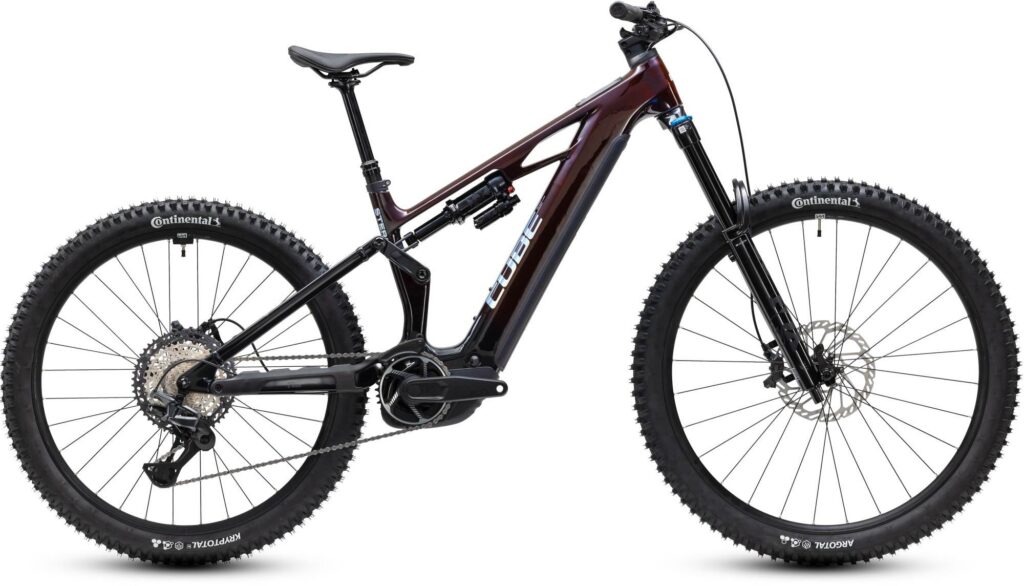

CUBE STEREO HYBRID ONE77 HPC SLX 800 LIQUIDRED XL
Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Performance fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800Wh PowerTube battery give your pedalling a strong, controllable boost, via Shimano’s legendary XT 1×12 gears – and the top tube-mounted Kiox 400C display shows you exactly what’s going on. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Continental Argotal and Kryptotal 2.4in tyres – is held in check by Shimano’s powerful XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost, too, it’s the perfect formula for big mountain fun.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. We added Internal Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also included a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
STEREO HYBRID ONE77 HPC
Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Performance fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800Wh PowerTube battery give your pedalling a strong, controllable boost, via Shimano’s legendary XT 1×12 gears – and the top tube-mounted Kiox 400C display shows you exactly what’s going on. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Continental Argotal and Kryptotal 2.4in tyres – is held in check by Shimano’s powerful XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost, too, it’s the perfect formula for big mountain fun.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. We added Internal Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also included a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
| Fork | |
|---|---|
| Fork Brand | FOX |
| Fork Model | 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm |
| Fork Suspension | 1 |
| Fork Brand Description | Fox |
| Stem | |
| Stem Brand | CUBE |
| Stem Model | Performance Stem E-MTB 35, FPI-Link |
| Stem Brand Description | Cube |
| Chain | |
| Chain Brand | SHIMANO |
| Chain Model | XT CN-M8100 |
| Chain Brand Description | Shimano |
| Frame | |
| Frametype | UNI |
| Framematerial | CARBON |
| Frame Description | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Boost 148, UDH™ |
| Framesize Supplier | L |
| Frametype Description | Unisex |
| Framematerial Description | Carbon |
| Gears | |
| Gear Type | DERAILLEUR |
| Gear Brand | SHIMANO |
| Gear Model | XT |
| Number Of Gears | 12 |
| Gear Brand Description | Shimano |
| Gear Type Description | Derailleur |
| Tyres | |
| Tyre Brand | CONTINENTAL |
| Tyre Model | Argotal Enduro Soft/Kryptotal Downhill Soft, 2.4 |
| Tyre Size Rear | 60-584 |
| Tyre Size Front | 60-622 |
| Tyre Brand Description | Continental |
| Pedals | |
| Pedals Brand | ACID |
| Pedals Model | PP MTB |
| Pedals Brand Description | Acid |
| Saddle | |
| Saddle Brand | ACID |
| Saddle Model | Venec EMTB Trail 140 |
| Saddle Brand Description | Acid |
| Wheels | |
| Wheels Brand | NEWMEN |
| Wheels Model | Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Wheels Brand Description | Newmen |
| Headset | |
| Headset Brand | ACROS |
| Headset Model | AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Headset Brand Description | Acros |
| Cassette | |
| Cassette Brand | SHIMANO |
| Cassette Model | XT CS-M8200, 10-51T |
| Cassette Brand Description | Shimano |
| Crankset | |
| Crankset Brand | ACID |
| Crankset Model | MTB Hybrid Pro, 36T |
| Crankset Brand Description | Acid |
| Seatpost | |
| Seatpost Brand | CUBE |
| Seatpost Model | Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Seatpost Brand Description | Cube |
| Shifters | |
| Shifters Brand | SHIMANO |
| Shifters Model | Deore XT SL-M8210-IR, Direct Attach, Single Click |
| Shifters Brand Description | Shimano |
| Handlebar | |
| Handlebar Brand | CUBE |
| Handlebar Model | Rise Trail Bar 35 VariGrip System |
| Handlebar Brand Description | Cube |
| Front Brake | |
| Front Brake Type | SH |
| Front Brake Brand | SHIMANO |
| Front Brake Model | XT BR-M8220, Hydr. Disc Brake (200/200) |
| Front Brake Brand Description | Shimano |
| Front Brake Type Description | Disc brake with hydraulic actuation |
| Shiftcables | |
| Shiftcables Brand | SHIMANO |
| Shiftcables Model | XT |
| Shiftcables Brand Description | Shimano |
| Seatpost Clamp | |
| Seatpost Clamp Brand | CUBE |
| Seatpost Clamp Model | Semi-Integrated |
| Seatpost Clamp Brand Description | Cube |
| Derailleur Rear | |
| Derailleur Rear Brand | SHIMANO |
| Derailleur Rear Model | XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Derailleur Rear Brand Description | Shimano |
| Bartape Or Grips | |
| Bartape Or Grips Brand | ACID |
| Bartape Or Grips Model | Endure VariGrip System |
| Bartape Or Grips Brand Description | Acid |
| Primary Rear Brake | |
| Primary Rear Brake Type | SH |
| Primary Rear Brake Brand | SHIMANO |
| Primary Rear Brake Model | XT BR-M8220, Hydr. Disc Brake (200/200) |
| Primary Rear Brake Brand Description | Shimano |
| Primary Rear Brake Type Description | Disc brake with hydraulic actuation |
| Physical Specifications | |
| Size | L |
| Colour | Liquidred/Black |
| Net Weight | 24.7 |
| Gross Weight | 29.7 |
| Weight Capacity | 160 |
| Primary Basecolour | RED |
| Secondary Basecolour | BLACK |
| Primary Basecolour Description | Red |
| Secondary Basecolour Description | Black |
