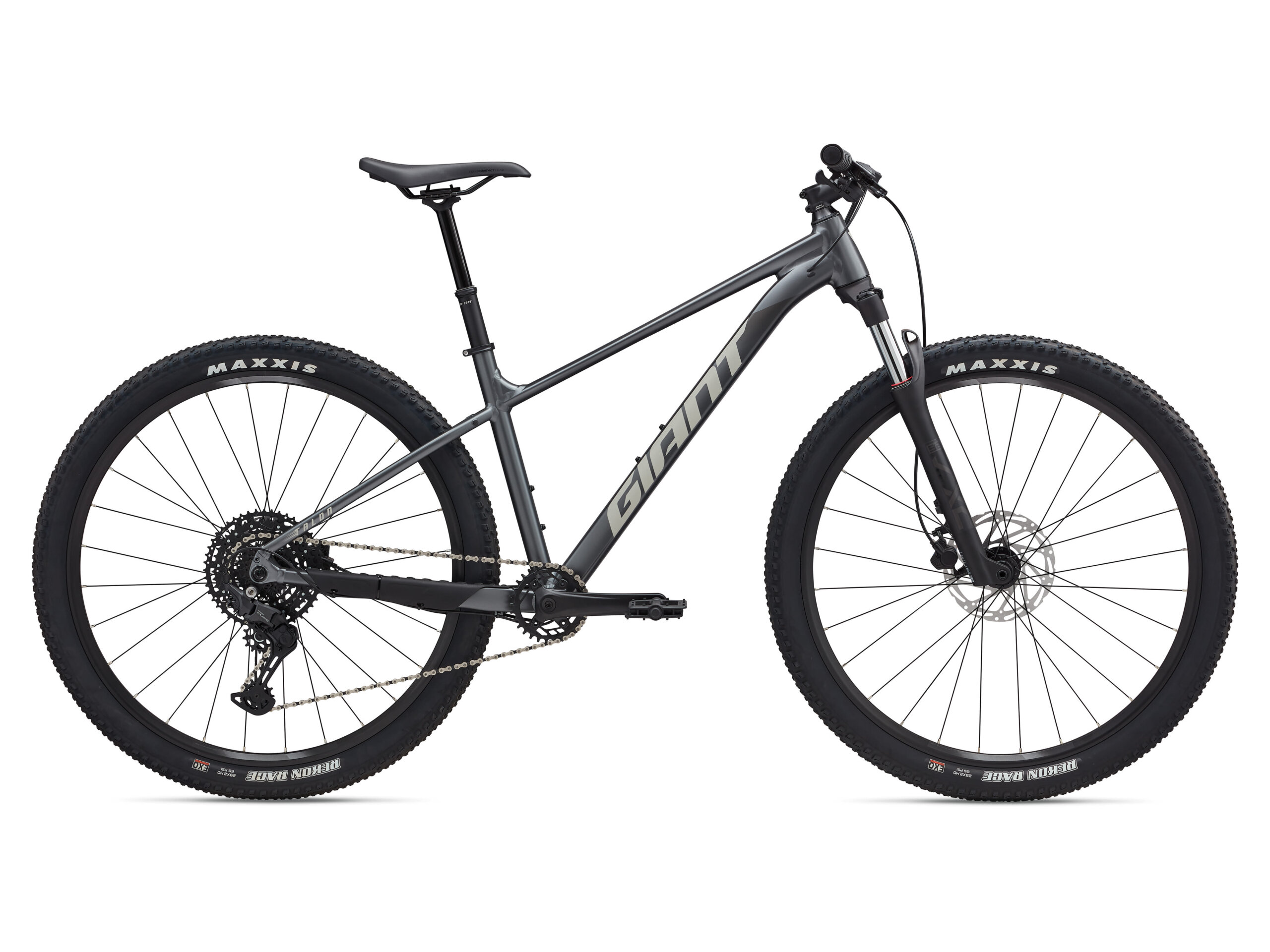

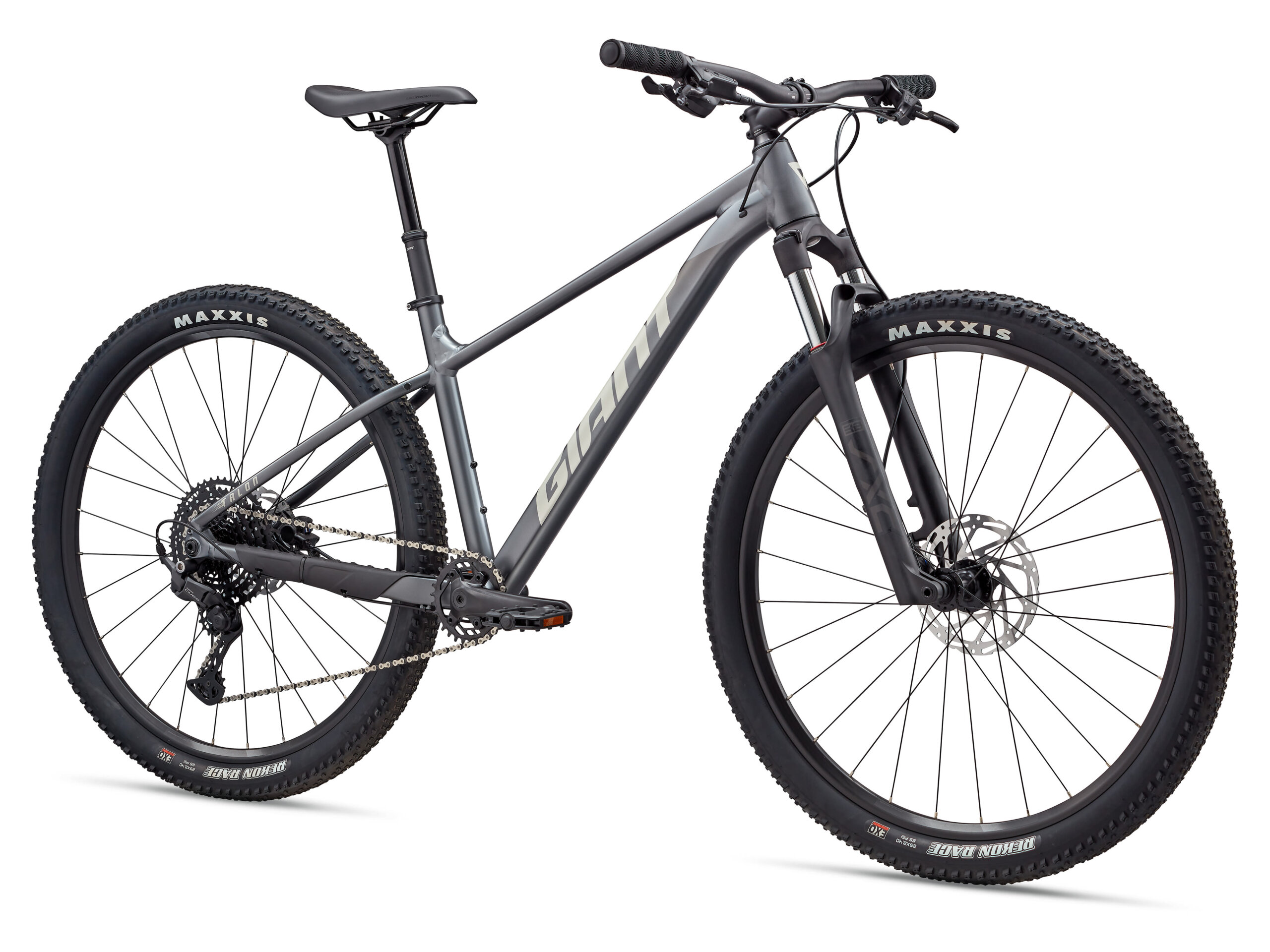

Talon 1

€1,049.00

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Category: Bikes, Hardtail, Mountain Bikes Tag: 3247, Apply Now, Giant

View

The Talon 1 mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Size L, M, S, XL, XS, XXL

Color Charcoal, Metallic Blue

Specifications

Key Performance Factors

Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow.
*on select models

Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

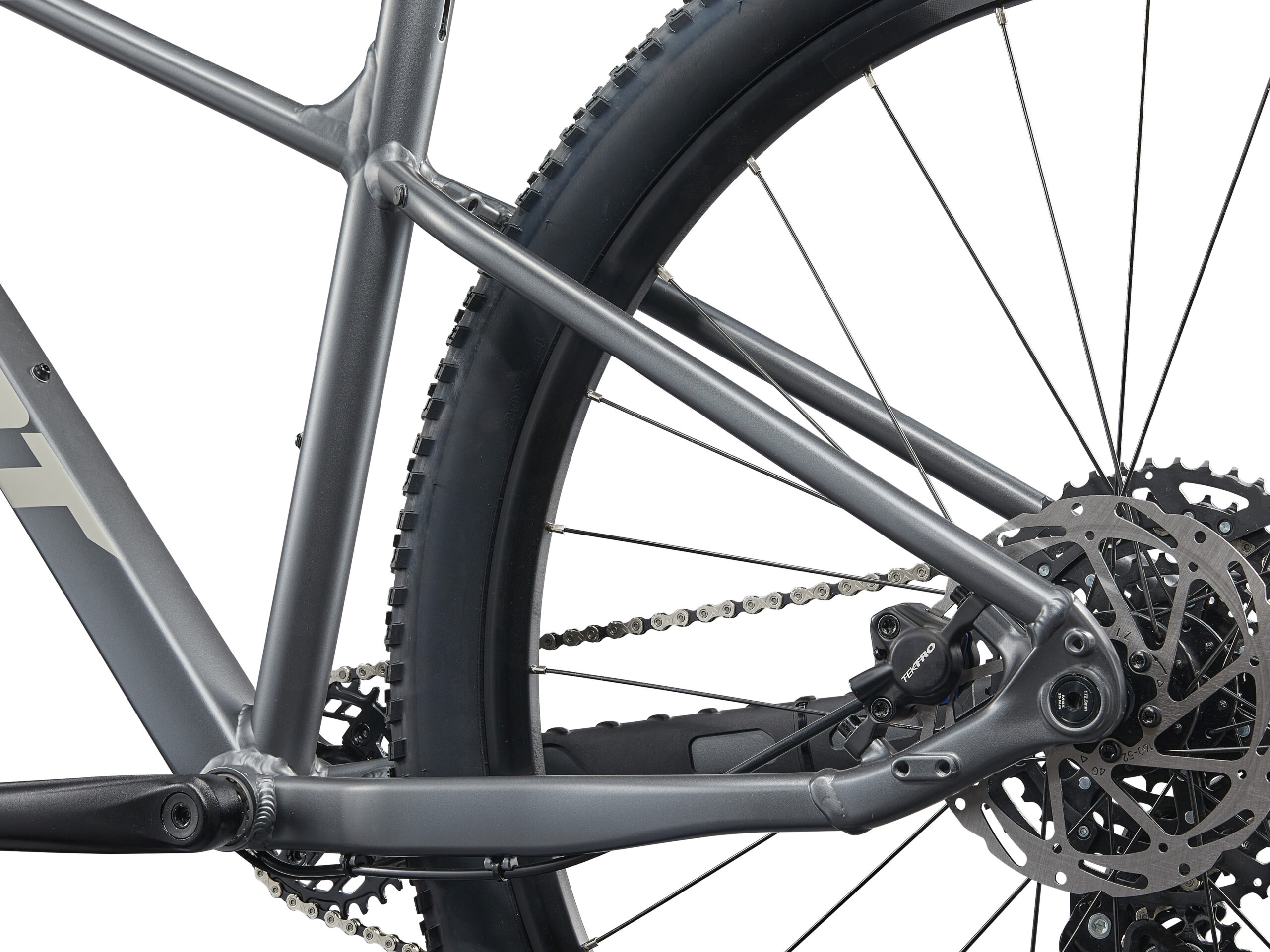

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Sizes	27.5: XS,S 29: M,L,XL,XXL
Colours	Gloss Metallic Blue, Satin Charcoal
Frame	ALUXX-grade aluminium, disc

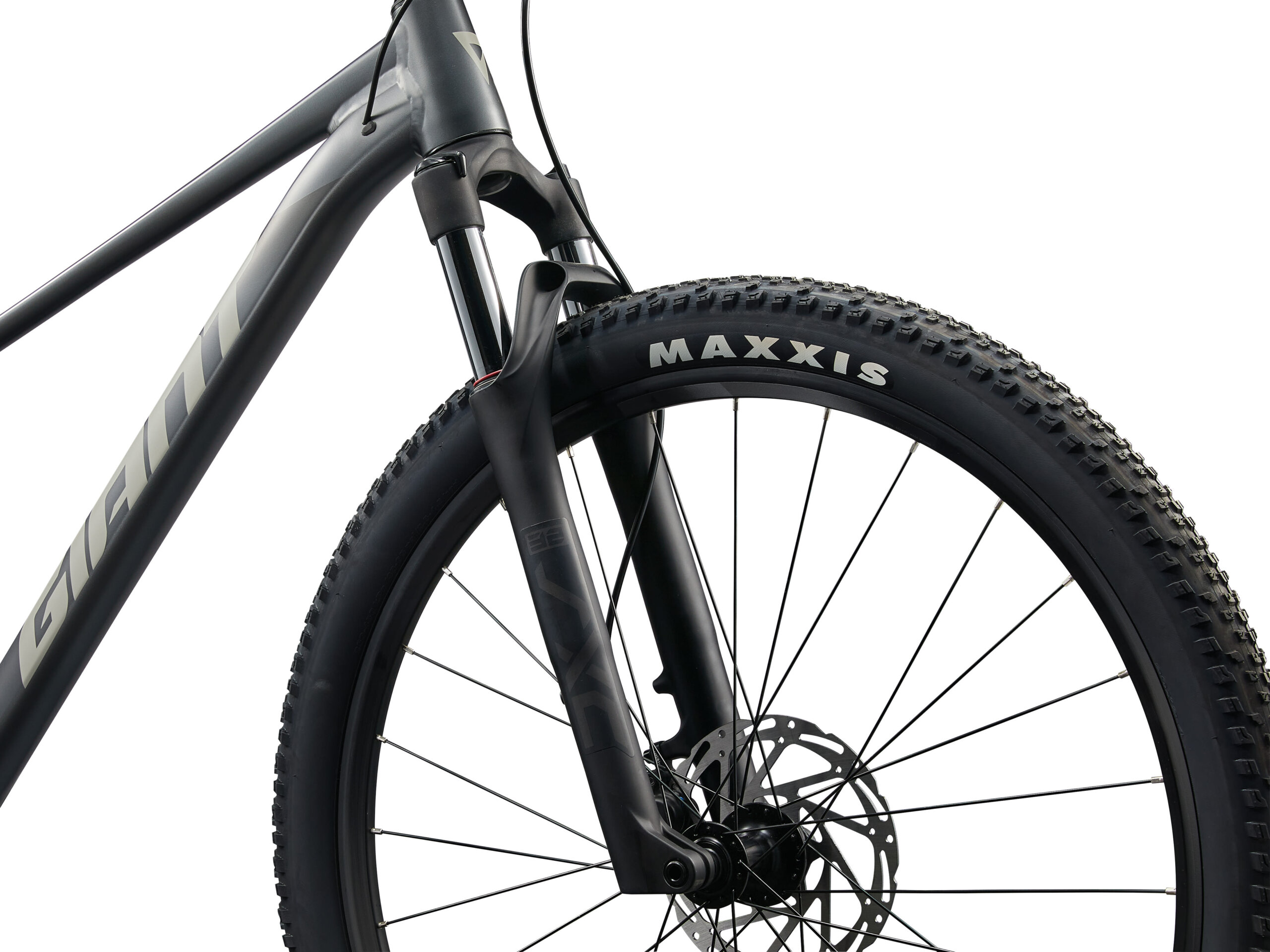

Fork	SXC32-3 RCL, coil sprung, hydraulic lockout, tapered aluminium steerer, 15×110 thru axle XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
Shock	N/A

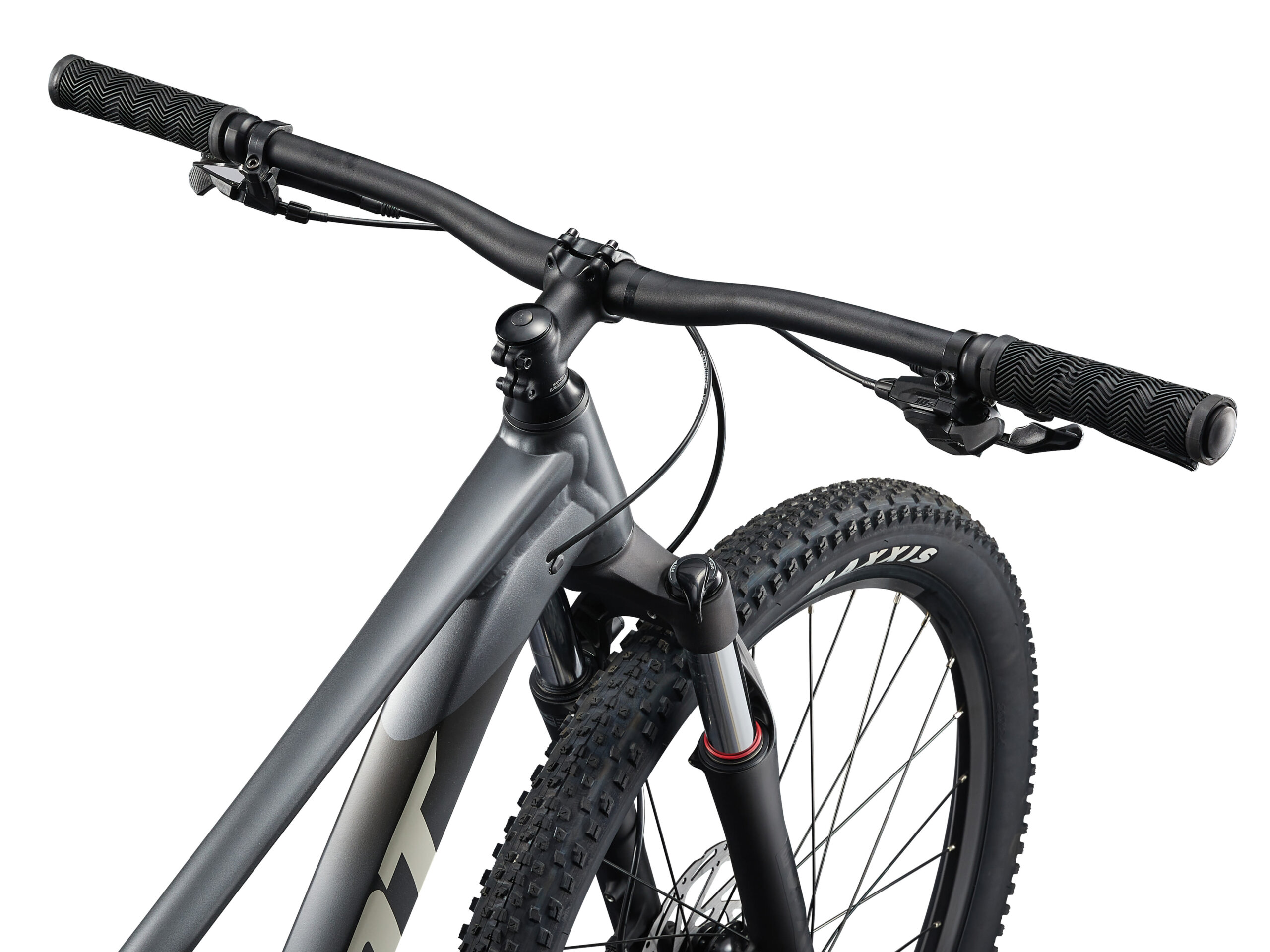

Handlebar	Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
Grips	Giant Sole-O
Stem	Giant Sport, 7-degree rise
Seatpost	Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm (27.5) M-XXL: 120mm drop x 400mm (29)
Saddle	Giant ErgoContact Trail
Pedals	MTB caged
Shifters	Shimano CUES SL-6000, 1×10
Front Derailleur	N/A

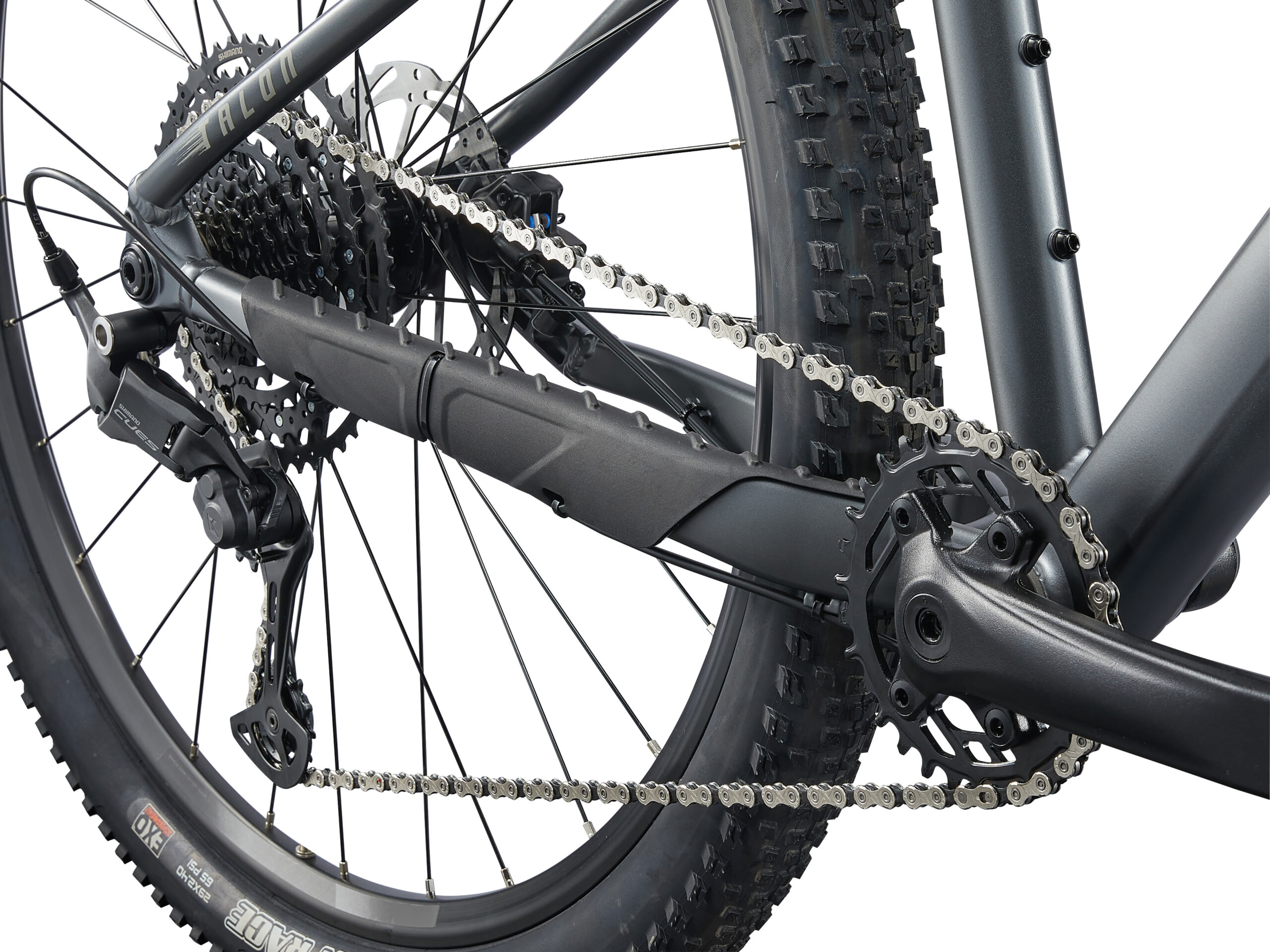

Rear Derailleur	Shimano CUES RD-U6000, clutch
Brakes	Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers	Tektro HDC M275
Cassette	Shimano CUES, CS-LG300, 11×48
Chain	KMC X-11
Crankset	ProWheel Charm, 32t (27.5) or 30t (29)
Bottom Bracket	cartridge
Rims	Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs	[F] Giant Tracker hub, sealed bearing, 15×110 thru axle. [R] Giant Tracker hub, 12×142 thru axle, 24-pawl drive
Spokes	stainless, 14g
Tyres	Maxxis Rekon 27.5×2.4″ or Maxxis Rekon Race 29×2.4″, wire bead
Extras	2.4″ max tyre size

Highlights

Barcode : 4711291101166

Geometry

		XS	S	M	L	XL
A	SEAT TUBE LENGTH	345	375	420	450	480
B	SEAT TUBE ANGLE	74	74	74.5	74.5	74.5
C	TOP TUBE LENGTH	542	562	604	629	653
D	HEAD TUBE LENGTH	90	90	105	125	140
E	HEAD TUBE ANGLE	67	67	67.5	67.5	67.5
F	FORK RAKE	44	44	44	44	44
G	TRAIL	105.2	105.2	108.9	108.9	108.9
H	WHEEL BASE	1,084	1,104	1,164	1,191	1,217
I	CHAIN STAY LENGTH	440	440	455	455	455
J	BOTTOM BRACKET DROP	45	45	55	55	55
K	STACK	548	548	606	625	639
L	REACH	385	405	436	456	476
M	STAND OVER HEIGHT	684	684	709	709	710
N	HANDLEBAR WIDTH	690	690	690	690	690
O	STEM LENGTH	40	50	60	70	80
P	CRANK LENGTH DEC	170	165	170	170	175
Q	WHEEL SIZE ALT	27.5″	27.5″	29″	29″	29″
