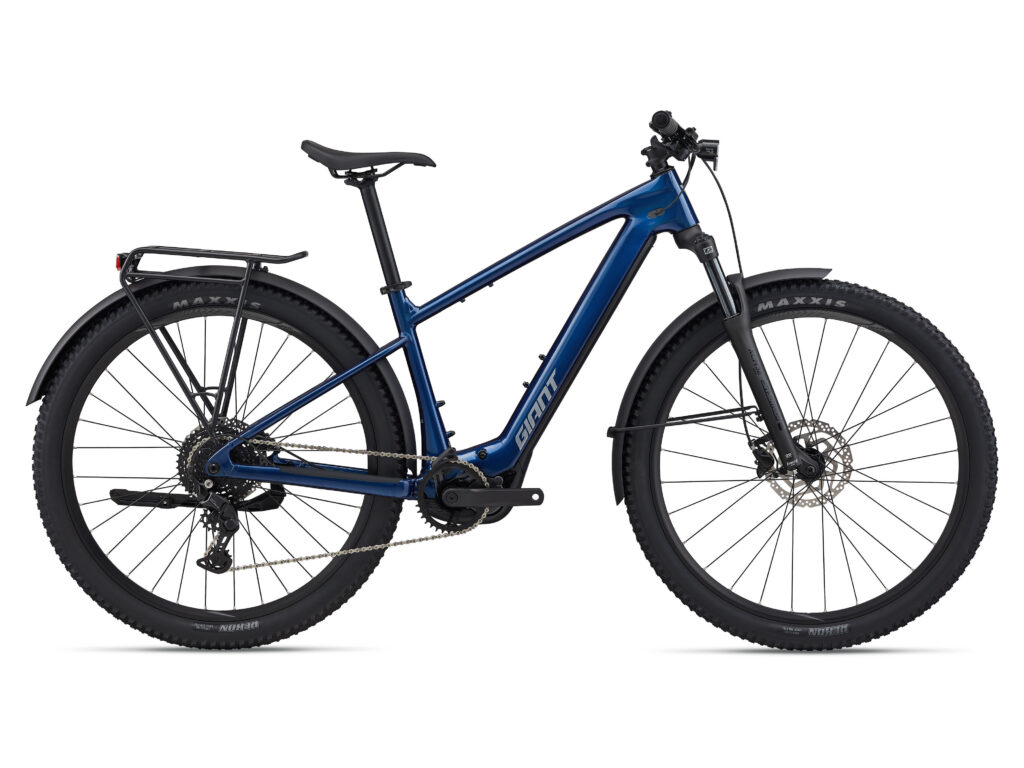

Talon E+ EX

Less weight. More Fun

Category: Bikes, E Bikes, E MTB Tag: Giant

View

Less weight. More Fun

Size L, M, S, XL

Color Metallic Navy

Specifications

Less weight. More Fun

Whether you’re riding trails, exploring dirt roads, or putting some zip in your daily commute, riding an E-bike doesn’t have to be complicated. The all-new Talon E+ range lets you do it all, combining the exhilarating sensation of pedal-assist power with light and agile off-road handling. And its integrated system makes it all so seamless, so simple to use, you can forget about the technology and just enjoy the ride.

Key Performance Factors

LIGHTER WEIGHT
The new Talon E+ EX frame is crafted with ALUXX SL aluminum using hydroforming and gravity casting techniques that helps make it 13% lighter than the previous generation. The new EnergyPak 430 battery and SyncDrive Sport 2 motor are also lighter, giving it an overall weight of just 21.7kg (size medium, without rack). The result is greater agility and confident off-road handling that feels more like a regular hardtail mountain bike.

SLEEK AND SLIM
The redesigned frameset features a slimmer down tube integrated with a new EnergyPak 430 battery system that’s lightweight and easily removable for external charging. 3D forging techniques and super-smooth welds give it a clean, modern look, and two bottle cage mounts allow you to carry more hydration or add a battery range extender for longer rides.

SUPER COMMUTER
The Talon E+ EX is loaded with features and accessories that make it ideal for trekking or commuting. The RideControl Dash 2 controller is used to power on the bike and adjust support levels while you ride. Using the RideControl App, you can custom tune the motor output to optimize range. Also new is a Find My Bike feature using integrated Apple AirTag functionality. And it comes with a rear carrier, fenders, a kickstand, and integrated lights.

Motor	Giant SyncDrive Sport 2, 75Nm PedalPlus 6-sensor technology
Controller	Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
Display	Giant RideControl Dash 2, high-angle visibility, full color LCD display
Battery	Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger	Giant EnergyPak smart charger 4A
Connectivity	Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes	S, M, L, XL
Colours	Metallic Navy
Frame	ALUXX aluminum, Overdrive 1½ – 1⅛” head tube, integrated KSA40 kickstand mount
Fork	SR Suntour XCM ATB DS coil 29″ 100mm travel 15×110 AH axle
Shock	n/a
Handlebar	Giant Connect TR Riser 31.8×690~750mm
Grips	Giant Sole-O Grip
Stem	Giant Contact
Seatpost	Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle	Giant Ergo Trail ESG
Pedals	Anti-slip Platform
Shifters	Shimano Cues
Rear Derailleur	Shimano Cues 9-speed
Brakes	Shimano MT200, hydraulic disc, 180mm [F/R]
Brake Levers	Shimano MT-200
Cassette	Shimano Cues, 11-41T, 9-speed
Chain	KMC eGlide NP/BK, e-bike optimized
Crankset	Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms
Bottom Bracket	n/a
Rims	Giant GX03V alluminum
Hubs	eTracker Boost alloy 6-bolt disc 15x110mm [F] 12x148mm [R]
Spokes	Stainless steel
Tyres	Maxxis Rekon 29×2.4″
Lighting	Giant Recon E HL50 Axa BlueLine Steady E6 rear
Carrier	Giant Rack-It MIK

Highlights

Barcode : 4711291151666

Geometry

		S	M	L	XL
A	SEAT TUBE LENGTH	385	435	485	535
B	SEAT TUBE ANGLE	78	74	74	74
C	TOP TUBE LENGTH	580	600	620	640
D	HEAD TUBE LENGTH	100	115	130	145
E	HEAD TUBE ANGLE	68	68	68	68
F	FORK RAKE	46	46	46	46
G	TRAIL
H	WHEEL BASE	1,144	1,165	1,187	1,209
I	CHAIN STAY LENGTH	470	470	470	470
J	BOTTOM BRACKET DROP	60	60	60	60
K	STACK	613	627	641	655
L	REACH	404	420	436	452
M	STAND OVER HEIGHT	723	753	788	808
N	HANDLEBAR WIDTH	750	750	780	780
O	STEM LENGTH	50	50	50	50
P	CRANK LENGTH DEC
Q	WHEEL SIZE ALT	29"	29"	29"	29"
