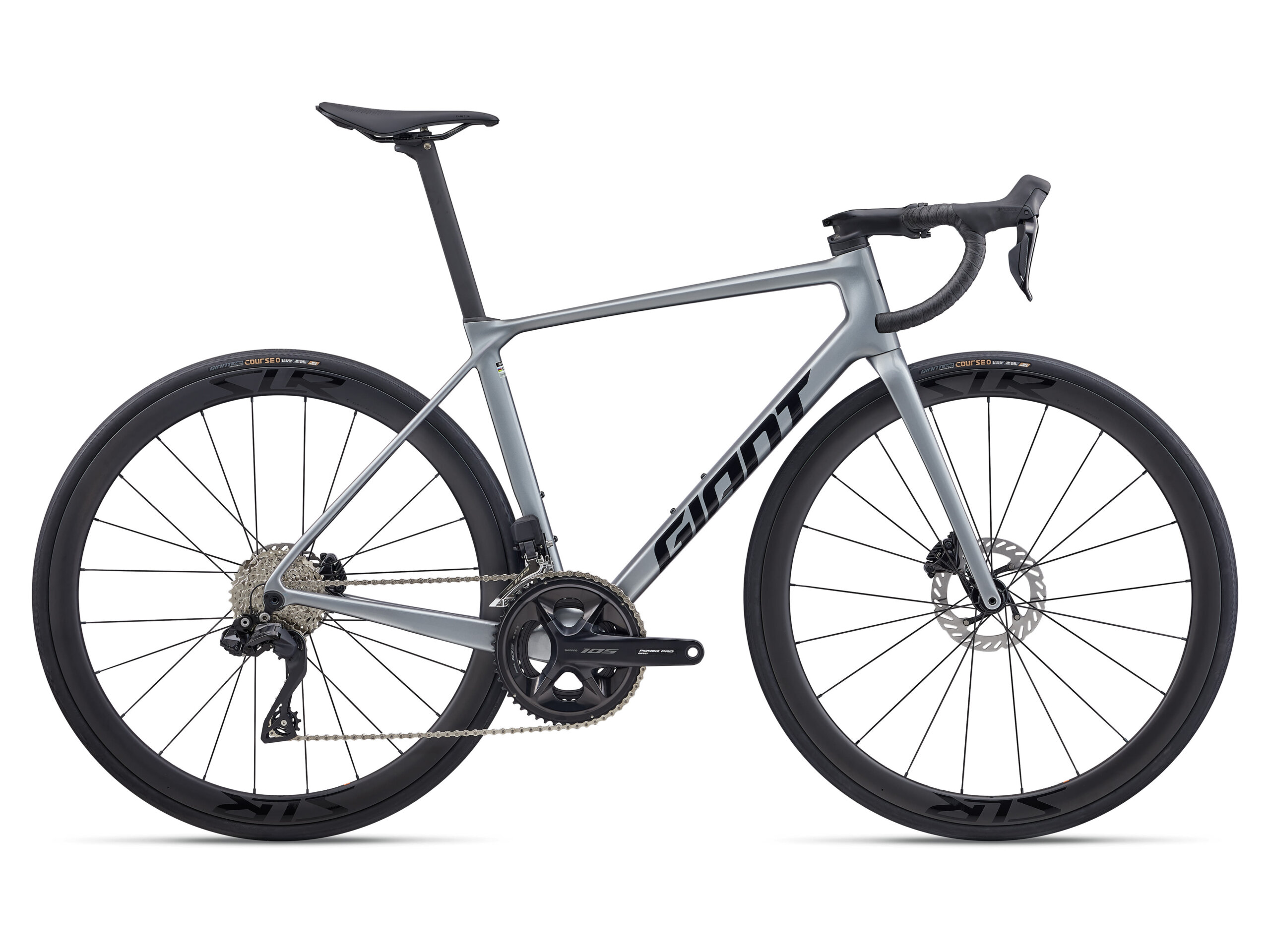

TCR Advanced Pro 1 (Di2)

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.

Category: Bikes, Performance & Racing, Road Bikes Tag: 3247, Apply Now, Giant

View

Size L, M, ML, S, XL

Color Tech Silver

Specifications

Key Performance Factors

SYSTEM OPTIMIZATION

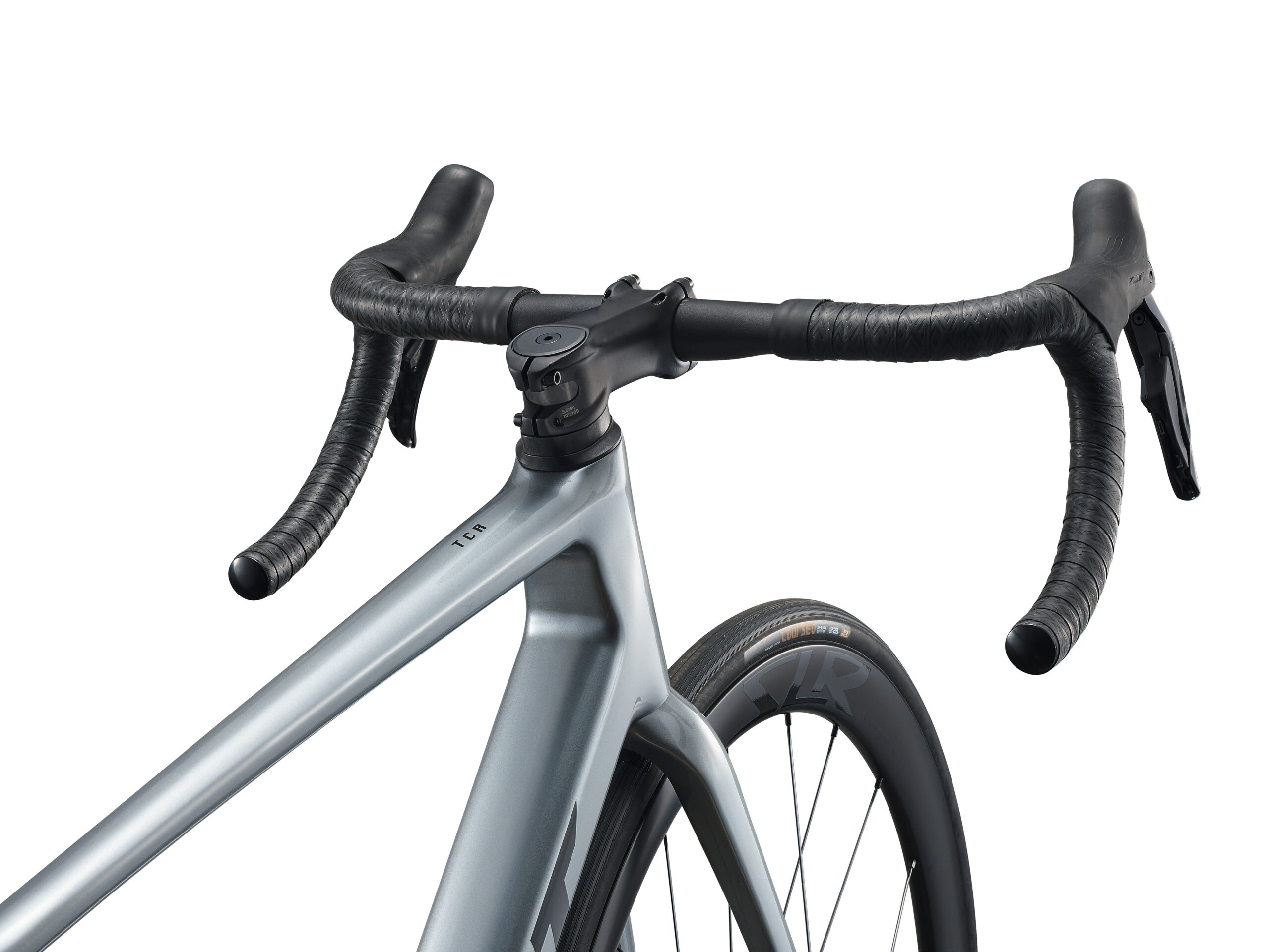

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Sizes	XS, S, M, M/L, L, XL
Colours	Tech Silver

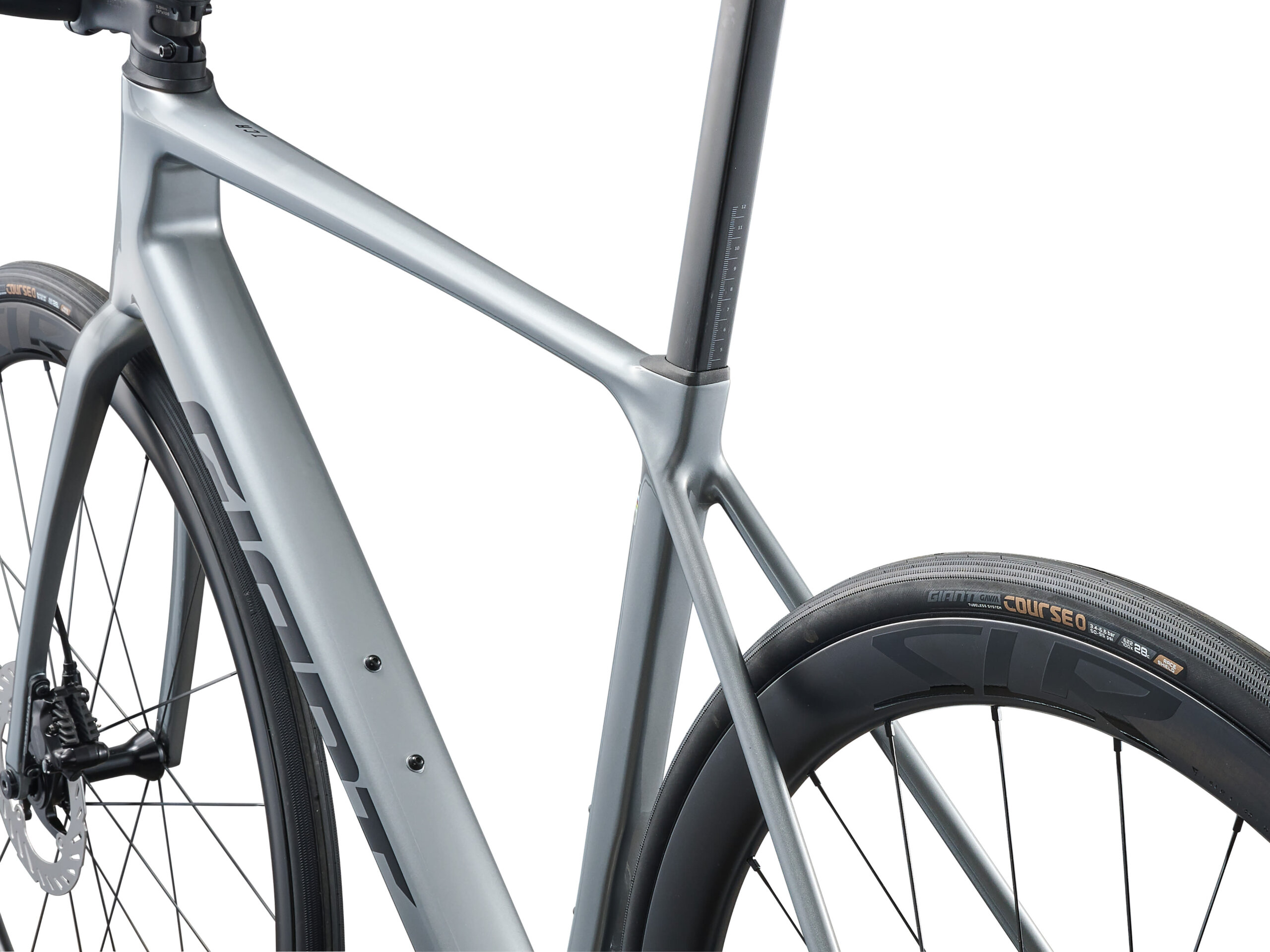

Frame	Advanced-grade Composite, 12x142mm thru-axle, disc

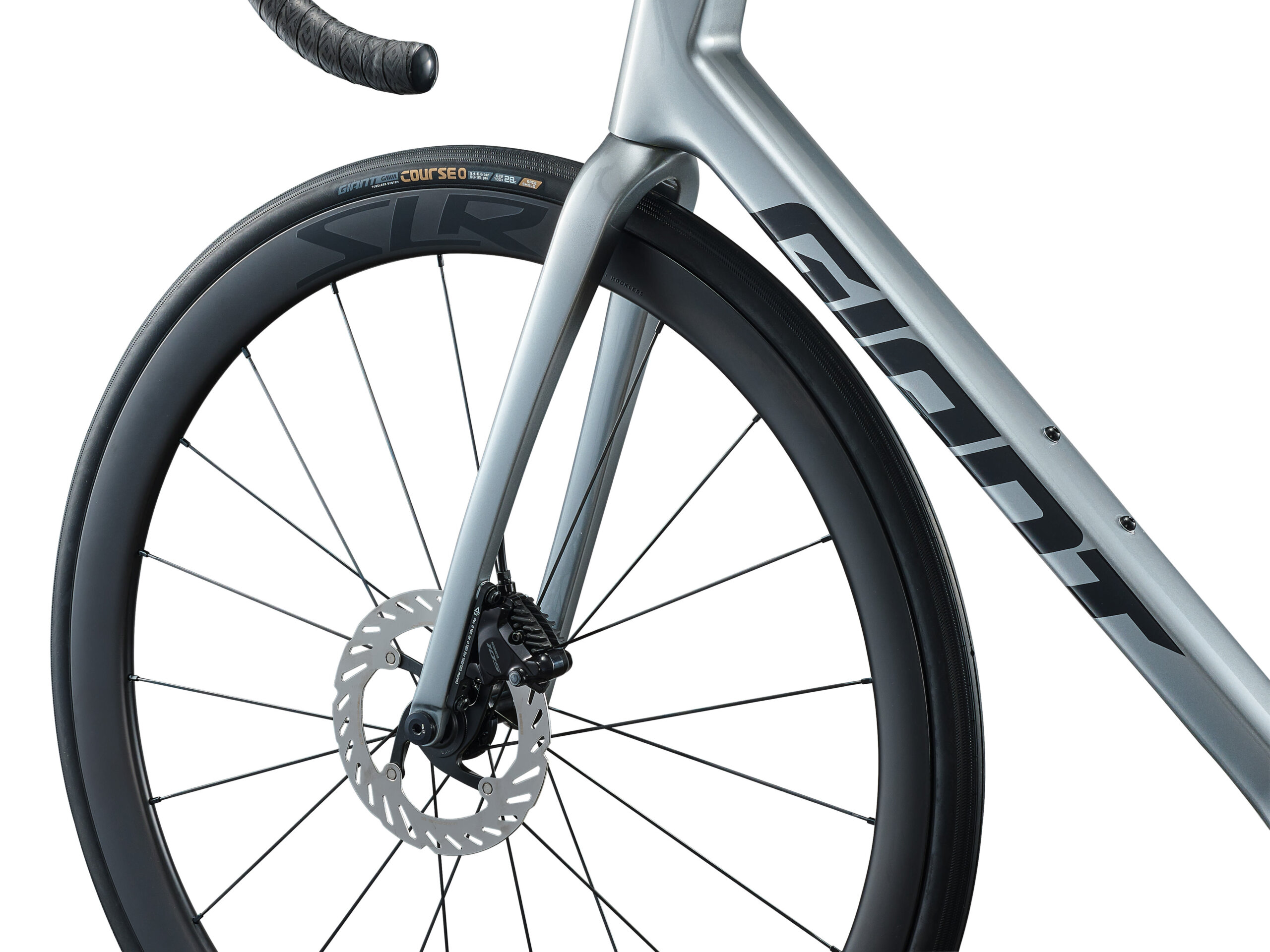

Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar	Giant Contact SL XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
Grips	Stratus Lite 2.0
Stem	Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost	Giant Variant, composite, -5/+15mm offset
Saddle	Giant Fleet SL
Shifters	Shimano 105 Di2
Front Derailleur	Shimano 105 Di2 FD-R7150
Rear Derailleur	Shimano 105 Di2 RD-R7150

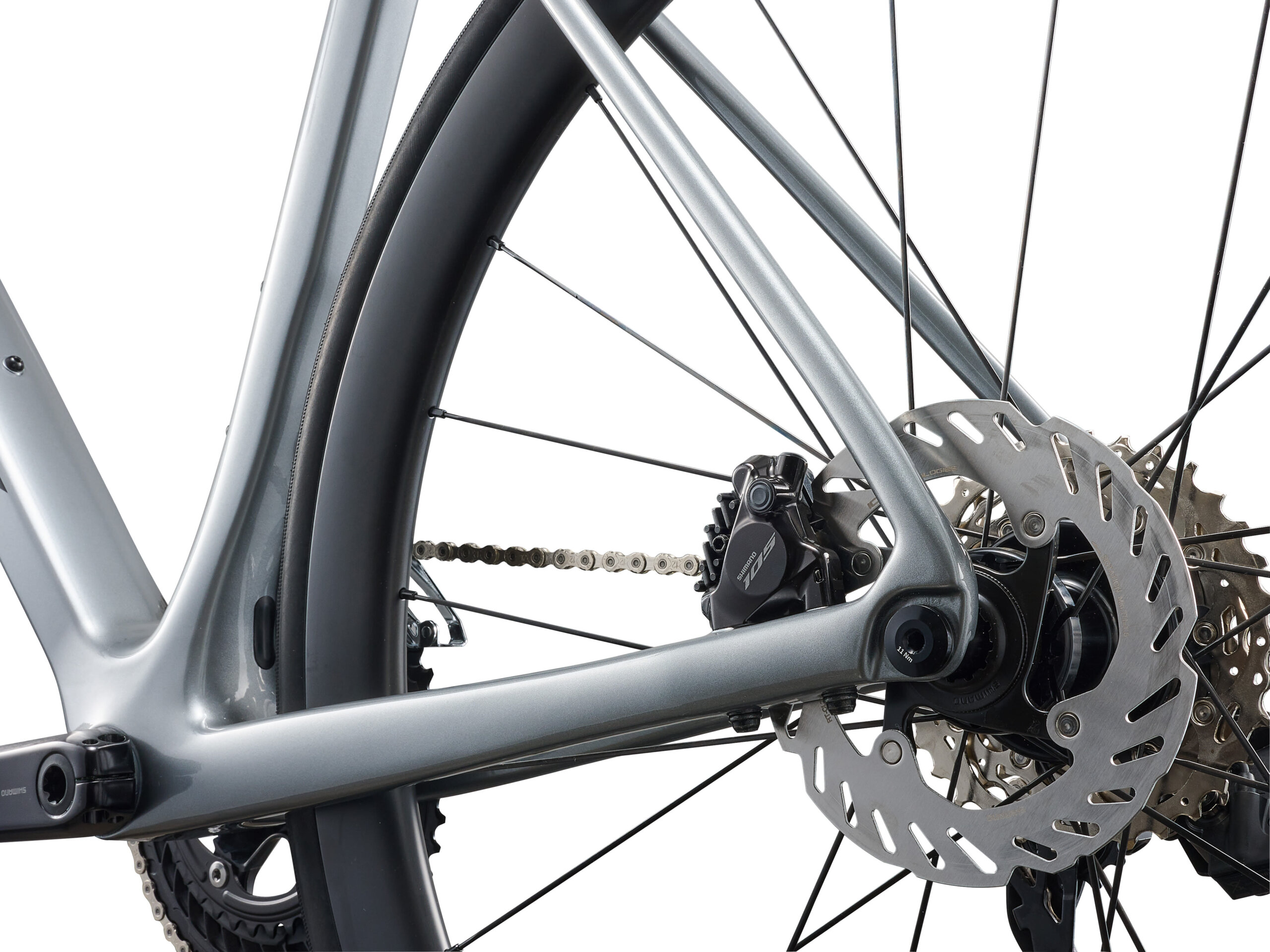

Brakes	Shimano 105 Di2 hydraulic, Shimano RT-CL700 rotors [F]160mm, [R]140mm
Brake Levers	Shimano 105 Di2
Cassette	Shimano 105, 12-speed, 11×34
Chain	KMC X12L-1

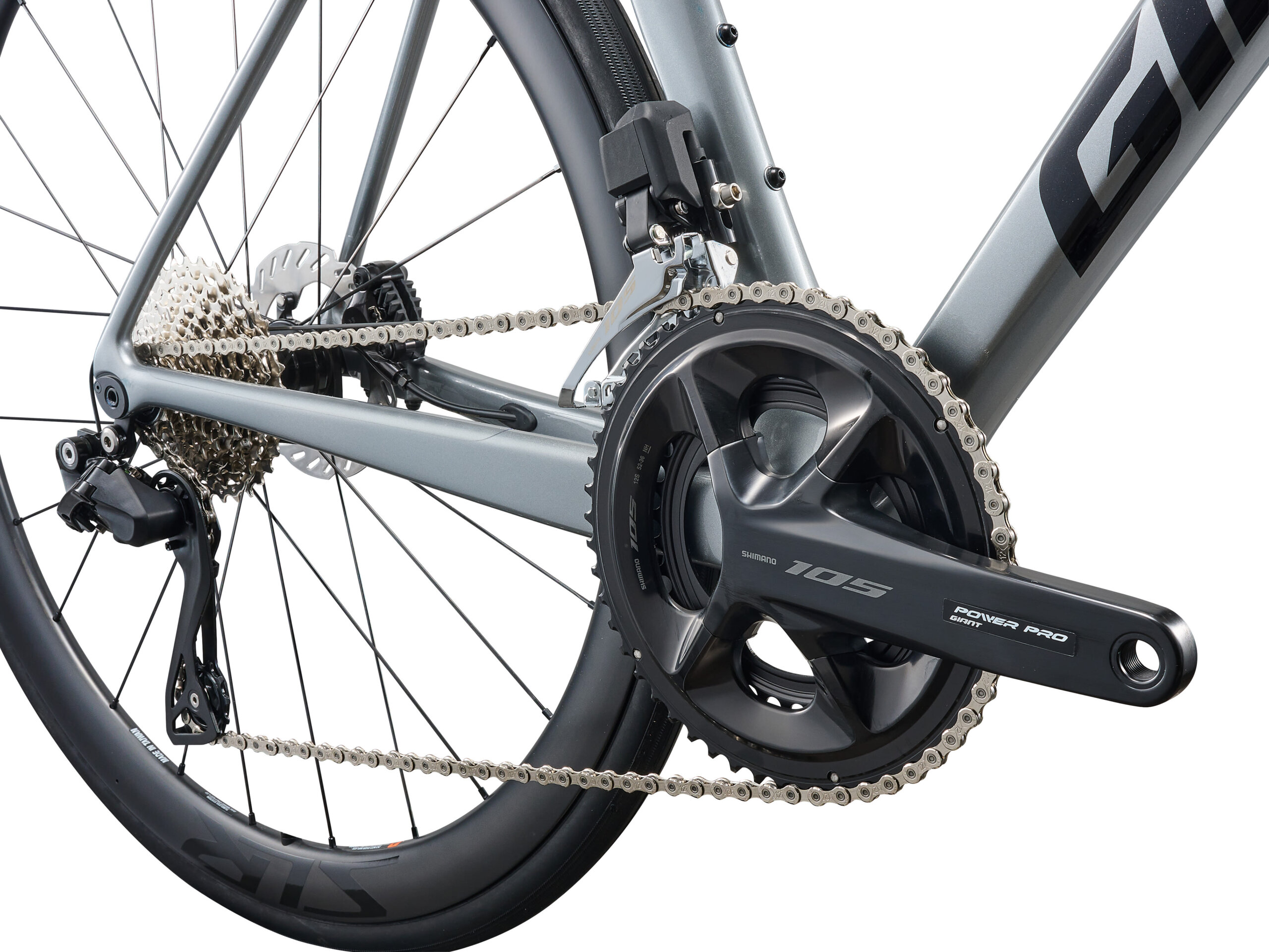

Crankset	Shimano 105, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	Shimano, press fit
Rims	Giant SLR 1 40 WheelSystem, [F]40mm, [R]40mm
Hubs	[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes	Sapim
Tyres	Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
Extras	computer mount, tubeless prepared, 33mm max tire size
Max Tire Clearance	33mm

Highlights

Barcode : 4711291222397

Geometry

		S	M	ML	L	XL
A	SEAT TUBE LENGTH	445	470	500	530	560
B	SEAT TUBE ANGLE	74	73.5	73	73	72.5
C	TOP TUBE LENGTH	535	550	565	580	600
D	HEAD TUBE LENGTH	130	145	165	185	200
E	HEAD TUBE ANGLE	72.3	73	73	73	73
F	FORK RAKE	45	45	45	45	45
G	TRAIL	64	59.2	59.2	59.2	59.2
H	WHEEL BASE	977	980	991	1,006	1,020
I	CHAIN STAY LENGTH	405	405	405	405	405
J	BOTTOM BRACKET DROP	70	70	67	67	67
K	STACK	528	545	562	581	596
L	REACH	383	388	393	402	412
M	STAND OVER HEIGHT	734	752	768	786	803
N	HANDLEBAR WIDTH	420	440	440	440	440
O	STEM LENGTH	90	100	110	110	120
P	CRANK LENGTH DEC	165	170	170	172.5	172.5
Q	WHEEL SIZE ALT
