RIDE TO WORK

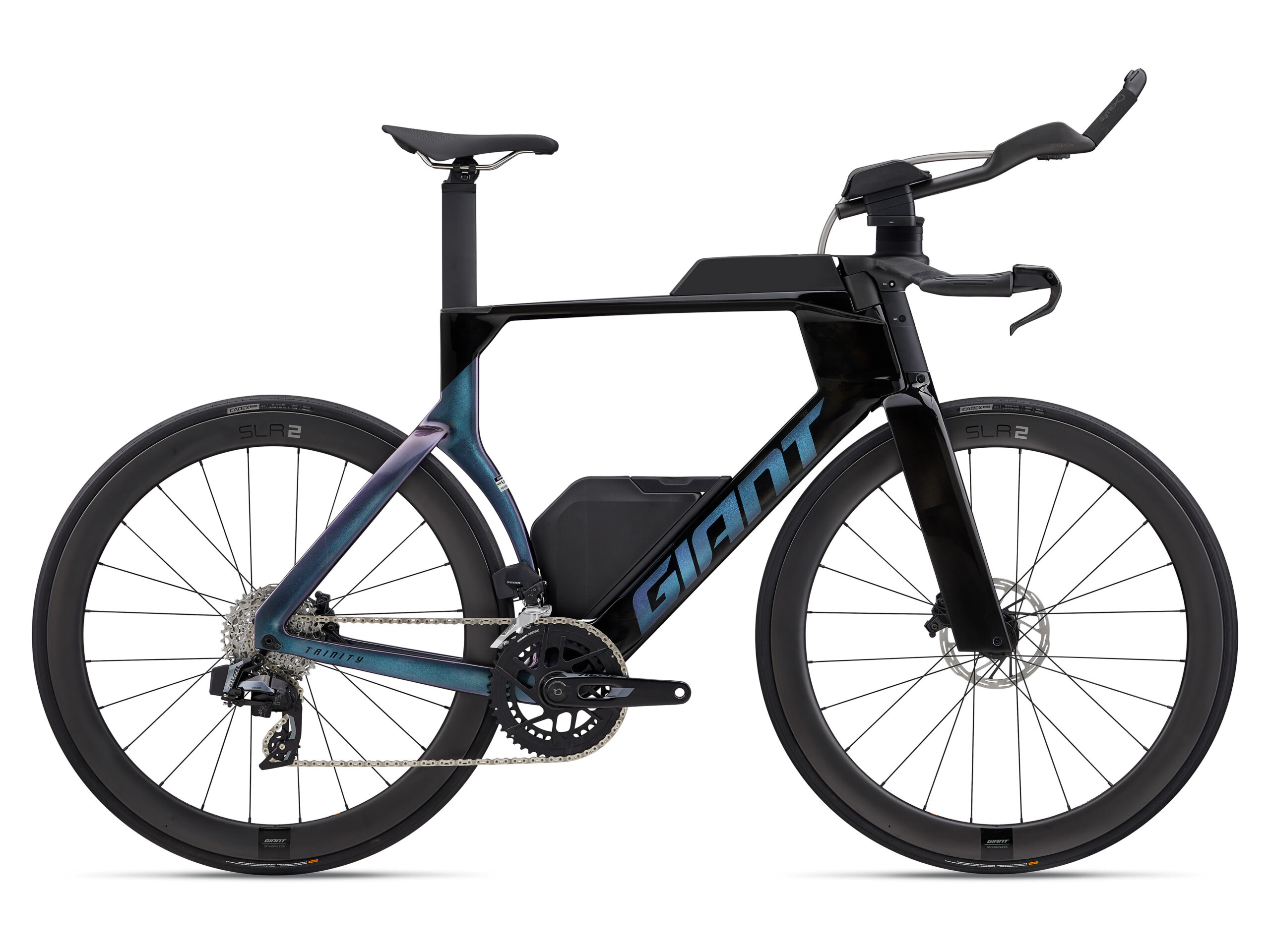

Trinity Advanced SL 2
Trinity Advanced SL 2 - Image 2
Trinity Advanced SL 2 - Image 3
Trinity Advanced SL 2 - Image 4
Trinity Advanced SL 2 - Image 5
Trinity Advanced SL 2 - Image 6

Trinity Advanced SL 2

€3,887.19

Clear
SKU: N/A Categories: , , Tag:

Additional information

Size

, , ,

Color

Specifications

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

Key Performance Factors

FULL-SPEED DYNAMICS
All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.
ULTIMATE AERO EFFICIENCY
AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.
PERSONALIZED FIT
With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.
Sizes XS, S, M, L
Colours Carbon/Blue Dragonfly
Frame Advanced SL-Grade Composite, 12x142mm thru-axle, disc
Fork Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc

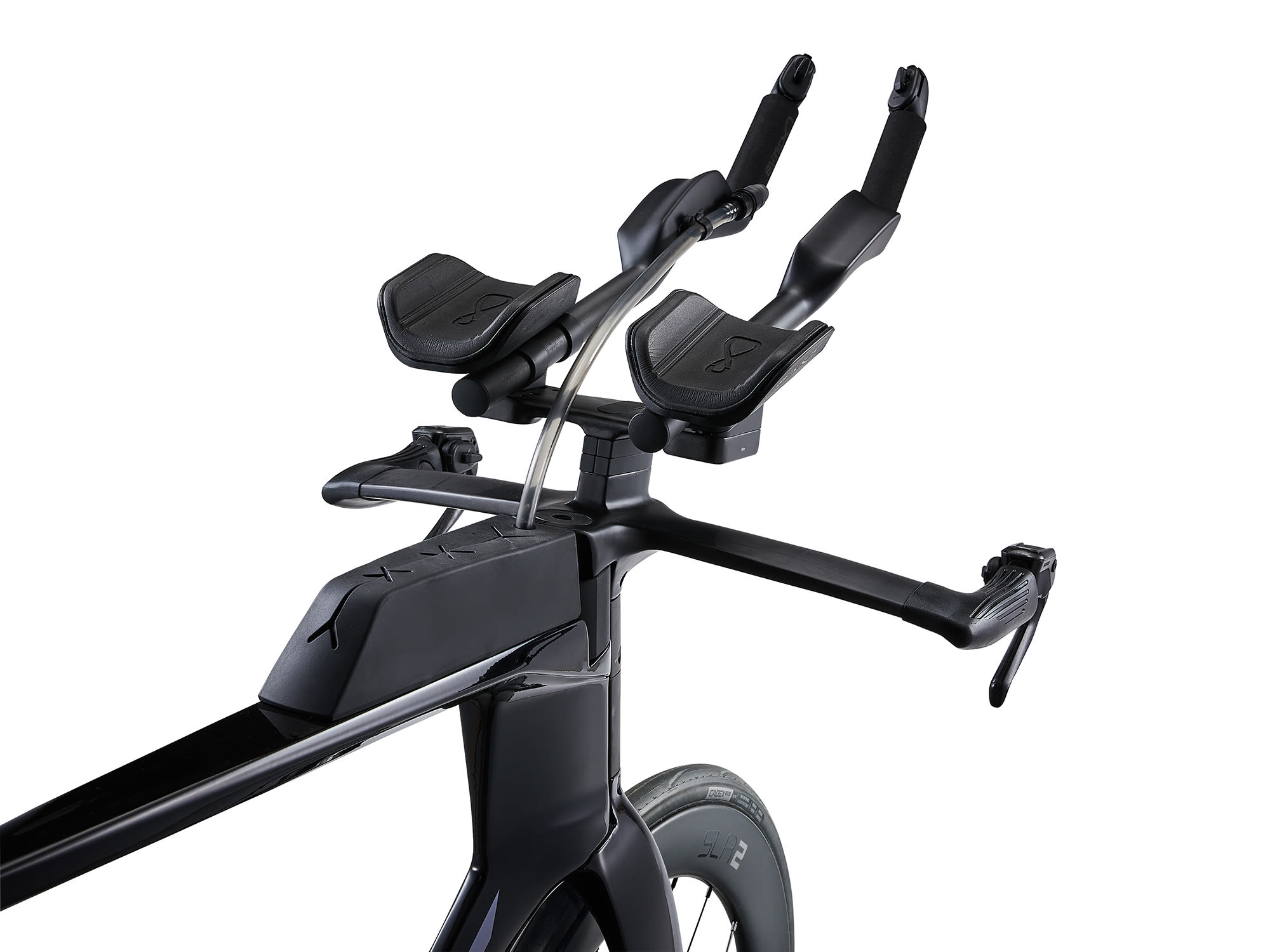

Handlebar AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
Stem Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
Seatpost Trinity Composite
Saddle Giant Contact SL Tri
Arm Rest Kit Sync armrest set
Shifters SRAM eTap Clics – extension mounted, SRAM eTap Blips – basebar mounted
Front Derailleur SRAM Rival AXS
Rear Derailleur SRAM Rival AXS D2
Brakes SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers SRAM S-900 Aero AXS
Cassette SRAM Rival, 12-speed, 10×36
Chain SRAM Force D1
Crankset SRAM Rival AXS, 35/48 with spindle power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
Bottom Bracket SRAM DUB, press fit
Rims Giant SLR 2 50 WheelSystem, [F]40mm, [R]40mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes Giant Aero Carbon Spoke
Tyres CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras TT storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size
Max Tire Clearance 30mm

Highlights

Barcode : 4711291140325

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 477 508 538 565
B SEAT TUBE ANGLE 77 77 77 77
C TOP TUBE LENGTH 510 530 554 579
D HEAD TUBE LENGTH 85 105 125 145
E HEAD TUBE ANGLE 72 73 73 73
F FORK RAKE 40 40 40 40
G TRAIL 69 63 63 63
H WHEEL BASE 974 988 1,013 1,039
I CHAIN STAY LENGTH 405 405 405 405
J BOTTOM BRACKET DROP 70 70 70 70
K STACK 490 513 532 551
L REACH 397 412 432 452
M STAND OVER HEIGHT 758 786 814 838
N HANDLEBAR WIDTH 400 400 400 400
O STEM LENGTH
P CRANK LENGTH DEC 160 165 170 172.5
Q WHEEL SIZE ALT 700C 700C 700C 700C

Technology and Features

Advanced SL Composite Technology
AeroSystem Shaping Technology
PowerCore
Tubeless System
