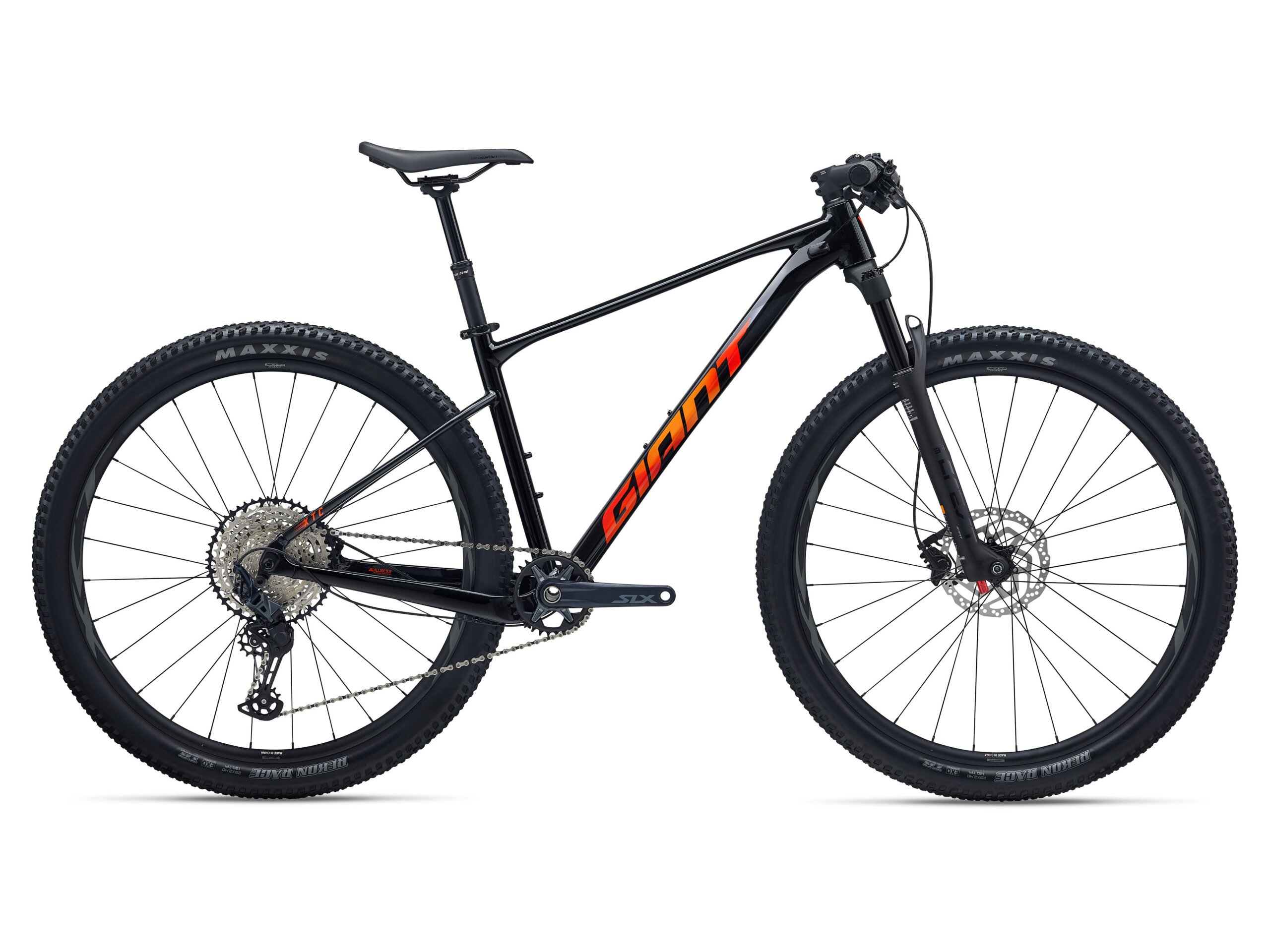

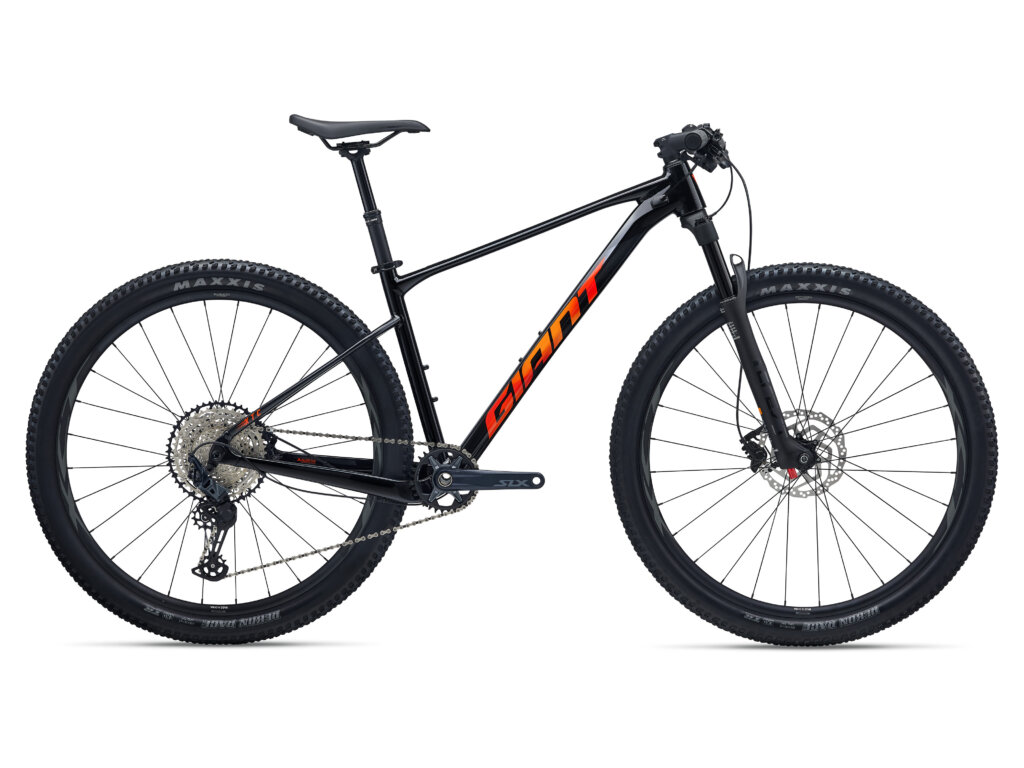

XTC SLR 29 1

XTC SLR 29 1

€1,899.00

Clear
SKU: N/A Categories: , , Tag:

Additional information

Size

, , ,

Color

Specifications

Sizes S, M, L, XL
Colours Abyss Black
Frame ALUXX SLR-grade Aluminum, 12x148mm thru-axle
Fork Giant Crest 34 RRL, 100mm, 15×110, remote lockout
Shock N/A
Handlebar Giant Connect XC, 740×31.8mm
Grips Giant Sole-O
Stem Giant Contact S:60mm, M:70mm, L:80mm, XL:90mm
Seatpost Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm
Saddle Giant ErgoContact Trail
Shifters Shimano SLX M-7100, 1×12
Front Derailleur N/A
Rear Derailleur Shimano SLX M7100
Brakes Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers Shimano BR-MT501
Cassette Shimano SLX, 10×51
Chain KMC X-12
Crankset Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm
Bottom Bracket Shimano, press fit
Rims Giant XCT 29, 25mm inner width
Hubs Shimano C500, sealed
Spokes stainless
Tyres Maxxis Recon Race 29×2.4, foldable, TLR, EXO, tubeless
Extras tubeless prepared, 2.4″ max tire size, 36t max chainring size

Highlights

Barcode : 4711291240827

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 380 431 475 525
B SEAT TUBE ANGLE 74 74 74 74
C TOP TUBE LENGTH 595 614 635 665
D HEAD TUBE LENGTH 95 95 105 115
E HEAD TUBE ANGLE 69.5 69.5 70 70
F FORK RAKE 51 51 51 51
G TRAIL 95 95 95 95
H WHEEL BASE 1,117 1,136 1,152 1,183
I CHAIN STAY LENGTH 440 440 440 440
J BOTTOM BRACKET DROP 58 58 58 58
K STACK 607 607 618 628
L REACH 421 440 458 485
M STAND OVER HEIGHT 727 757 785 818
N HANDLEBAR WIDTH 740 740 740 740
O STEM LENGTH 60 70 80 90
P CRANK LENGTH DEC 170 175 175 175
Q WHEEL SIZE ALT

Technology and Features

ALUXX SLR Aluminum Technology
OverDrive
Tubeless System

Specifications

Sizes S, M, L, XL
Colours Abyss Black
Frame ALUXX SLR-grade Aluminum, 12x148mm thru-axle
Fork Giant Crest 34 RRL, 100mm, 15×110, remote lockout
Shock N/A
Handlebar Giant Connect XC, 740×31.8mm
Grips Giant Sole-O
Stem Giant Contact S:60mm, M:70mm, L:80mm, XL:90mm
Seatpost Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm
Saddle Giant ErgoContact Trail
Shifters Shimano SLX M-7100, 1×12
Front Derailleur N/A
Rear Derailleur Shimano SLX M7100
Brakes Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers Shimano BR-MT501
Cassette Shimano SLX, 10×51
Chain KMC X-12
Crankset Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm
Bottom Bracket Shimano, press fit
Rims Giant XCT 29, 25mm inner width
Hubs Shimano C500, sealed
Spokes stainless
Tyres Maxxis Recon Race 29×2.4, foldable, TLR, EXO, tubeless
Extras tubeless prepared, 2.4″ max tire size, 36t max chainring size

Highlights

Barcode : 4711291240827

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 380 431 475 525
B SEAT TUBE ANGLE 74 74 74 74
C TOP TUBE LENGTH 595 614 635 665
D HEAD TUBE LENGTH 95 95 105 115
E HEAD TUBE ANGLE 69.5 69.5 70 70
F FORK RAKE 51 51 51 51
G TRAIL 95 95 95 95
H WHEEL BASE 1,117 1,136 1,152 1,183
I CHAIN STAY LENGTH 440 440 440 440
J BOTTOM BRACKET DROP 58 58 58 58
K STACK 607 607 618 628
L REACH 421 440 458 485
M STAND OVER HEIGHT 727 757 785 818
N HANDLEBAR WIDTH 740 740 740 740
O STEM LENGTH 60 70 80 90
P CRANK LENGTH DEC 170 175 175 175
Q WHEEL SIZE ALT

Technology and Features

ALUXX SLR Aluminum Technology
OverDrive
Tubeless System
