AIM

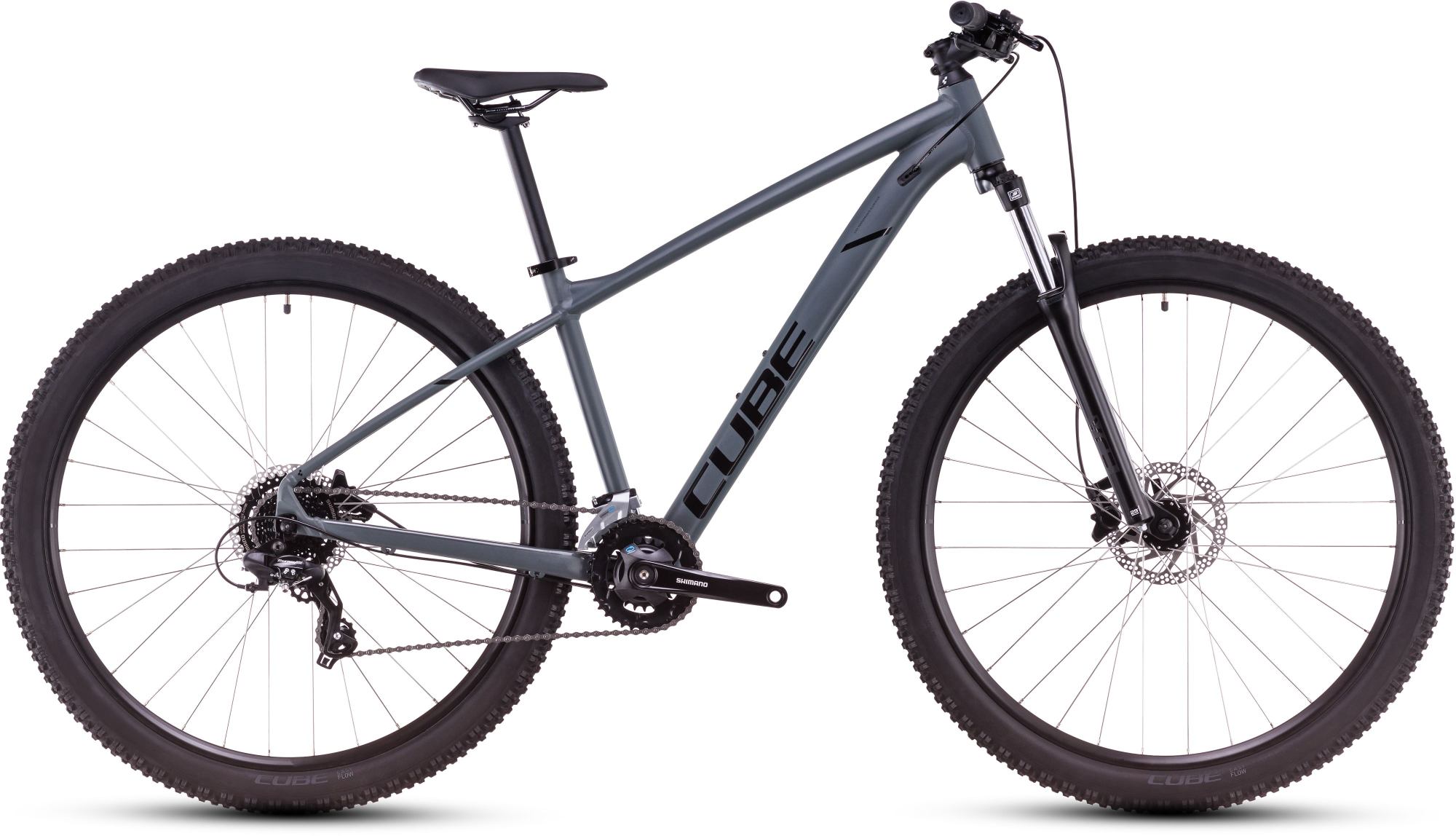

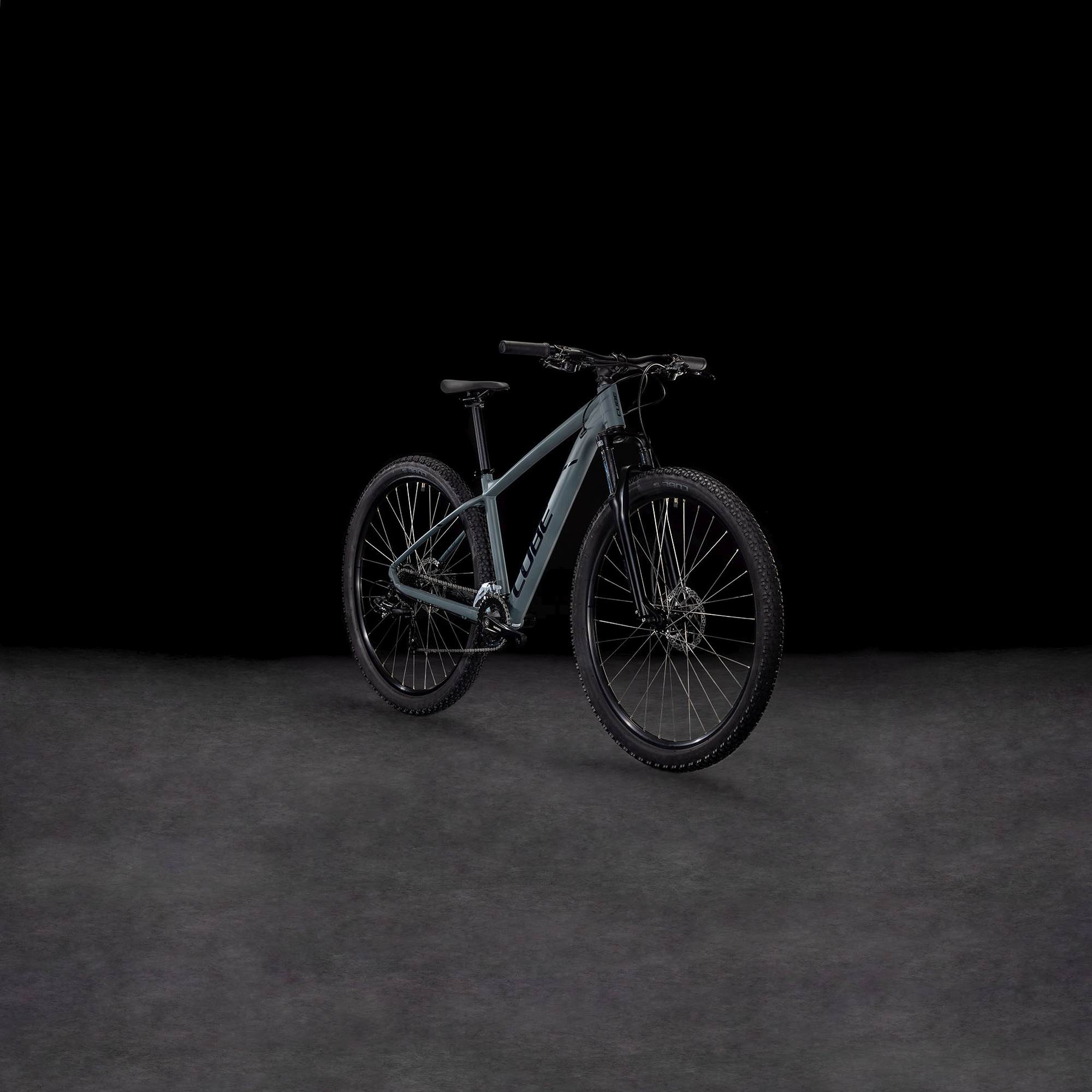

At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That’s why, with the versatile Aim ONE, we started with a 100mm suspension fork and wide, grippy tyres – so you’re always comfortable and in control. Shimano 2×8-speed gears give you the range you need at the push of a button, and powerful disc brakes bring you safely to a stop no matter what the weather’s up to. And Size Split, with its huge range of sizes, means every rider can find their perfect Aim.
Frame description

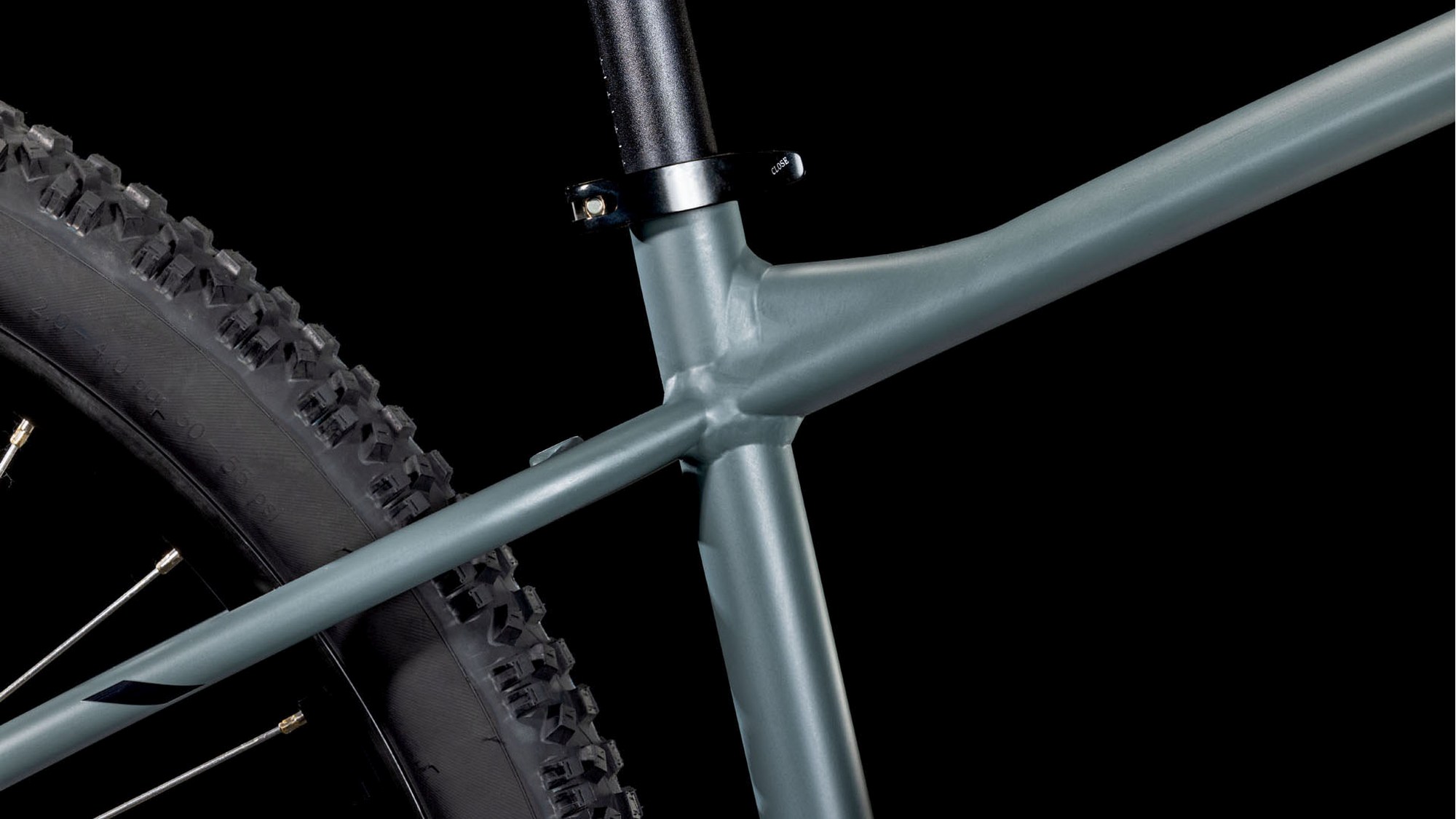

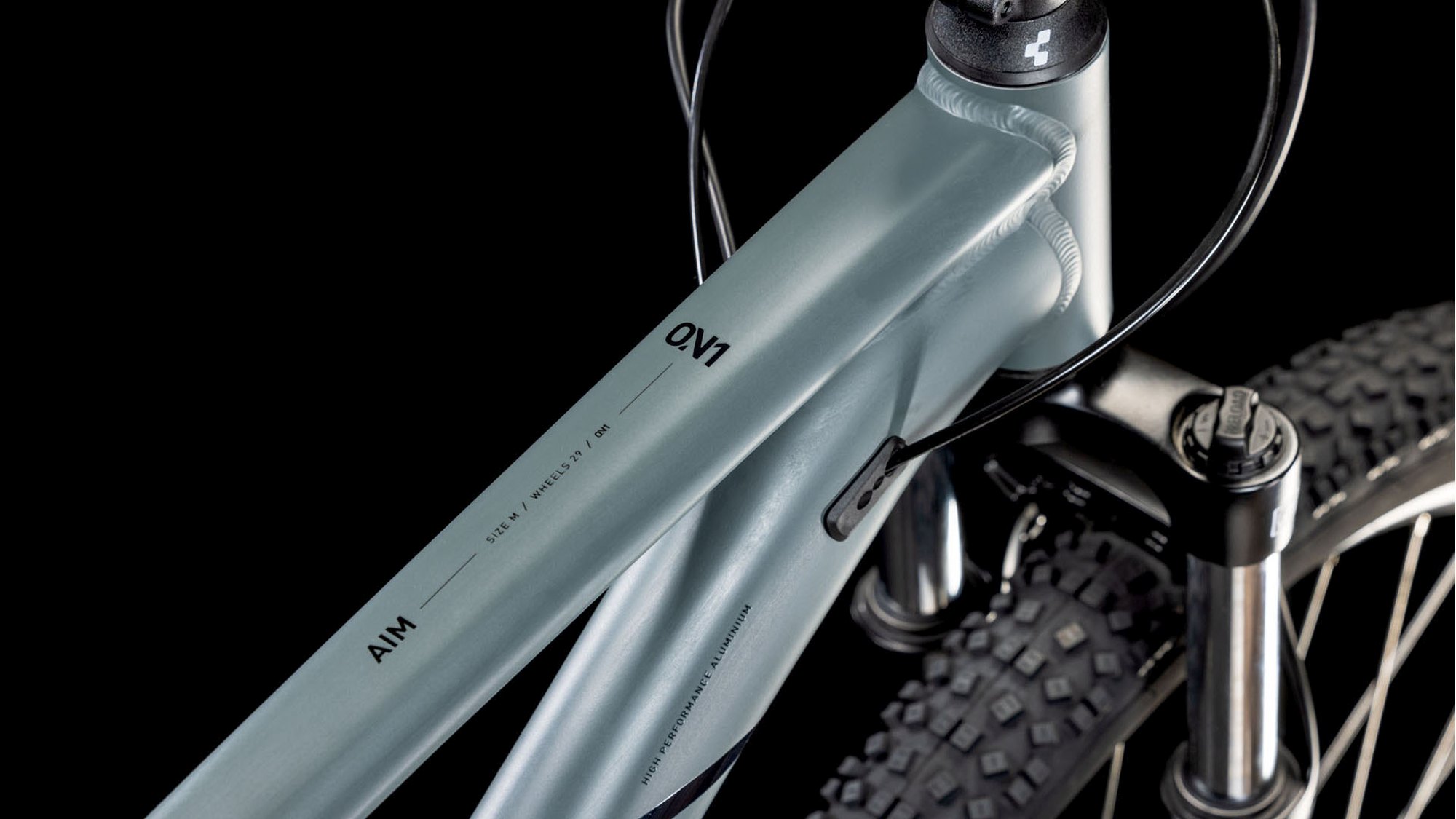

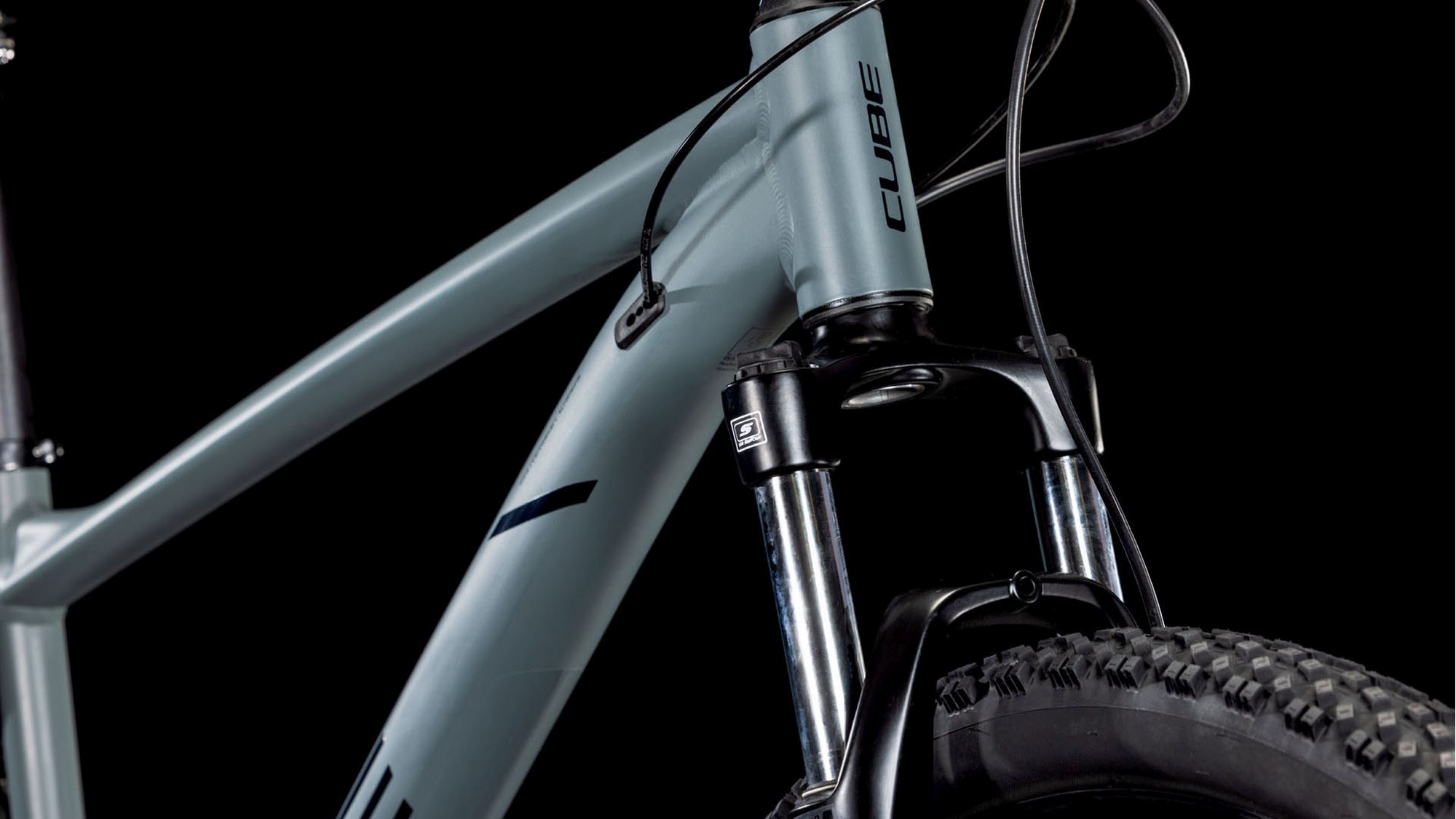

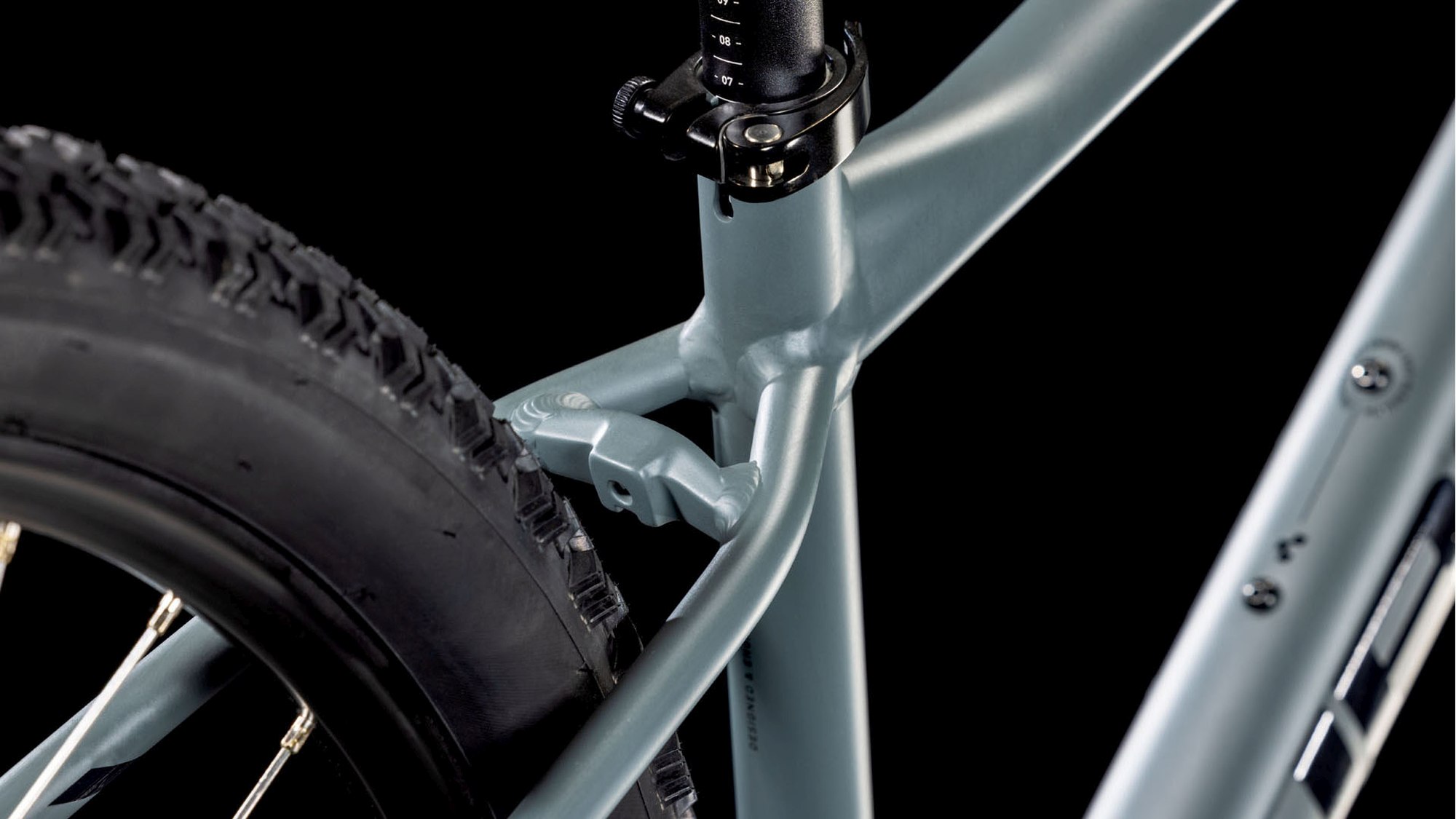

Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Carefully thought out geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.
| Fork |
| Fork Brand |
SUNTOUR |
| Fork Model |
XCE, 100mm |
| Fork Suspension |
1 |
| Fork Brand Description |
Suntour |
| Stem |
| Stem Brand |
CUBE |
| Stem Model |
Performance Stem, 31.8mm |
| Stem Brand Description |
Cube |
| Chain |
| Chain Brand |
KMC |
| Chain Model |
Z8.3 |
| Chain Brand Description |
KMC |
| Frame |
| Frametype |
MEN |
| Framematerial |
ALUMINIUM |
| Framesize Supplier |
L |
| Frametype Description |
Men |
| Framematerial Description |
Aluminium |
| Gears |
| Gear Type |
DERAILLEUR |
| Gear Brand |
SHIMANO |
| Gear Model |
Tourney |
| Number Of Gears |
16 |
| Gear Brand Description |
Shimano |
| Gear Type Description |
Derailleur |
| Tyres |
| Tyre Brand |
CUBE |
| Tyre Model |
MTB, 2.25 |
| Tyre Brand Description |
Cube |
| Pedals |
| Pedals Brand |
CUBE |
| Pedals Model |
PP MTB |
| Pedals Brand Description |
Cube |
| Saddle |
| Saddle Brand |
ACID |
| Saddle Model |
Venec Lite |
| Saddle Brand Description |
Acid |
| Wheels |
| Wheels Brand |
CUBE |
| Wheels Model |
EX25, 32H, Disc |
| Wheels Brand Description |
Cube |
| Headset |
| Headset Brand |
CUBE |
| Headset Model |
FPH863, Semi-Integrated |
| Headset Brand Description |
Cube |
| Cassette |
| Cassette Brand |
SHIMANO |
| Cassette Model |
CS-HG200, 12-32T |
| Cassette Brand Description |
Shimano |
| Crankset |
| Crankset Brand |
SHIMANO |
| Crankset Model |
FC-M315, 36x22T, 170mm |
| Crankset Brand Description |
Shimano |
| Seatpost |
| Seatpost Brand |
CUBE |
| Seatpost Model |
Performance Post, 27.2mm |
| Seatpost Brand Description |
Cube |
| Shifters |
| Shifters Brand |
SHIMANO |
| Shifters Model |
SL-M315, Rapidfire-Plus |
| Shifters Brand Description |
Shimano |
| Handlebar |
| Handlebar Brand |
CUBE |
| Handlebar Model |
Rise Trail Bar, 680mm |
| Handlebar Brand Description |
Cube |
| Front Brake |
| Front Brake Type |
SH |
| Front Brake Brand |
CLARKS |
| Front Brake Model |
Clout 1, Hydr. Disc Brake PM/PM (160/160) |
| Front Brake Brand Description |
Clarks |
| Front Brake Type Description |
Disc brake with hydraulic actuation |
| Seatpost Clamp |
| Seatpost Clamp Brand |
CUBE |
| Seatpost Clamp Model |
Varioclose, 31.8mm |
| Seatpost Clamp Brand Description |
Cube |
| Derailleur Rear |
| Derailleur Rear Brand |
SHIMANO |
| Derailleur Rear Model |
RD-TX800, 8-Speed |
| Derailleur Rear Brand Description |
Shimano |
| Bartape Or Grips |
| Bartape Or Grips Brand |
ACID |
| Bartape Or Grips Model |
React |
| Bartape Or Grips Brand Description |
Acid |
| Derailleur Front |
| Derailleur Front Brand |
SHIMANO |
| Derailleur Front Model |
FD-M315, Top Swing, 31.8mm Clamp |
| Derailleur Front Brand Description |
Shimano |
| Primary Rear Brake |
| Primary Rear Brake Type |
SH |
| Primary Rear Brake Brand |
CLARKS |
| Primary Rear Brake Model |
Clout 1, Hydr. Disc Brake PM/PM (160/160) |
| Primary Rear Brake Brand Description |
Clarks |
| Primary Rear Brake Type Description |
Disc brake with hydraulic actuation |
| Physical Specifications |
| Size |
L |
| Colour |
foggyblack/black |
| Net Weight |
14.5 |
| Gross Weight |
20.26 |
| Primary Basecolour |
BLACK |
| Secondary Basecolour |
BLACK |
| Primary Basecolour Description |
Black |
| Secondary Basecolour Description |
Black |
