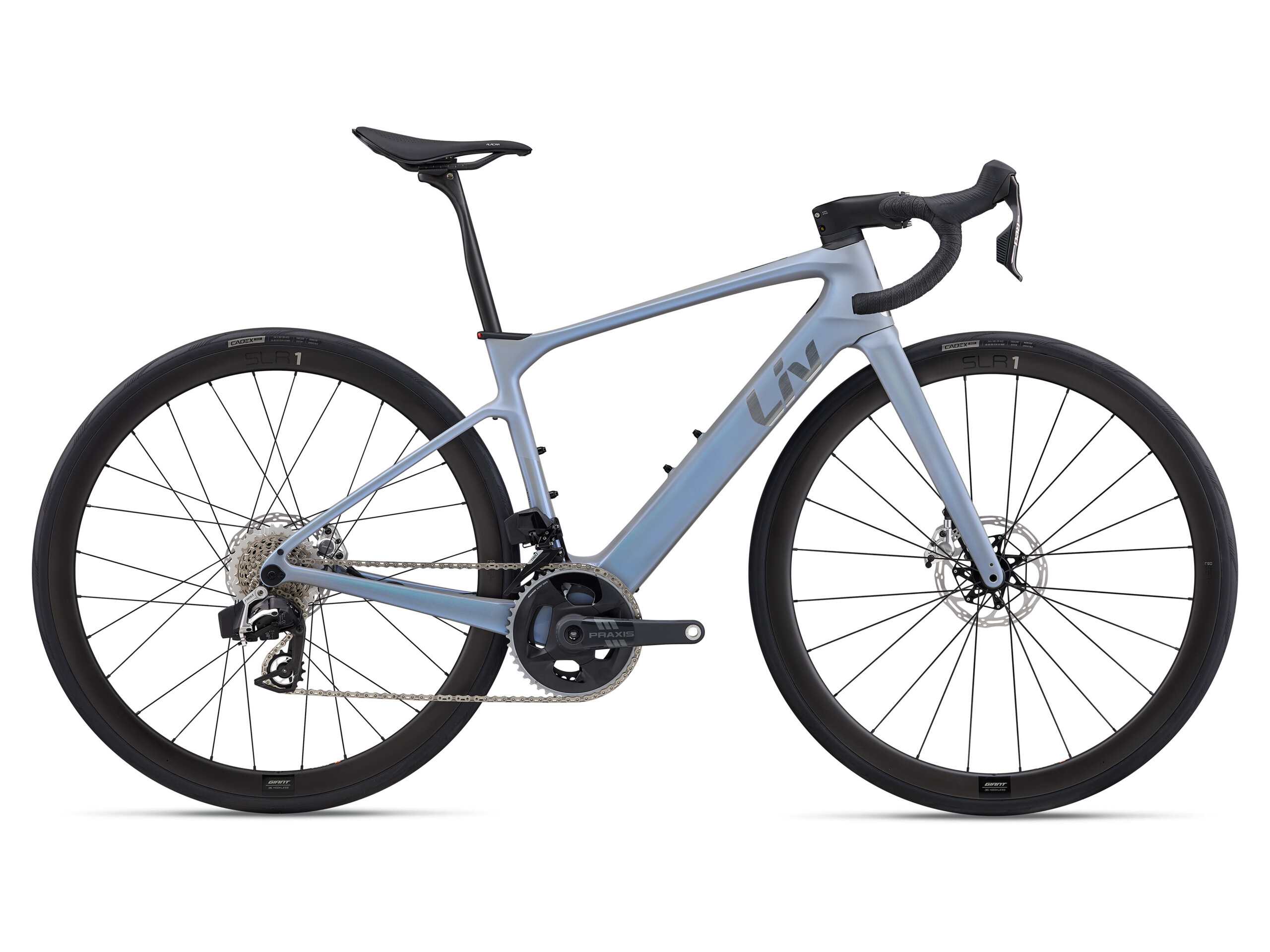

Avail Advanced E+ Elite 0

€10,799.00

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.

Category: Bikes, E Bikes, E Road Tag: 3247, Apply Now, Giant, Liv Women

View

The design of the Avail Advanced E+ Elite 0 stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.

Size M, S, XS

Color Moonstone

Specifications

Key Performance Factors

A NATURAL RIDE
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

MAXIMUM MILES. MINIMUM FATIGUE.
The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.

DELIVERING POWER & SPEED

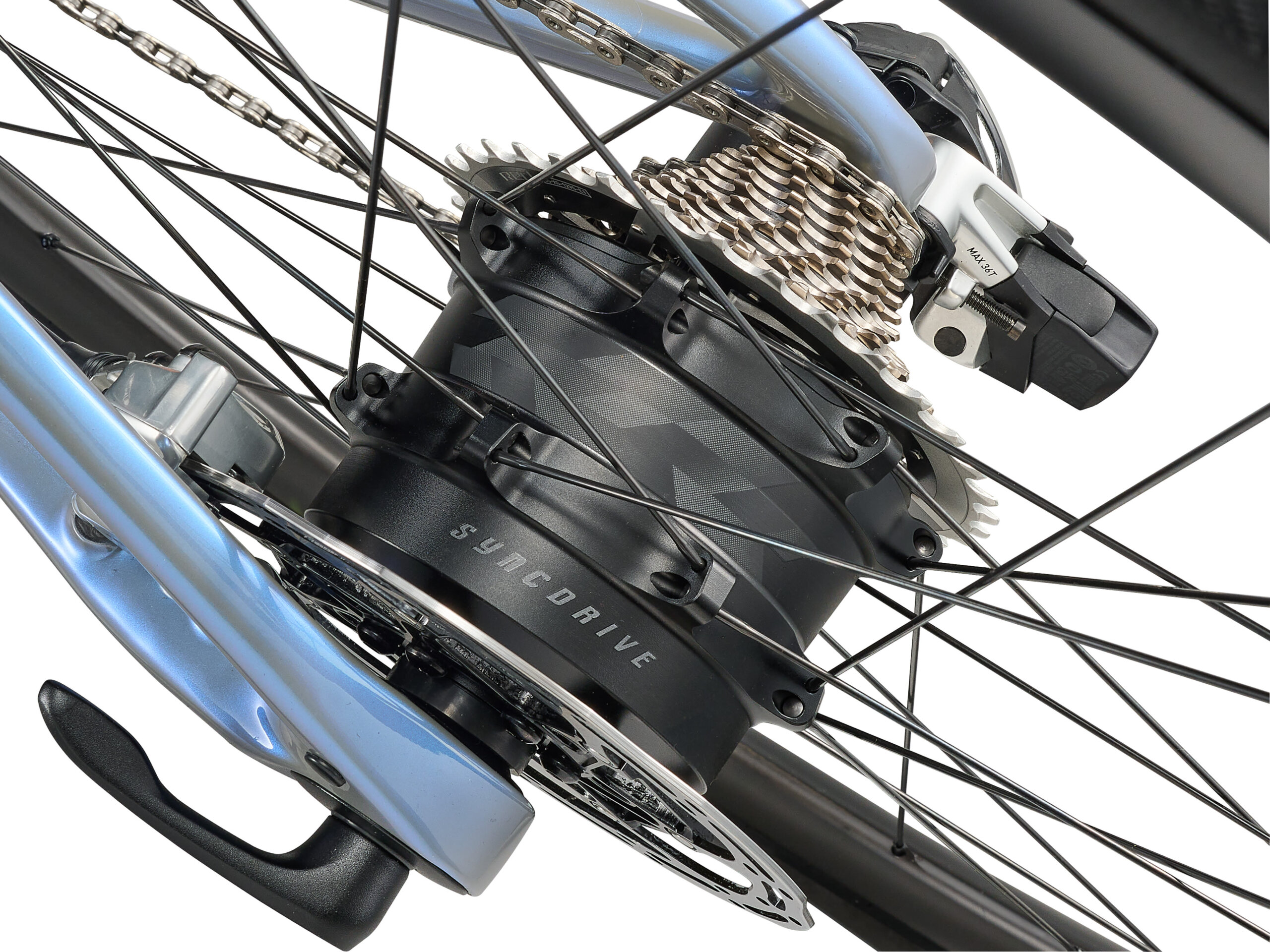

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).

Motor	SyncDrive Move Plus, Hub drive 75Nm max
Controller	Mode support switch from SRAM bonus button
Display	Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
Battery	Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger	Giant EnergyPak 4A smart charger, 60% in 1:45
Connectivity	Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes	XS, S, M, L
Colours	Moonstone
Frame	Advanced-grade composite,12×145 thru-axle
Fork	Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Shock	–

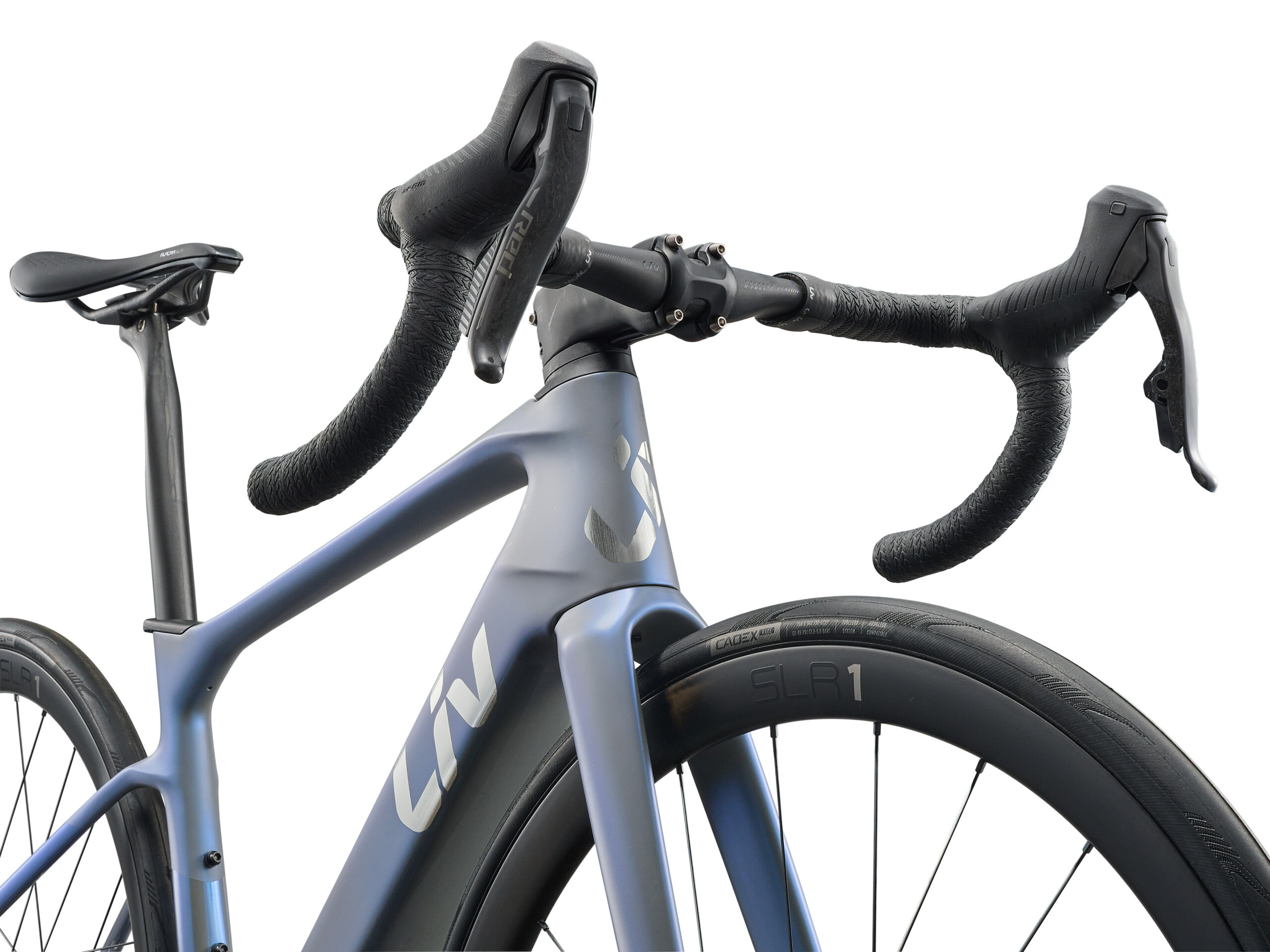

Handlebar	Liv Contact SLR D-Fuse 31.8 carbon
Stem	Contact SLR Aerolight 31.8 carbon
Seatpost	Giant D-Fuse SLR, Composite, -5/+15mm offset
Saddle	Liv Alacra SL CS
Shifters	Sram RED AXS
Front Derailleur	Sram RED AXS
Rear Derailleur	Sram RED AXS
Brakes	Sram RED AXS HRD, Centerline 160mm center-lock [F] 160mm 6-bols [R]
Brake Levers	Sram RED AXS HRD
Cassette	SRAM RED XG-1290 10x33T 12-speed
Chain	Sram RED 12-speed

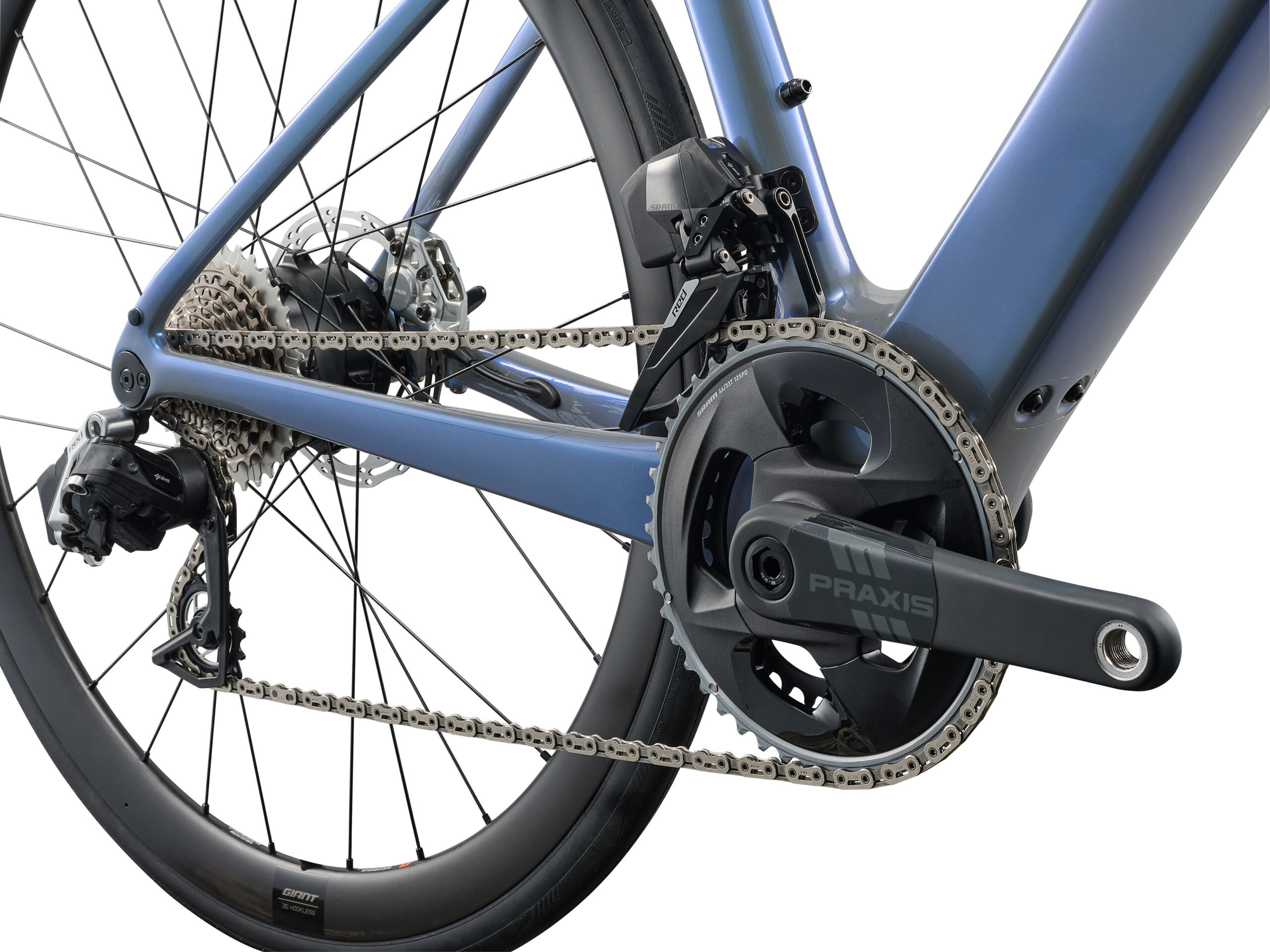

Crankset	Sram Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS
Bottom Bracket	Giant E+ System BBSS
Rims	Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim spoke E-Light [R] CX-Ray [F], e-bike optimized
Tyres	Cadex Race GC, tubeless, 700×30, folding
Extras	Fender adapter

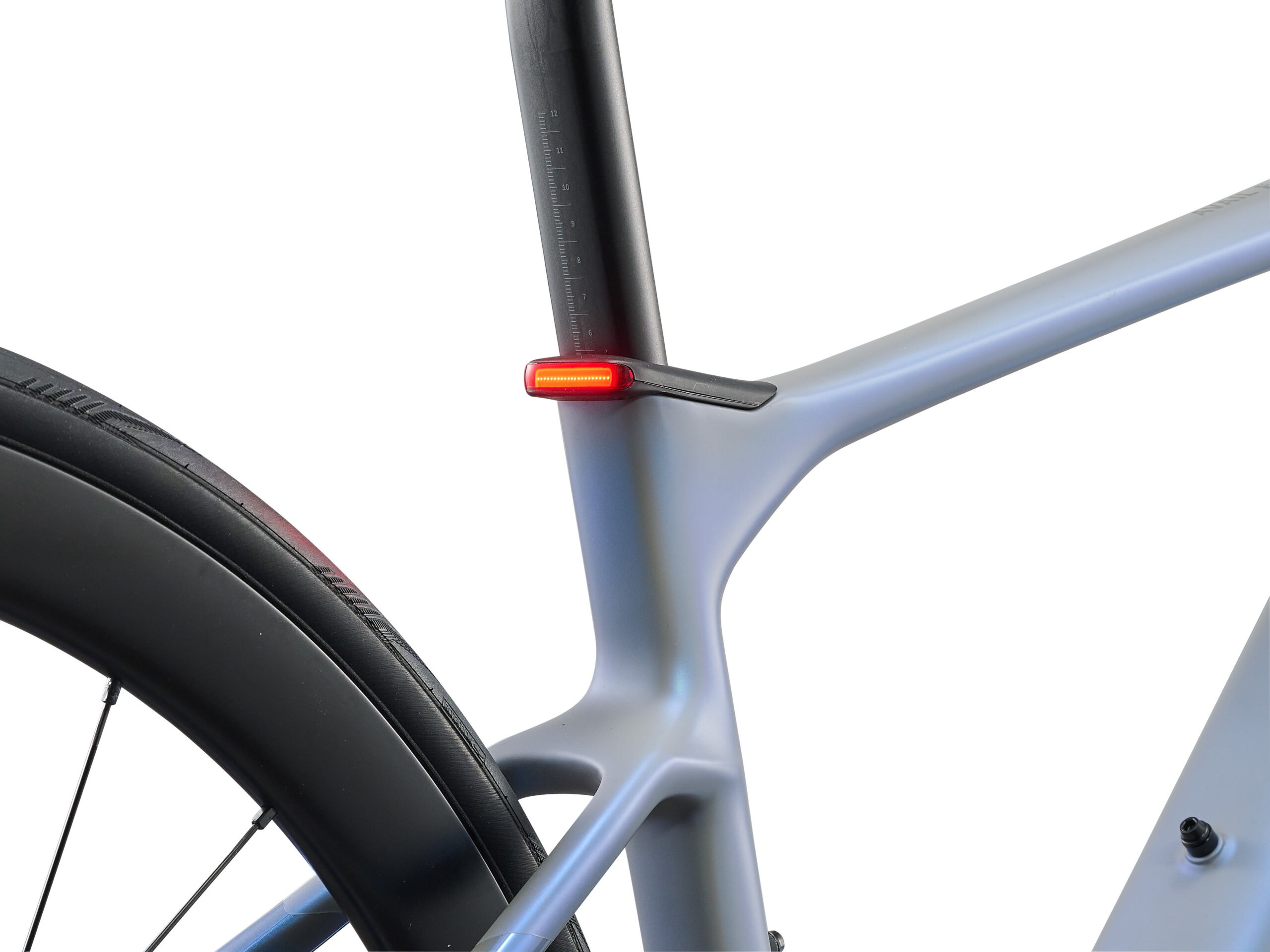

Lighting	Seatpost clamp integrated tail light

Highlights

Barcode : 4711291244399

Geometry

		XS	S	M
A	SEAT TUBE LENGTH	400	435	470
B	SEAT TUBE ANGLE	74.5	74.5	74
C	TOP TUBE LENGTH	515	525	540
D	HEAD TUBE LENGTH	120	135	155
E	HEAD TUBE ANGLE	70.5	71	72
F	FORK RAKE	50	50	50
G	TRAIL
H	WHEEL BASE	993	999	1,003
I	CHAIN STAY LENGTH	420	420	420
J	BOTTOM BRACKET DROP	80	80	80
K	STACK	529	545	563
L	REACH	368	374	378
M	STAND OVER HEIGHT	677	708	743
N	HANDLEBAR WIDTH	380	400	400
O	STEM LENGTH	80	90	100
P	CRANK LENGTH DEC
Q	WHEEL SIZE ALT	700C	700C	700C
