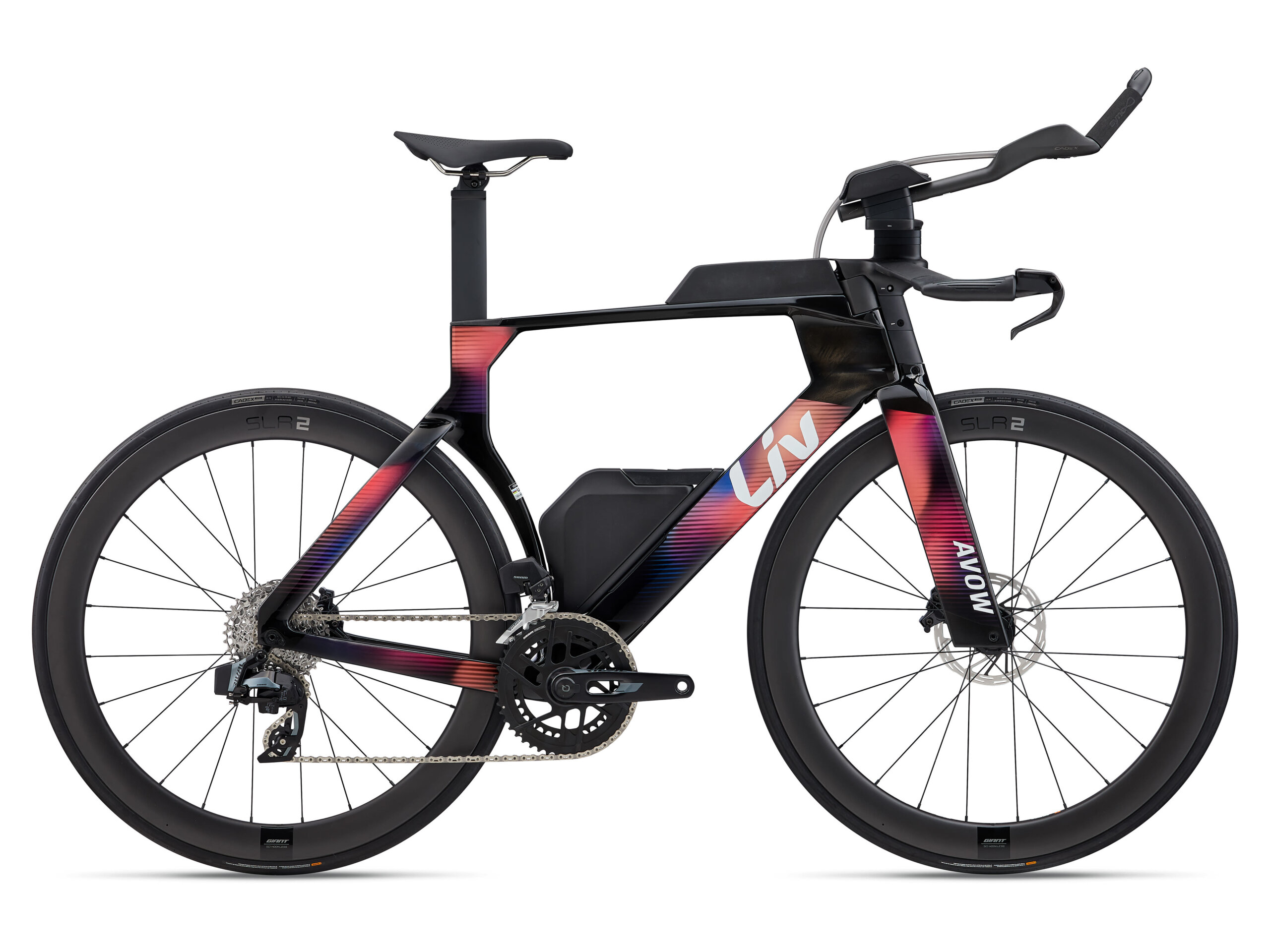

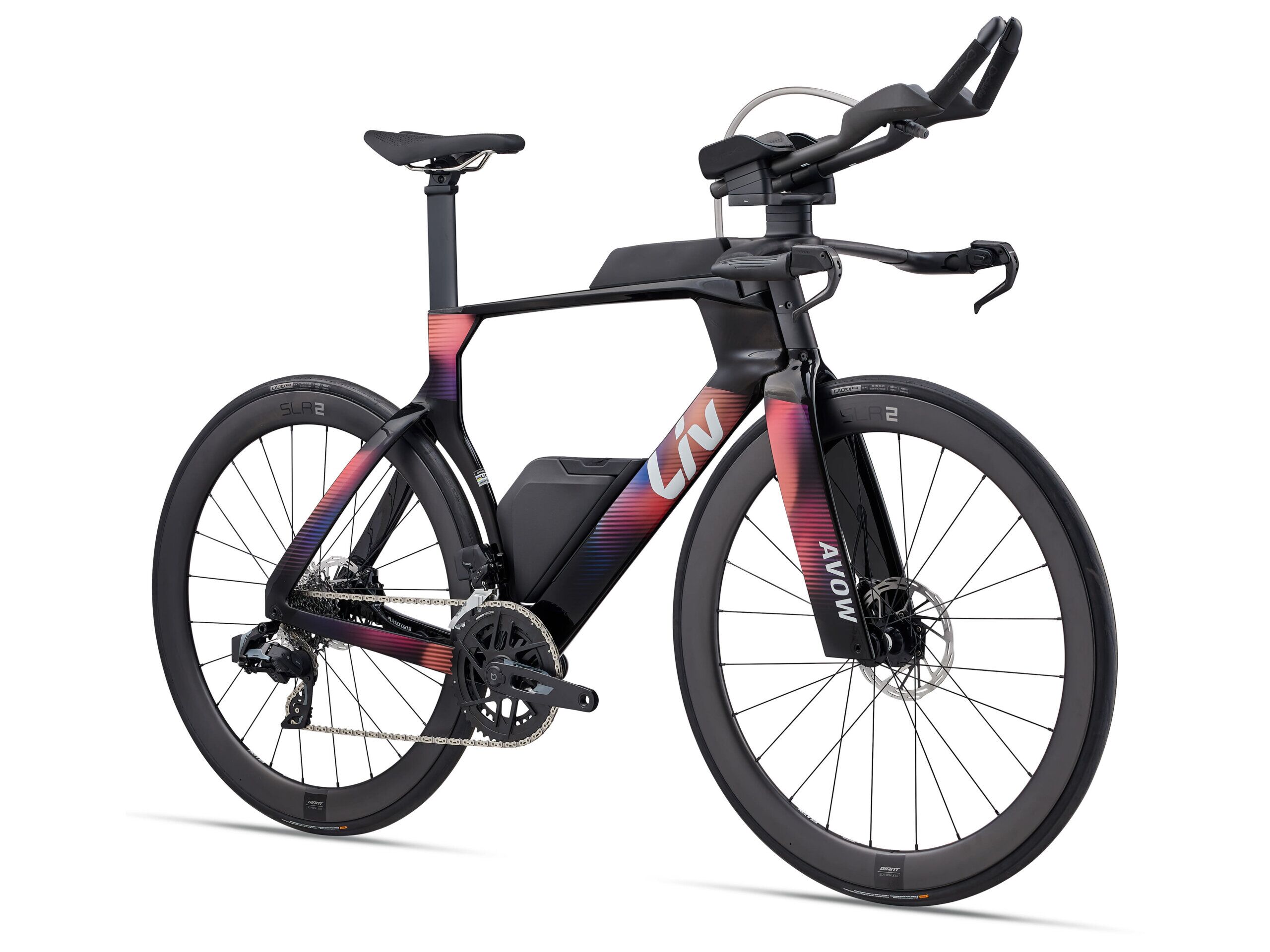

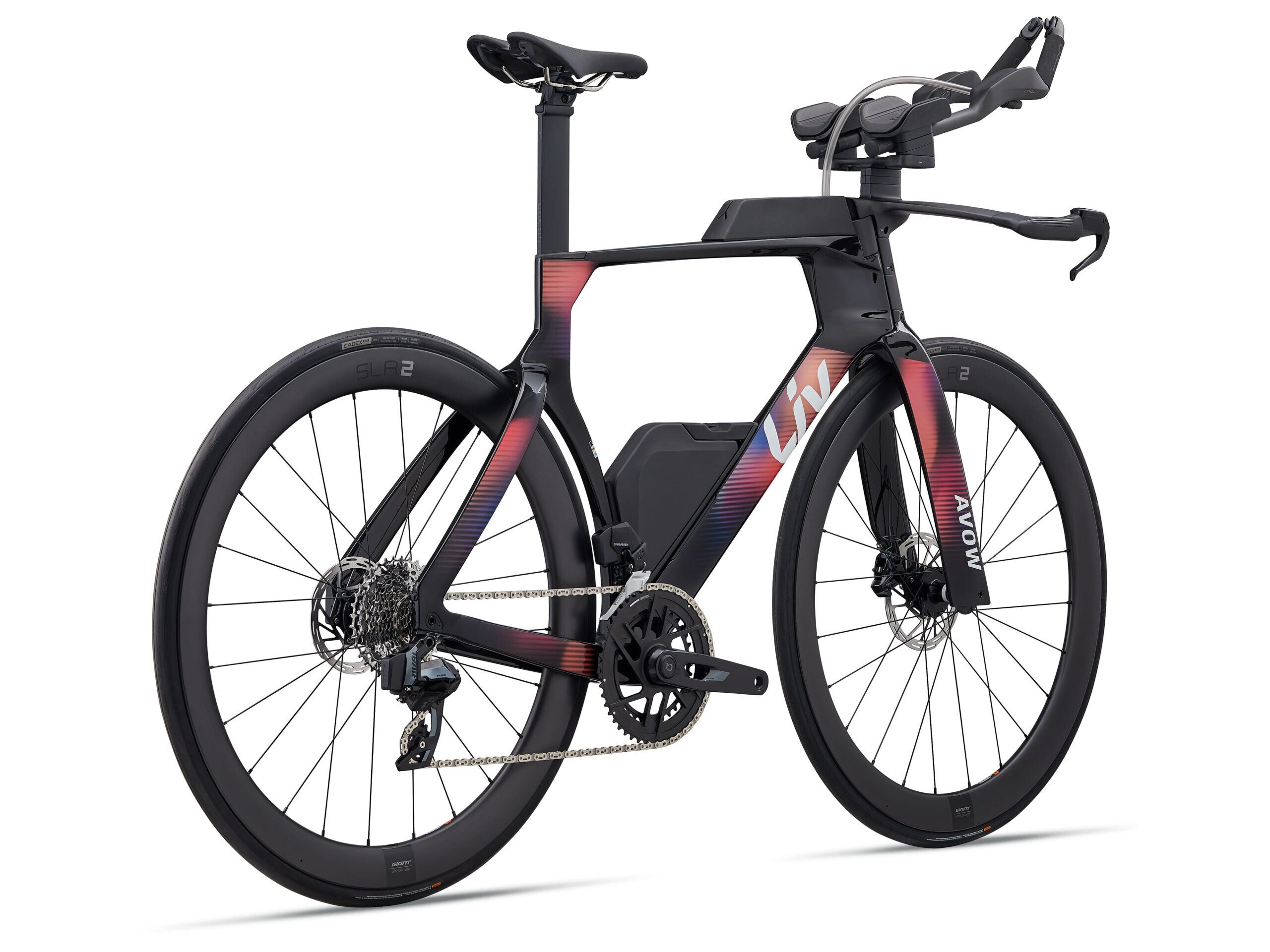

Avow Advanced SL
€7,500.00
Specifications
Key Performance Factors
YOUR FASTEST BIKE SPLIT
Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.
Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.
YOUR OPTIMIZED FIT
Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.
Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.
YOU’RE IN CONTROL
Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.
Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.
| Sizes | XXS, XS, S, M |
|---|---|
| Colours | Carbon |
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-grade composite, full-composite steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | AeroDrive base bar with Sync armrest set, 10- and 15-degree extension wedge |
| Grips | Liv Stratus Lite 2.0 |
| Stem | AeroDrive integrated stem |
| Seatpost | Liv Avow Composite |
| Saddle | Liv Contact SL Tri |
| Arm Rest Kit | Sync armrest set |
| Shifters | SRAM eTap Clics, extension mountedSRAM eTap Blips, basebar mounted |
| Front Derailleur | SRAM Rival eTap AXS |

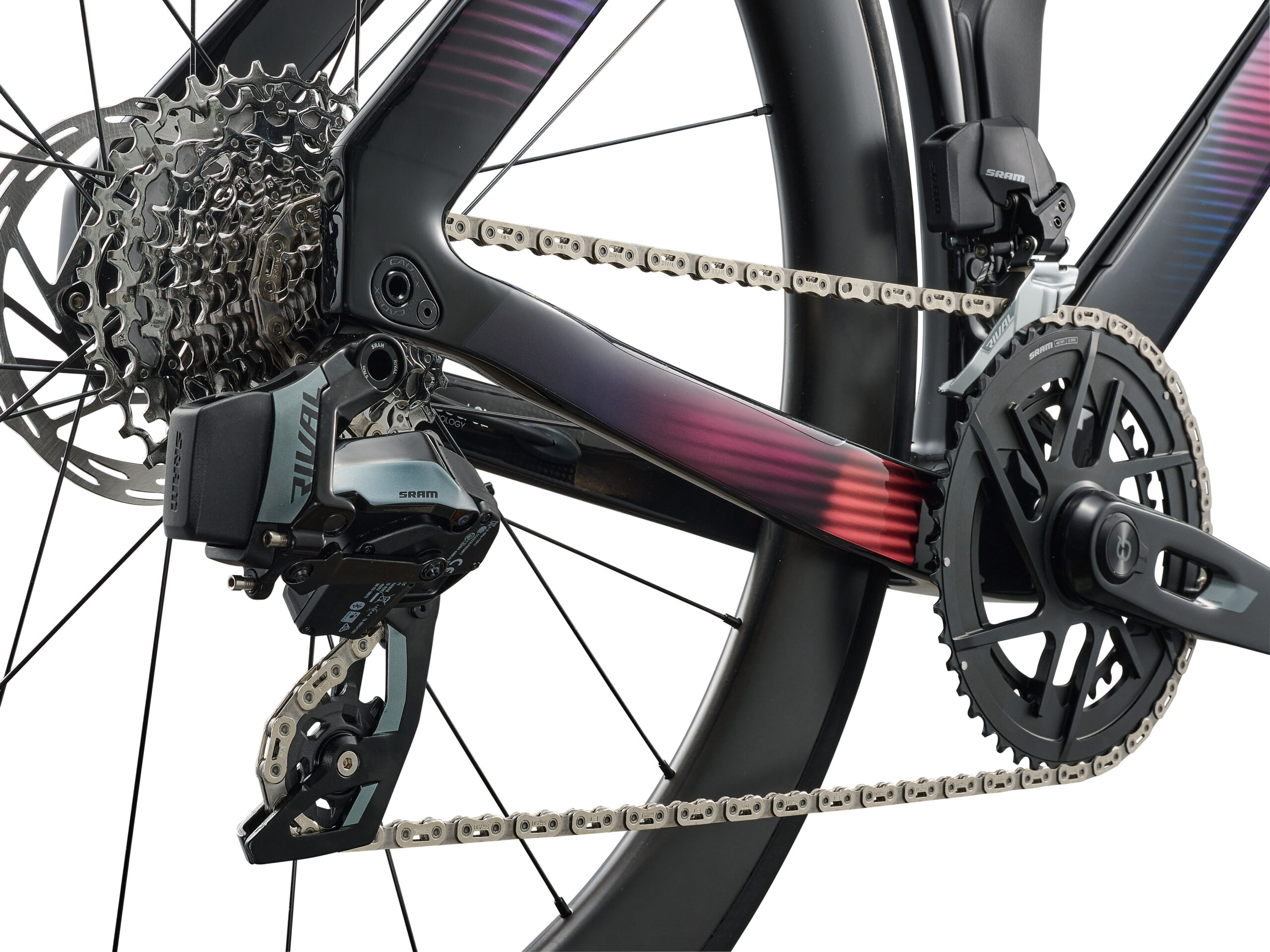

| Rear Derailleur | SRAM Rival eTap AXS |
| Brakes | SRAM Rival eTap hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM S-900 Aero hydraulic |
| Cassette | SRAM Rival XG-1250, 12-speed, 10×36 |
| Chain | SRAM Rival D1 |

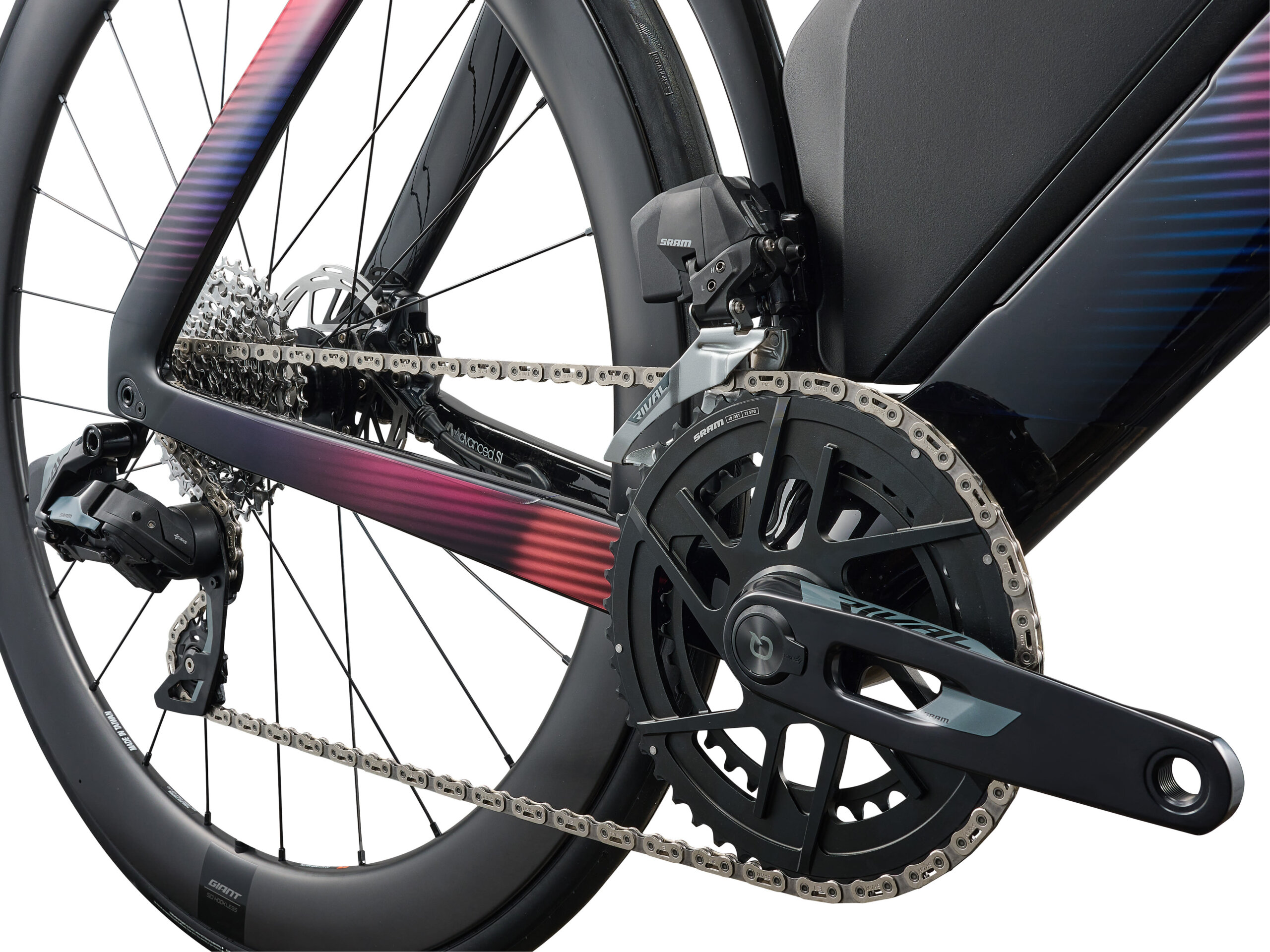

| Crankset | SRAM Rival, 35/48 with spindle power meter XXS: 160mm, XS: 160mm, S: 160mm, M: 165mm, L: 165mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant SLR 2 50 WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] Giant Alloy, CenterLock, 12mm thru-axle [R] Giant Alloy, 3 pawl 30t driver, CenterLock, 12mm thru-axle |
| Spokes | SAPIM Sprint |
| Tyres | CADEX Aero, tubeless, 700x25c (26.5mm), folding |
| Extras | bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size |
| Max Tire Clearance | 30mm |
Highlights
Barcode : 4711291145375
Geometry
| XXS | XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 440 | 477 | 508 | 538 | |||
| B | SEAT TUBE ANGLE | 77 | 77 | 77 | 77 | |||
| C | TOP TUBE LENGTH | 493 | 510 | 530 | 554 | |||
| D | HEAD TUBE LENGTH | 65 | 85 | 105 | 125 | |||
| E | HEAD TUBE ANGLE | 71 | 72 | 73 | 73 | |||
| F | FORK RAKE | 40 | 40 | 40 | 40 | |||
| G | TRAIL | 79 | 69 | 63 | 63 | |||
| H | WHEEL BASE | 969 | 974 | 988 | 1,013 | |||
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | |||
| J | BOTTOM BRACKET DROP | 70 | 70 | 70 | 70 | |||
| K | STACK | 467 | 490 | 513 | 532 | |||
| L | REACH | 387 | 397 | 412 | 432 | |||
| M | STAND OVER HEIGHT | 733 | 758 | 786 | 814 | |||
| N | HANDLEBAR WIDTH | 400 | 400 | 400 | 400 | |||
| O | STEM LENGTH | |||||||
| P | CRANK LENGTH DEC | |||||||
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
Specifications
Key Performance Factors
YOUR FASTEST BIKE SPLIT
Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.
Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.
YOUR OPTIMIZED FIT
Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.
Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.
YOU’RE IN CONTROL
Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.
Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.
| Sizes | XXS, XS, S, M |
|---|---|
| Colours | Carbon |
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-grade composite, full-composite steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | AeroDrive base bar with Sync armrest set, 10- and 15-degree extension wedge |
| Grips | Liv Stratus Lite 2.0 |
| Stem | AeroDrive integrated stem |
| Seatpost | Liv Avow Composite |
| Saddle | Liv Contact SL Tri |
| Arm Rest Kit | Sync armrest set |
| Shifters | SRAM eTap Clics, extension mountedSRAM eTap Blips, basebar mounted |
| Front Derailleur | SRAM Rival eTap AXS |
| Rear Derailleur | SRAM Rival eTap AXS |
| Brakes | SRAM Rival eTap hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM S-900 Aero hydraulic |
| Cassette | SRAM Rival XG-1250, 12-speed, 10×36 |
| Chain | SRAM Rival D1 |
| Crankset | SRAM Rival, 35/48 with spindle power meter XXS: 160mm, XS: 160mm, S: 160mm, M: 165mm, L: 165mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant SLR 2 50 WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] Giant Alloy, CenterLock, 12mm thru-axle [R] Giant Alloy, 3 pawl 30t driver, CenterLock, 12mm thru-axle |
| Spokes | SAPIM Sprint |
| Tyres | CADEX Aero, tubeless, 700x25c (26.5mm), folding |
| Extras | bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size |
| Max Tire Clearance | 30mm |
Highlights
Barcode : 4711291145375
Geometry
| XXS | XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 440 | 477 | 508 | 538 | |||
| B | SEAT TUBE ANGLE | 77 | 77 | 77 | 77 | |||
| C | TOP TUBE LENGTH | 493 | 510 | 530 | 554 | |||
| D | HEAD TUBE LENGTH | 65 | 85 | 105 | 125 | |||
| E | HEAD TUBE ANGLE | 71 | 72 | 73 | 73 | |||
| F | FORK RAKE | 40 | 40 | 40 | 40 | |||
| G | TRAIL | 79 | 69 | 63 | 63 | |||
| H | WHEEL BASE | 969 | 974 | 988 | 1,013 | |||
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | |||
| J | BOTTOM BRACKET DROP | 70 | 70 | 70 | 70 | |||
| K | STACK | 467 | 490 | 513 | 532 | |||
| L | REACH | 387 | 397 | 412 | 432 | |||
| M | STAND OVER HEIGHT | 733 | 758 | 786 | 814 | |||
| N | HANDLEBAR WIDTH | 400 | 400 | 400 | 400 | |||
| O | STEM LENGTH | |||||||
| P | CRANK LENGTH DEC | |||||||
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
Related Products
-
Defy Advanced Pro 1
BUY NOWRide To Work QuoteDefy Advanced Pro 1
Here’s to long rides. Climb higher mountains, skip the shortcuts. This buttery smooth endurance road bike helps you do more of what you love.
-
EnviLiv Advanced 1
€4,199.00 BUY NOWRide To Work QuoteEnviLiv Advanced 1
From the stage race breakaway to the final criterium lap, the EnviLiv is made to be out front. We’ve designed our signature sprinter for optimized aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.
€4,199.00 -

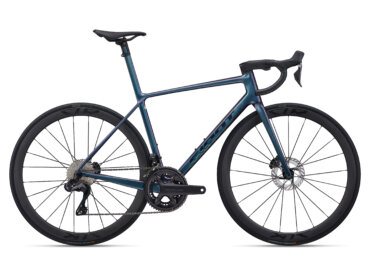

TCR Advanced SL 1
