EDITOR HYBRID

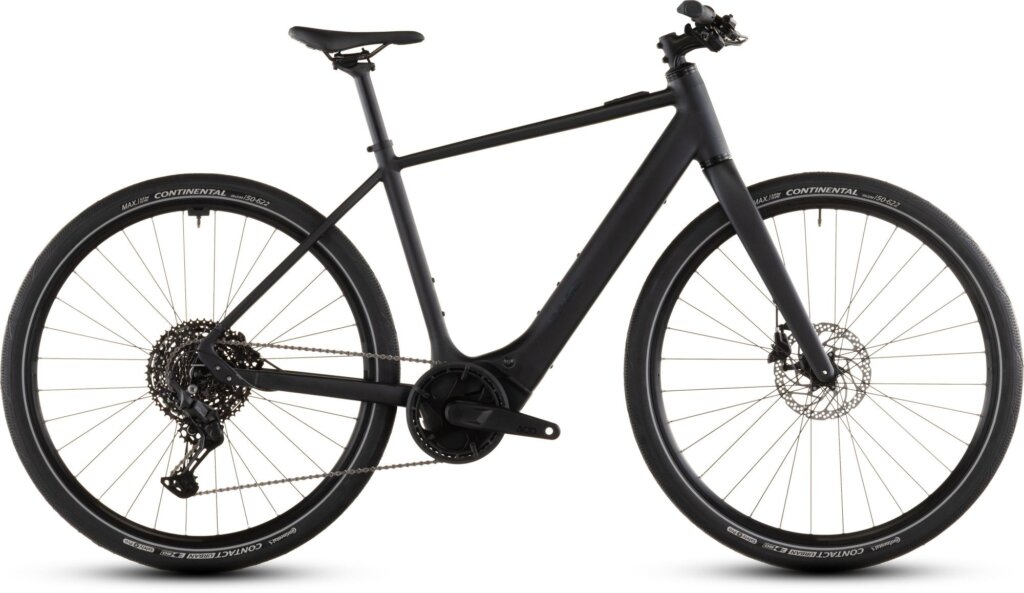

The Editor Hybrid Pro 400X is the stealth urban e-bike you never knew you needed. Featuring Bosch’s lightweight SX drive system, a built-in 400Wh battery and a controller integrated into the top tube, it’s a compelling blend of practicality and style. Shimano’s easy-to-use 11-speed Cues gears give you the range you need to make light work of any route, whilst powerful Shimano hydraulic disc brakes serve up safe stopping power in all weathers. With wide, grippy Continental Contact Urban 50mm tyres and a full lightweight carbon fork, you’re always in control. Urban smarts, see?
Frame description
A practical urban bike should be elegant, understated and versatile. That’s why, for the Editor Hybrid’s frame, we started with lightweight and durable aluminium and then added Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated to complement the uncluttered aesthetic, and we placed the 400Wh battery unobtrusively in the down tube and incorporated the mini controller in the top tube. Meanwhile the full carbon fork is light, strong and suits the frame’s pared-back aesthetic. It’s ready for the urban jungle.
| Bell |
| Bell Brand |
KNOG |
| Bell Model |
Oi |
| Bell Brand Description |
Knog |
| Fork |
| Fork Brand |
CUBE |
| Fork Model |
Editor Full Carbon, 1 1/8″ – 1 1/2″ Tapered, Internal Cable Routing, 12x100mm |
| Fork Brand Description |
Cube |
| Stem |
| Stem Brand |
CUBE |
| Stem Model |
Performance Stem, 31.8mm |
| Stem Brand Description |
Cube |
| Chain |
| Chain Brand |
KMC |
| Chain Model |
eGlide |
| Chain Brand Description |
KMC |
| Frame |
| Frametype |
MEN |
| Framematerial |
ALUMINIUM |
| Framesize Supplier |
50 |
| Frametype Description |
Men |
| Framematerial Description |
Aluminium |
| Gears |
| Gear Type |
DERAILLEUR |
| Gear Brand |
SHIMANO |
| Gear Model |
Cues |
| Number Of Gears |
11 |
| Gear Brand Description |
Shimano |
| Gear Type Description |
Derailleur |
| Pedals |
| Pedals Brand |
CUBE |
| Pedals Model |
PP MTB medium |
| Pedals Brand Description |
Cube |
| Saddle |
| Saddle Brand |
ACID |
| Saddle Model |
Venec Lite |
| Saddle Brand Description |
Acid |
| Cassette |
| Cassette Brand |
SHIMANO |
| Cassette Model |
Cues CS-LG400, 11-50T |
| Cassette Brand Description |
Shimano |
| Crankset |
| Crankset Brand |
ACID |
| Crankset Model |
MTB Hybrid Pro, 44T |
| Crankset Brand Description |
Acid |
| Seatpost |
| Seatpost Brand |
CUBE |
| Seatpost Model |
Performance Post, 30.9mm |
| Seatpost Brand Description |
Cube |
| Shifters |
| Shifters Brand |
SHIMANO |
| Shifters Model |
Cues SL-U6000, Rapidfire Plus |
| Shifters Brand Description |
Shimano |
| Handlebar |
| Handlebar Brand |
CUBE |
| Handlebar Model |
Rise Trail Bar, 680mm |
| Handlebar Brand Description |
Cube |
| Front Brake |
| Front Brake Type |
SH |
| Front Brake Brand |
SHIMANO |
| Front Brake Model |
BR-MT200, Hydr. Disc Brake (180) |
| Front Brake Brand Description |
Shimano |
| Front Brake Type Description |
Disc brake with hydraulic actuation |
| Seatpost Clamp |
| Seatpost Clamp Brand |
CUBE |
| Seatpost Clamp Model |
Seatpost clamp |
| Seatpost Clamp Brand Description |
Cube |
| Derailleur Rear |
| Derailleur Rear Brand |
SHIMANO |
| Derailleur Rear Model |
Cues RD-U6000-GS |
| Derailleur Rear Brand Description |
Shimano |
| Bartape Or Grips |
| Bartape Or Grips Brand |
ACID |
| Bartape Or Grips Model |
Hybrid Tour |
| Bartape Or Grips Brand Description |
Acid |
| Primary Rear Brake |
| Primary Rear Brake Type |
SH |
| Primary Rear Brake Brand |
SHIMANO |
| Primary Rear Brake Model |
BR-MT200, Hydr. Disc Brake (180) |
| Primary Rear Brake Brand Description |
Shimano |
| Primary Rear Brake Type Description |
Disc brake with hydraulic actuation |
| Physical Specifications |
| Size |
50 |
| Colour |
COAL/PRISM |
| Net Weight |
17.6 |
| Gross Weight |
17.58 |
| Weight Capacity |
135 |
| Primary Basecolour |
BLACK |
| Secondary Basecolour |
GREY |
| Primary Basecolour Description |
Black |
| Secondary Basecolour Description |
Grey |
