KATHMANDU HYBRID ONE11
The CUBE Kathmandu Hybrid ONE11 HPC SLT is all about zero compromise, for the ultimate in touring comfort and practicality. The sophisticated full-suspension frame – with Fox 34 Float AWL fork and Float Performance shock – is just the start. There’s an adjustable stem and a dropper seatpost. Shimano’s peerless XT Di2 1×12 electronic gears deliver up to 100Nm of torque from the Bosch CX drive and 800Wh battery to the road. Schwalbe’s smooth, comfortable 55mm Marathon Efficiency Evo tyres roll on a Newmen Performance 30 wheelset, while the powerful Magura Gustav Pro hydraulic disc brakeset is equipped with ABS, just like your car. Fully equipped with IC 3.0 rear carrier, mudguards and lights, we even added a Bosch Connect Module for GPS tracking. It’s ready to take on the world.
| Bell |
| Bell Brand |
KNOG |
| Bell Model |
Oi |
| Bell Brand Description |
Knog |

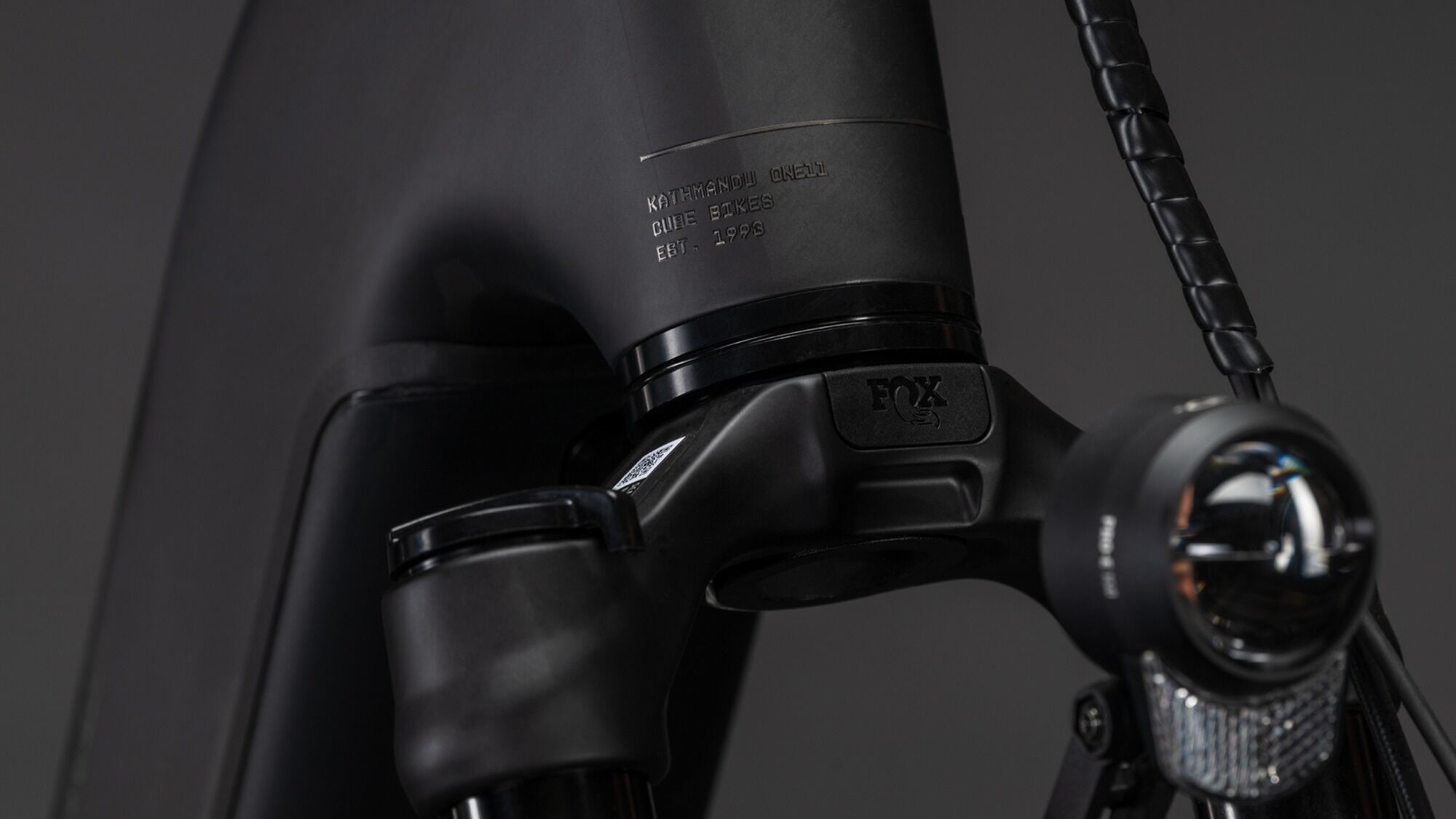

| Fork |
| Fork Brand |
FOX |
| Fork Model |
34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm |
| Fork Suspension |
1 |
| Fork Brand Description |
Fox |
| Stem |
| Stem Brand |
CUBE |
| Stem Model |
Comfort Stem Pro, 31.8mm, Adjustable |
| Stem Brand Description |
Cube |
| Chain |
| Chain Brand |
SHIMANO |
| Chain Model |
CN-M6100 |
| Chain Brand Description |
Shimano |
| Frame |
| Frametype |
MEN |
| Framematerial |
CARBON |
| Framesize Supplier |
50 |
| Frametype Description |
Men |
| Framematerial Description |
Carbon |
| Gears |
| Gear Type |
DERAILLEUR |
| Gear Brand |
SHIMANO |
| Gear Model |
XT |
| Number Of Gears |
12 |
| Gear Brand Description |
Shimano |
| Gear Type Description |
Derailleur |
| Pedals |
| Pedals Brand |
ACID |
| Pedals Model |
PP Trekking |
| Pedals Brand Description |
Acid |
| Saddle |
| Saddle Brand |
ACID |
| Saddle Model |
Shen Pro |
| Saddle Brand Description |
Acid |
| Wheels |
| Wheels Brand |
NEWMEN |
| Wheels Model |
Performance 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Wheels Brand Description |
Newmen |
| Carrier |
| Carrier Brand |
ACID |
| Carrier Model |
Integrated Carrier 3.0, CUBE Adapter Compatible |
| Carrier Brand Description |
Acid |
| Headset |
| Headset Brand |
ACROS |
| Headset Model |
AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), HIC |
| Headset Brand Description |
Acros |
| Cassette |
| Cassette Brand |
SHIMANO |
| Cassette Model |
XT CS-M8100, 10-51T |
| Cassette Brand Description |
Shimano |

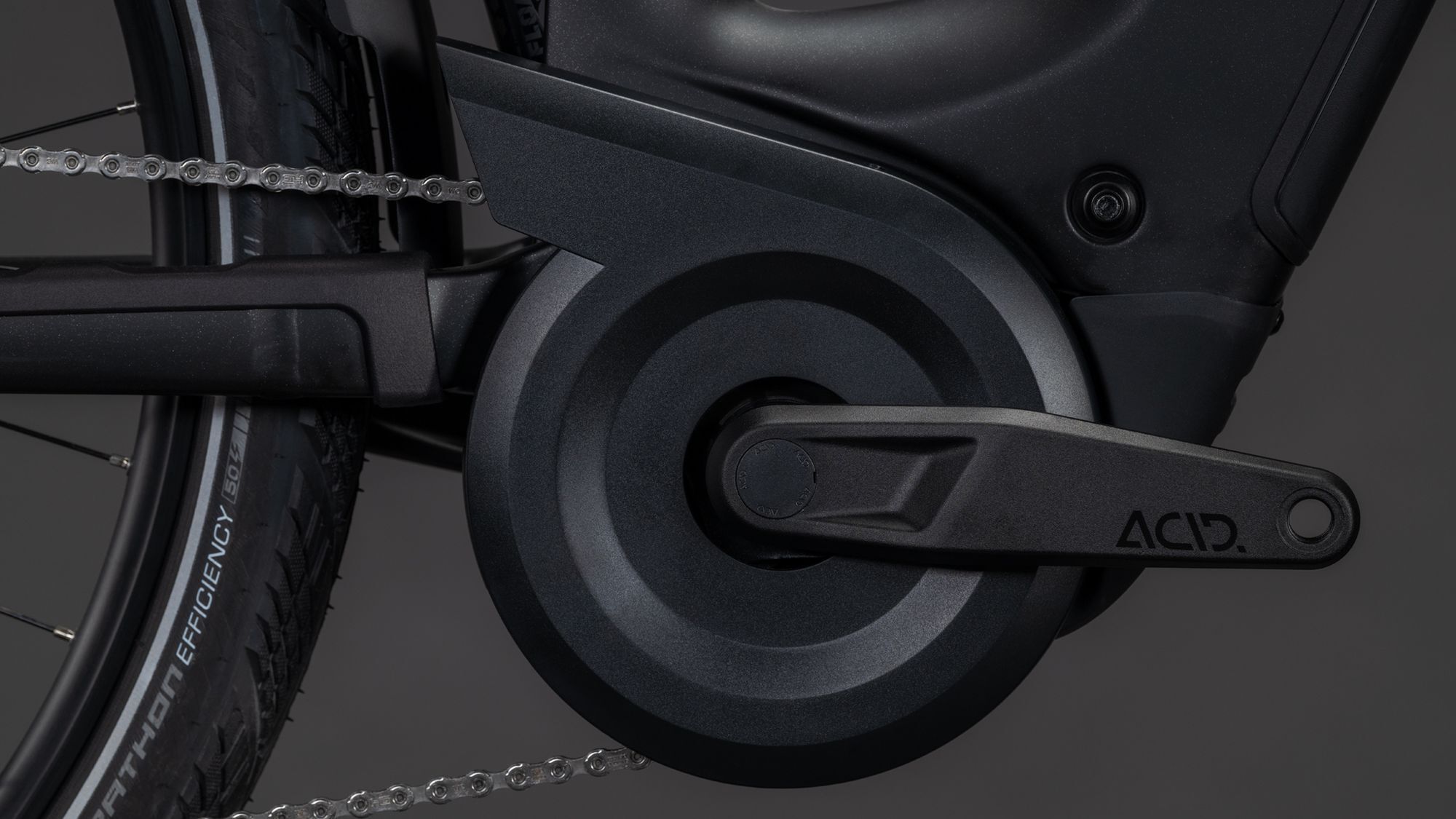

| Crankset |
| Crankset Brand |
ACID |
| Crankset Model |
MTB Hybrid Pro, 40T |
| Crankset Brand Description |
Acid |
| Seatpost |
| Seatpost Brand |
CUBE |
| Seatpost Model |
Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Seatpost Brand Description |
Cube |
| Shifters |
| Shifters Brand |
SHIMANO |
| Shifters Model |
XT Di2 SW-M8250-IR, Direct Attach |
| Shifters Brand Description |
Shimano |
| Handlebar |
| Handlebar Brand |
CUBE |
| Handlebar Model |
Comfort Trail Bar HD, 700mm |
| Handlebar Brand Description |
Cube |
| Kickstand |
| Kickstand Brand |
ACID |
| Kickstand Model |
FM Pure Kickstand |
| Kickstand Brand Description |
Acid |
| Mudguards |
| Mudguards Brand |
ACID |
| Mudguards Model |
65/60 Integrated Carrier 3.0/SIC 2.0 |
| Mudguards Brand Description |
Acid |
| Rear Light |
| Rear Light Brand |
ACID |
| Rear Light Model |
Mudguard Rear Light PRO-E, 12V, DC |
| Rear Light Brand Description |
Acid |
| Front Brake |
| Front Brake Type |
SH |
| Front Brake Brand |
MAGURA |
| Front Brake Model |
Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203) |
| Front Brake Brand Description |
Magura |
| Front Brake Type Description |
Disc brake with hydraulic actuation |
| Front Light |
| Front Light Brand |
ACID |
| Front Light Model |
Front Light PRO-E 200 X-Connect, 12V, DC |
| Front Light Brand Description |
Acid |
| Seatpost Clamp |
| Seatpost Clamp Brand |
CUBE |
| Seatpost Clamp Model |
Clamp |
| Seatpost Clamp Brand Description |
Cube |
| Derailleur Rear |
| Derailleur Rear Brand |
SHIMANO |
| Derailleur Rear Model |
XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Derailleur Rear Brand Description |
Shimano |
| Bartape Or Grips |
| Bartape Or Grips Brand |
ACID |
| Bartape Or Grips Model |
Travel Comfort |
| Bartape Or Grips Brand Description |
Acid |
| Primary Rear Brake |
| Primary Rear Brake Type |
SH |
| Primary Rear Brake Brand |
MAGURA |
| Primary Rear Brake Model |
Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203) |
| Primary Rear Brake Brand Description |
Magura |
| Primary Rear Brake Type Description |
Disc brake with hydraulic actuation |
| Physical Specifications |
| Size |
50 |
| Colour |
CARBON/SILVERDUST |
| Net Weight |
27.1 |
| Gross Weight |
33.1 |
| Weight Capacity |
160 |
| Primary Basecolour |
BLACK |
| Secondary Basecolour |
SILVER |
| Primary Basecolour Description |
Black |
| Secondary Basecolour Description |
Silver |
