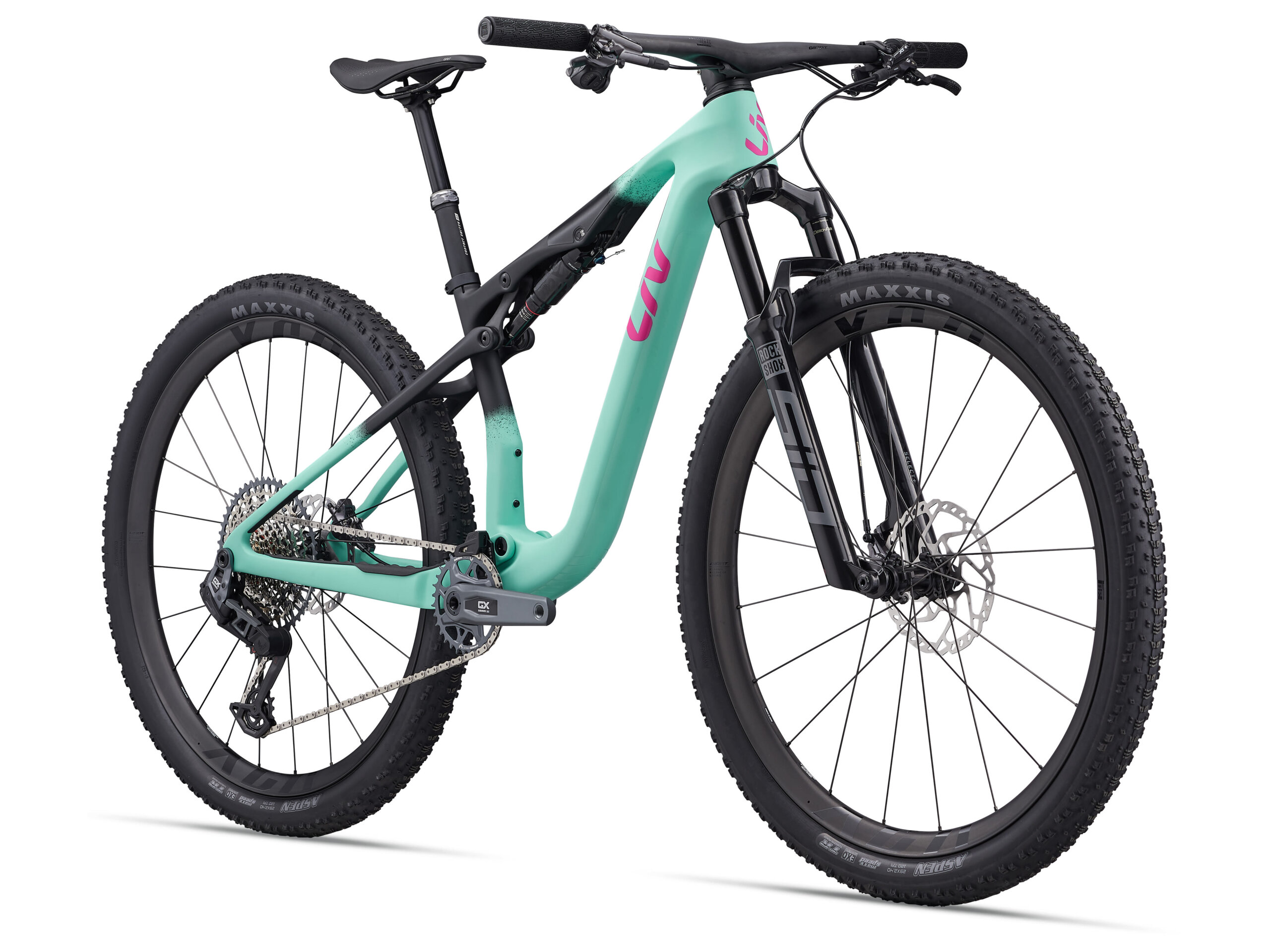

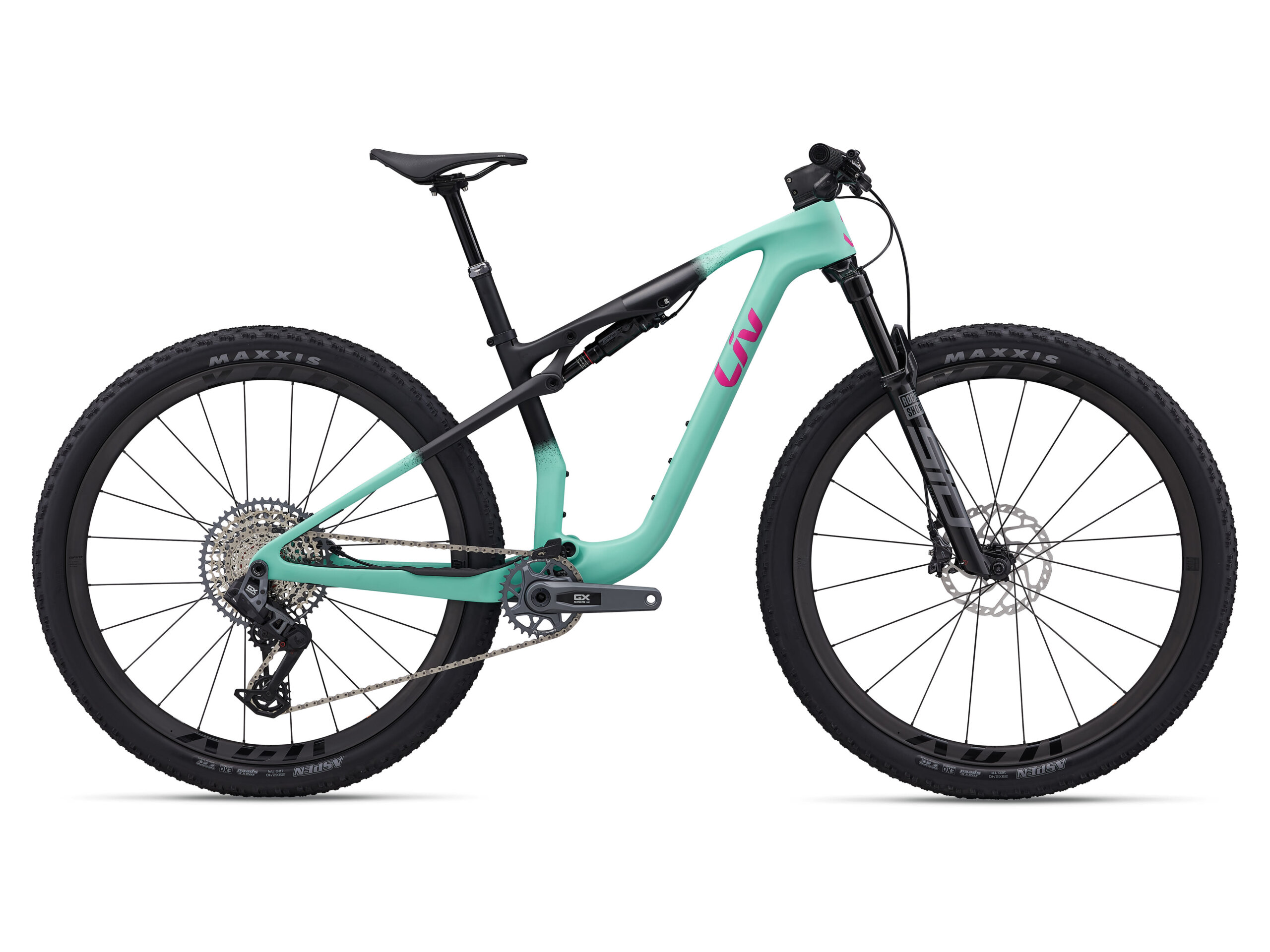

Pique Advanced SL 1

Built for racers obsessed with speed, performance, and control, the new Pique Advanced SL is engineered to deliver. Components are designed to work seamlessly together as one optimized system. The 120mm single-pivot FlexPoint Pro rear suspension is now semi-integrated with your top tube for a lighter, more efficient ride. And the flip chip lets you adjust your geometry for the course ahead and the fire inside.

Additional information

Size	L, M, S, XS
Color	Lake Green / Black

Specifications

Key Performance Factors

Built for speed
The new Advanced SL-grade composite frame is the lightest we’ve ever designed, achieving exceptional stiffness-to-weight so every pedal stroke returns power almost effortlessly, for swift and decisive acceleration and climbing. Tuned specifically for XC racing, the reengineered FlexPoint Pro Suspension is lighter, more compact, and more responsive.

Built for performance
The Pique Advanced SL is designed as a single optimized system. The new one-piece handlebar-stem with fully integrated cable routing keeps things light, clean, and responsive. Giant WheelSystems with Wide Guard rims give you robust sidewalls so you can run lower tire pressure for extra grip and puncture protection.

Built for results
The updated FlexPoint Pro suspension system offers 120mm of smooth, active rear-wheel travel, paired with a 120mm fork, giving you the control and stability you need when things get technical. The two-position flip chip lets you adjust your geometry for the perfect handling for the course. And the suspension lock-out provides hardtail-like efficiency when you’re climbing a hill or a podium.

Sizes	XS, S, M, L
Colours	Lake Green/Black
Frame	Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle

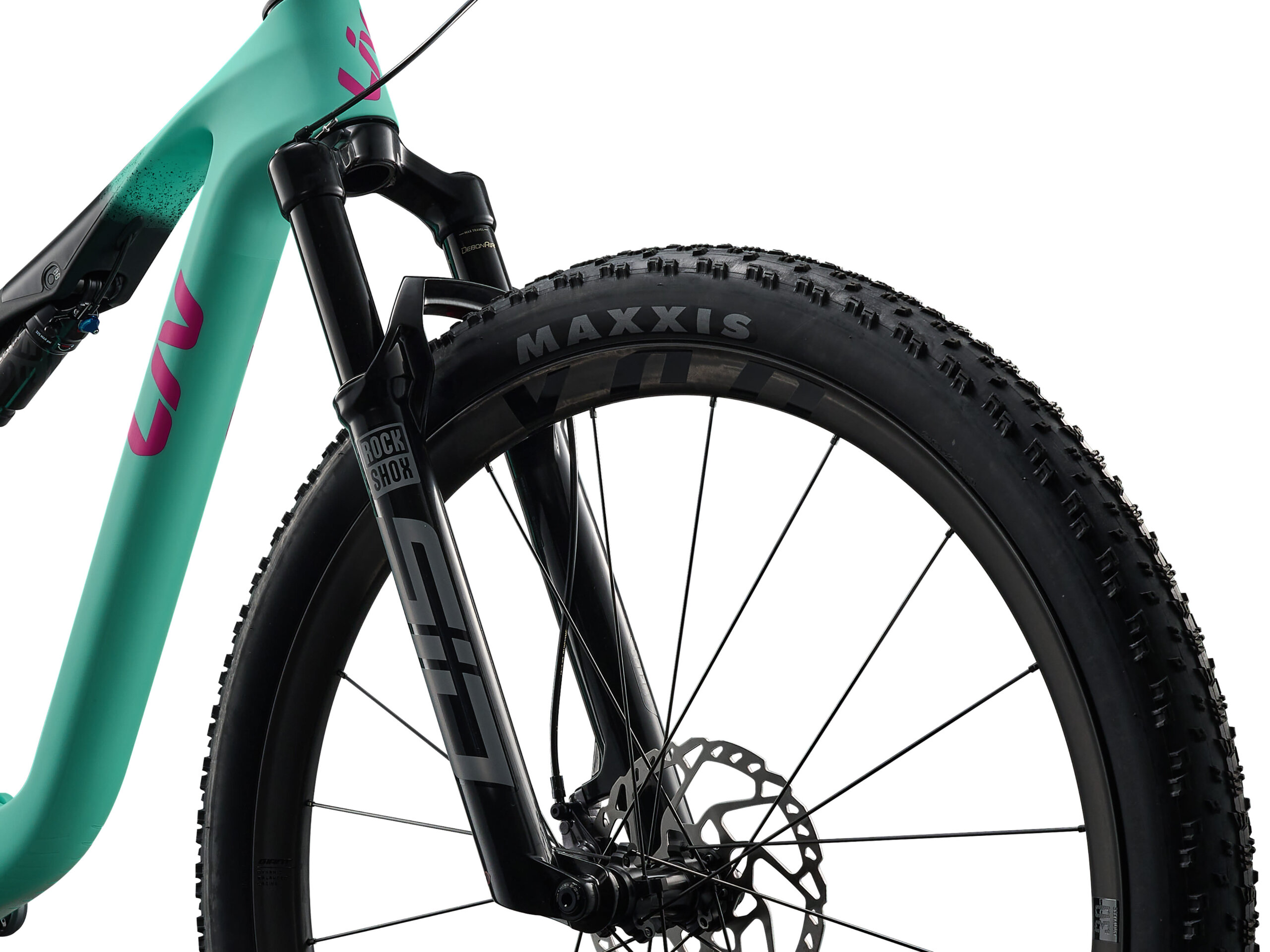

Fork	RockShox Sid Select+ 3P, 120mm, Charger Race Day 2 damper, Boost 15×110, 44mm offset, remote lockout

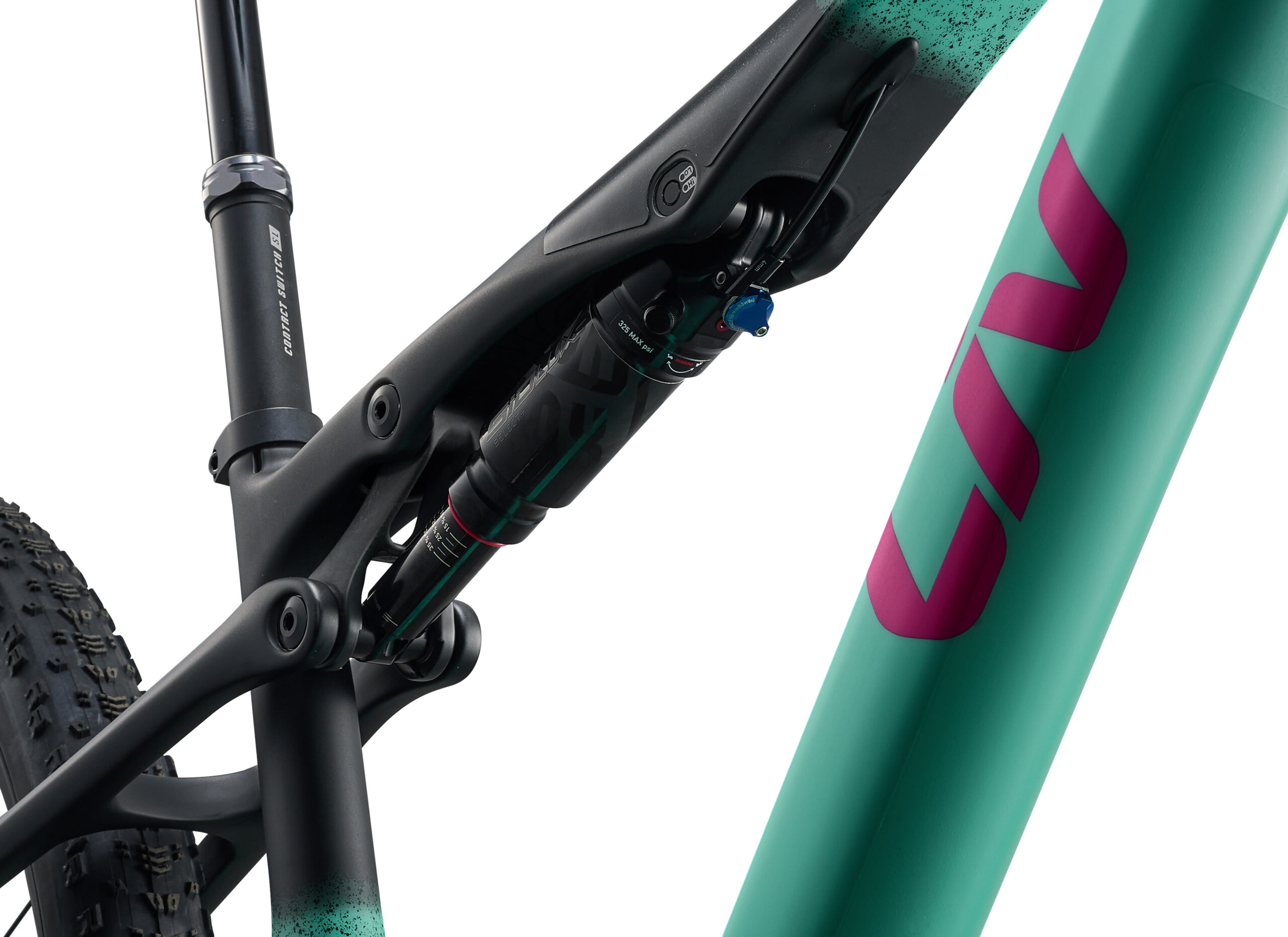

Shock	RockShox SidLuxe Select+, RL damper, Solo Air, 210/50, TwistLoc Ultimate
Handlebar	Giant Integrated XC, composite, 780mm, 9-degree upsweep
Grips	SRAM TwistLoc Ultimate
Stem	Giant Integrated XC Carbon XS: 60, S:60mm, M:70mm, L:70mm
Seatpost	Giant Contact Switch SL dropper, remote XS: 110mm travel S: 110mm travel M: 140mm travel
Saddle	Liv Grit SL
Pedals	N/A
Shifters	SRAM AXS Pod, discrete clamp, 1×12
Front Derailleur	N/A

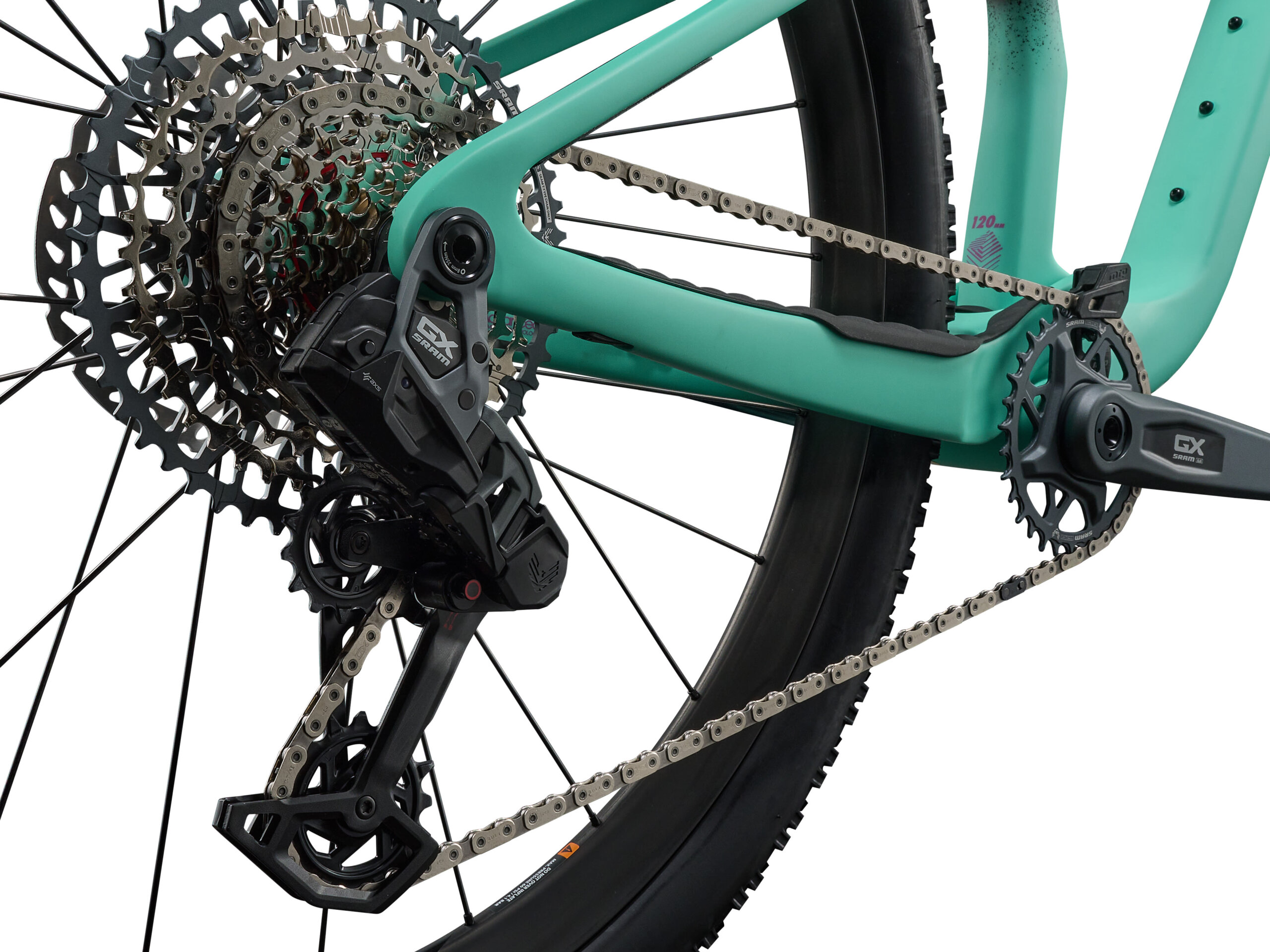

Rear Derailleur	SRAM GX AXS Transmission
Brakes	Shimano Deore XT BR-M8100, hydraulic, Shimano RT-66 rotors [F]180mm, [R]160mm
Brake Levers	Shimano Deore XT BL-M8100
Cassette	SRAM XS 1275, 10×52
Chain	SRAM GX Transmission
Crankset	SRAM GX Transmission, 32t, 55mm chainline XS: 165mm, S:170mm, M:170mm, L:170mm
Bottom Bracket	SRAM DUB, press fit
Rims	Giant XCR Carbon WheelSystem
Hubs	[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes	Sapim
Tyres	Maxxis Aspen 29×2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless
Extras	tubeless prepared, 2.4″ max tire size, 34t max chainring size, MRP SL TR2 chain guide

Geometry

		XS	S	M	L
A	SEAT TUBE LENGTH	400	410	440	470
B	SEAT TUBE ANGLE	75.5	75.5	75.5	75.5
C	TOP TUBE LENGTH	555	572	594	611
D	HEAD TUBE LENGTH	90	95	105	115
E	HEAD TUBE ANGLE	66.5	66.5	66.5	66.5
F	FORK RAKE	44	44	44	44
G	TRAIL	116	116	116	116
H	WHEEL BASE	1,121	1,138	1,162	1,181
I	CHAIN STAY LENGTH	437	437	437	437
J	BOTTOM BRACKET DROP	51	51	51	51
K	STACK	602	607	616	625
L	REACH	399	415	435	450
M	STAND OVER HEIGHT	772	770	765	759
N	HANDLEBAR WIDTH	780	780	780	780
O	STEM LENGTH	60	60	70	70
P	CRANK LENGTH DEC	165	170	170	170
Q	WHEEL SIZE ALT
