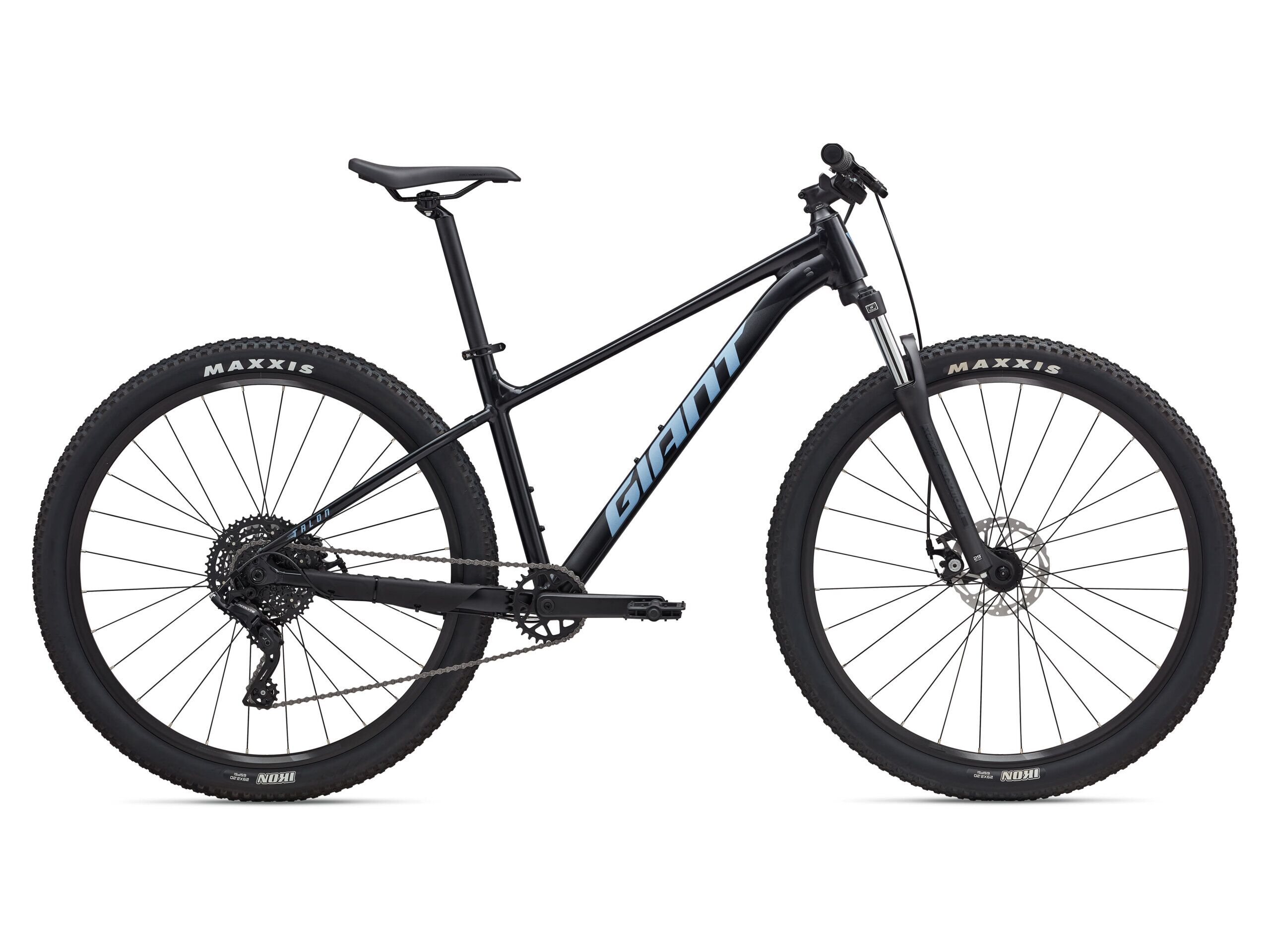

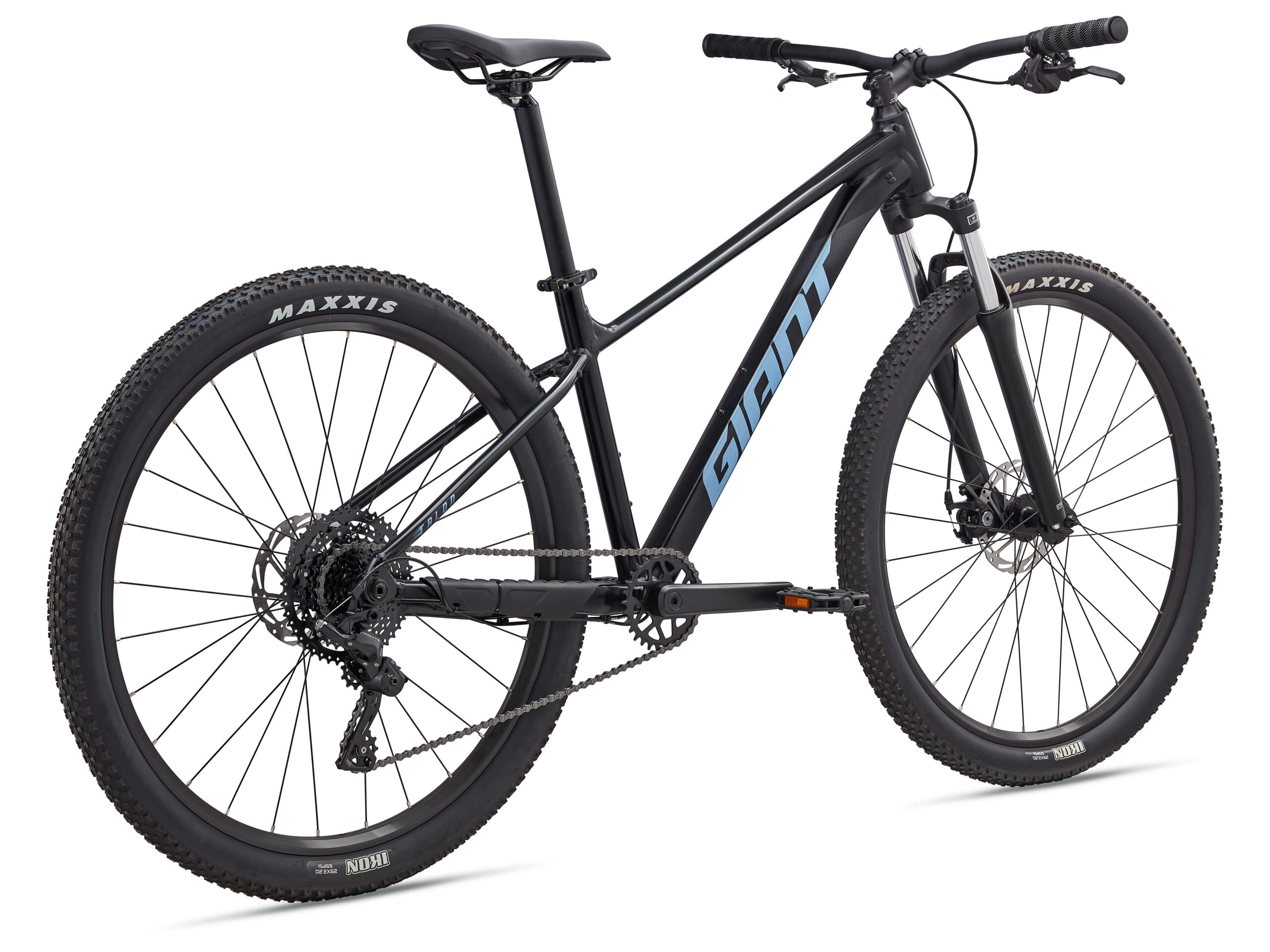

Talon 4

Features:

This product is currently out of stock and unavailable.

SKU: N/A

Specifications

Get a feel for the trail with this all-new aluminium hardtail made for aspiring singletrack riders. It features stable, fast-rolling 29-inch or more-playful 27.5-inch wheels so you can push the pace on climbs and let loose on the descents.

Built on a new lightweight ALUXX aluminium frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.

Key Performance Factors

Proven alloy performance

ALUXX aluminium frameset is hand-built in-house by the world leader in aluminium engineering.

Balance and stability

Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control

Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.

Sizes 27.5: XS,S,M,L 29: S,M,L,XL,XXL
Colours Gloss Eclipse, Gloss Lava Red
Frame ALUXX-Grade Aluminium, disc. Compatible with fenders & kickstand

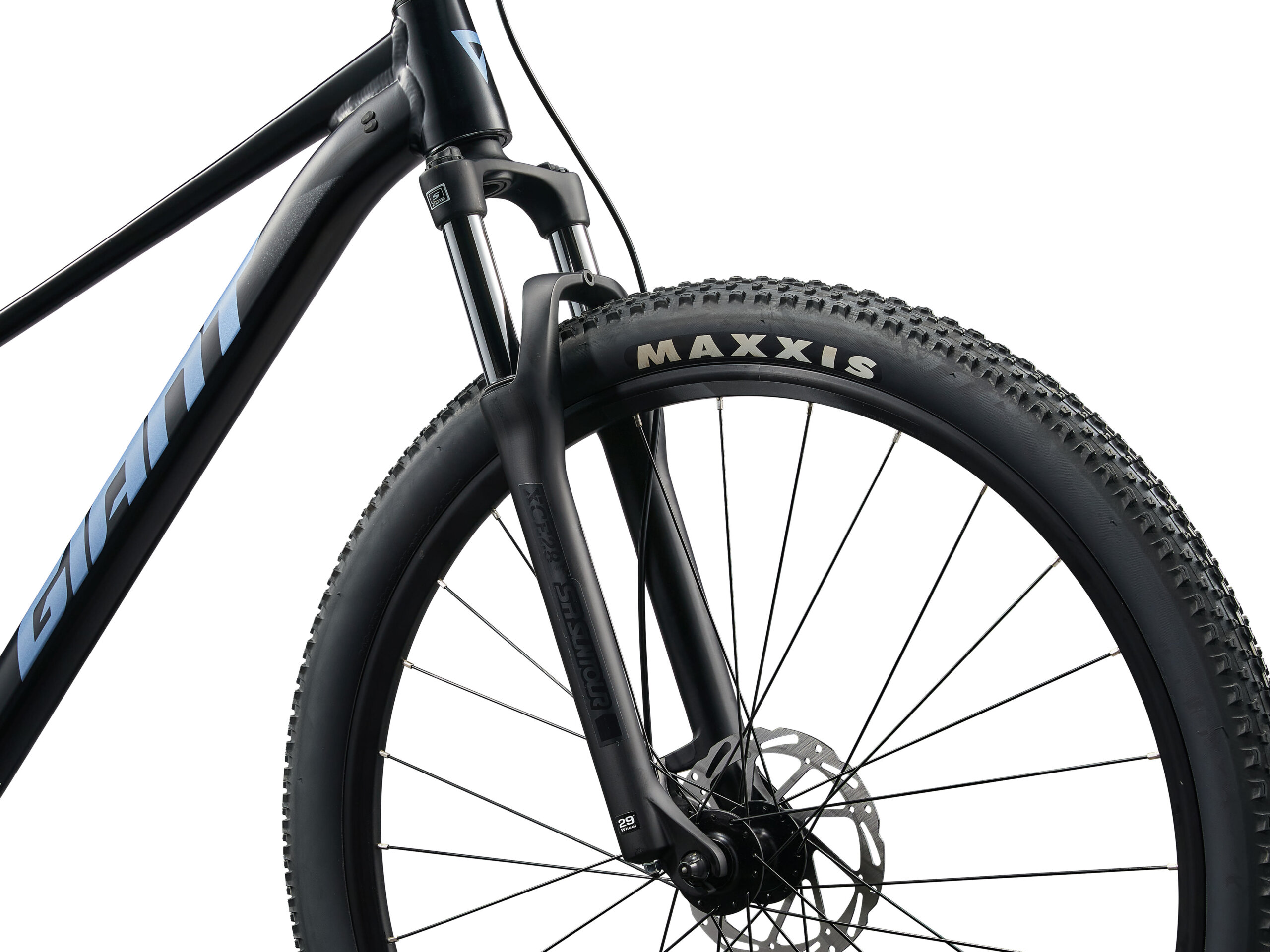

Fork SR Suntour XCE coil spring, 100mm travel (80mm S/XS)
Shock N/A

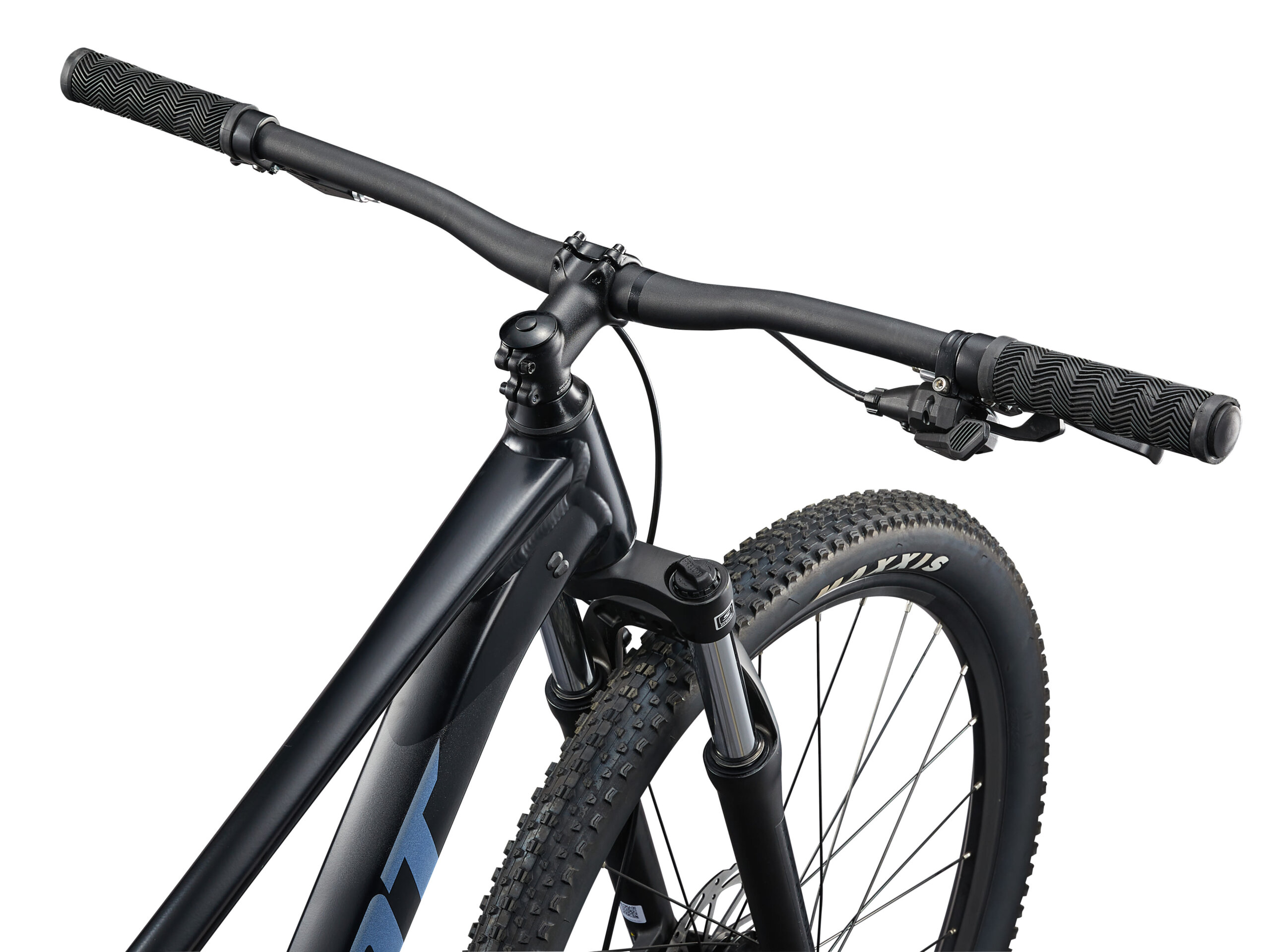

Handlebar Giant Connect Trail, 780×31.8
Stem Giant Sport, 7-degree
Seatpost Giant Sport, 30.9
Saddle Giant custom
Pedals MTB caged
Shifters Shimano SL-M315
Front Derailleur Shimano Altus

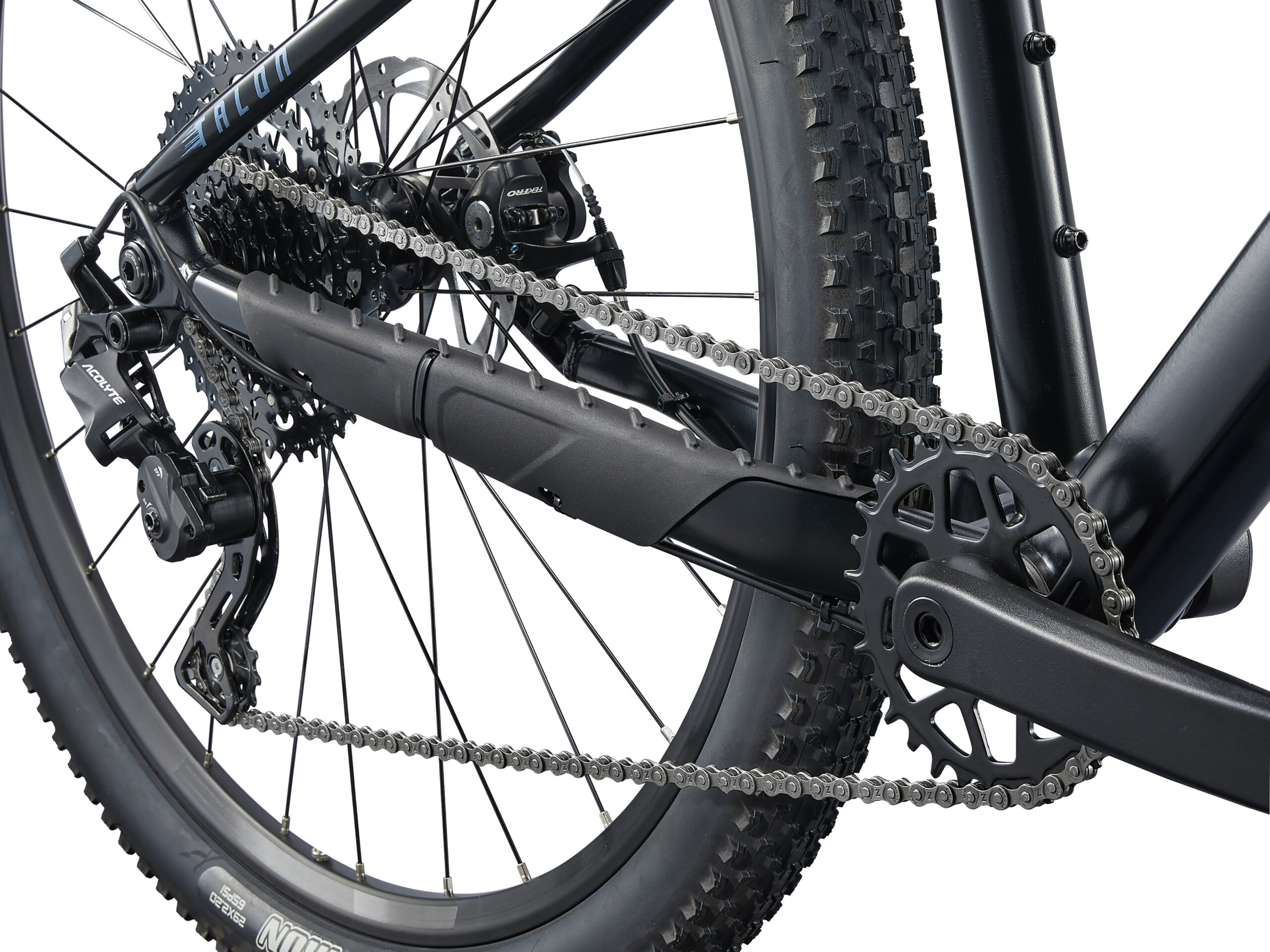

Rear Derailleur Shimano Tourney
Brakes Tektro TKD 172, mechanical
Brake Levers RS360A
Cassette Shimano MF-TZ500, 14×28
Chain KMC Z7
Crankset ProWheel forged, 22/36
Bottom Bracket cartridge
Rims Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs [F]Giant Tracker Giant Sport QR, loose ball [R] Giant Tracker Giant Sport QR, loose ball
Spokes stainless, 14g
Tyres Maxxis Ikon 27.5 or 29×2.2, wire bead (max tyre width possible: 2.4″)

Geometry

    XS (27.5″) S (27.5″) M (27.5″) L (27.5″) XS (27.5″) S (27.5″) M (27.5″) L (27.5″) S (29″) M (29″) L (29″) XL (29″) XXL (29″) S (29″) M (29″) L (29″) XL (29″) XXL (29″)
A Seat Tube Length 350 385 430 490 350 385 430 490 390 440 490 535 565 390 440 490 535 565
B Seat Tube Angle 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74 74
C Top Tube Length 544 569 597 618 544 569 597 618 577 599 620 639 658 577 599 620 639 658
D Head Tube Length 95 115 130 155 95 115 130 155 95 105 125 140 155 95 105 125 140 155
E Head Tube Angle 67.5 67.5 67.5 67.5 67.5 67.5 67.5 67.5 68.5 68.5 68.5 68.5 68.5 68.5 68.5 68.5 68.5 68.5
F Fork Rake 42 42 42 42 42 42 42 42 51 51 51 51 51 51 51 51 51 51
G Trail 103 103 103 103 103 103 103 103 94 94 94 94 94 94 94 94 94 94
H Wheel Base 1079 1106 1137 1162 1079 1106 1137 1162 1126 1150 1172 1192 1213 1126 1150 1172 1192 1213
I Chain Stay Length 440 440 440 440 440 440 440 440 455 455 455 455 455 455 455 455 455 455
J Bottom Bracket Drop 45 45 45 45 45 45 45 45 55 55 55 55 55 55 55 55 55 55
K Stack 533 571 598 621 533 571 598 621 602 611 630 644 658 602 611 630 644 658
L Reach 385 405 425 440 385 405 425 440 404 424 439 454 469 404 424 439 454 469
M Stand Over Height 686 711 748 794 686 711 748 794 732 766 805 839 856 732 766 805 839 856
N Handlebar Width 780 780 780 780 780 780 780 780 780 780 780 780 780 780 780 780 780 780
O Stem Length 40 50 60 70 40 50 60 70 50 60 70 80 90 50 60 70 80 90
P Crank Length Dec 165 170 175 175 165 170 175 175 170 175 175 175 175 170 175 175 175 175
Q Wheel Size Alt 27.5″ 27.5″ 27.5″ 27.5″ 27.5″ 27.5″ 27.5″ 27.5″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
