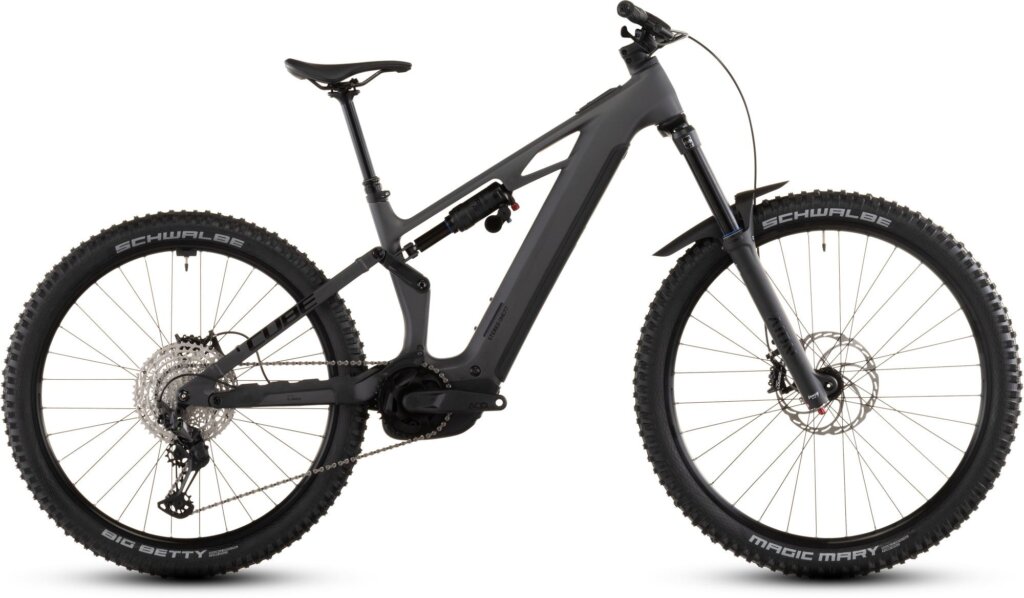

CUBE STEREO HYBRID ONE77 HPC RACE 800 IRONGREY XL
You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and 800Wh PowerTube battery work with Shimano’s XT 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Louise hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Triair 2CR piggyback shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you’ll take back down the mountain.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
STEREO HYBRID ONE77 HPC
You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and 800Wh PowerTube battery work with Shimano’s XT 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Louise hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Triair 2CR piggyback shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you’ll take back down the mountain.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
| Fork | |
|---|---|
| Fork Brand | SUNTOUR |
| Fork Model | Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm |
| Fork Suspension | 1 |
| Fork Brand Description | Suntour |
| Stem | |
| Stem Brand | CUBE |
| Stem Model | Performance Stem E-MTB 35, FPI-Link |
| Stem Brand Description | Cube |
| Chain | |
| Chain Brand | KMC |
| Chain Model | e12 |
| Chain Brand Description | KMC |
| Frame | |
| Frametype | UNI |
| Framematerial | CARBON |
| Framesize Supplier | L |
| Frametype Description | Unisex |
| Framematerial Description | Carbon |
| Gears | |
| Gear Type | DERAILLEUR |
| Gear Brand | SHIMANO |
| Gear Model | XT |
| Number Of Gears | 12 |
| Gear Brand Description | Shimano |
| Gear Type Description | Derailleur |
| Pedals | |
| Pedals Brand | ACID |
| Pedals Model | PP MTB |
| Pedals Brand Description | Acid |
| Saddle | |
| Saddle Brand | ACID |
| Saddle Model | Venec EMTB Trail 140 |
| Saddle Brand Description | Acid |
| Wheels | |
| Wheels Brand | ACID |
| Wheels Model | SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Wheels Brand Description | Acid |
| Headset | |
| Headset Brand | ACROS |
| Headset Model | AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Headset Brand Description | Acros |
| Cassette | |
| Cassette Brand | SHIMANO |
| Cassette Model | Deore CS-M6100, 10-51T |
| Cassette Brand Description | Shimano |
| Crankset | |
| Crankset Brand | ACID |
| Crankset Model | MTB Hybrid Pro, 36T |
| Crankset Brand Description | Acid |
| Seatpost | |
| Seatpost Brand | CUBE |
| Seatpost Model | Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Seatpost Brand Description | Cube |
| Shifters | |
| Shifters Brand | SHIMANO |
| Shifters Model | Deore SL-M6100, Rapidfire-Plus |
| Shifters Brand Description | Shimano |
| Handlebar | |
| Handlebar Brand | CUBE |
| Handlebar Model | Rise Trail Bar 35 |
| Handlebar Brand Description | Cube |
| Front Brake | |
| Front Brake Type | SH |
| Front Brake Brand | MAGURA |
| Front Brake Model | Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Front Brake Brand Description | Magura |
| Front Brake Type Description | Disc brake with hydraulic actuation |
| Seatpost Clamp | |
| Seatpost Clamp Brand | CUBE |
| Seatpost Clamp Model | Semi-Integrated |
| Seatpost Clamp Brand Description | Cube |
| Derailleur Rear | |
| Derailleur Rear Brand | SHIMANO |
| Derailleur Rear Model | XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Derailleur Rear Brand Description | Shimano |
| Bartape Or Grips | |
| Bartape Or Grips Brand | ACID |
| Bartape Or Grips Model | Disrupt, Soft Compound |
| Bartape Or Grips Brand Description | Acid |
| Primary Rear Brake | |
| Primary Rear Brake Type | SH |
| Primary Rear Brake Brand | MAGURA |
| Primary Rear Brake Model | Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Primary Rear Brake Brand Description | Magura |
| Primary Rear Brake Type Description | Disc brake with hydraulic actuation |
| Physical Specifications | |
| Size | L |
| Colour | IRONGREY/BLACK |
| Net Weight | 25.4 |
| Gross Weight | 30.4 |
| Weight Capacity | 150 |
| Primary Basecolour | GREY |
| Secondary Basecolour | BLACK |
| Primary Basecolour Description | Grey |
| Secondary Basecolour Description | Black |
