Talon 3
  • Talon 3

Talon 3

€669.00

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Clear

Category: , ,   Tag: , ,

View

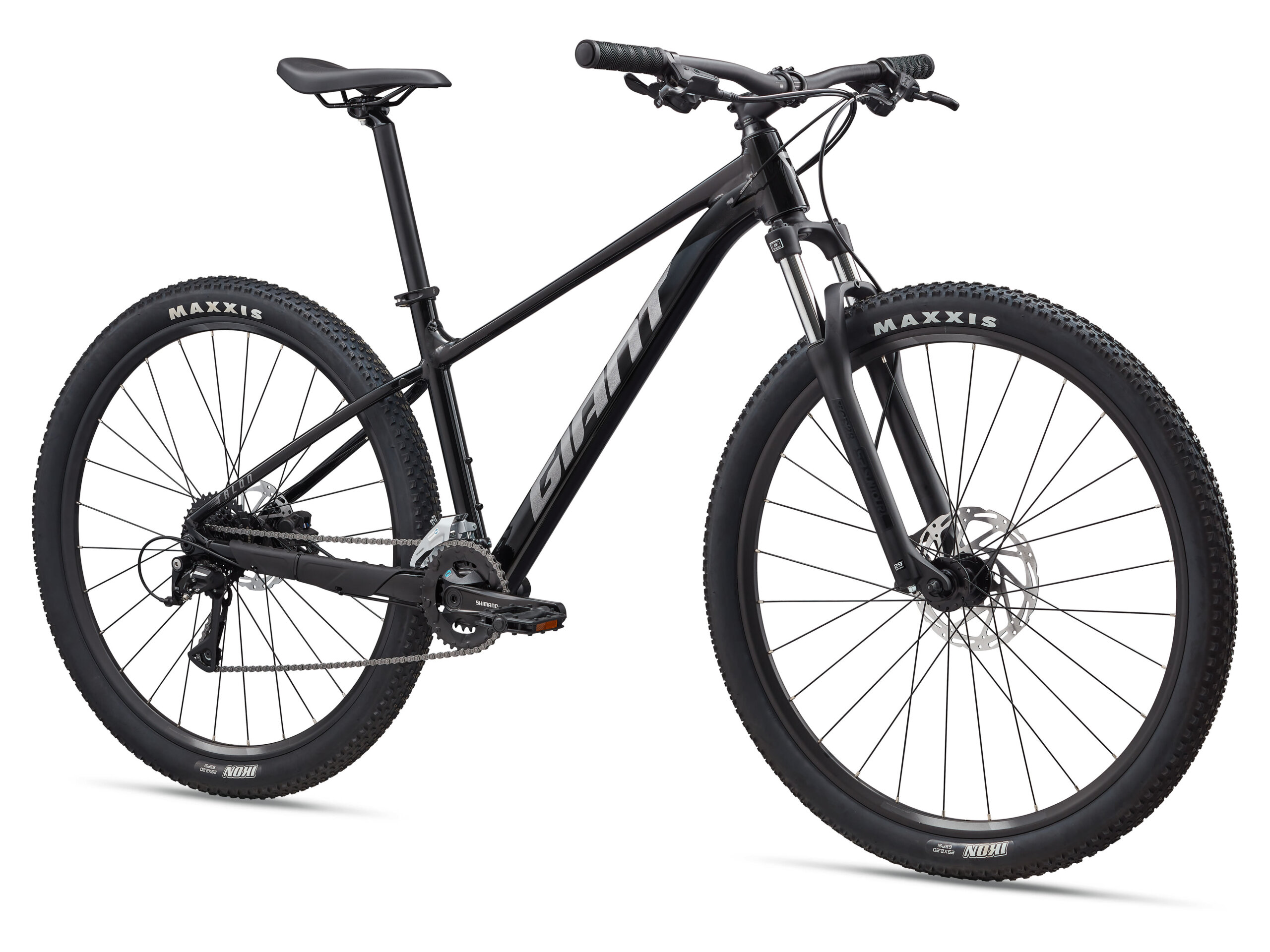

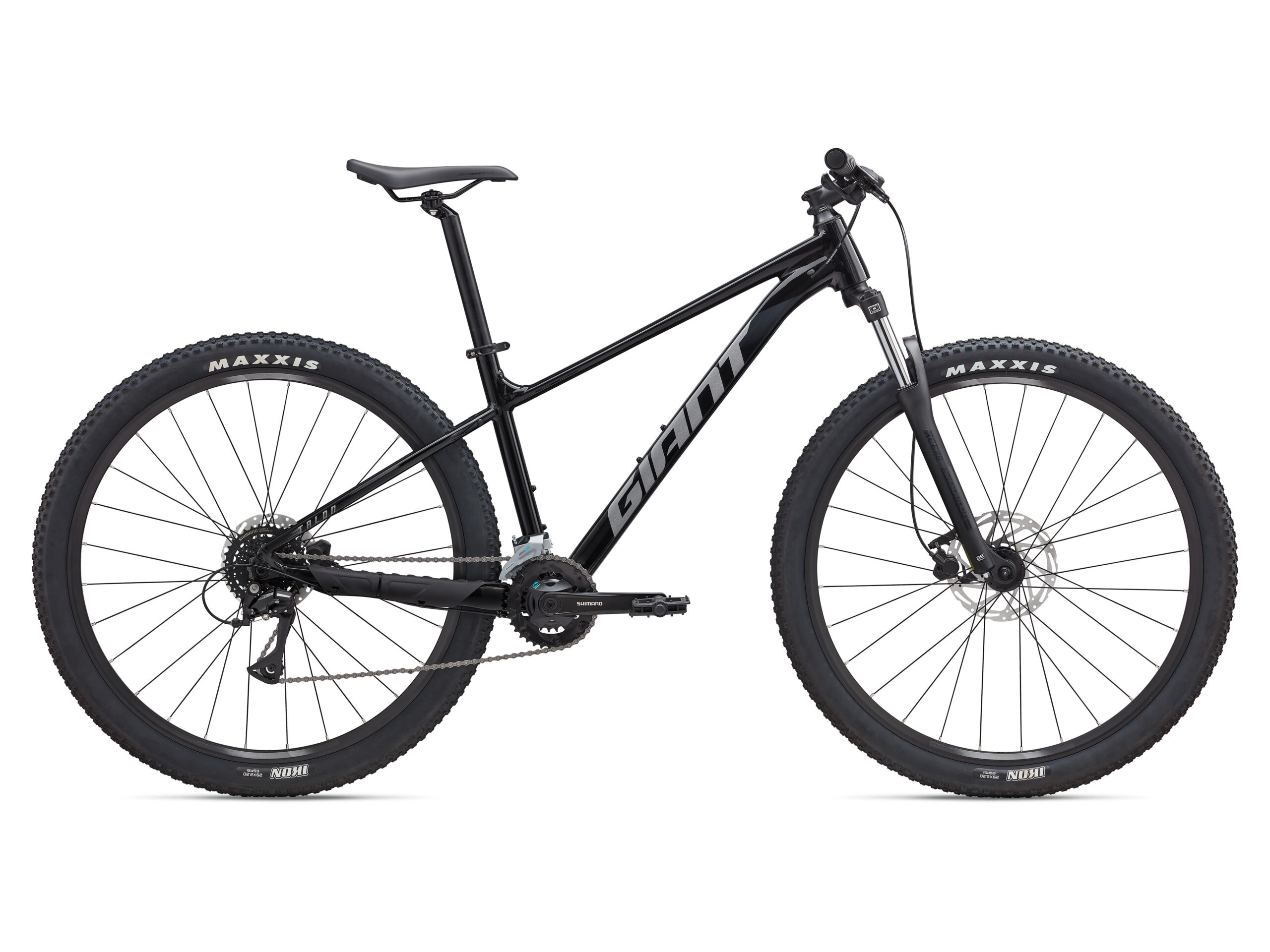

The Talon 3 mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Size L, M, S, XL, XS, XXL
Color Beeswax, Frost Silver, Panther

Specifications

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Key Performance Factors

Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow.
*on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Sizes 27.5: XS,S 29: M,L,XL,XXL
Colours Gloss Frost Silver, Gloss Beeswax, Gloss Panther
Frame ALUXX-grade aluminium, disc

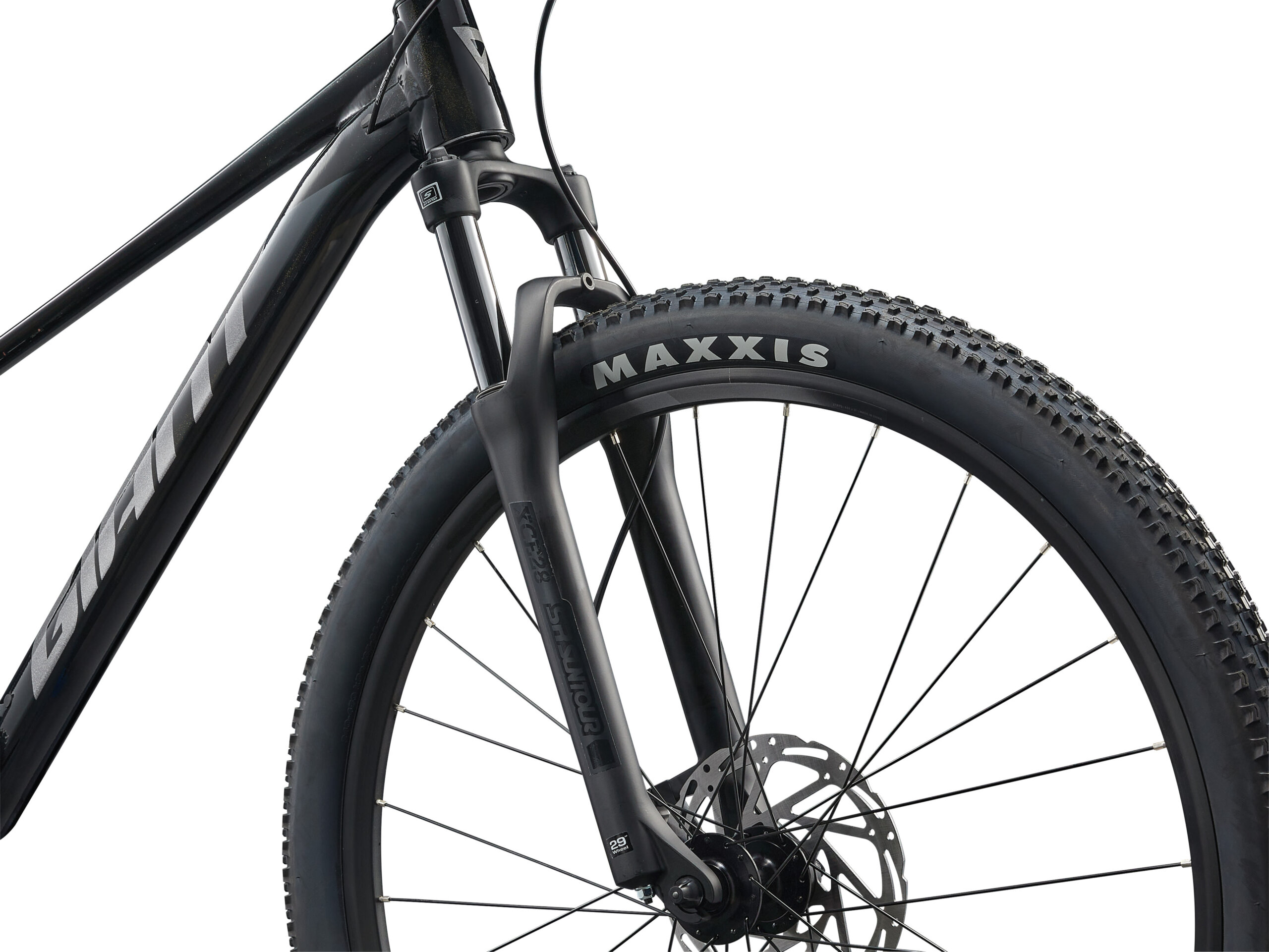

Fork SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
Shock N/A

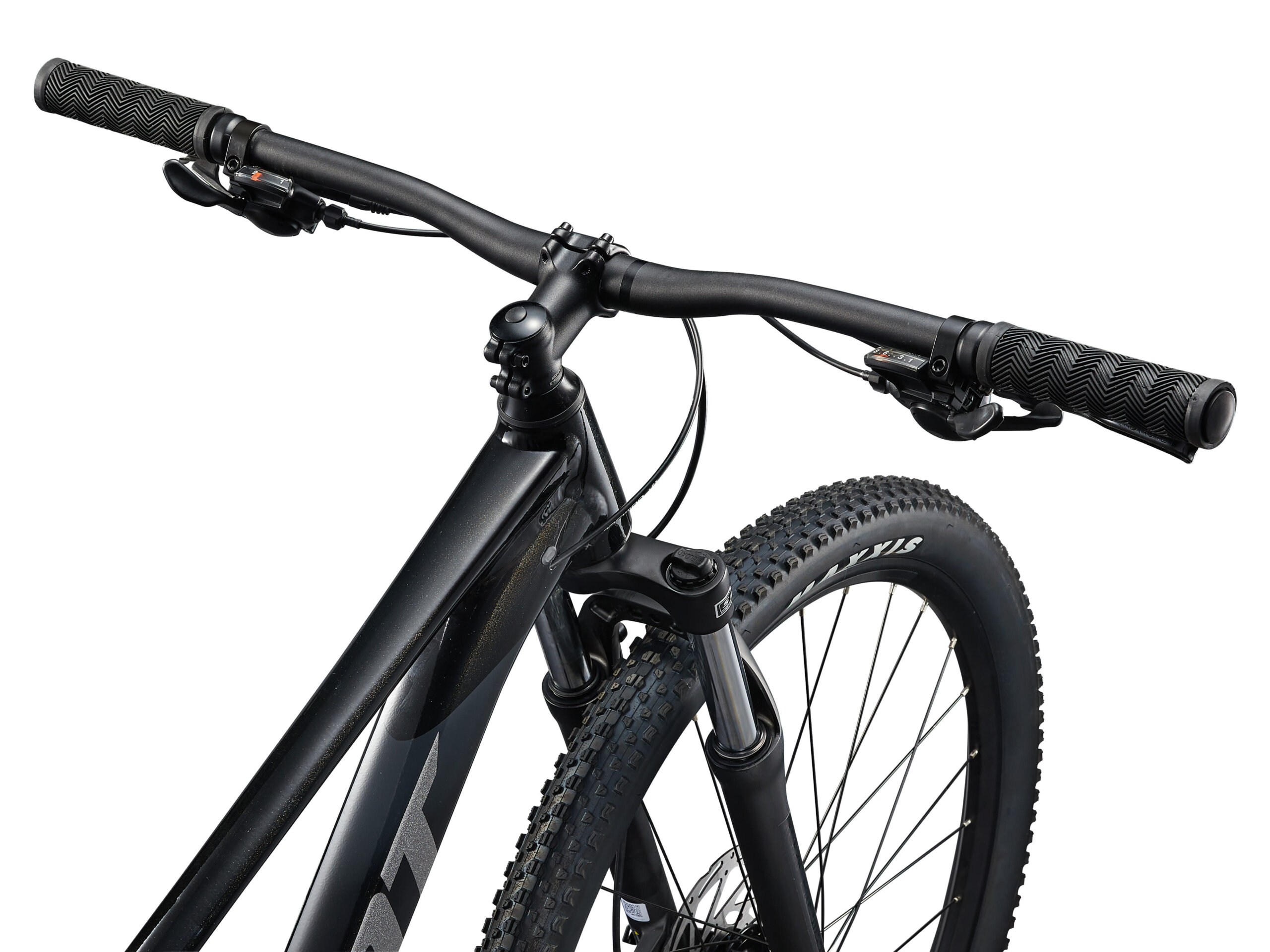

Handlebar Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
Grips Giant Sole-O
Stem Giant Sport, 7-degree rise
Seatpost Giant Sport, 30.9mm
Saddle Giant ErgoContact Trail
Pedals MTB caged

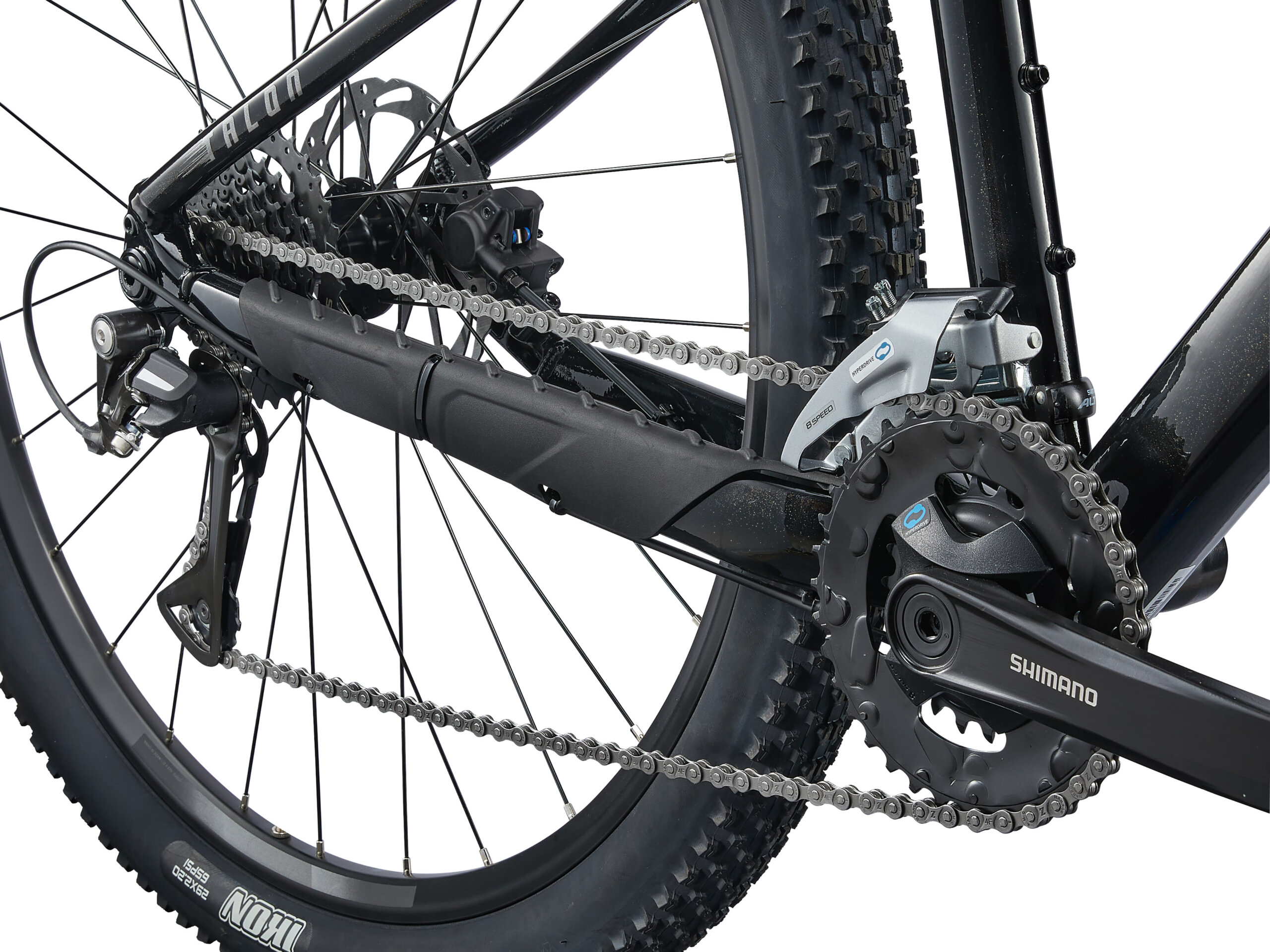

Shifters Shimano Altus, 2×8
Front Derailleur Shimano Altus
Rear Derailleur Shimano Acera

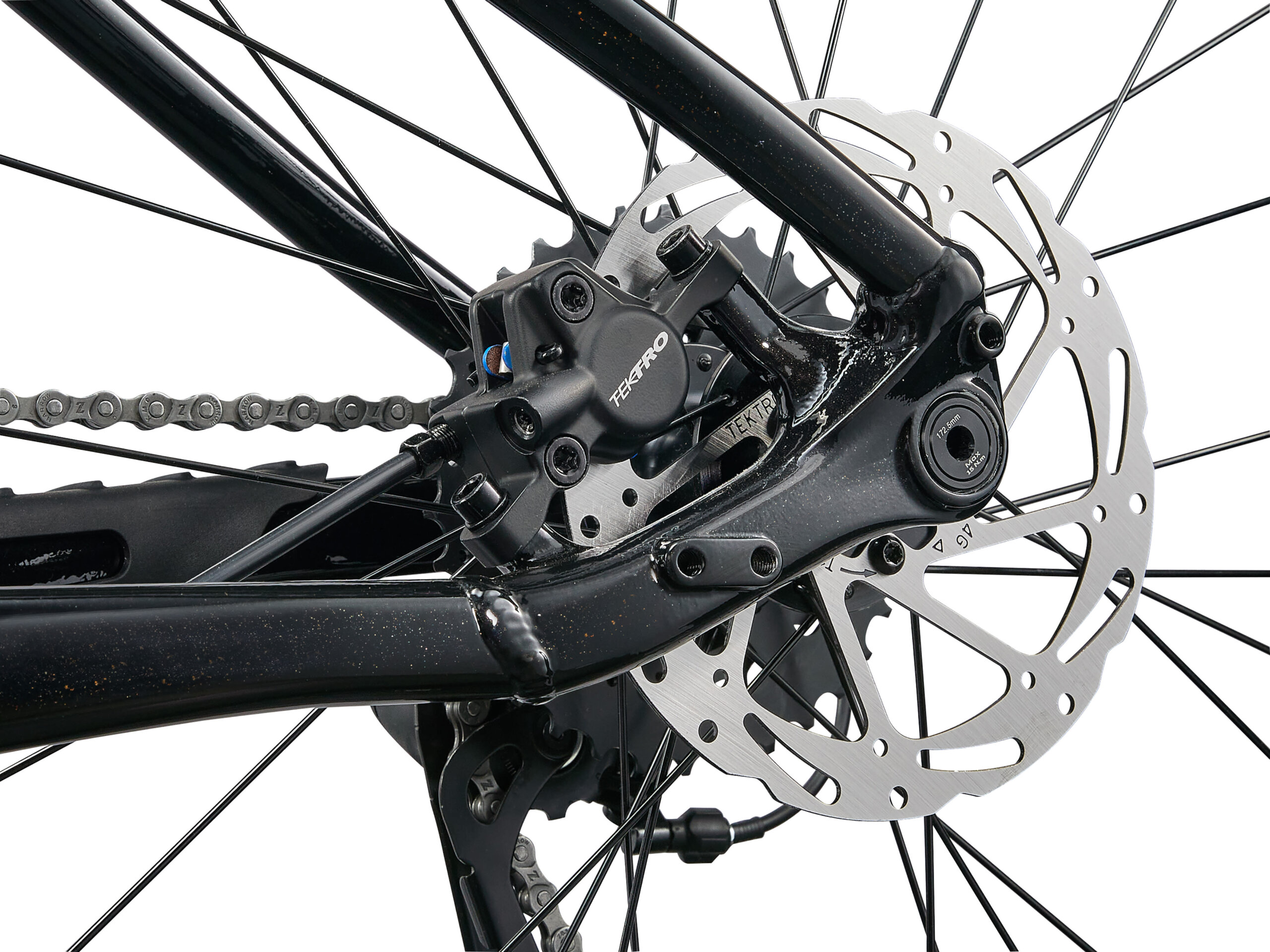

Brakes Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers Tektro HDC M275
Cassette Shimano Altus HG31, 11×34
Chain KMC 8.3
Crankset Shimano Altus FC-M315, 22/36
Bottom Bracket VP cartridge
Rims Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs [F] QR alloy, sealed bearing, [R] Giant Tracker hub, 12×142 thru axle, 24-pawl drive
Spokes stainless, 14g
Tyres Maxxis Ikon 27.5×2.2 or Maxxis Ikon 29×2.2, wire bead
Extras 2.4″ max tyre size

Highlights

Barcode : 4711291098985

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 345 375 420 450 480
B SEAT TUBE ANGLE 74 74 74.5 74.5 74.5
C TOP TUBE LENGTH 542 562 604 629 653
D HEAD TUBE LENGTH 90 90 105 125 140
E HEAD TUBE ANGLE 67 67 67.5 67.5 67.5
F FORK RAKE 44 44 44 44 44
G TRAIL 105.2 105.2 108.9 108.9 108.9
H WHEEL BASE 1,084 1,104 1,164 1,191 1,217
I CHAIN STAY LENGTH 440 440 455 455 455
J BOTTOM BRACKET DROP 45 45 55 55 55
K STACK 548 548 606 625 639
L REACH 385 405 436 456 476
M STAND OVER HEIGHT 684 684 709 709 710
N HANDLEBAR WIDTH 690 690 690 690 690
O STEM LENGTH 40 50 60 70 80
P CRANK LENGTH DEC 170 165 170 170 175
Q WHEEL SIZE ALT 27.5″ 27.5″ 29″ 29″ 29″

Technology and features

ALUXX Aluminum Technology
