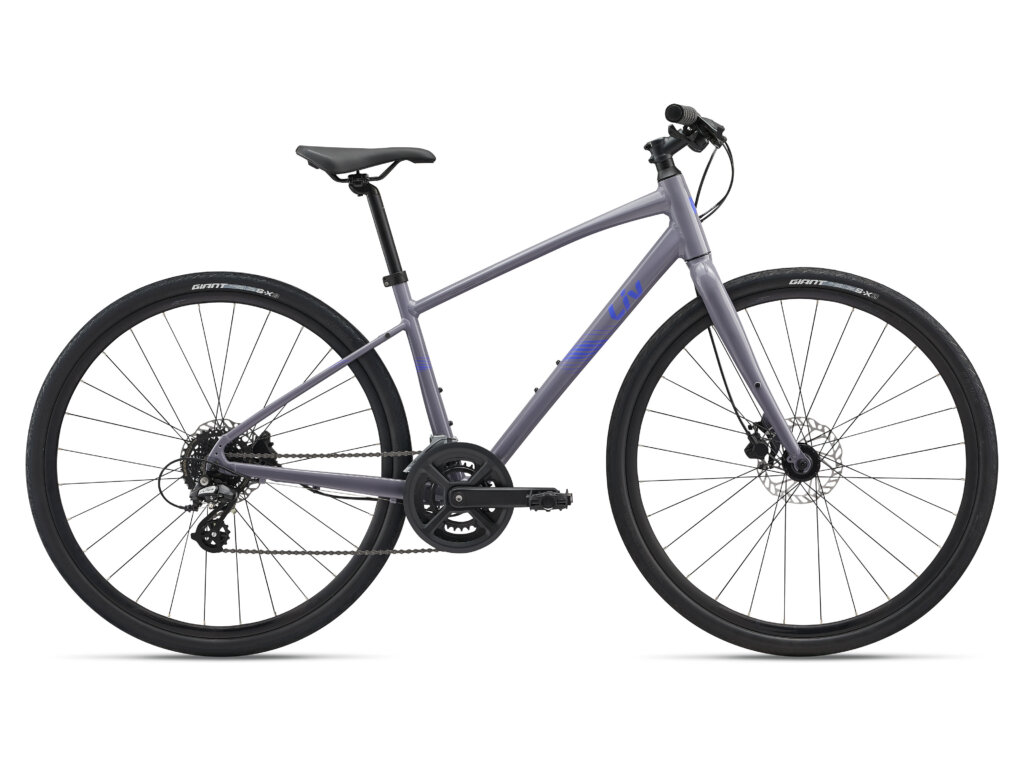

Alight Disc 3

€725.00

The Alight Disc features an easy on and off frame design, touchpoints to maximize comfort and is available in Alight Disc City models equipped with fenders, a rack and a kickstand making the ride on the bike path or the commute to work more enjoyable.

Category: City Bikes Tag: 3247, Apply Now, Liv Women

View

The Alight Disc features an easy on and off frame design, touchpoints to maximize comfort and is available in Alight Disc 3 City models equipped with fenders, a rack and a kickstand making the ride on the bike path or the commute to work more enjoyable.

Size L, M, S, XS

Color Night Haze

Specifications

Key Performance Factors

Versatility
Run errands easily with the Alight’s included fenders, rear rack, and kickstand (select models).

Comfort
Staying comfortable on your rides around town is a non-negotiable, so the Alight has an easy on and off frame, and comes with shock-absorbing grips, a pressure-relieving saddle, and a suspension seatpost.

Control
The Alight’s powerful disc brakes work in dry or wet conditions, and with the increased fork clearance, you can install up to a 40c tire which allows for greater traction.

Sizes	XS, S, M, L
Colours	Night Haze, Pale Olive
Frame	ALUXX-grade aluminum, disc
Fork	high tensile steel, disc
Shock	N/A
Handlebar	Giant Sport flat, 25.4mm, 20mm riser XS: 600mm, S: 600mm, M: 640mm, L: 640mm
Grips	Sole O Grip
Stem	Giant Sport, 25.4mm XS: 75mm, S: 75mm, M: 90mm, L: 90mm
Seatpost	Giant D-Fuse, alloy XS:300mm, S:300mm, M:300mm, L:350mm
Saddle	Liv ErgoMax
Pedals	platform
Shifters	Shimano Altus, 2×8
Front Derailleur	Shimano Altus
Rear Derailleur	Shimano Altus
Brakes	Tektro [F] HD-T275, [R] HD-R280 hydraulic [F]160mm, [R]160mm
Brake Levers	Tektro hydraulic
Cassette	Shimano CS-HG318, 11×34
Chain	KMC Z8.3
Crankset	Forged alloy, 30/46 with chainguard XS: 165mm, S: 165mm, M: 170mm, L: 170mm
Bottom Bracket	cartridge
Rims	Giant GX Disc wheelset
Hubs	Giant alloy, QR
Spokes	stainless
Tyres	Giant S-X3, 700x38c
Extras	42mm or 40c max tire size, reflective stickers, rack, kickstand and fender frame mounts

Highlights

Barcode : 4711291110458

Geometry

		XS	S	M	L
A	SEAT TUBE LENGTH	370	420	460	500
B	SEAT TUBE ANGLE	73.5	73.5	73	73
C	TOP TUBE LENGTH	535	550	570	590
D	HEAD TUBE LENGTH	130	150	160	175
E	HEAD TUBE ANGLE	70	70.5	71	71
F	FORK RAKE	50	50	50	50
G	TRAIL	78.2	74.8	71.4	71.4
H	WHEEL BASE	1,044	1,055	1,065	1,085
I	CHAIN STAY LENGTH	445	445	445	445
J	BOTTOM BRACKET DROP	62	62	62	62
K	STACK	554	575	587	601
L	REACH	371	380	391	406
M	STAND OVER HEIGHT	591	590	591	587
N	HANDLEBAR WIDTH	600	600	640	640
O	STEM LENGTH	80	80	90	100
P	CRANK LENGTH DEC	165	165	170	170
Q	WHEEL SIZE ALT	700C	700C	700C	700C
